LD Systems DAVE 12 G3 Compact 12" active PA System

LD Systems DAVE 12 G3 - Active PA-System with DSP

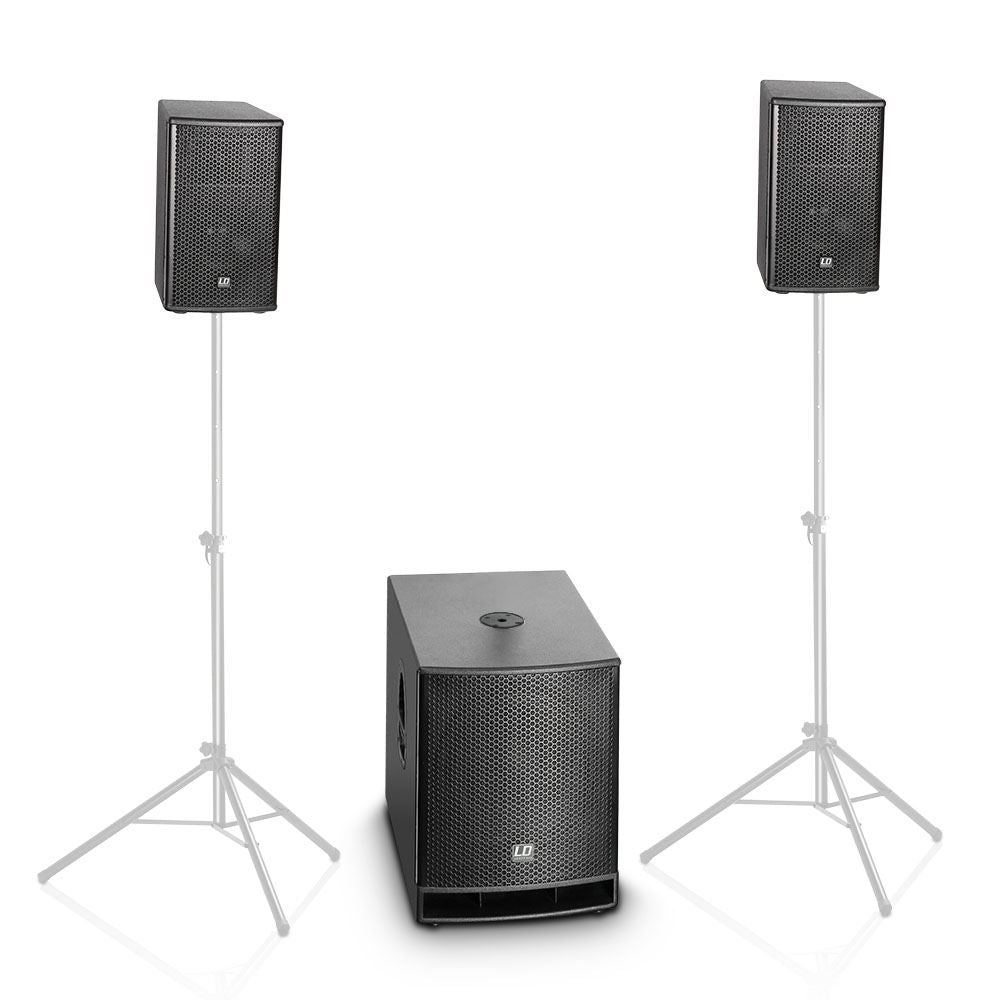

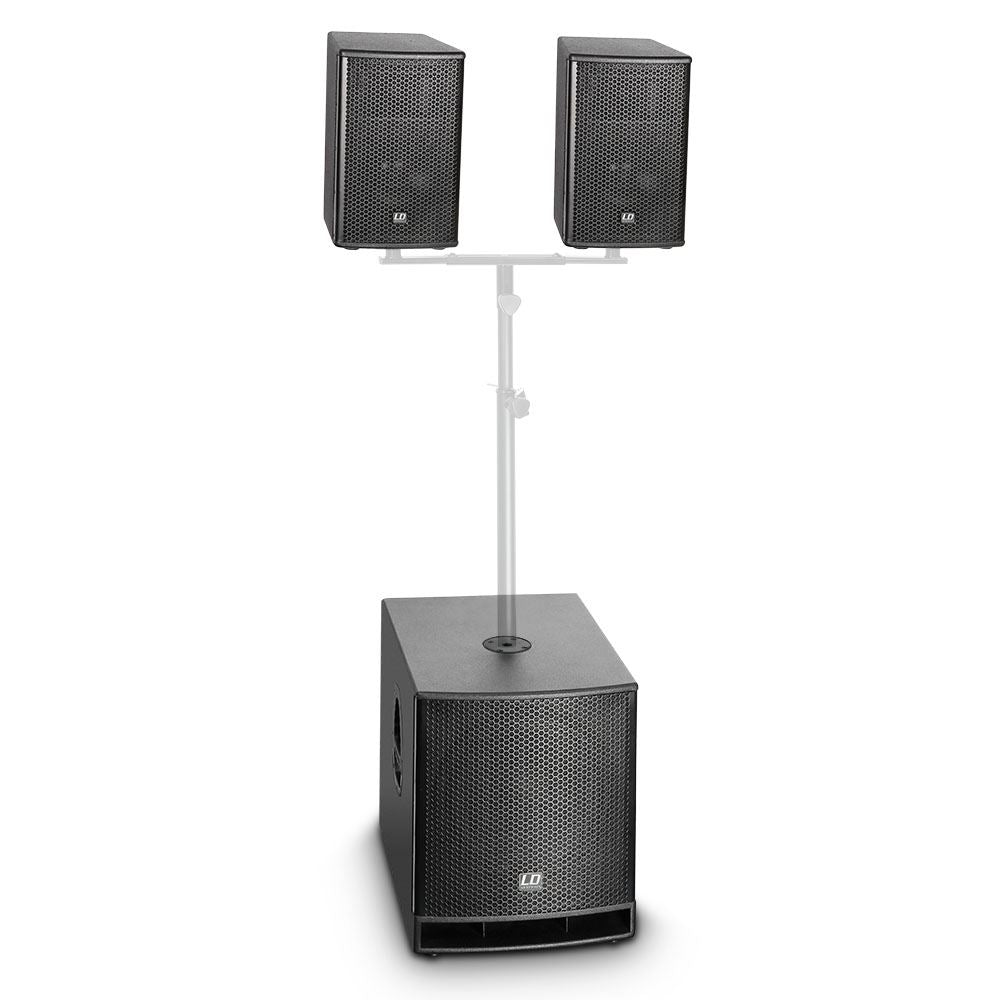

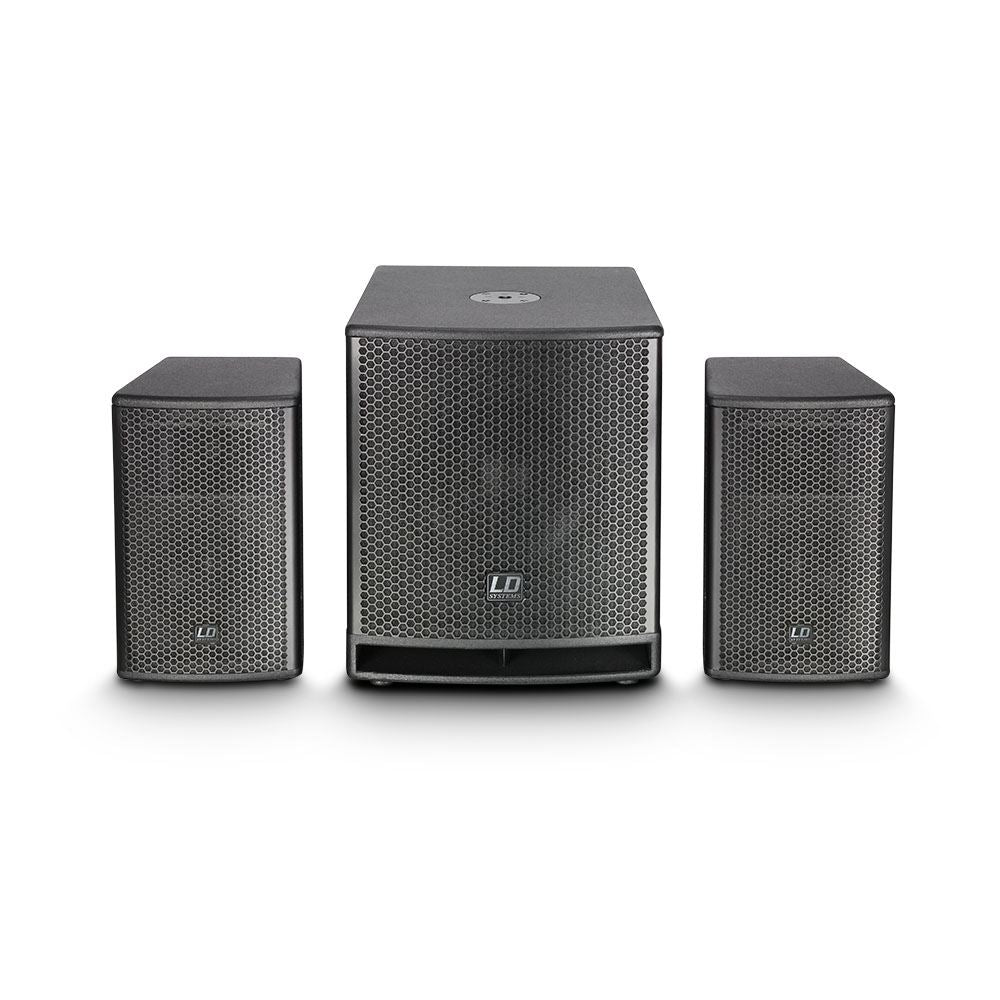

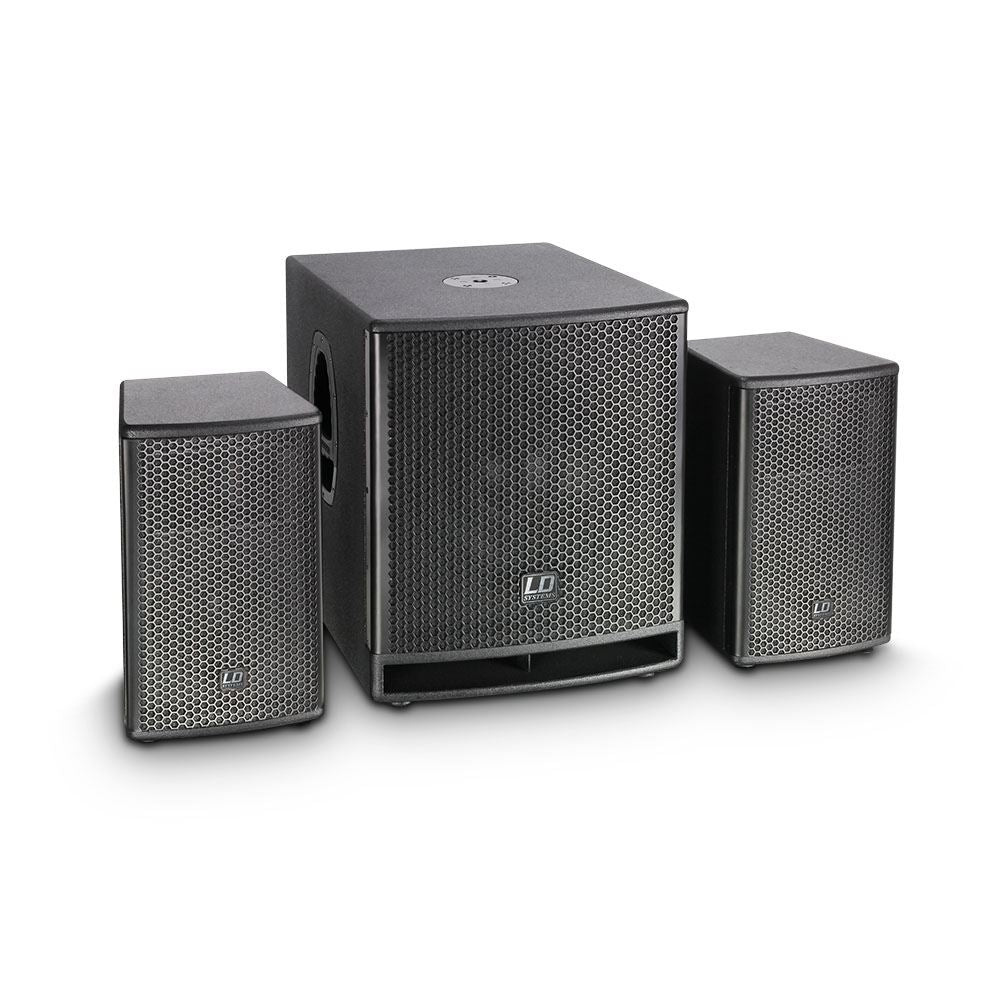

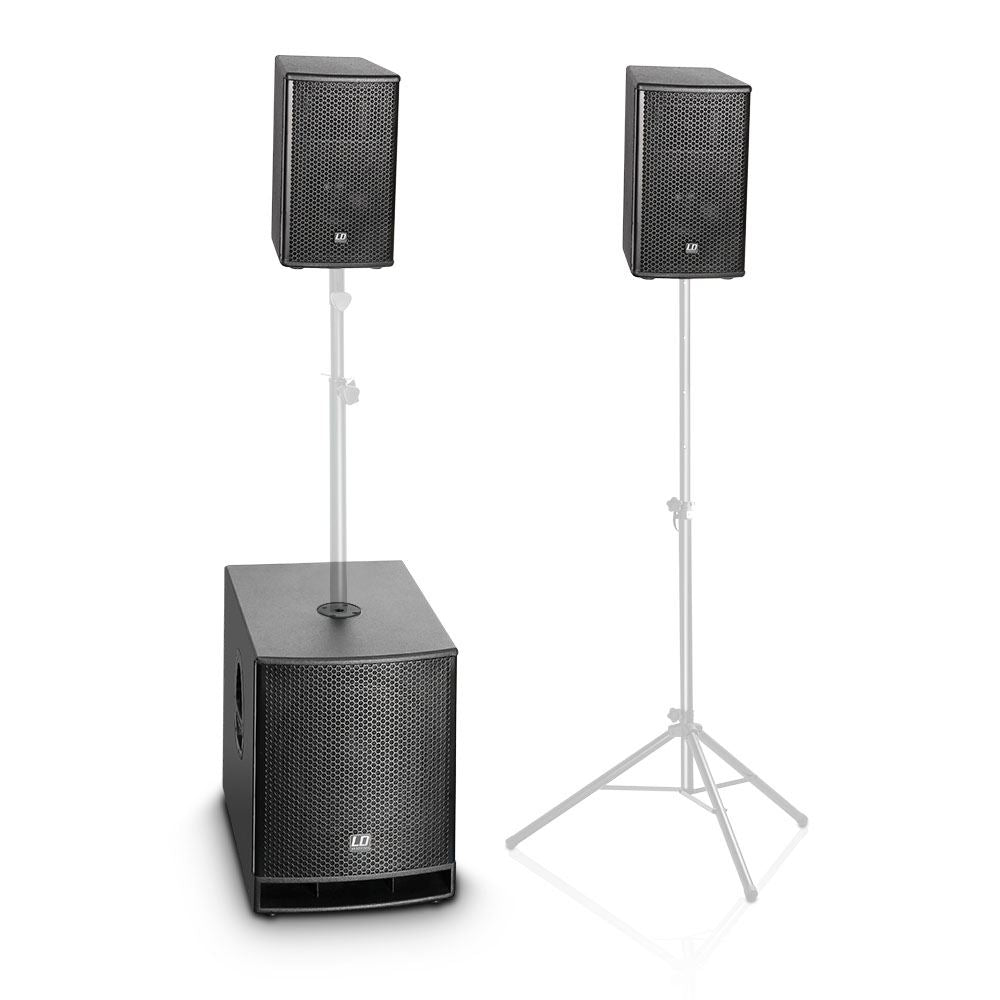

The new LD Systems DAVE 12 G3 is the perfect active PA system for high-powered live gigs, multimedia presentations, and permanent installations in bars and clubs. A 12" bass reflex subwoofer and the satellites with 6.5" drivers and HF horns ensure a good sound with driving, defined bass, natural mids, and clear treble. The 2.1 power amp stage is built into the subwoofer and provides the system components with 2000 W Peak power.

The soul of the DAVE 12 G3 is the LD LECC DSP digital signal processor, which controls all important system functions. It includes specially amplitude and low-latency optimised crossovers, separate equalisers and limiters for the bass, mid, and treble frequency ranges, and a dynamic compressor that controls the subwoofer according to volume and provides for increased punch at low volumes.

The professional full range of features of the DAVE 12 G3 includes sturdy multiplex cabinets, all important protection circuits, RCA, XLR/jack combo and Speakon-compatible connectors, and ergonomically shaped, recessed handles. The LD "Evolutive" handles of the subwoofer are an important innovation with a metal ring handle that permits a secure and convenient grip from all sides. For accurate vertical orientation of the satellites, the speaker supports are vertically adjustable by � 13,5° max. in seven increments.

Protection covers for the system components and a castor board with a lashing strap for easy transport are available as accessories. Matching speaker stands, spacer tubes, and mounting forks are also available separately.

The DAVE 12 G3 system is ideally suited for portable use and also makes a great impression in permanent installations.

Specifications
Weight: 48,5 kg
Product type: PA Complete Systems
Colour: Black
Max. SPL (continuous): 119 dB
Max. SPL (peak): 130 dB
Frequency response: 40 - 19000 Hz
Dispersion (H x V): 90 x 40
Subwoofer
Low/mid driver dimensions: 12 "
Woofer size: 304.8 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil: 2.5 "
Woofer voice coil (mm): 63.5 mm

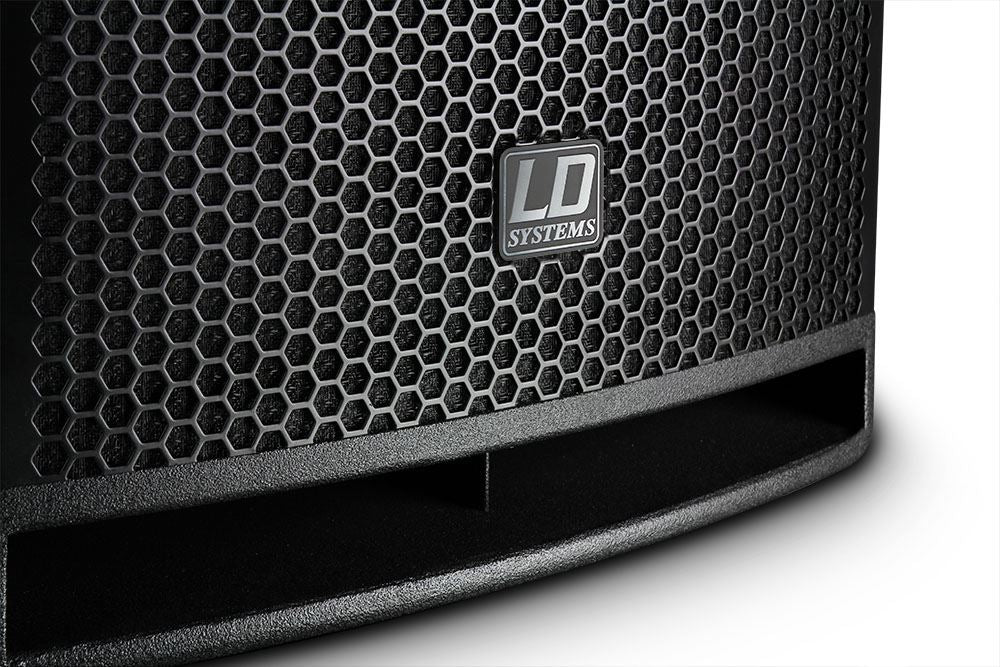

Cabinet construction: Bass Reflex
Cabinet material: 15 mm Plywood
Cabinet surface: texture paint
Subwoofer width: 435 mm
Subwoofer height: 500 mm
Subwoofer depth: 540 mm

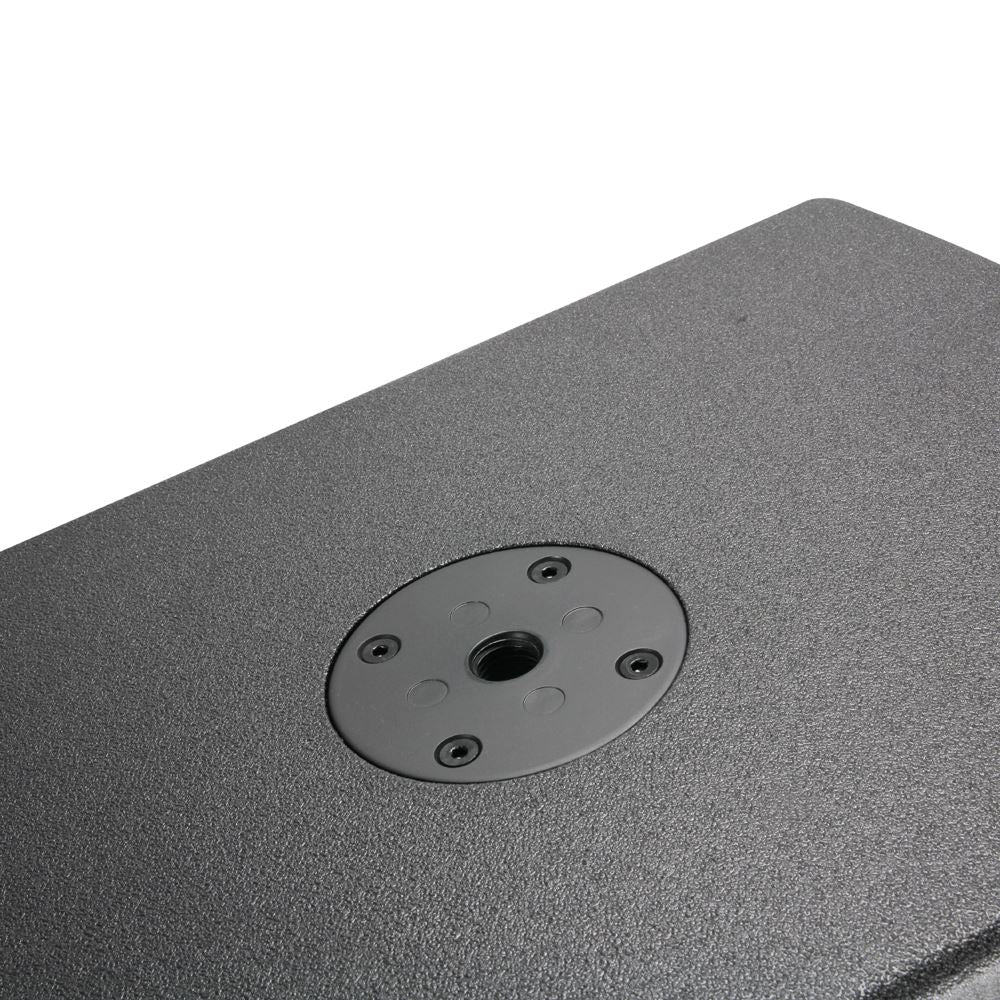

Subwoofer features: LD Systems "Evolutive" handles, threaded flange M20
Mid/Hi System
Midrange size: 6.5 ", 165.1 mm
Midrange magnet: Ferrite
Midrange brand: Custom-made
Midrange voice coil: 1.75 ", 44.5 mm
Horn: CD horn
Tweeter dimensions: 1 "
Tweeter dimensions (mm): 25.4 mm
Tweeter magnet: Ferrite
Tweeter brand: Custom-made
Tweeter voice coil: 1 "
Tweeter voice coil (mm): 25.4 mm
Mid/Hi system impedance: 4 Ohm(s)
Loudspeaker inputs: 1

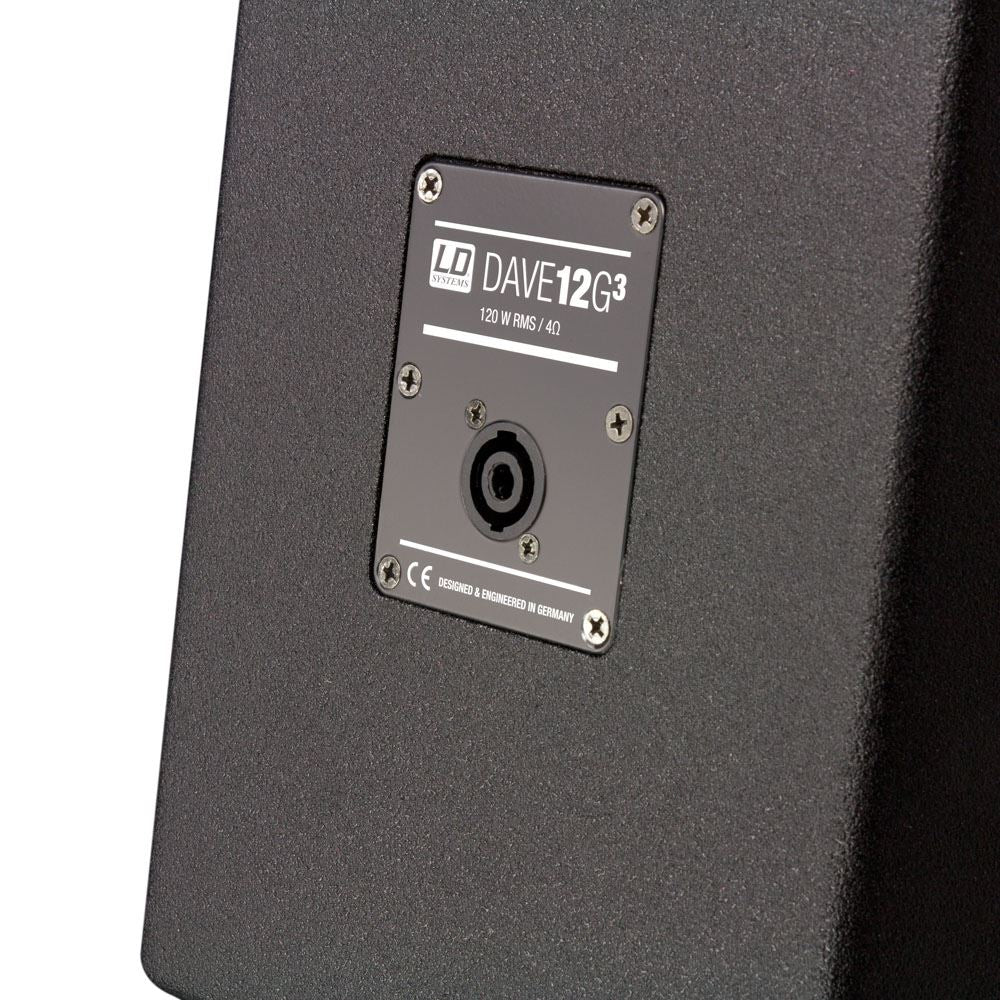

Speaker input connections: Speakon compatible
Cabinet construction mid/high: Closed
Mid/Hi system cabinet material: 15 mm Plywood
Mid/Hi system cabinet surface: texture paint
Mid/Hi system width: 250 mm
Mid/Hi system height: 400 mm
Mid/Hi system depth: 250 mm

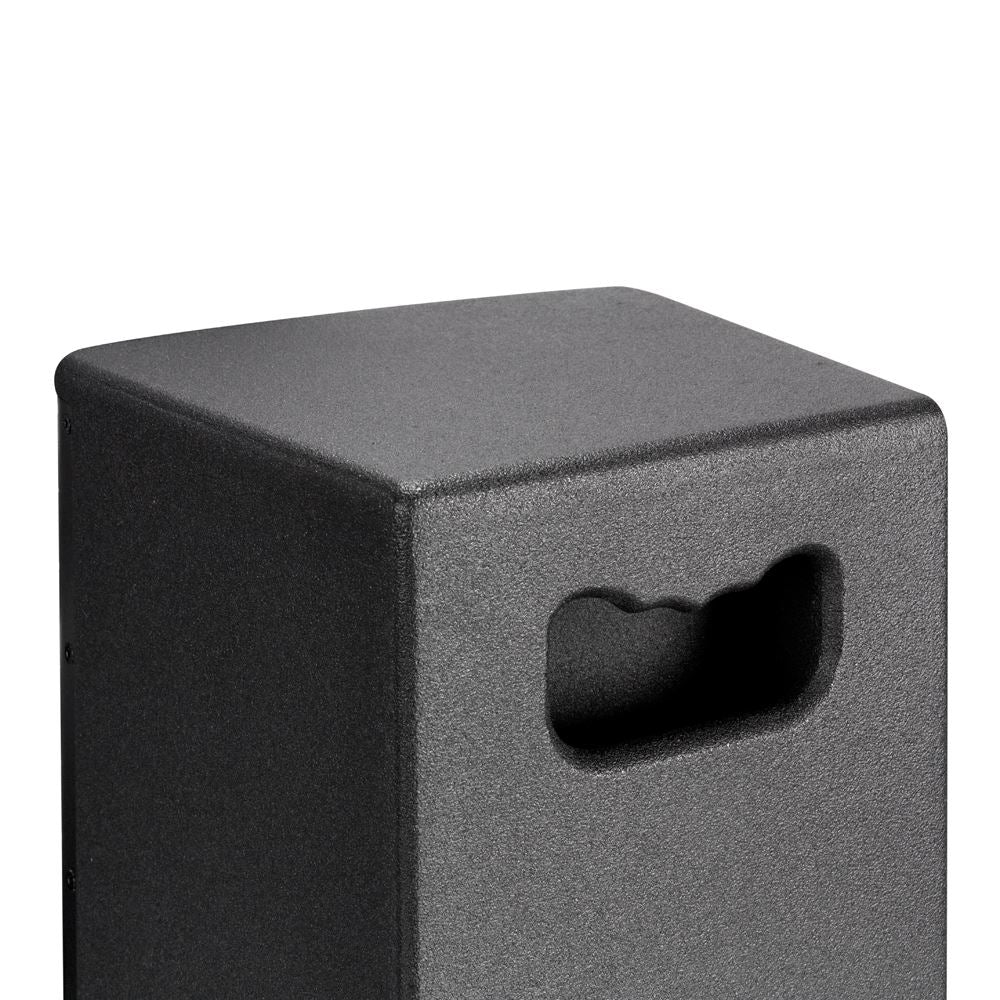

Mid/Hi system features: ergonomically shaped insert handles, SM707 stand mount 36 mm
Amplifier module (integrated in subwoofer)
Amplifier: Class A/B
Amplifier output system (RMS): 500 W
Amplifier output system (peak): 2000 W
Protection circuits: limiter, overload, short circuit
Cooling: volume-controlled fan

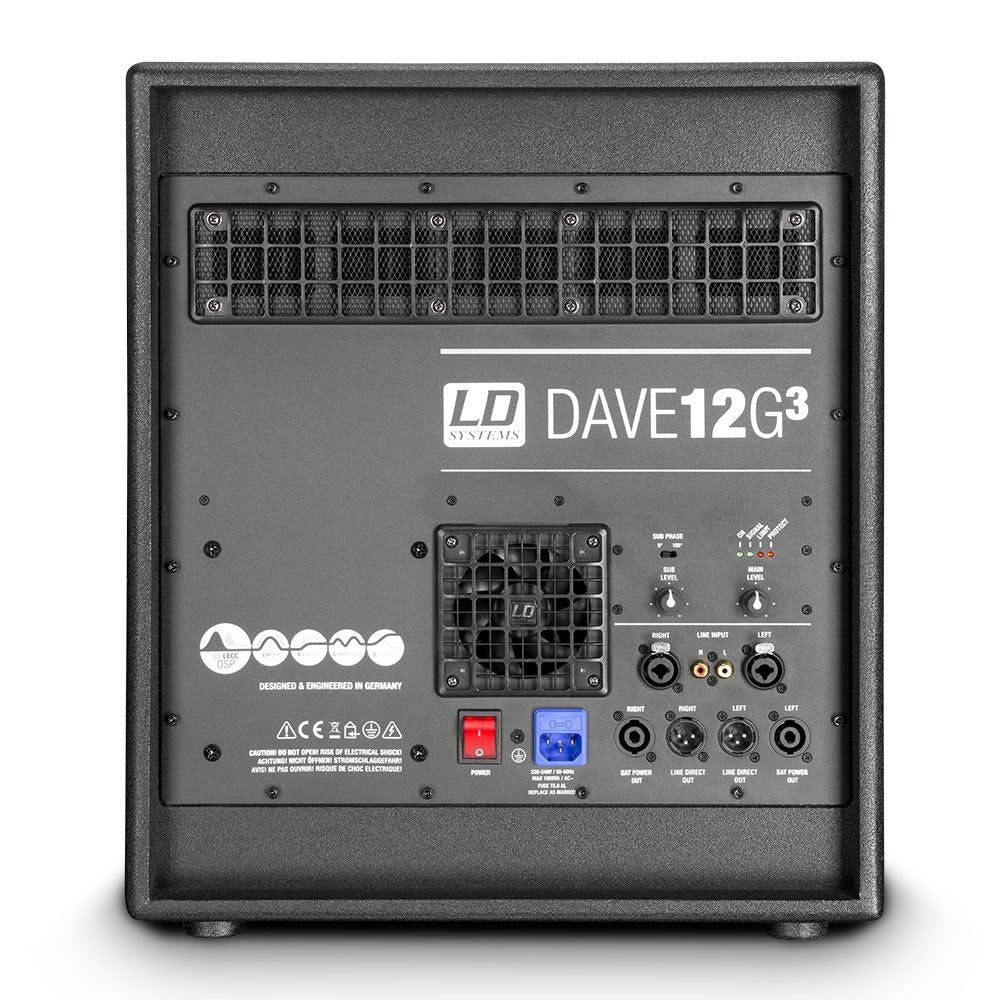

Controls: Power, Sub level, Subwoofer Phase Reverse, volume
Indicators: Limit, on/off, Protect (protection circuit engaged), Signal
Operating voltage: transformer, 220 V AC - 240 V AC
Line inputs: 2
Line input connectors: 6.3 mm jack, RCA, XLR
Line output connectors: XLR
Loudspeaker outputs: 2
Speaker output connections: Speakon compatible
Internal sampling frequency: 1000 kHz
