LD Systems DAVE 8 XS Compact active PA system

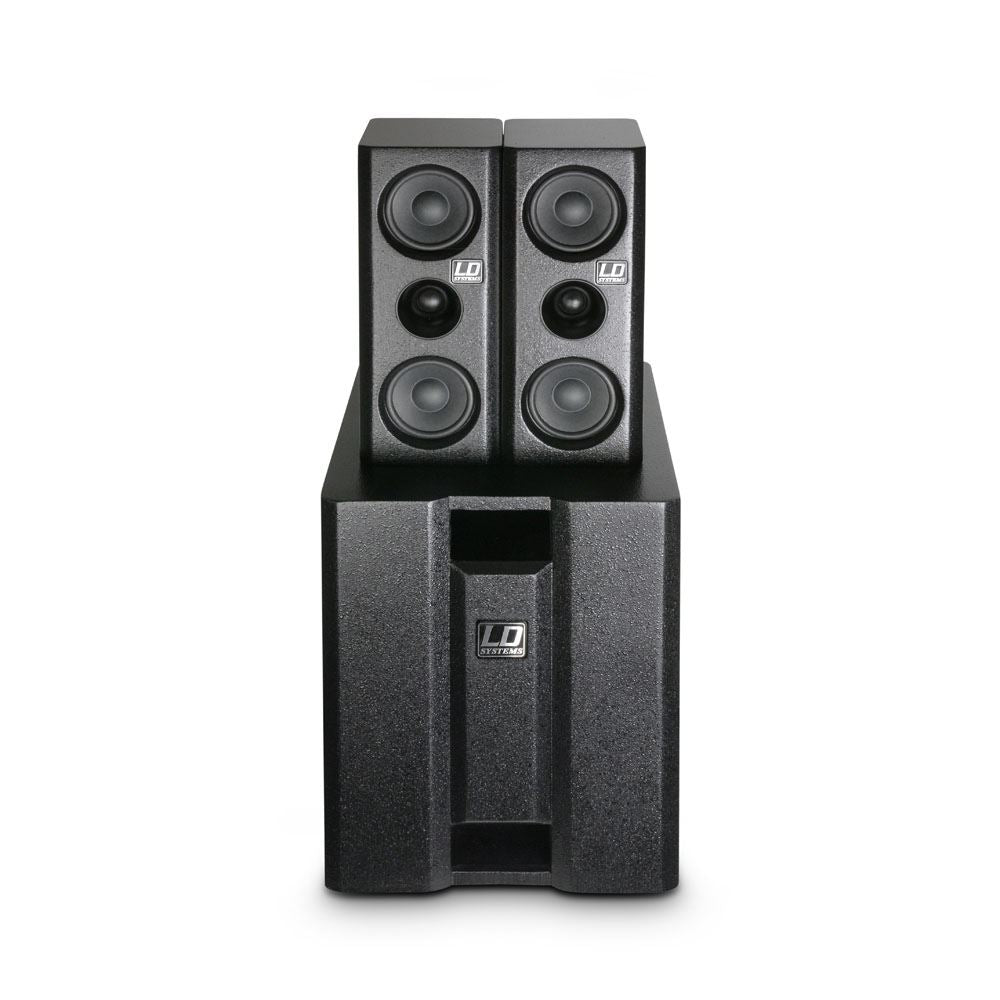

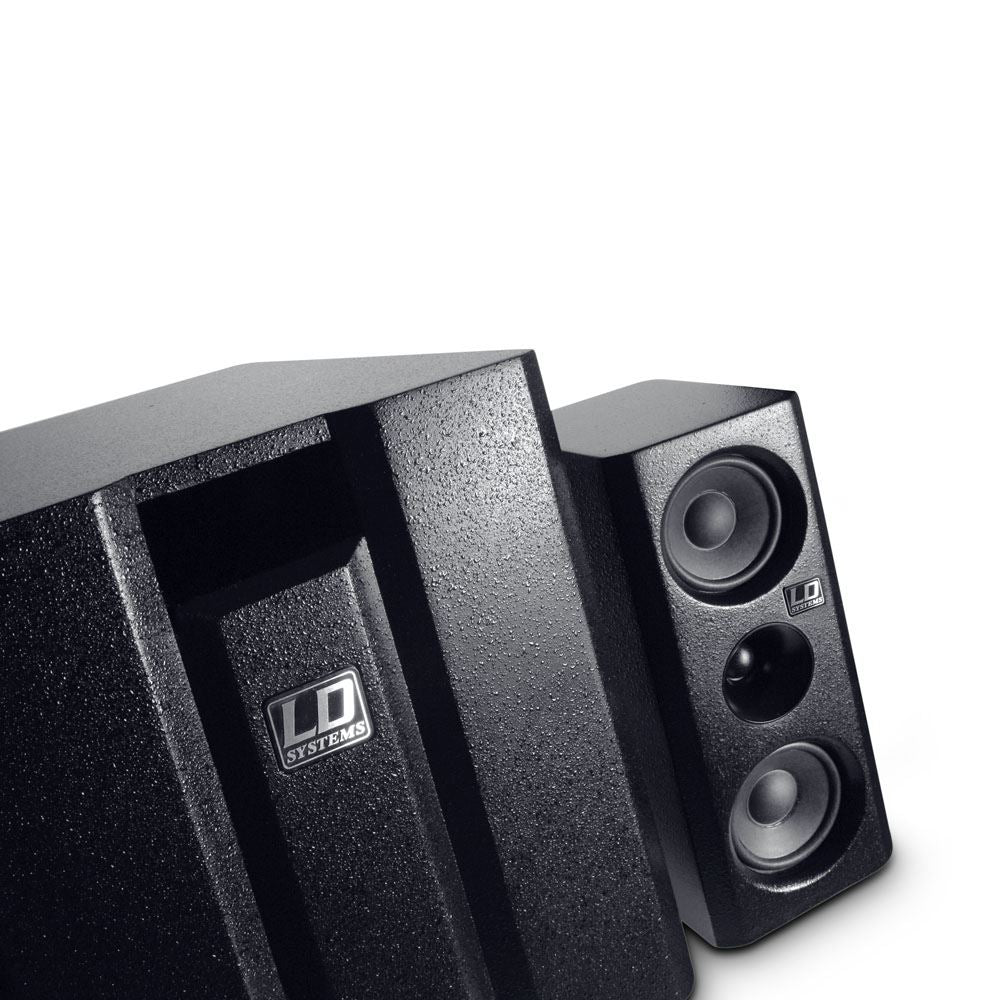

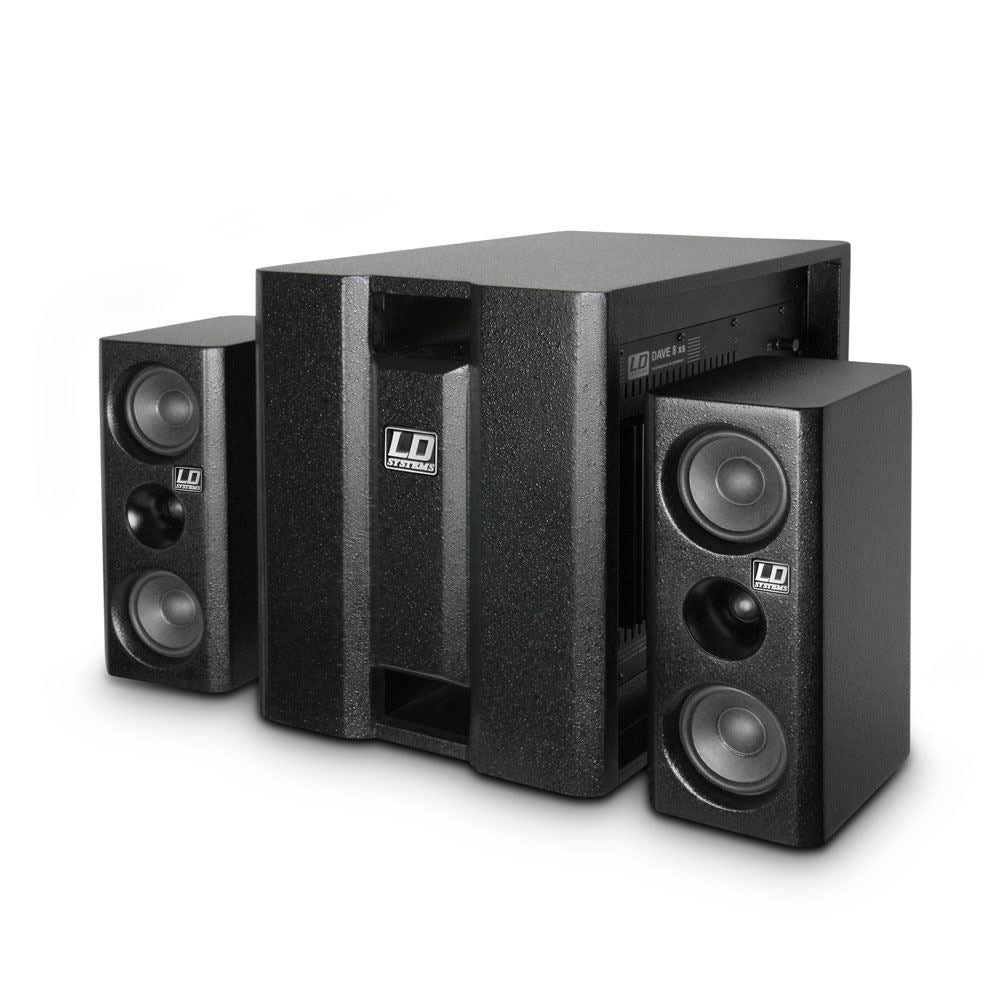

The new LD Systems DAVE 8XS is a portable 2.1 multimedia system with a high-performance 8" band pass subwoofer and two satellites (each 4" + 1", with silk dome).

The system provides crystal-clear sound and was specifically designed for multimedia applications such as home PA or gaming; it is also suitable as a monitor for DJs or keyboardists or as a music system for smaller venues such as bars and cafés. The high-performance A/B amplifier built into the subwoofer provides for both the subwoofer and the satellites. The multimedia system LD DAVE 8XS has line inputs in XLR and RCA format and is equipped with all standard protections. The built-in limiter keeps the system safe from overload and ensures a long service life. On the side of the subwoofer, in addition to an ON/OFF switch and a phase reverse switch (180°), there is a separate subwoofer volume knob that allows you to find the perfect mix of brilliant treble, punchy mids, and powerful bass.

From serial number 130818000001, the satellite speakers are equipped with a 16 mm flange and are therefore compatible with the speaker stands from LDDAVE8SET2.

Specifications
Weight: 29 kg
Product type: PA Complete Systems
Colour: Black
Max. SPL (continuous): 117 dB
Frequency response: 45 - 19.000 Hz
Dispersion (H x V): 60 x 60
Subwoofer
Low/mid driver dimensions: 8 "
Woofer size: 203.2 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Cabinet construction: Bandpass
Cabinet material: 15 mm MDF
Cabinet surface: texture paint
Subwoofer width: 352 mm
Subwoofer height: 430 mm
Subwoofer depth: 434 mm

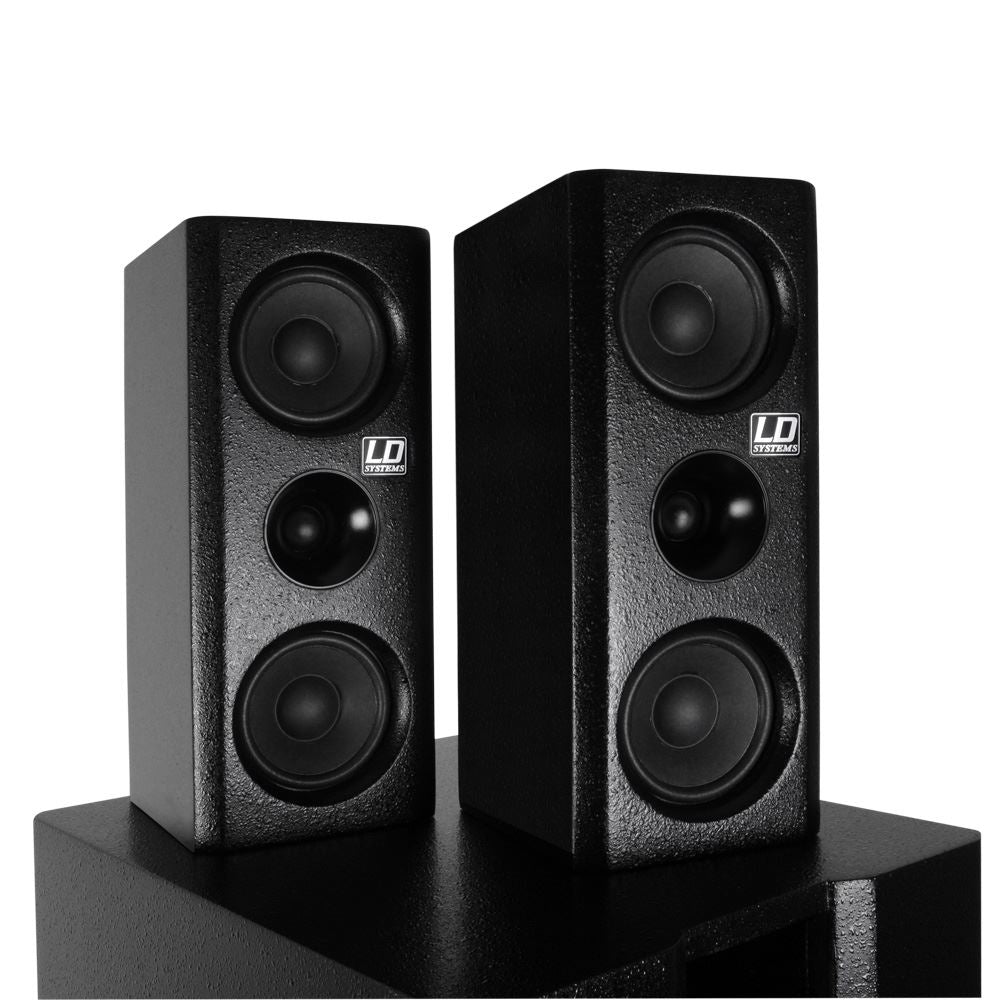

Mid/Hi System
Midrange size: 2 x 4 ", 2 x 101.6 mm
Midrange magnet: Ferrite
Midrange brand: Custom-made
Tweeter dimensions: 1 "
Tweeter dimensions (mm): 25.4 mm
Tweeter magnet: Ferrite
Tweeter brand: Custom-made
Mid/Hi system impedance: 4 Ohm(s)
Loudspeaker inputs: 1
Speaker input connections: Speakon compatible
Cabinet construction mid/high: Closed
Mid/Hi system cabinet material: 12 mm MDF
Mid/Hi system cabinet surface: texture paint
Mid/Hi system width: 144 mm
Mid/Hi system height: 350 mm
Mid/Hi system depth: 170 mm

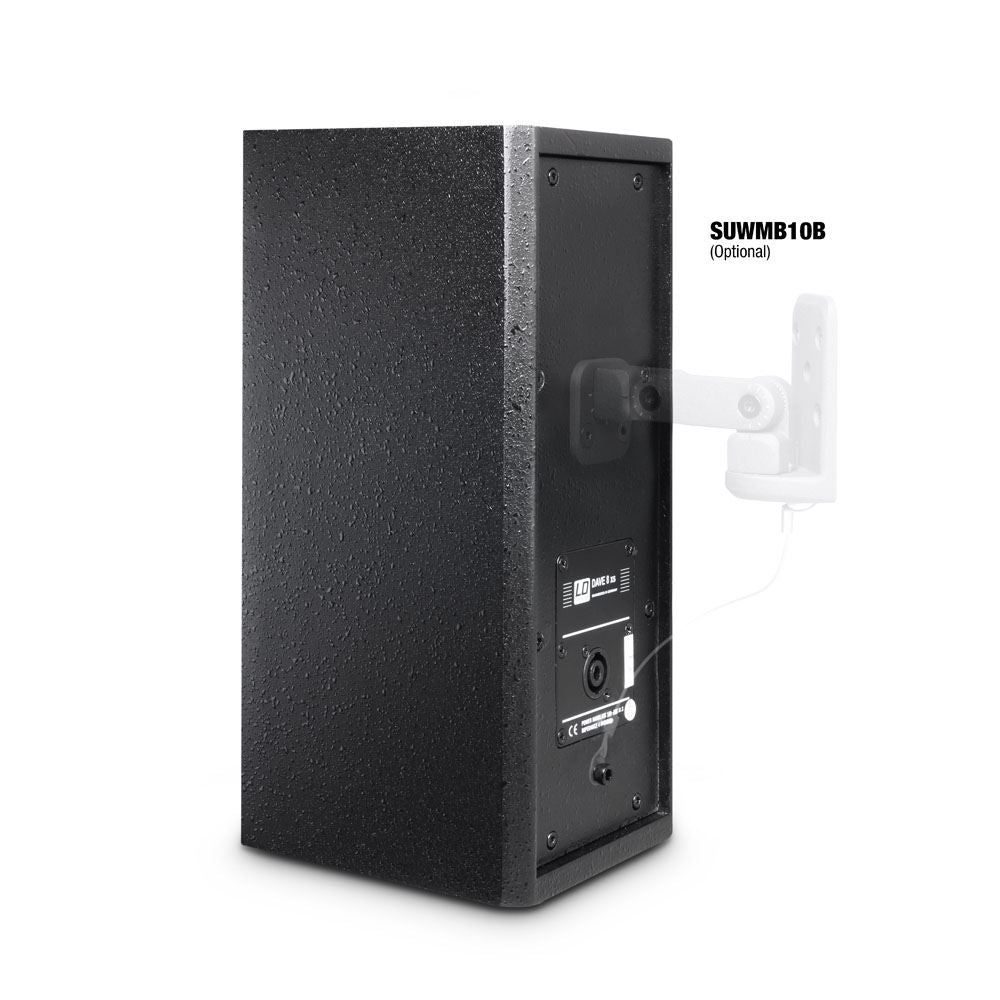

Mid/Hi system features: 16 mm flange, 2 x M6 mounting points for wall mounting

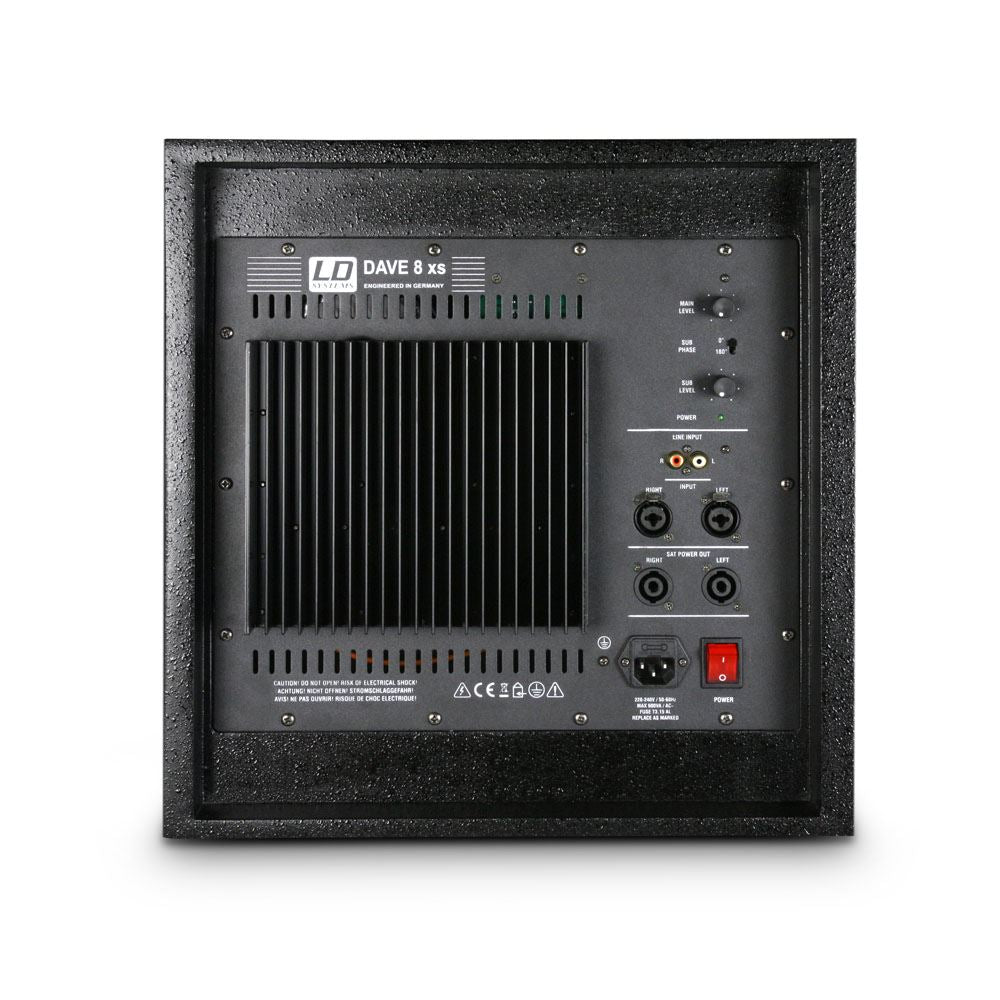

Amplifier module (integrated in subwoofer)
Amplifier: Class A/B (Bi-amp)
Amplifier output system (RMS): 350 W
Amplifier output system (peak): 1400 W
Protection circuits: limiter, overload, short circuit
Cooling: Aluminium heat sink
Controls: mains switch (on/off), Subwoofer Phase Reverse, Subwoofer Volume, volume
Indicators: Power
Operating voltage: transformer, 220 V AC - 240 V AC, 50-60 Hz
Line inputs: 2 (Left/Right)
Line input connectors: 6.3 mm jack, RCA, XLR
Loudspeaker outputs: 2 (Left/Right)
Speaker output connections: Speakon compatible
