LD Systems ECO 2X2 BPH 1 Wireless Mic System with 2 x Belt Pack and 2 x Headset

Operating in the 863.1 and 864.5 MHz bands, this ECO 2 Series set includes two headset microphones with cardioid polar pattern, two bodypack transmitters and a 2-channel diversity receiver featuring balanced XLR outputs, an unbalanced 1/4" mix output plus level and squelch controls and LED status indicators for each channel.

Features
Dual channel UHF PLL wireless system
863.1 and 864.5 MHz band operation
50 m line-of-sight operating range
2 headset mics
2 bodypacks with input sensitivity selector and power/mute switch
2-channel diversity receiver with XLR and single 1/4" mix outputs
10+ hours operating time
Power adapter and 2 AA batteries included

Specifications
Product type: Wireless Microphone Systems
Type: Headsets
Transmission frequency range: 863.1 MHz, 864.5 MHz

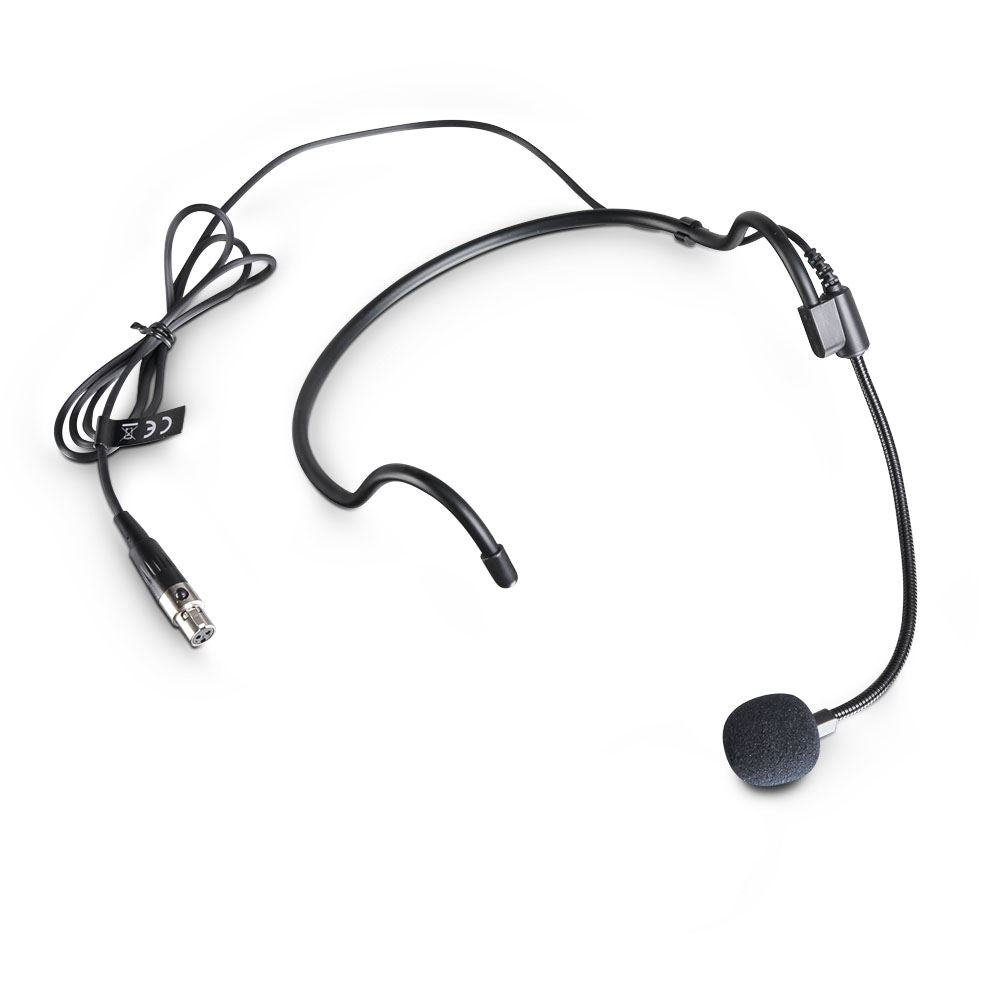

LDWS100MH1 - WS 100 MH 1
Product type: Wireless Microphone System Accessories
Type: Headsets
Frequency response: 20 - 20.000 Hz
Directivity: Cardioid
Nominal impedance: 680 Ohm(s)
Phantom power requierements: 5 V
Microphone input: Mini-XLR (3-pin, female)

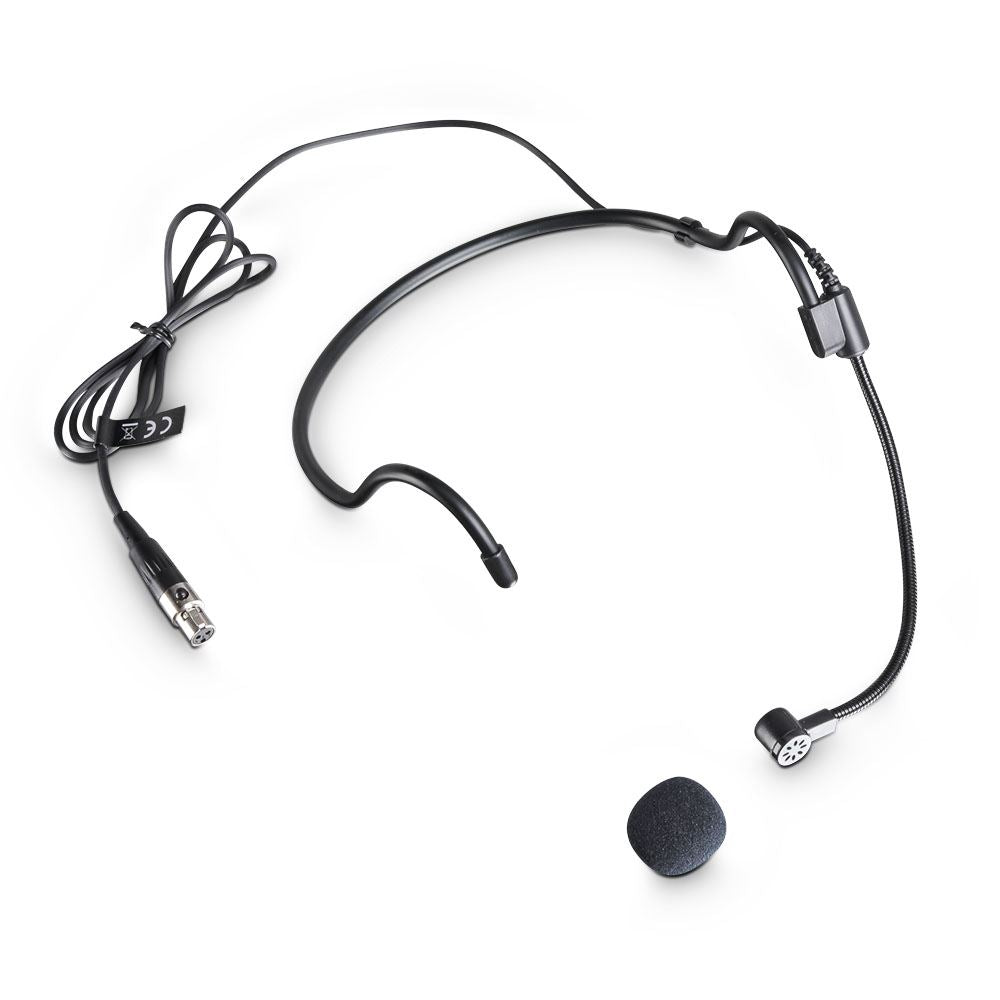

Accessories (included): Foam windscreen
Weight: 0,049 kg

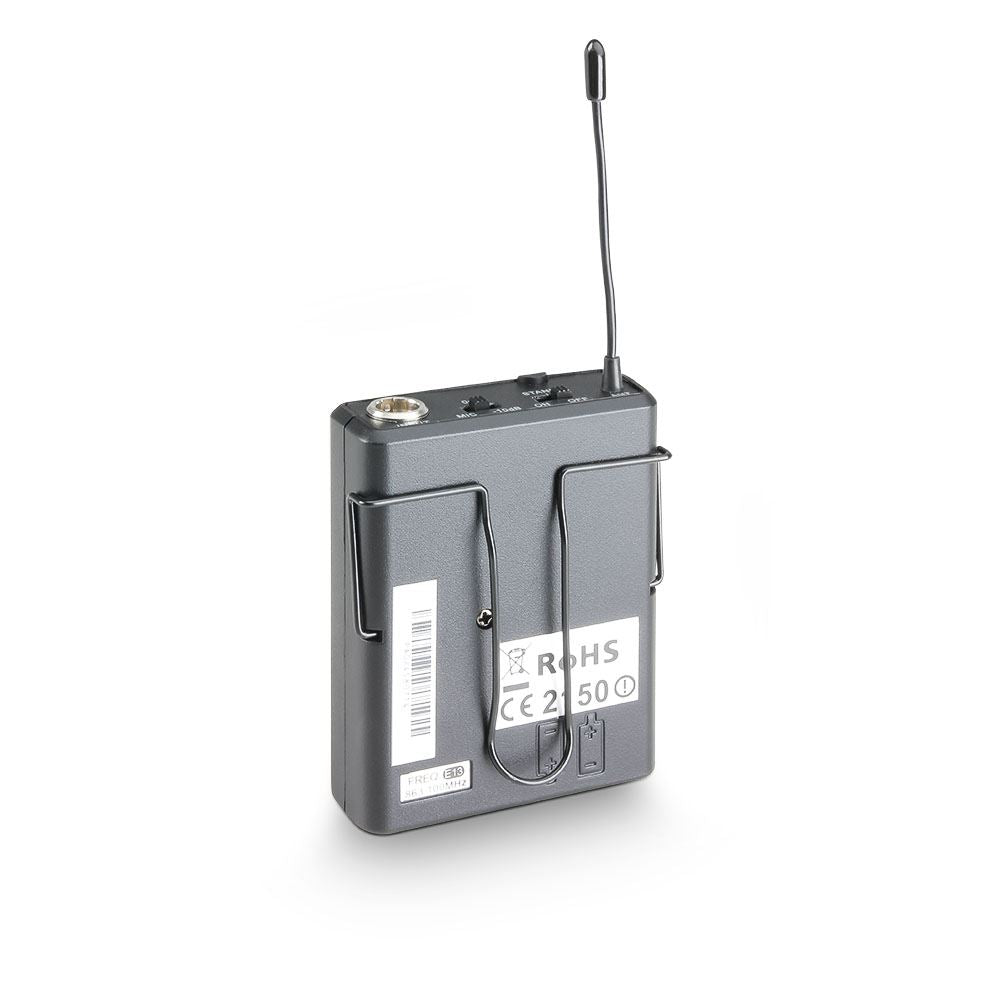

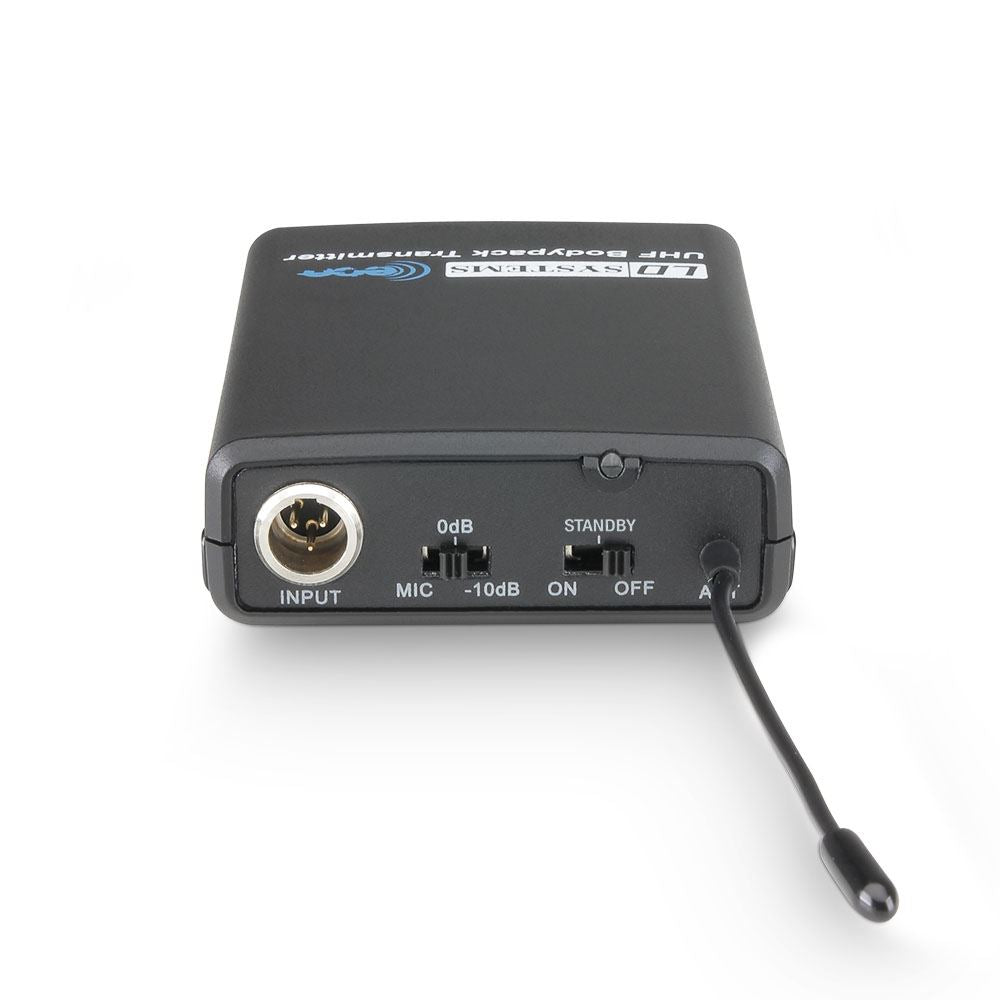

LDWSECO2BP1 - ECO 2 BP 1
Product type: Wireless Microphone System Accessories
Type: Belt Packs
Transmission frequency range: 863.1 MHz
Channels: 1
Inputs: Mini-XLR (3-pin) with phantom power (for headset)
Frequency response: 60 - 16.000 Hz
Rated HF output power: 10 mW
Controls: Mic / 0dB / -10 dB switch, power (on/off/mute)
Indicators: battery status

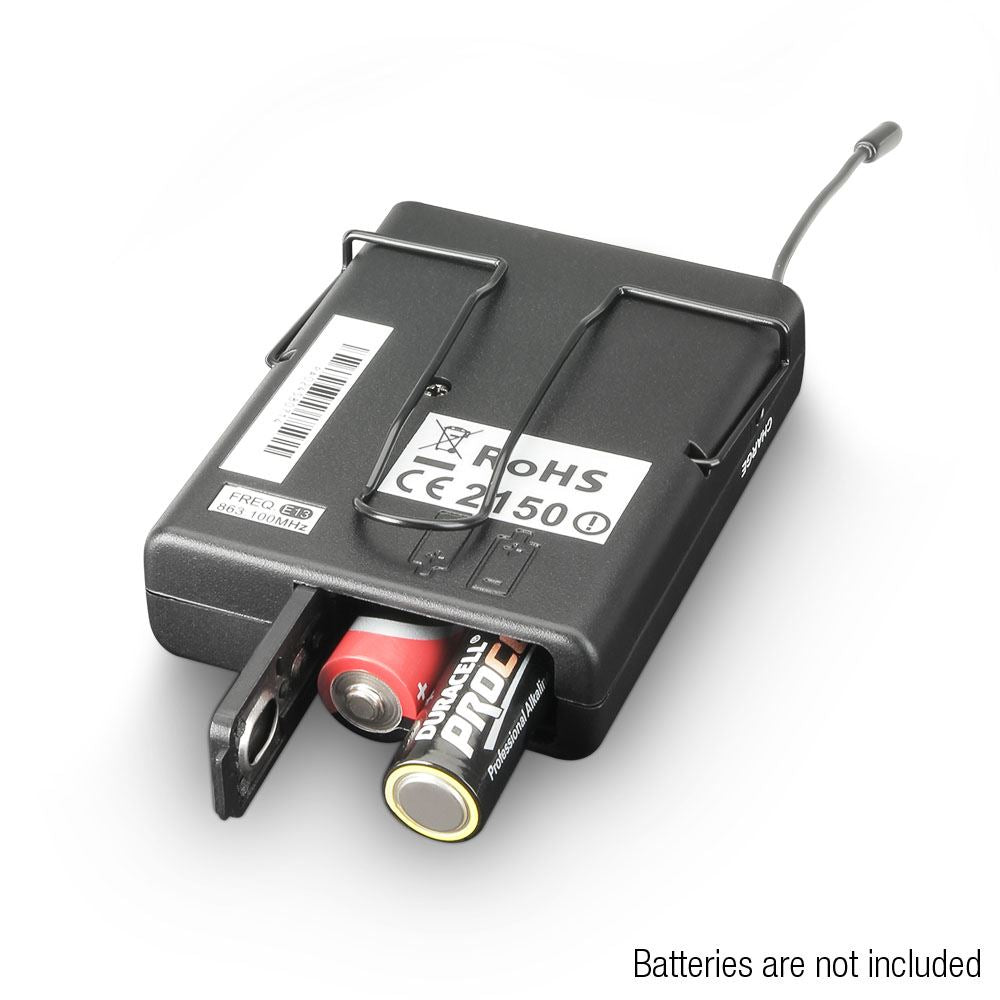

Operating voltage: 2 x AA battery
Operating time: >10 h (with alkaline batteries)
Width: 65 mm
Height: 85 mm
Depth: 23 mm
Weight: 0,1 kg
Other features: incl. batteries
LDWSECO2BP3 - ECO 2 BP 3
Product type: Wireless Microphone System Accessories
Type: Belt Packs
Transmission frequency range: 864.5 MHz
Channels: 1
Inputs: Mini-XLR (3-pin) with phantom power (for headset)
Frequency response: 60 - 16.000 Hz
Rated HF output power: 10 mW
Controls: power (on/off/mute)
Indicators: battery status
Operating voltage: 2 x AA battery
Operating time: >10 h (with alkaline batteries)
Width: 65 mm
Height: 85 mm
Depth: 23 mm
Weight: 0,1 kg
Other features: incl. batteries

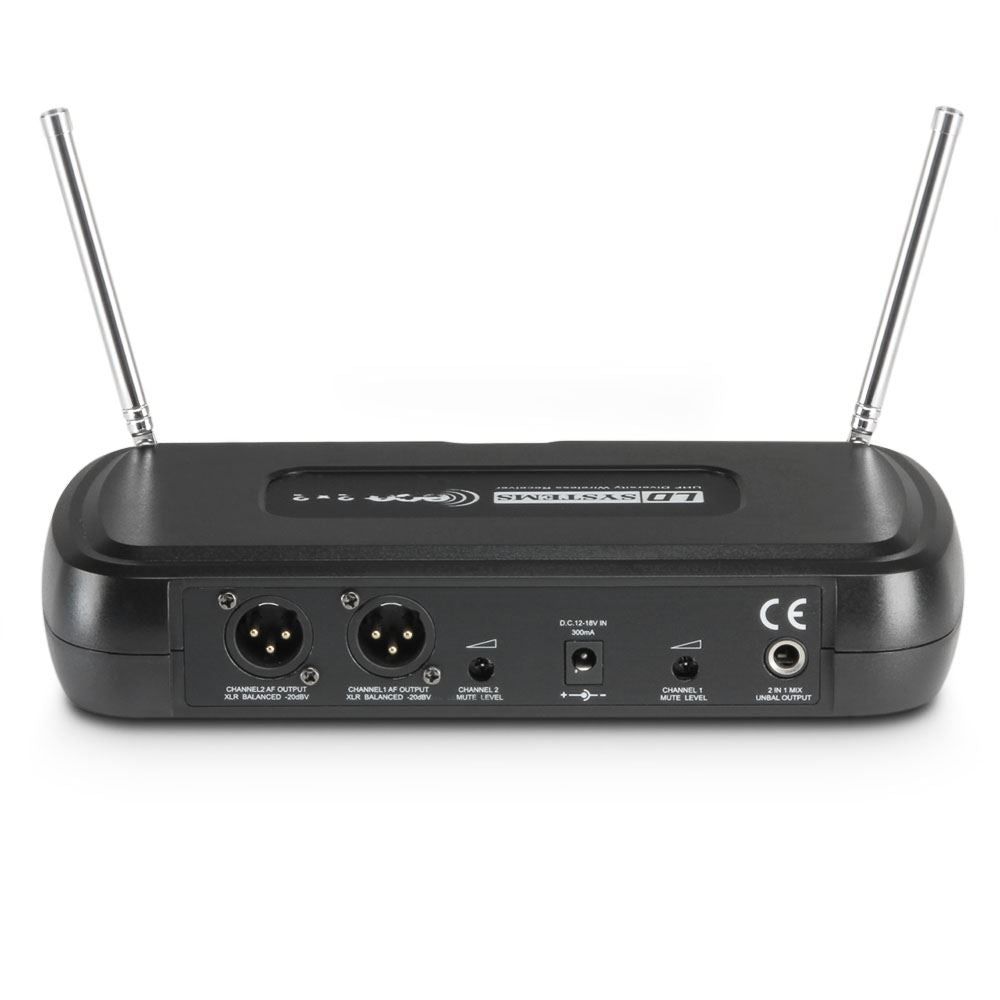

LDWSECO2X2R1 - ECO 2X2 R 1
Product type: Wireless Microphone Systems
Modulation Type: FM
Transmission frequency range: 863.1 MHz, 864.5 MHz
Channels: 2
Antenna inputs: 2
Antenna connector: fixed to housing
Frequency response: 60 - 16.000 Hz
Noise reduction: Squelch
Signal-to-noise ratio: > 105 dB
Audio output, balanced: 2 x XLR
Audio mix output, unbalanced: 6.3 mm jack
Controls: 2 x mute level, 2 x volume
Indicators: 2 x audio signal, 2 x HF signal, Power
Operating voltage: 12 - 18 V DC, 400 mA, External Power Supply
Width: 235 mm
Height: 44 mm
Depth: 118 mm
Weight: 0,4 kg
Accessories (included): Batteries, Power supply
