LD Systems ICOA 15A 5600W Speaker Sound System PA inc 2 x 15" Tops + 2 x 15" Subwoofer DJ Disco

Description

LD Systems ICOA 15A 5600W Speaker Sound System PA inc 2 x 15" Tops + 2 x 15" Subwoofer DJ Disco

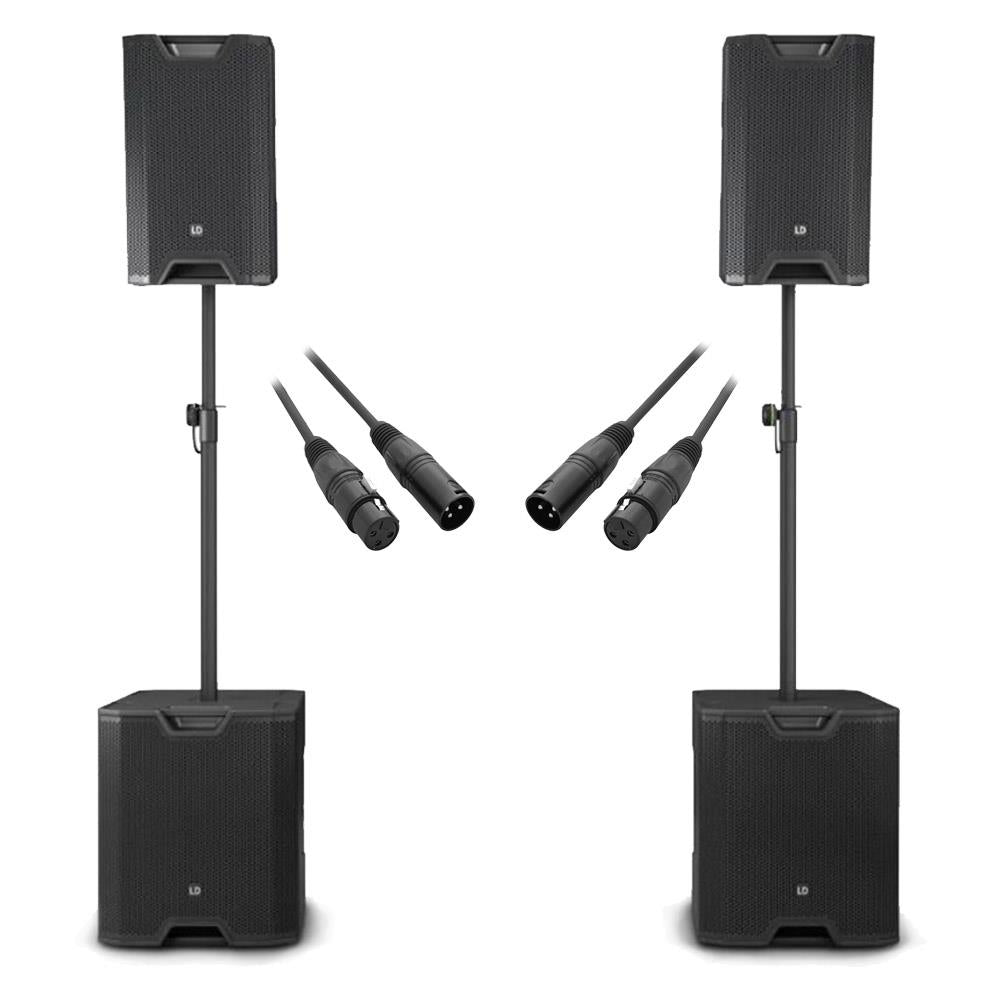

This bundle consists of:

2x LD Systems ICOA 15A 15" Active Speaker 1200W

2x LD Systems ICOA SUB 15 A Powered 15" Bass Reflex PA Subwoofer

2x Thor SP002 M20 Adjustable Speaker Pole for DJ Speaker Disco

2x LEDJ 3m 3-Pin Male XLR - 3-Pin Female XLR DMX Cable

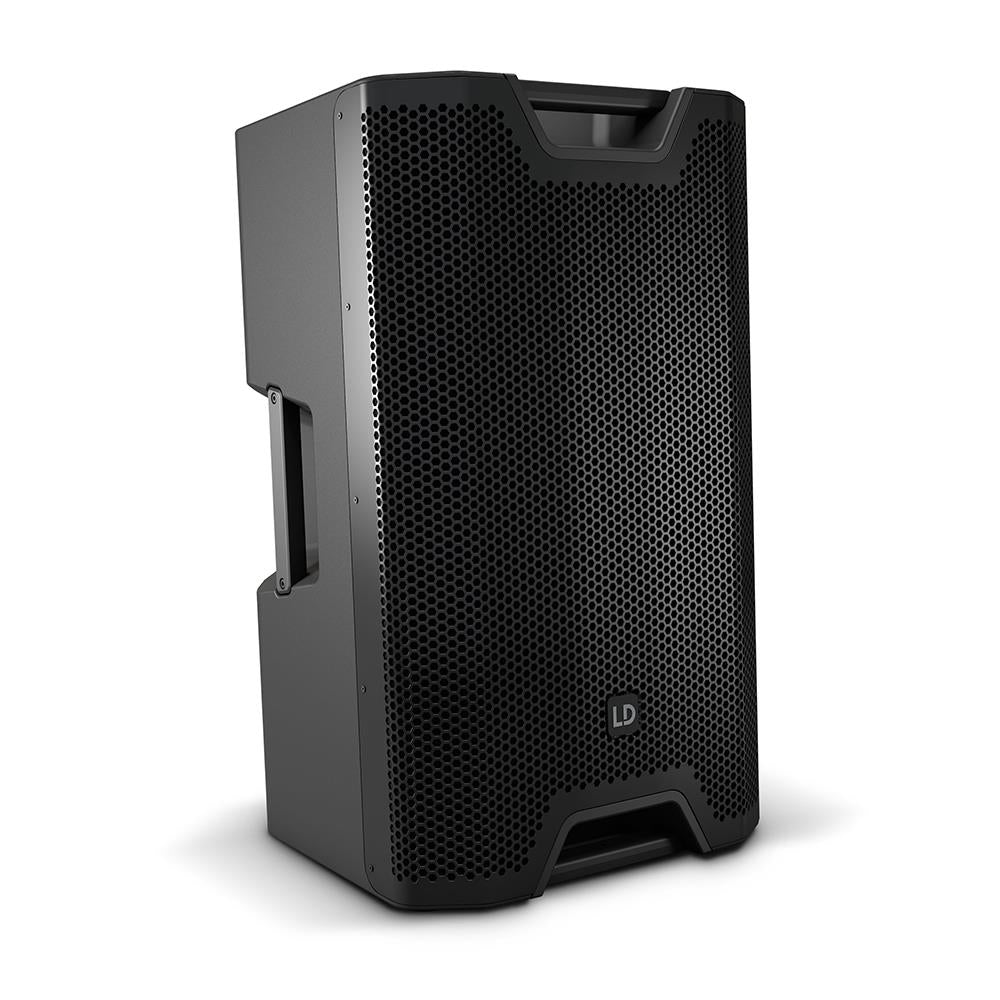

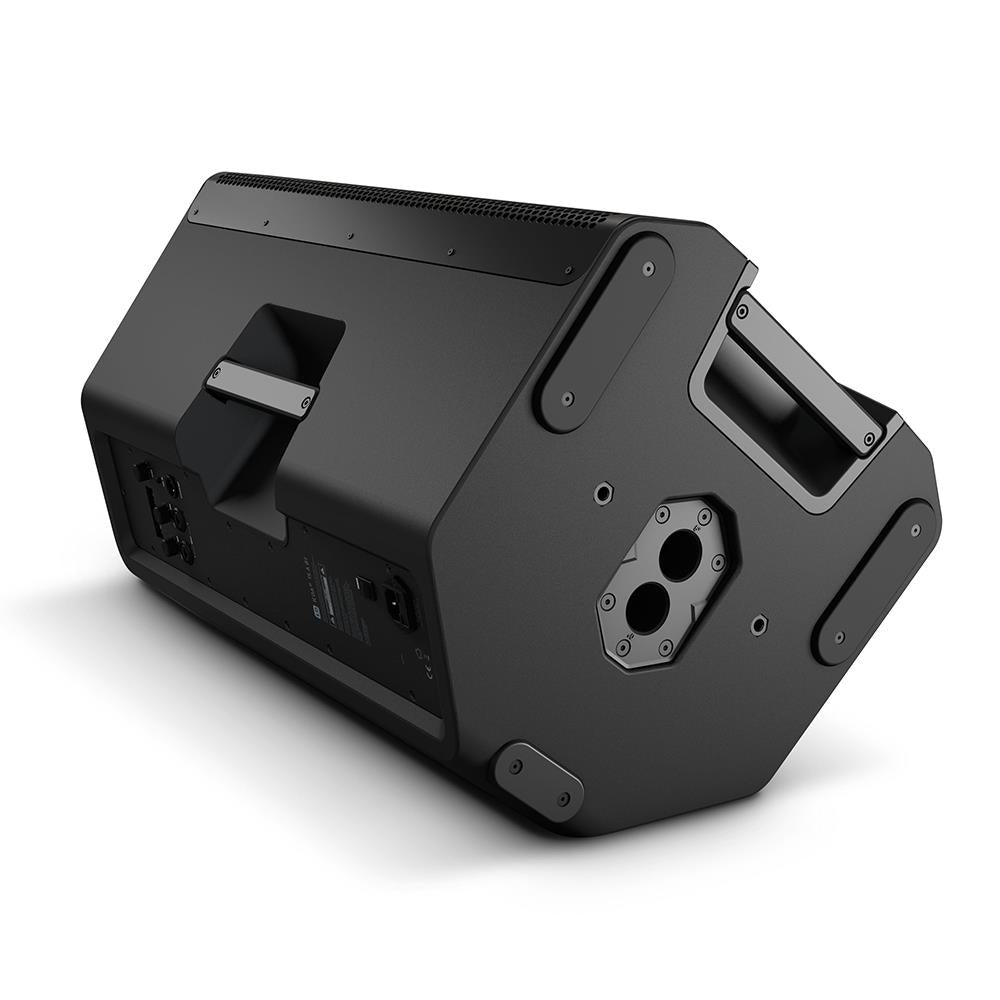

ICOA 15A 15" Active Speaker 1200W

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 15 A by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 15" loudspeaker exceptionally flexible.

The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 15 A the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 128 dB max. SPL and 1200 W peak performance.

Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected.

Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 15 A is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.

Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

Features
A genuine all-rounder for full-range, satellite and monitor applications
128 dB max. SPL and 1200 W peak power
Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending)
Horn-loaded woofer
DynX DSP with 4 presets, 3-band EQ and delay function
2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth® streaming with the BT model
36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
6 x M10 flying points
Shock-resistant front grille for optimal protection of the speaker
4 aluminium grips with ergonomic, rubber surface
Extensive, optionally available accessories for installation and transport

Specifications
Product type: PA loudspeaker
Type: Powered
Low/mid driver dimensions: 15 "
Woofer size: 381 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Horn: BEM optimized CD Horn
HF driver dimensions: 1 "
HF Driver Size: 25.4 mm
HF driver magnet: Ferrite
HF driver brand: Custom-made
HF driver voice coil: 1 "
HF Driver Voice Coil: 25.4 mm
Amplifier: Class D
Dispersion (H x V): 90 ° x 50
RMS: 300 W
Peak power: 1200 W
Frequency response: 48 - 20000 Hz
Crossover frequency kHz: 2 kHz
Max. SPL (peak): 128 dB
Protection circuits: Multiband limiter, over-voltage, over-current, thermal overload

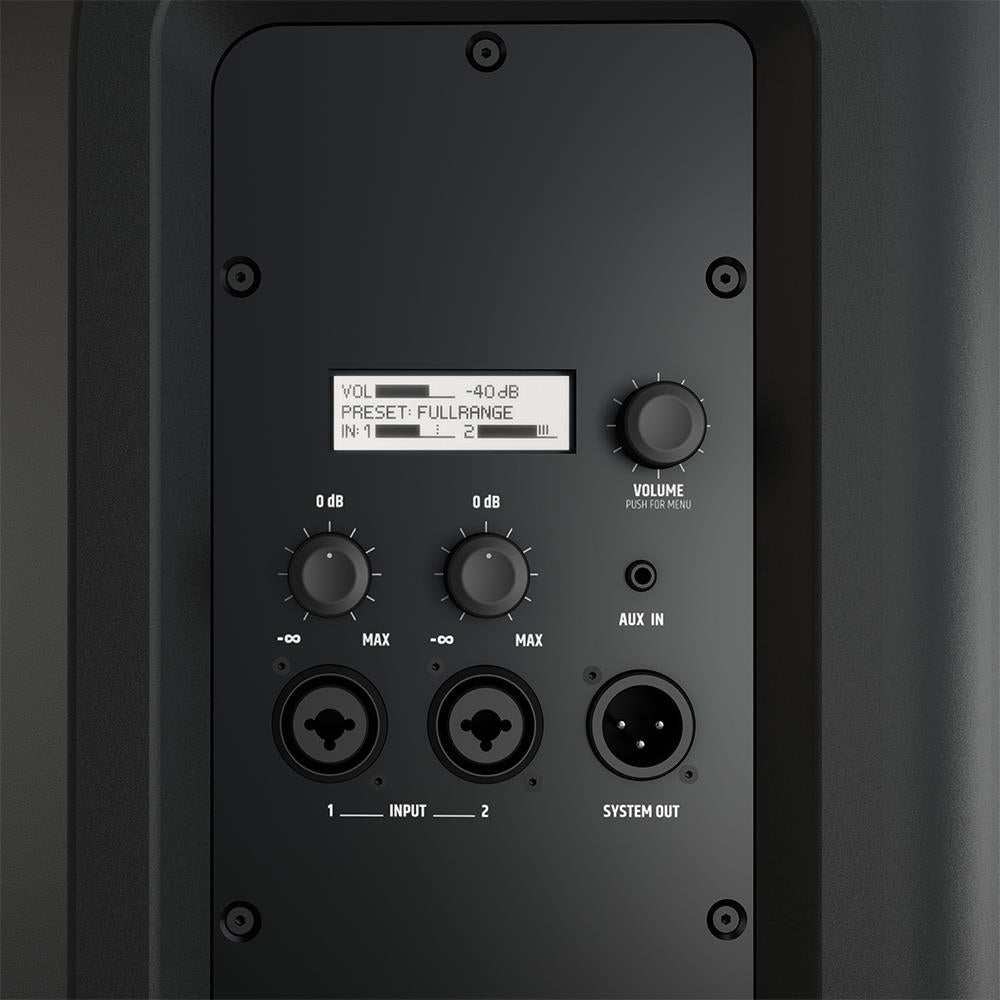

Controls: 2 x gain , On / off switch , Rotary/push encoder
Indicators: LC display
Mic/ line inputs: 2
Mic-/ Line Input Connectors: 6.3 mm jack Combination sockets (symmetrical) , XLR
Line inputs: 1
Line input connectors: 3.5 mm TRS
Line outputs: 1
Line output connectors: XLR
Operating voltage: SMPS
Power consumption: 150 W
Ambient temperature ( in operation ): 0 - 40 °C
Operating voltage: 100 V - 240 V AC / 50 - 60 Hz
Relative Humidity: < 80 %, not condensing
Fuse: T4AL 250 V
Cabinet material: Polypropylene
Cabinet construction: Bass Reflex
Mounting: 36mm flange (0°, 5°) , 6 x M10 flying points
Monitor angle: 55 °
Width: 416 mm
Height: 695 mm
Depth: 415 mm
Weight: 24,3 kg
Accessories (included): Power cord

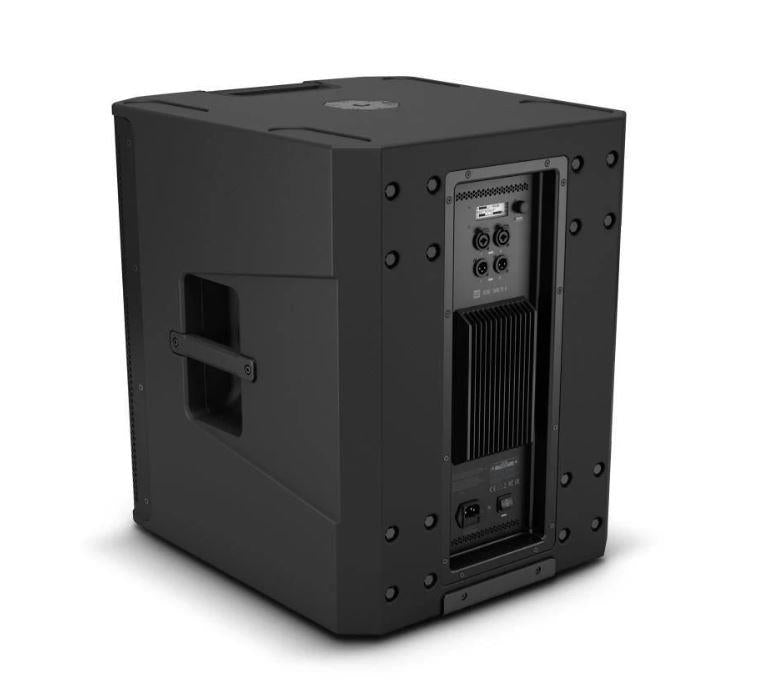

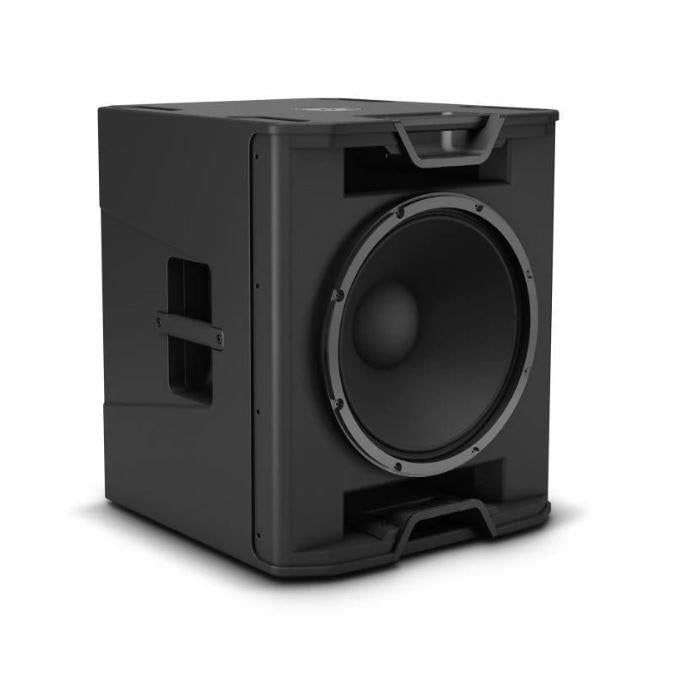

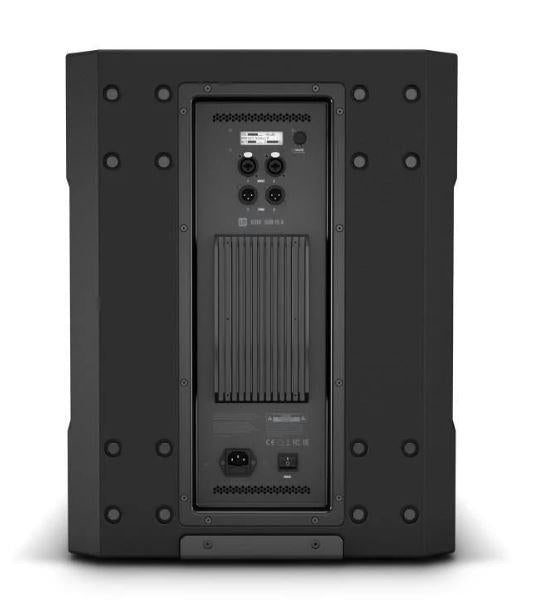

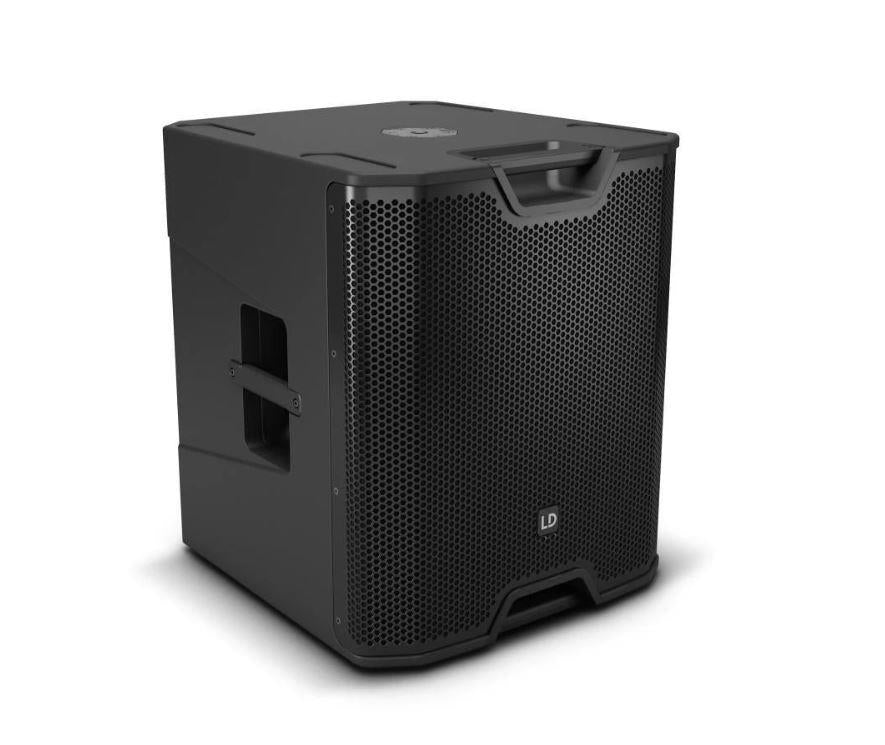

ICOA SUB 15 A Powered 15" Bass Reflex PA Subwoofer

Description
Music starts to really groove when you can feel the bass in your body. The ICOA SUB can deliver as much bass as you want - to get the people rocking and entice them to the dance floor. It can even lend a multimedia presentation that special oomph it needs to reach its audience.

The ICOA SUB pumps out serious bass and gives you greater headroom and a clearer sound. This is because your subwoofer relieves the main speaker, whose woofers are now less burdened by high-energy bass impulses, resulting in less intermodulation distortion. Even at higher volumes, the sound doesn't get muffled. Voices and instruments stay crystal clear.

Thanks to its powerful Class D amplifier with 400-watt RMS or 1600-watt peak output, you have some serious power at your command. The presets of the integrated DynX DSP - which offers crossover frequencies of 80, 100 and 120 Hz - let you finely balance your ICOA SUB perfectly with your system. Signal polarity can also be reversed and the SUB offers a delay line-preset for distances up to 10 meters.

When your needs begin to expand as the venues get bigger, your setup can grow along with you. Simply add more ICOA SUBs, which can be operated in parallel, giving you more and more power. You can also take advantage of the cardioid-preset. Simply position the additional subwoofers next to your ICOA SUB facing to the rear and enable the cardioid-preset to get a quieter and controlled low-end at the back while still keeping the punch at the front.

The rugged housings made of 18 mm laminated wood can be stacked, while the M20 thread on top lets you mount the main speakers using a distance pole. Transport is simplified by mounting rollers to the rear. Corner protectors guard the edges during setup. To keep the ICOA SUB from slipping out of your hands, its four aluminium grips are covered in rubber.

Whether you're a DJ, singer-songwriter, rock or party band, the ICOA SUB produces the perfect bass to complement your live music. Lectures and multimedia presentations also benefit from its clarity and powerful presence, giving you the proper support to amplify emotions in your audience.

15-inch subwoofer for powerful low-end up to 36 Hz
131 dB max. SPL and 1600 Watt peak power through highly efficient digital Class D power amplifier
Optimized bass reflex ports
DynX DSP with four application presets (three crossover frequencies, cardioid mode)
Switchable signal polarity and adjustable delay line for up to 10 meters
2 x XLR/TRS "combo jack" inputs and 2 XLR Output
18 mm rugged plywood housing and heavy-duty grill
4 Aluminum handles with ergonomic rubber surface
Securely stackable with four stacking-grooves
M20 thread for distance pole

Product type
PA subwoofer
Type
Powered
Low/mid driver dimensions
15 "
Woofer size
381 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Woofer voice coil
3 "
Woofer voice coil (mm)
76.5 mm
Amplifier
Class D
RMS
400 W
Peak power
1600 W
Frequency response (-10dB)
36Hz Preset depending
Max. SPL (peak)
131 dB
Protection circuits
Excursion Limiter , over voltage , over-current , Peak Limiter , RMS Limiter , thermal overload
Controls
Push encoder
Indicators
LC display
Line inputs
2
Line input connectors
XLR/6.3mm jack combo jacks (balanced)
Line outputs
2
Line output connectors
XLR
Operating voltage
100 - 240 V
Power consumption (max.)
675 W
Operating Temperature
0 - 40 °C
Relative Humidity
< 60% (non-condensing)
Cabinet material
18 mm Multiplex
Cabinet surface
texture paint
Cabinet construction
Bass Reflex
Width
510 mm
Height
598 mm
Depth
552 mm
Weight
32,5 kg

Thor SP002 M20 Adjustable Speaker Pole for DJ Speaker Disco

Speaker pole with adjustable height, designed for use between sub and mid/hi cabinets.

Features
Strong steel construction
5 height settings with 100mm spacing
Thumbscrew friction block
Steel safety locking pin

Specifications
Upper pole: Standard 35mm
Lower pole: M20 thread
Heights (min/max): 850mm - 1250mm
Collapsed length: 750mm
Max load: 40kg
Weight: 1.6kg
