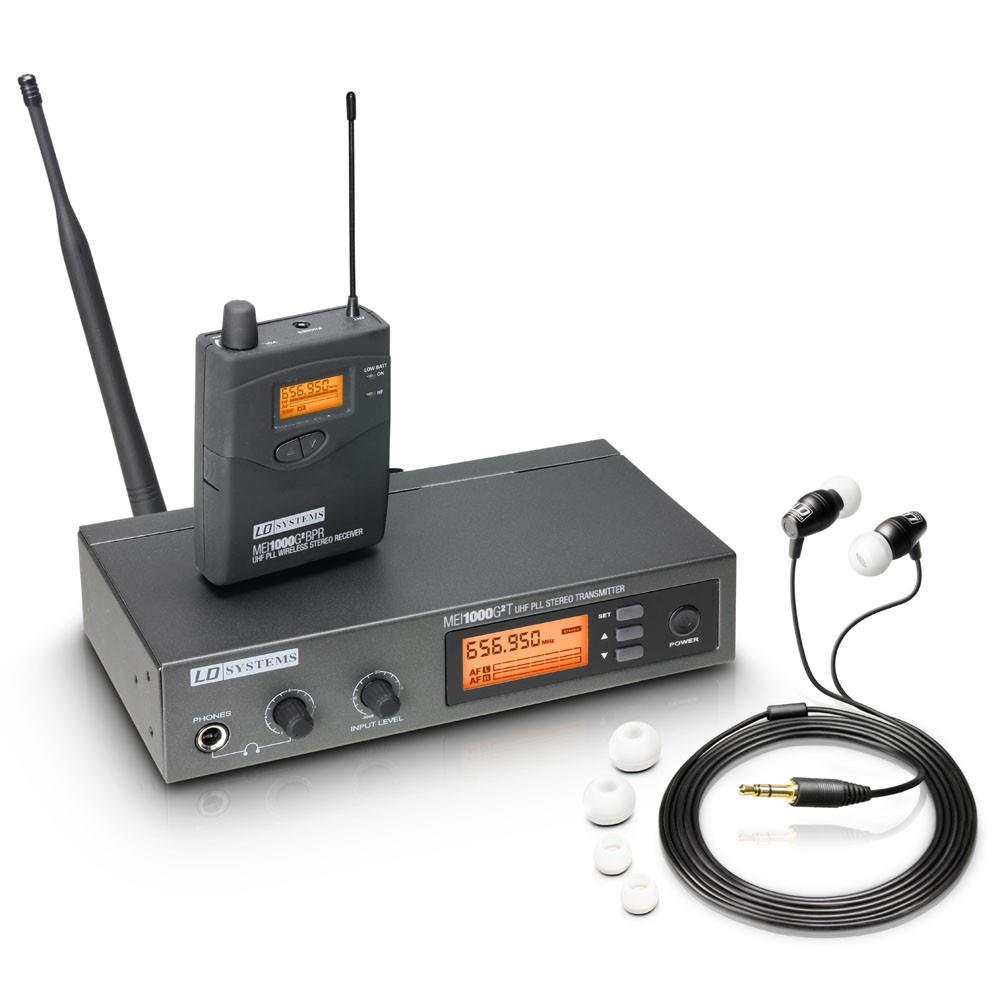

LD Systems MEI 1000 G2 B 6 In-Ear IEM Monitoring System 655 - 679 MHz

Despatch:

The new LD Systems MEI 1000 G2 B 6 is a In-Ear Monitoring-System with 96 UHF channels that delivers outstanding sound quality with a large dynamic range and outstanding crosstalk behaviour in the 655 - 679 Mhz frequency band.

Switchable mono, stereo, and focus monitoring modes as well as adjustable EQ and limiter functions permit natural sound reproduction for any application, with a frequency response of 60 Hz – 16 kHz, a high S/N ratio, and low THD. The LD MEI 1000 G2 permits simultaneous operation of up to 5 systems.

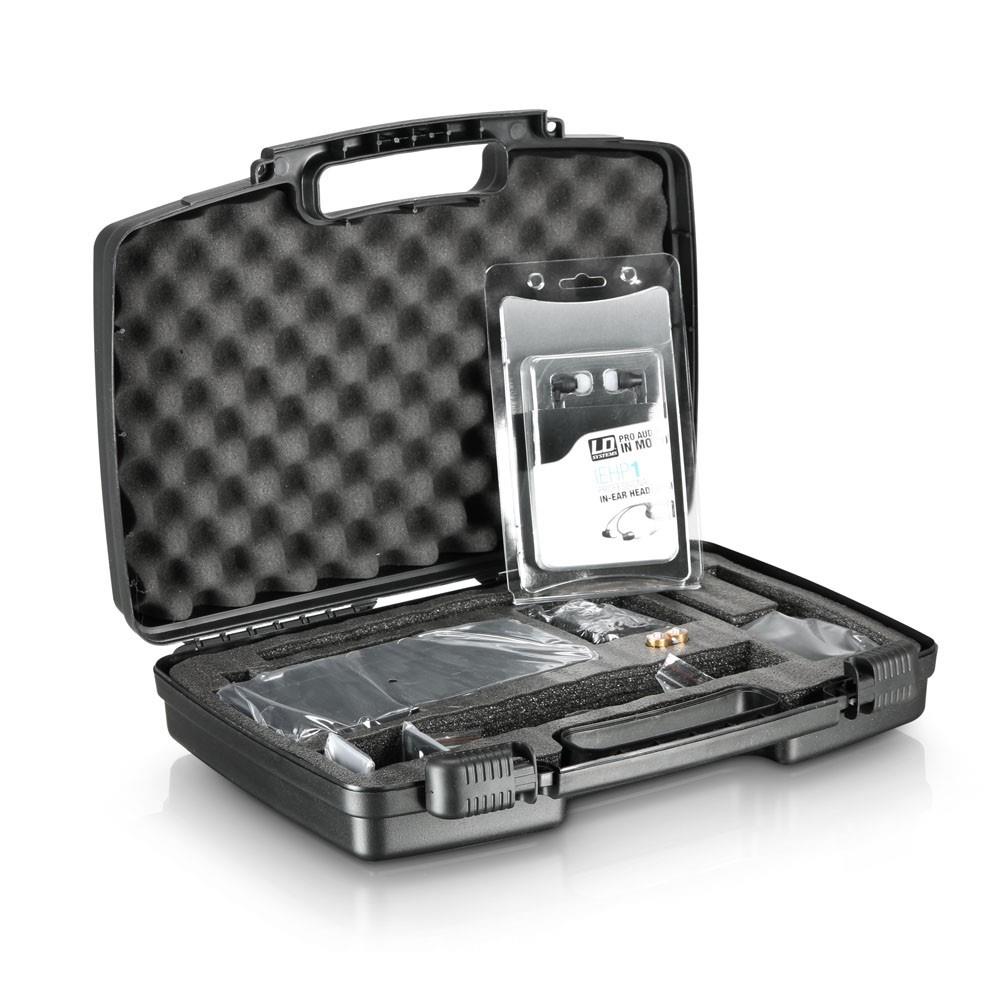

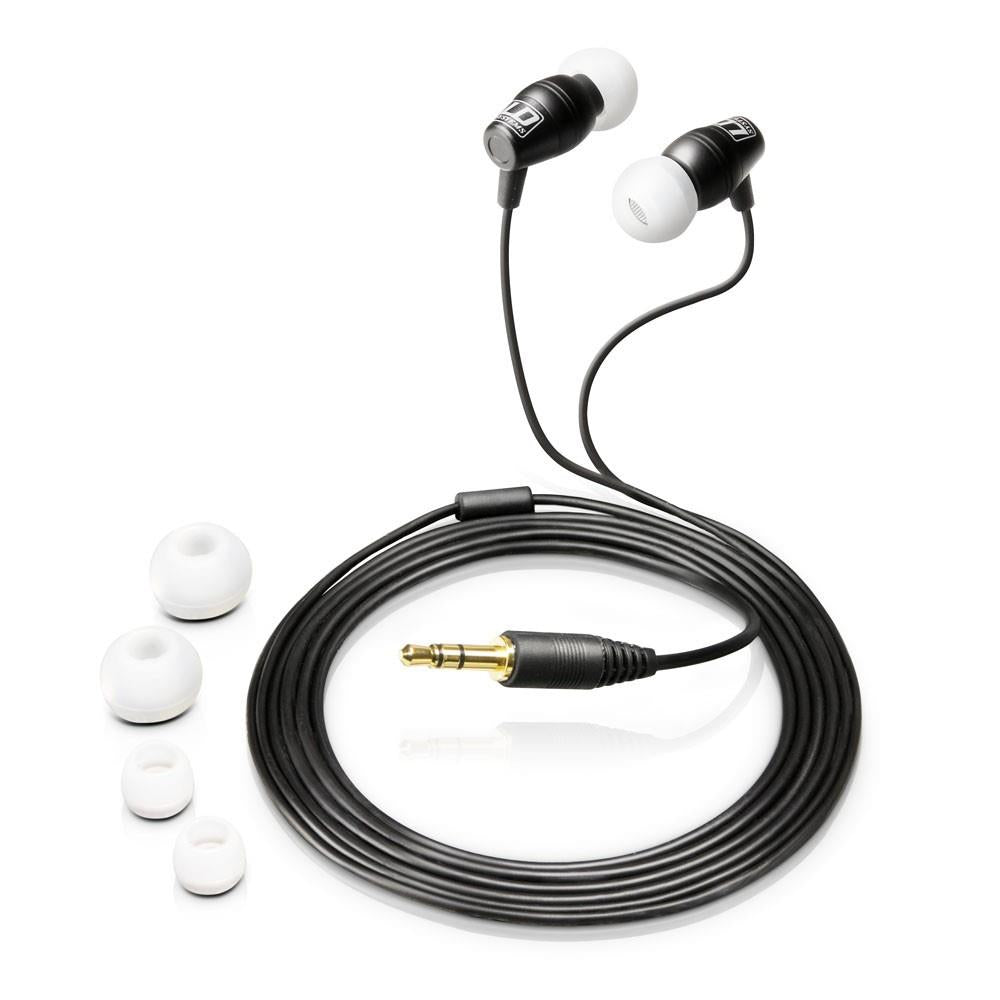

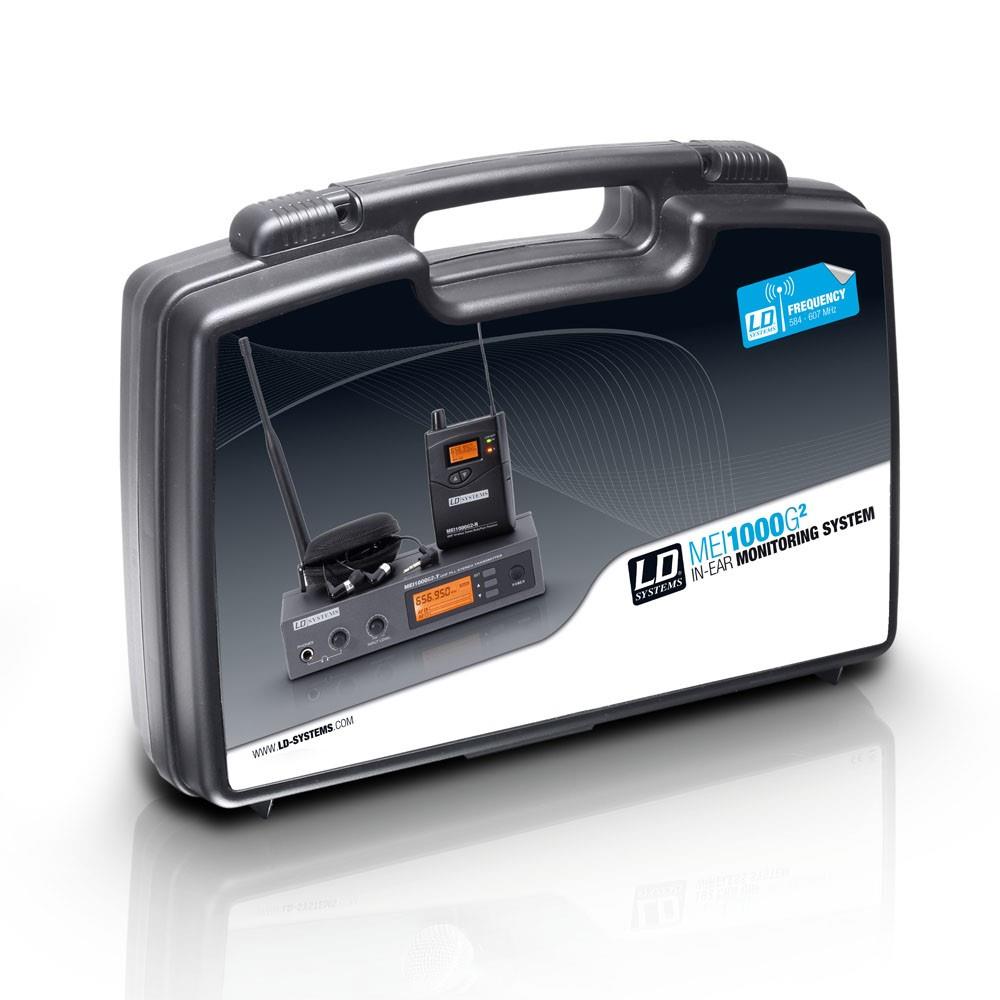

The earphones are very comfortable to wear, and the multifunctional display on the receiver shows all relevant system information. With high quality batteries, it is possible to attain operating times of 12 hours and more. A 19" rackmount kit and a rugged ABS plastic carrying case complete the MEI 1000 G2 package.

Specifications:

General
Product type In-ear Monitoring
Transmission frequency range 655 - 679 MHz

Items in this set:

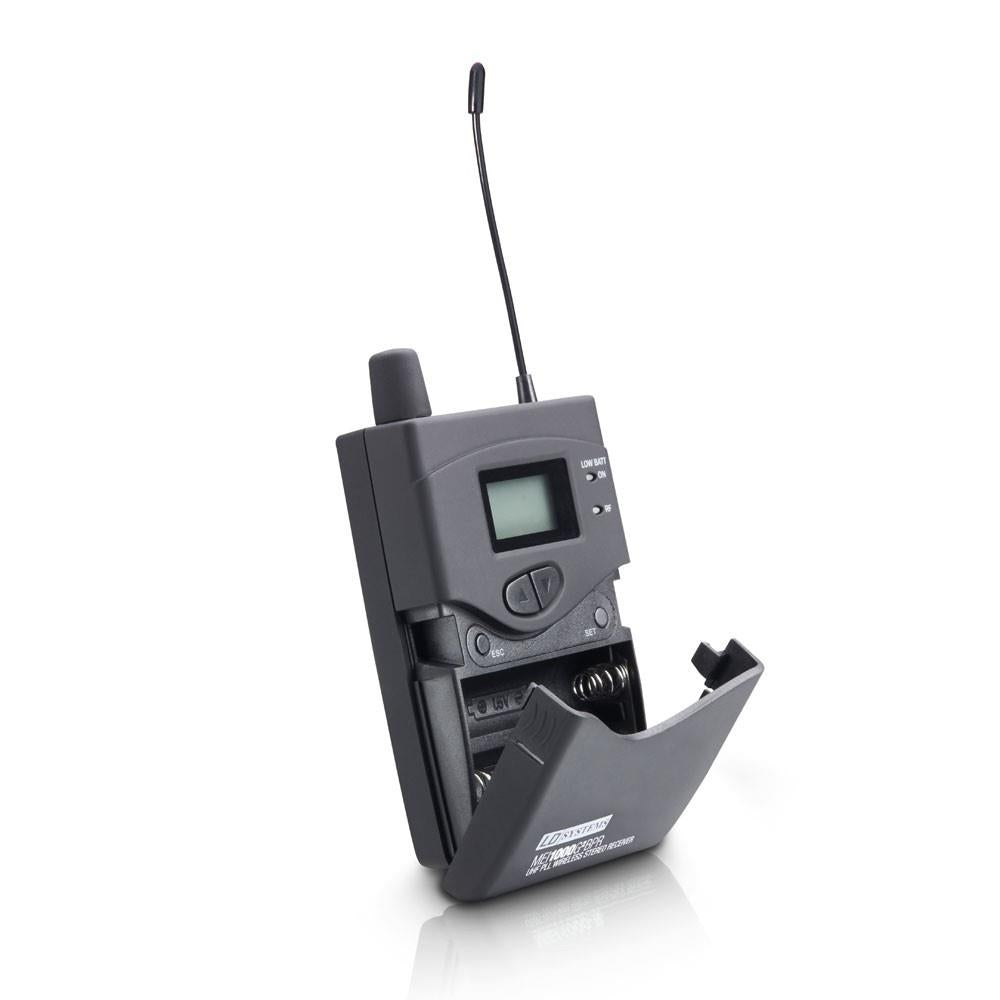

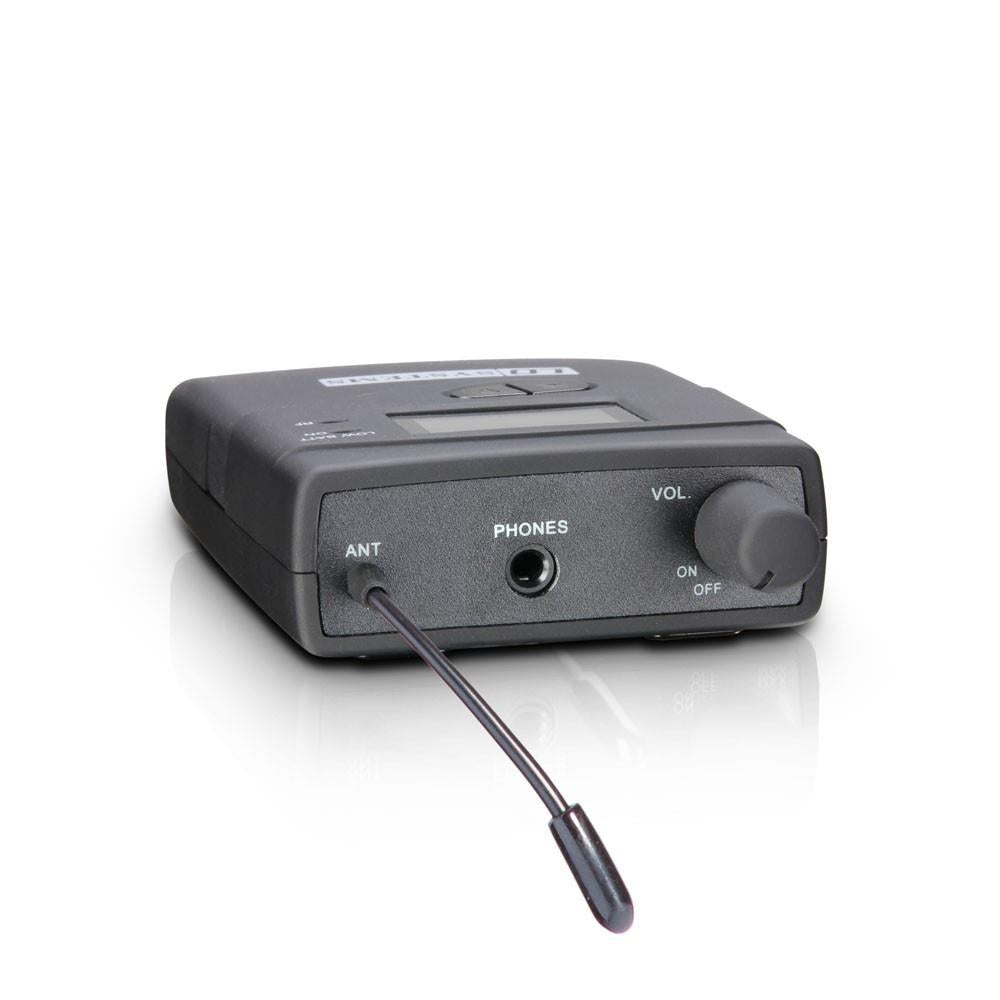

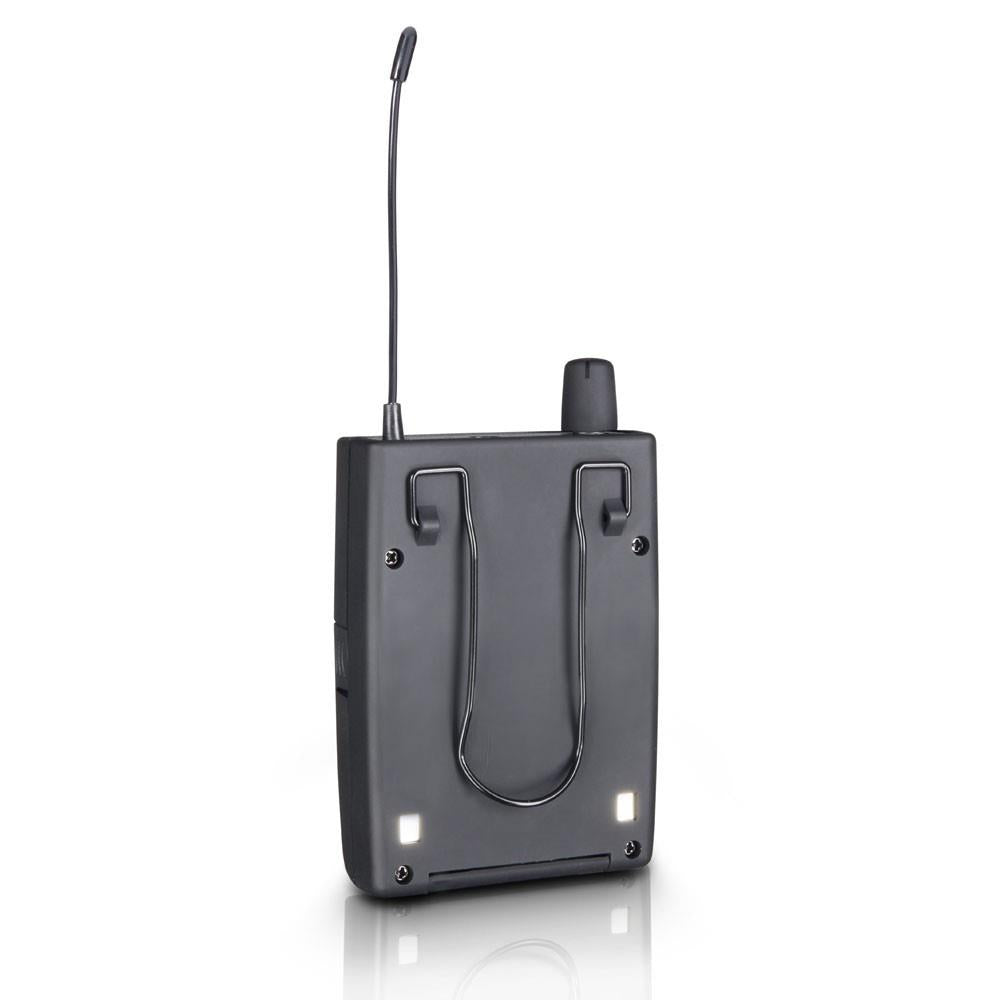

LD Systems MEI 1000 G2 BPR B 6 Receiver for LDMEI1000G2 In-Ear Monitoring System band 6 655 - 679 MHz
Product type In-ear Monitoring Accessories
Type Receivers
Transmission frequency range 655 - 679 MHz
Channels 2 x 96 (8 groups of 12 channels)
Transmission method FM, stereo
Total Harmonic Distortion (THD) < 1 %
Frequency response 60 - 16000 Hz
Audio output 3.5 mm TRS
Max. audio output level 100 mW
Operating time > 12 hrs., battery-dependent
Controls Down, Escape, Set, Up, volume
Indicators LC display, low battery, Power
Operating voltage 2 x 1.5 V AA
Width 65 mm
Features incl. batteries
Height 90 mm
Depth 24 mm
Weight 0,1 kg

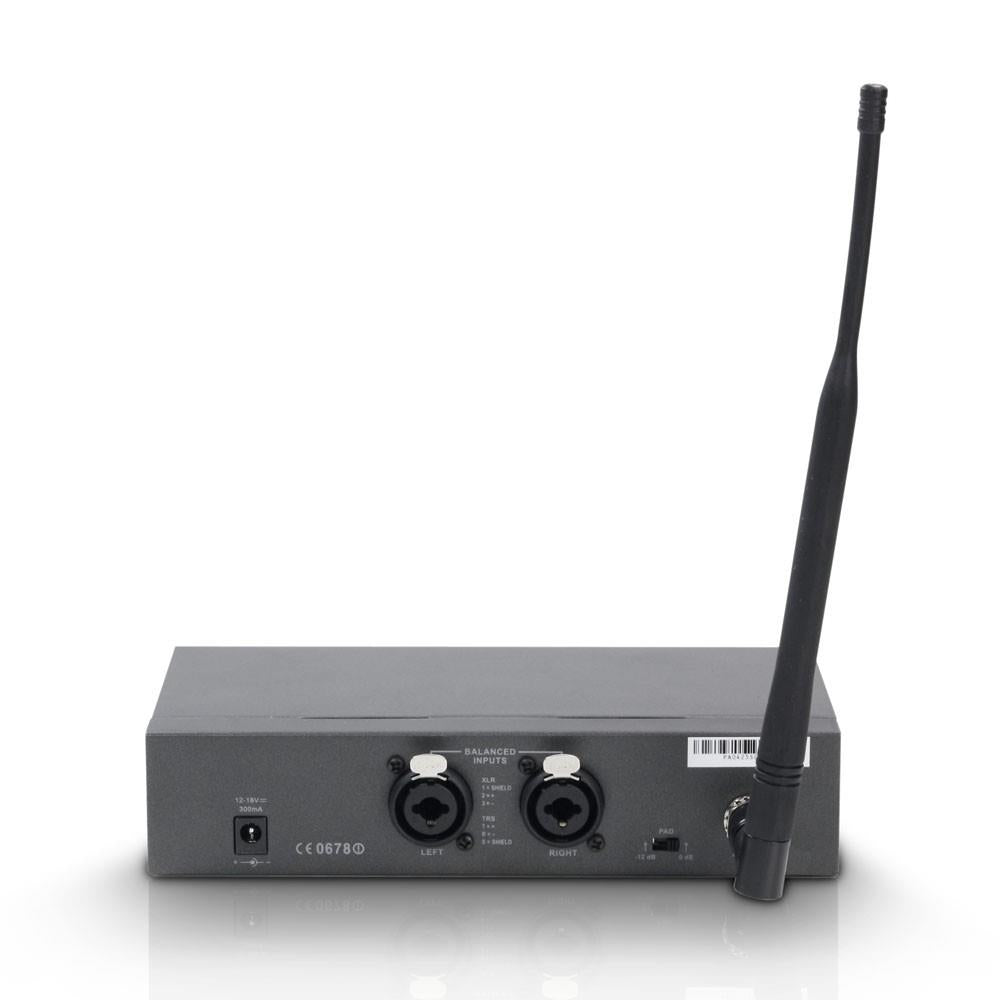

LD Systems MEI 1000 G2 T B 6 Transmitter for LDMEI1000G2 In-Ear Monitoring System band 6 655 - 679 MHz
Product type In-ear Monitoring Accessories
Type Transmitters
Transmission frequency range 655 - 679 MHz
Channels 96 (8 groups of 12 channels)
Transmission method FM, stereo
Rated HF output power 10 mW
Frequency response 60 - 16000 Hz
Signal-to-noise ratio 85 dB
Inputs 2
Input connectors 6.3 mm jack, XLR
Input impedance (kOhms) 14 kOhm
Antenna connector BNC
Controls Down, input level, pad, Power, Set, Up, volume headphone
Indicators LC display
Operating voltage 12 - 18 V DC
Width 200 mm
Height 44 mm
Depth 96 mm
Weight 1,123 kg
Accessories (included) Antenna, Power supply
