LD Systems MON 121 A G2 12" active Stage Monitor

£442.50
£442.50
12" active Stage Monitor
Vendor: LD Systems
SKU: 101-LDMON121AG2
Icon Out of Stock Out Of Stock
iFrame
×

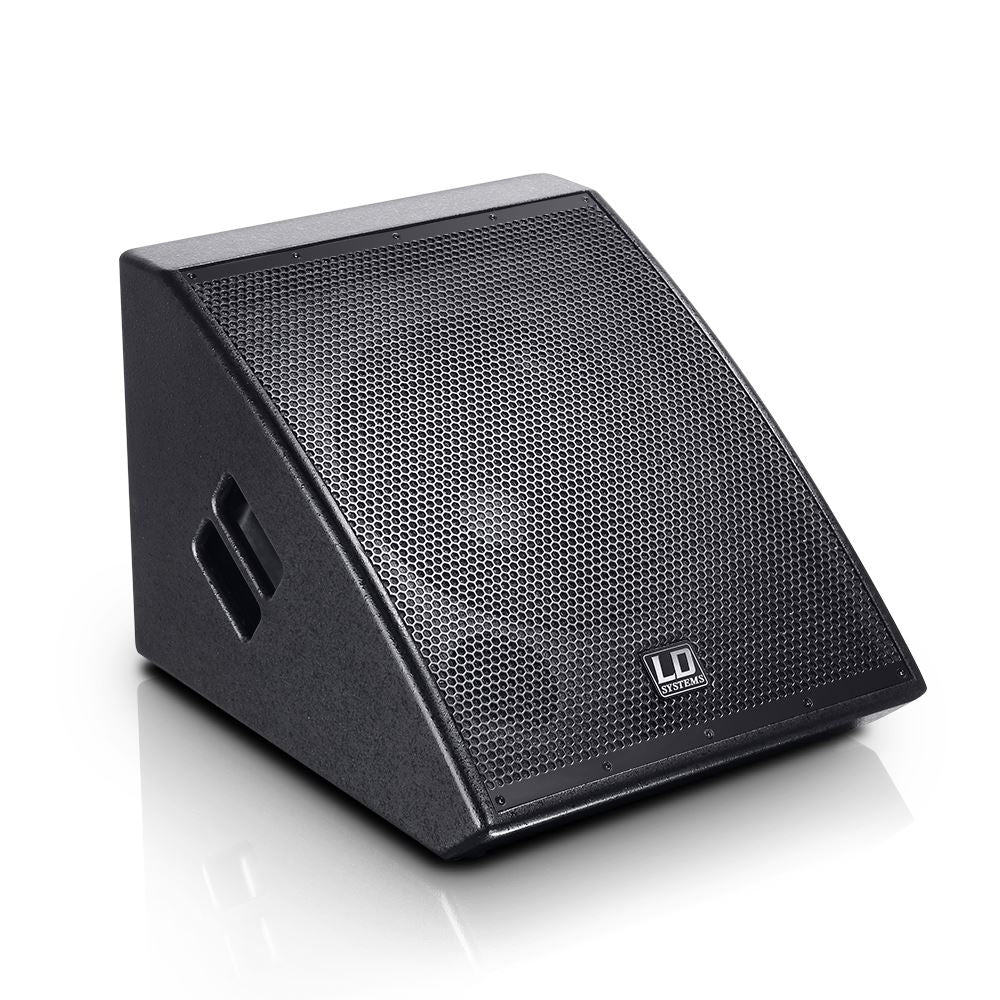

The LD Systems Stinger MON121AG2 is a compact active stage monitor for all mobile applications.

The specially developed 12" coaxial speaker with an integral 1" HF driver and powerful ferrite magnets stands out because of a precisely symmetrical dispersion over 75° x 75° and attains a maximum sound-level pressure of 124dB with maximum resistance to feedback. It is driven by a Class AB power amplifier with a power output of 1000W Peak. The frequency response curve is 80Hz - 20kHz.

Dependable operation of the LD MON121AG2 is ensured by a limiter that prevents overloading of the speaker and a protection circuit that guards against short-circuiting.

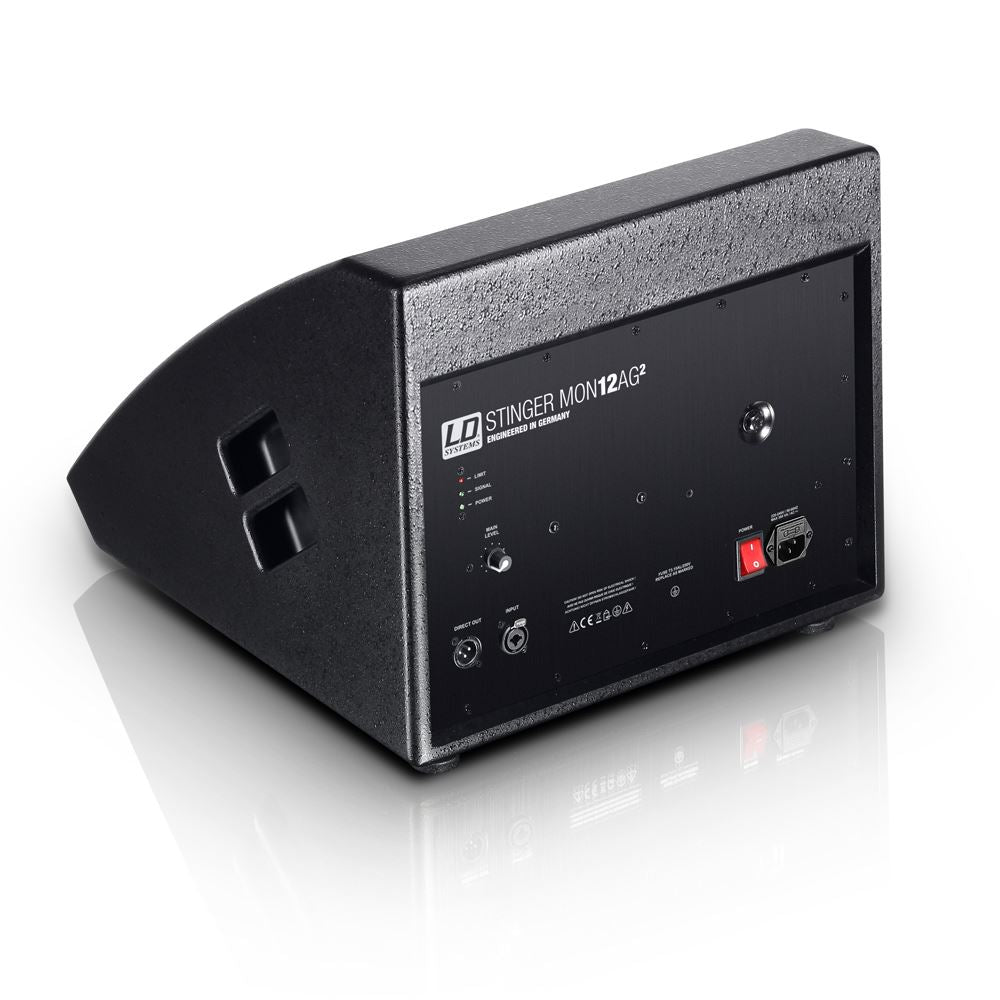

The input is a XLR-jack combo socket, an XLR output permits looping through of the signal. Other connector panel features include a volume control, IEC power socket, LED indicators of various colours for power, signal, and the limiter function.

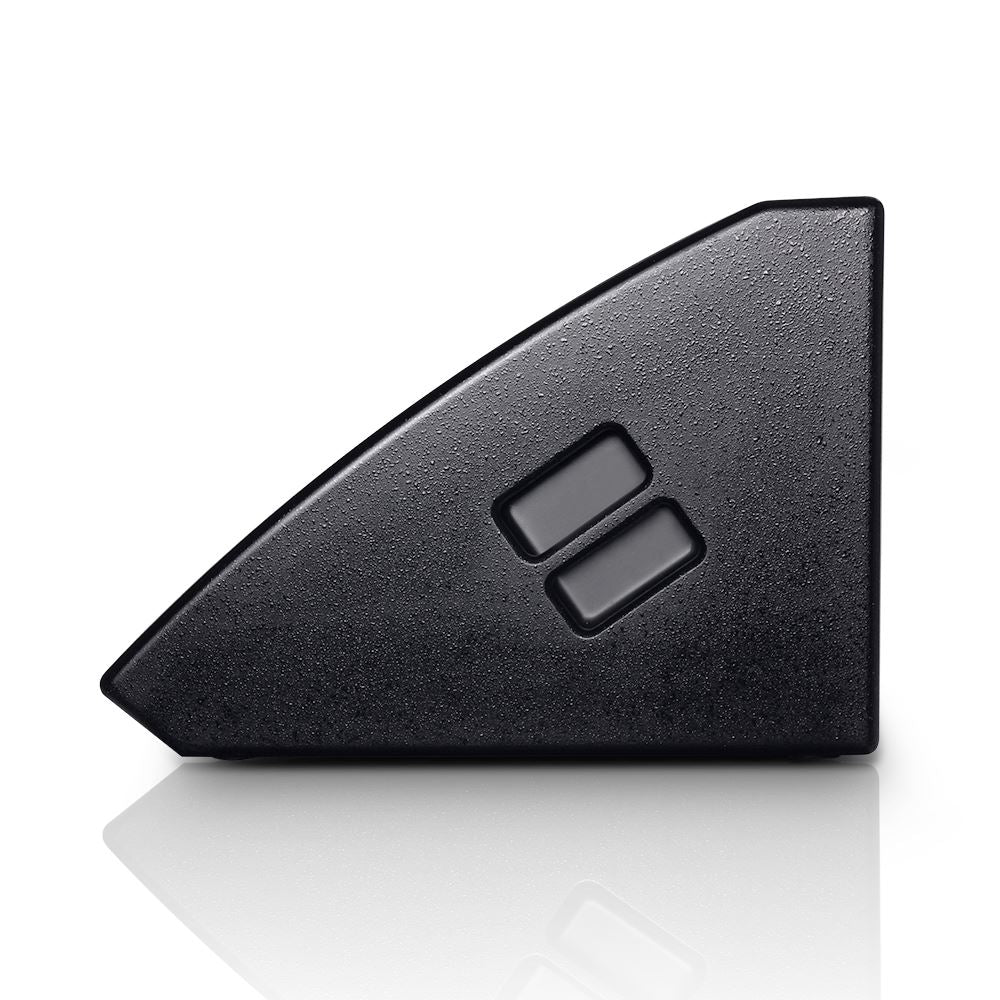

The elegant looking bass-reflex enclosure of the LD MON121AG2 is made of 15mm-thick multiplex finished with a durable coating. A sturdy metal grille guards against speaker damage, and ergonomically milled handles make transport easier. The monitor angle is 35°.


Specifications
Product type: PA loudspeaker
Type: Powered
Low/mid driver dimensions: 12 "
Woofer size: 304 mm
Woofer type: coaxial loudspeaker
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil: 2 "
Woofer voice coil (mm): 50.8 mm
HF driver dimensions: 1 "
HF Driver Size: 25.4 mm
HF driver magnet: Ferrite
HF driver brand: Custom-made
HF driver voice coil: 1 "
HF Driver Voice Coil: 25.4 mm
Amplifier: Class A/B
Dispersion (H x V): 75 x 75
RMS: 250 W
Peak power: 1000 W
Frequency response: 80 - 20000 Hz
Crossover frequency: 2200 Hz
SPL (1W/1m): 100 dB
Max. SPL (continuous): 116 dB
Max. SPL (peak): 124 dB
Protection circuits: limiter, short circuit
Controls: On / Off, volume
Indicators: Limit, Power, Signal
Line Inputs: 1
Line input connectors: 6.3 mm jack, XLR
Line Outputs: 1
Line output connectors: XLR
Operating voltage: transformer, 230 V AC / 50-60 Hz
Cabinet material: 15 mm Plywood
Cabinet construction: Bass Reflex
Monitor angle: 35°
Width: 440 mm
Depth: 360 mm
Height: 514 mm
Weight: 17,8 kg
Features: ergonomically shaped insert handles
