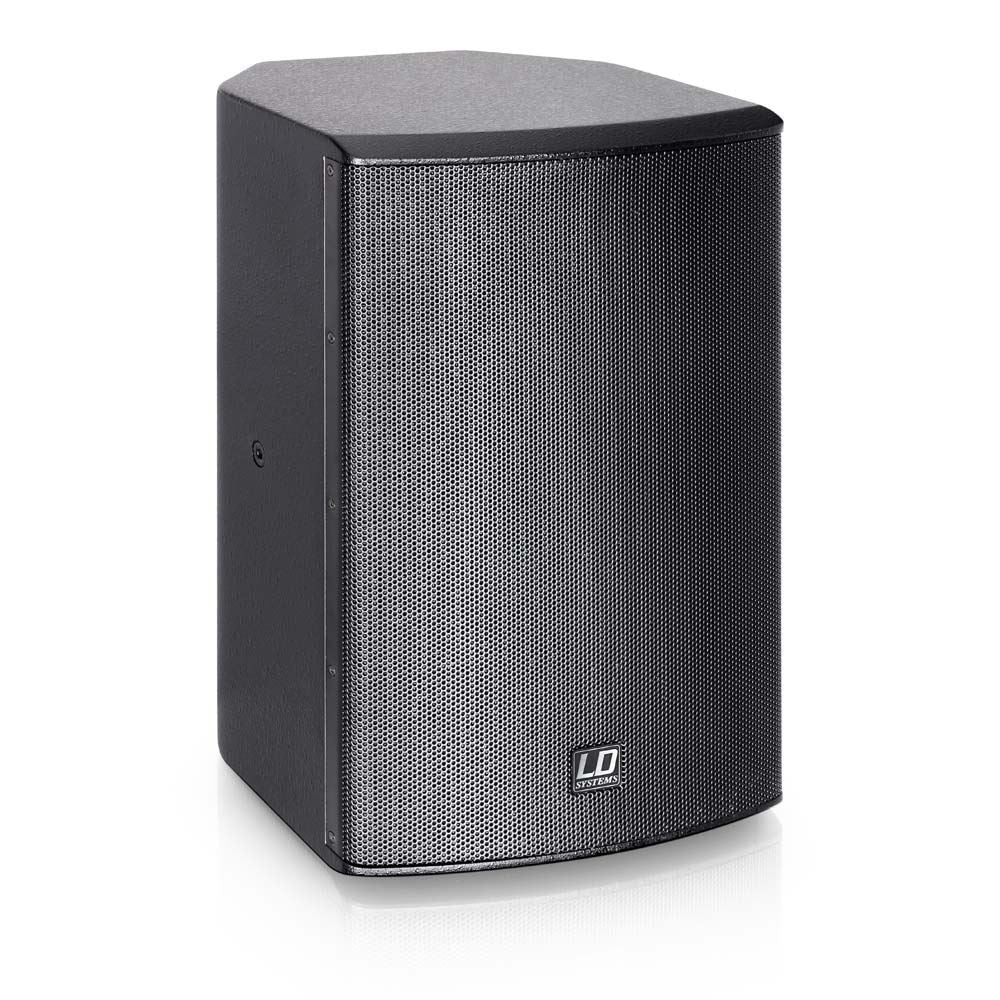

LD Systems SAT 82 A G2 8" Active Installation Monitor black

The LD Systems SAT82AG² is an active installation monitor, which provides a convincing performance on a PC or laptop and as a home studio monitor.

The compact 2-way bass reflex design is equipped with an 8" custom-made woofer and a 1" compression driver which are driven by an 80 Watt Class AB power amplifier. The input is a combo socket; an XLR socket is used to loop through the signal. With a frequency response of 50 Hz - 20 kHz and 114 dB maximum sound pressure, the SAT82AG² produces a balanced sound with high dynamics. The monitor features protection circuits for the tweeter against overcurrent, and a switchable power saving mode that automatically switches to standby if there is no signal for 3 minutes.

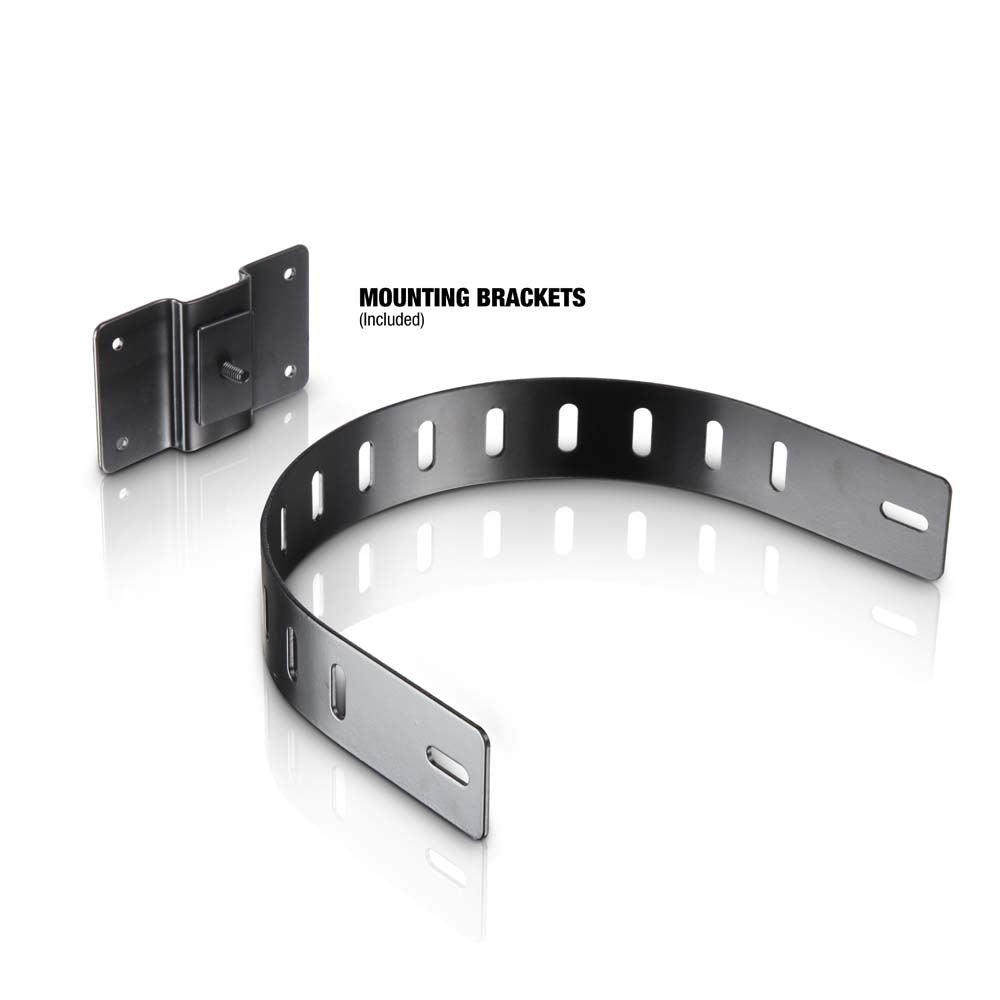

The cabinet of the SAT82G² is made of 12mm MDF with M6 flight points and is available in black or white with a durable textured paint finish. A versatile mounting bracket is included; a universal joint mount is available as an accessory.

Features
Compact active 2-way installation monitor
Ideal for bars, restaurants, shops, as a home recording monitor and PC speaker
8" custom-made woofers
1" high frequency driver with a 60° x 60° dispersion angle
Integrated Class AB power amplifier with 80 watts (RMS)
Switchable automatic power save mode
Mounting bracket and M6 fixing points for a wide variety of installation possibilities

Specifications
Product type: Installation Loudspeakers
Type: Wall-mounted Loudspeaker
Low/mid driver dimensions: 8 "
Woofer size: 203.2 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
HF driver dimensions: 1 "
HF Driver Size: 25 mm
HF driver magnet: Ferrite
HF driver brand: Custom-made
Power amplifier (Class A): Class A/B
Dispersion (H x V): 60° x 60
RMS: 80 W
Frequency response: 50 - 20000 Hz
Max. SPL: 114 dB
Protection circuits: HF Driver, over voltage
Controls: mains switch (on/off), volume
Indicators: overload, Power
Line input connectors: 6.3 mm jack, XLR
Line output connectors: XLR
Operating voltage: transformer, 220 V AC - 240 V AC, 50-60 Hz
Cabinet material: 12 mm MDF
Cabinet surface: texture paint
Cabinet colour: Black
Cabinet construction: Bass Reflex
Width: 274 mm
Height: 410 mm
Depth: 243 mm
Weight: 8,5 kg
Accessories (included): Wall bracket
