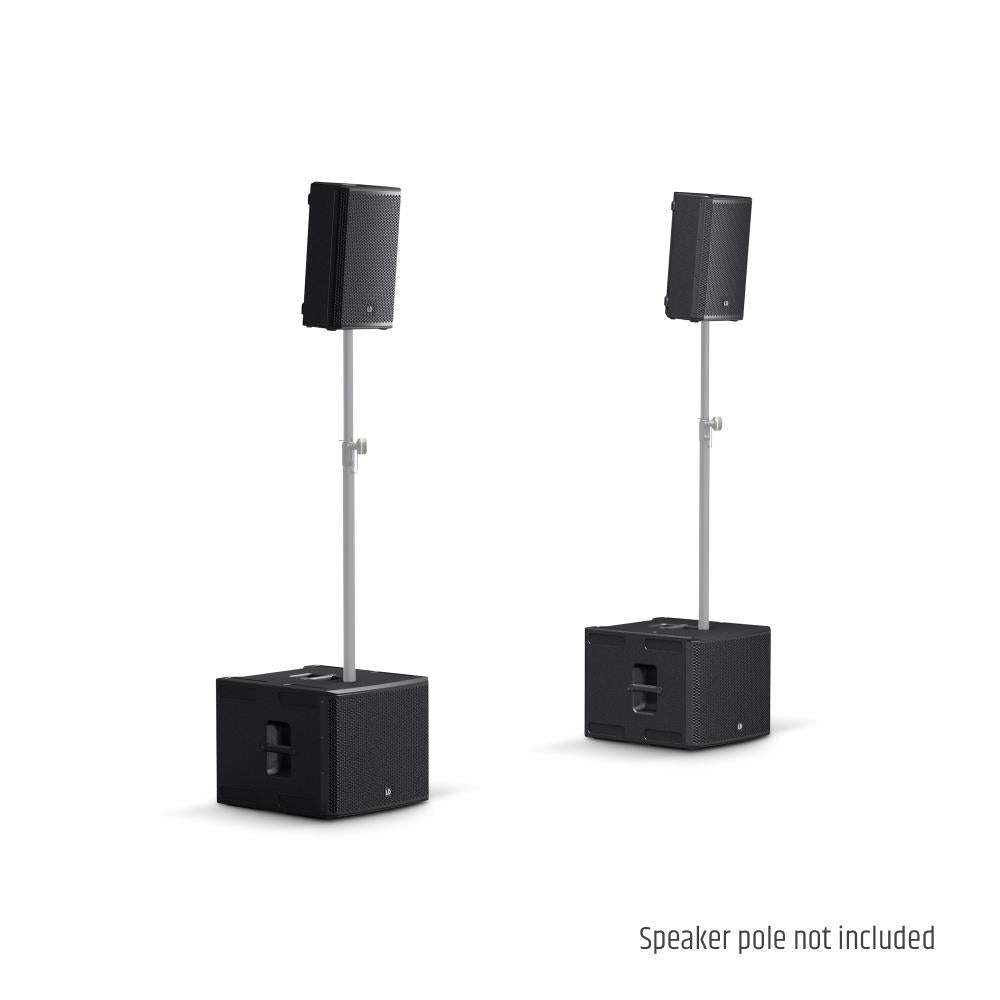

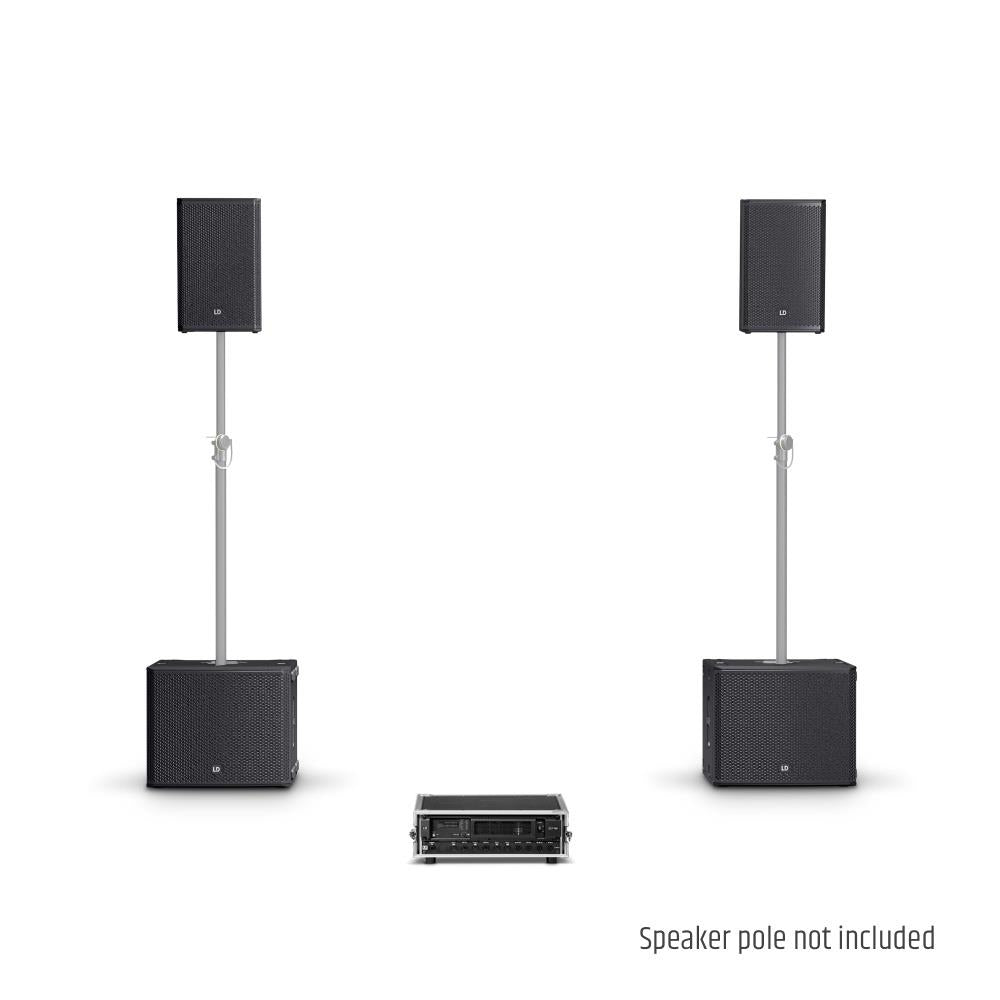

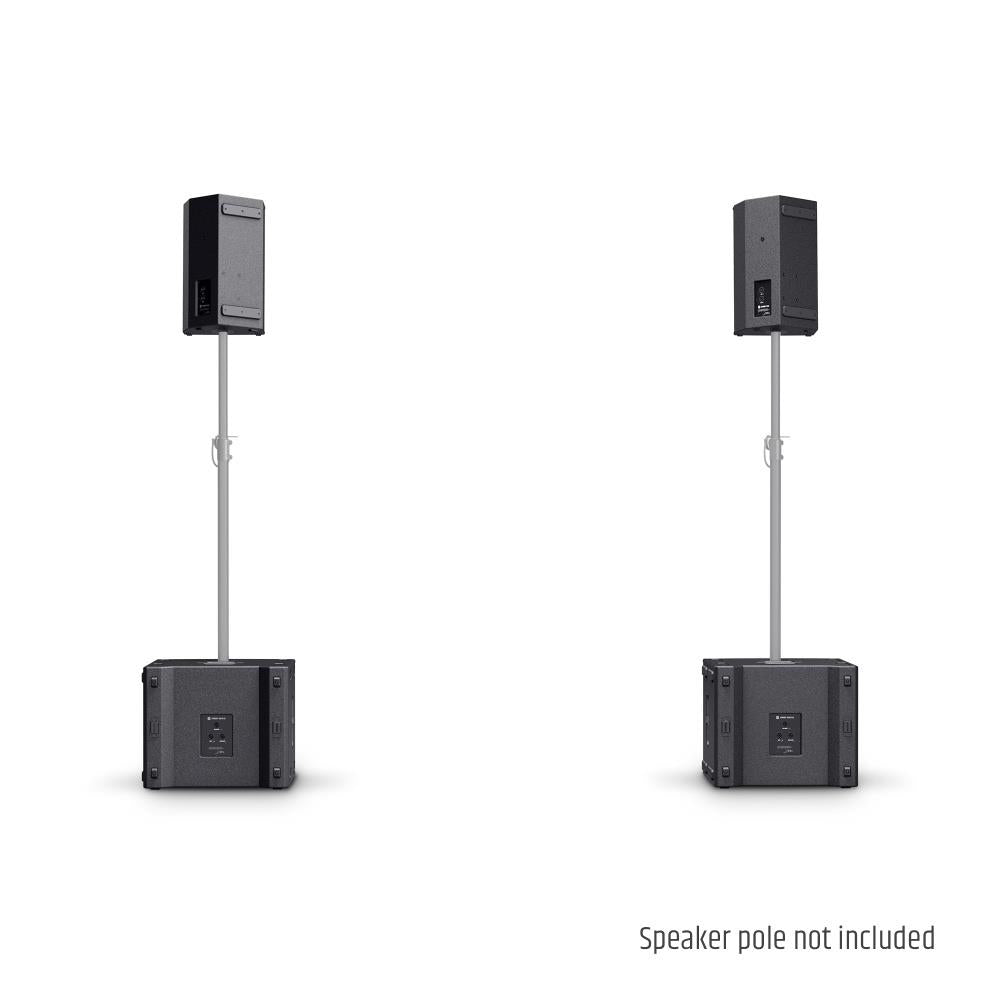

LD Systems STINGER G3 EVENT SET 2 x 10" passive PA Speaker + 2 x 15" passive Subwoofer + Amp Rack

Description:

This set is the perfect all-round package for small to medium-sized gigs and functions providing a tight and punchy low end from the two subwoofers. We recommend this set for the following type of application: DJ, small bands and more. The STINGER G3 EVENT SET is suitable for audiences of up to 300* pax. For optional stands and cables check out the "related products" section.

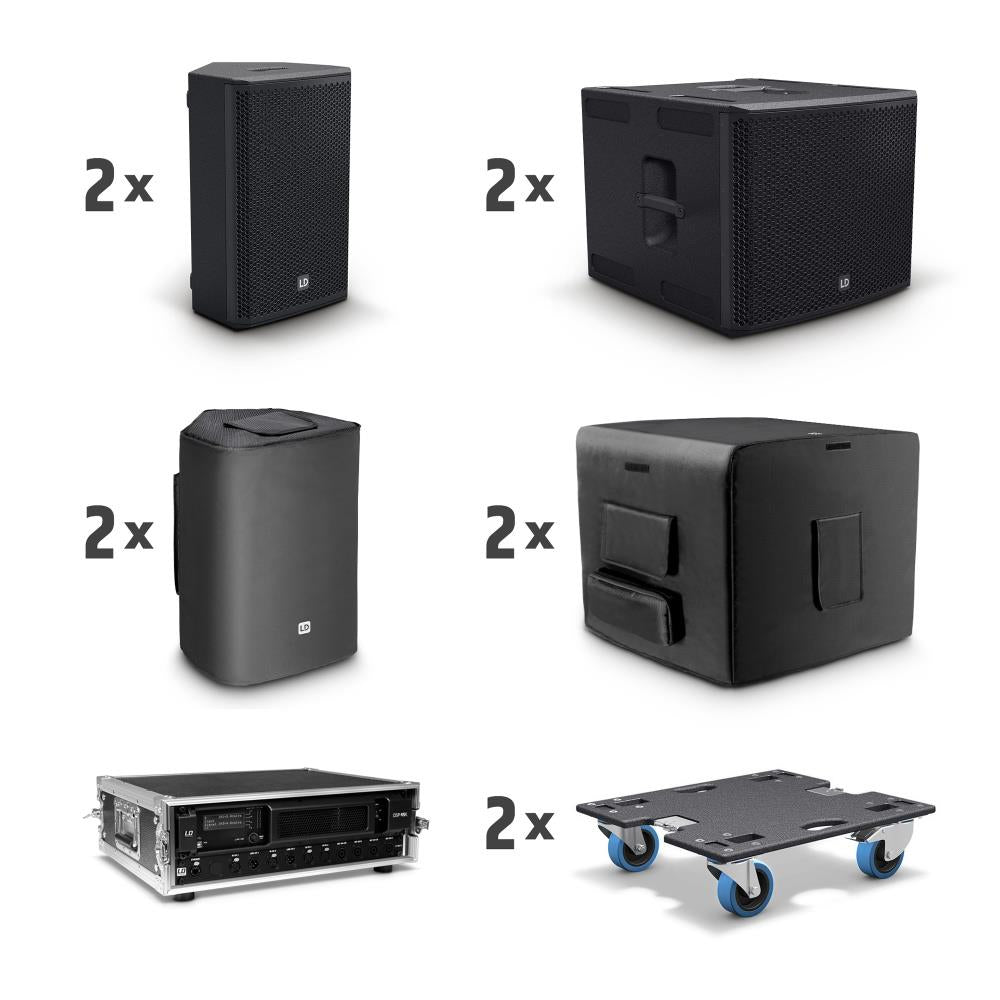

Set consisting of:2 x STINGER 10 G3 – 10” Passive loudspeaker

2 x STINGER SUB 15 G3 – 15” Passive subwoofer

1 x DSP 45K RACK – Power amplifier with DSP

2 x STINGER 10 G3 PC – Padded protective cover for loudspeaker

2 x STINGER SUB 15 G3 PC – Padded protective cover for subwoofer

2 x STINGER SUB 15 G3 CB – Castor board for subwoofer

*NOTE: Audience size specifications are approximate only. The actual numbers may vary depending on room acoustics and environment.

Features:

For audiences up to 300* pax
For DJs, small bands and private use
Compact and easy to transport
Extensive and smart accessories for installation and transport
All-rounder for full-range, satellite and monitor applications
36 mm Dual-Tilt pole mount for 0° and 5° tilt angle
Birch plywood housing with ultra-robust Polyurea coating
Dedicated subwoofer output to provide signal and power to passive satellite
Set includes protective covers and castor boards

Specifications:

Type Passive
System output (RMS) 1.800 W
Frequency response 40 - 20,000 Hz
Dispersion (H x V) 90 x 50°
Weight 109,682 kg

Items in this set

LD Systems STINGER SUB 15 G3 CB Castor board for STINGER SUB 15 G3 models

Type castor boards
Material Birch multiplex
Material thickness 15 mm
Surface Polyurea
Width 567 mm
Color Black
Number of casters 4
Wheel diameter 100 mm
Weight 6 kg
Manufacturer of castors Adam Hall
Number of drag castors 2
Length 624 mm

LD Systems STINGER 10 G3 2-Way Passive 10” Bass Reflex PA Loudspeaker

Type Passive
Low/mid Woofer dimensions 10 "
Woofer dimensions (mm) 254 mm
Width 325 mm
Height 527 mm
Woofer magnet Ferrite
Woofer brand Custom-made
Weight 11,5 kg
Woofer voice coil 2 "
Woofer voice coil (mm) 50.8 mm
Load rating (RMS) 300 W
Horn BEM optimized CD Horn
HF driver dimensions 1 "
Peak power 600 W
HF driver size 25.4 mm
Frequency response 65 - 20000 Hz
HF driver magnet Ferrite
SPL (1W/1m) 96 dB
HF driver brand BMS
HF driver voice coil 1 "
Max. SPL 121 dB
HF driver voice coil 25.4 mm
Dispersion (H x V) 90 x 50 °
Loudspeaker inputs 1
Speaker input connections Speakon compatible
Loudspeaker outputs 1
Speaker output connections Speakon compatible
Speakers per amplifier channel (DSP44/45K) 4
Cabinet material 12 mm Plywood
Cabinet surface Polyurea
Cabinet construction Bass Reflex
Impedance 8 Ohm(s)
Protection circuits HF Driver
Monitor angle 54 °
Depth 318 mm

LD Systems STINGER 10 G3 PC Padded protective cover for Stinger® G3 PA Loudspeaker 10"

Type Covers
Color Black
Material Nylon 1680D
Thickness of the padding 8 mm
Height 530 mm
Width 350 mm
Depth 320 mm
Weight 0,5 kg

LD Systems STINGER SUB 15 G3 Passive 15” Bass Reflex PA Subwoofer
Product type PA subwoofer
Type Passive
Low/mid Woofer dimensions 15 "
Woofer dimensions (mm) 381 mm
Width 567 mm
Height 477 mm
Woofer magnet Ferrite
Depth 624 mm
Woofer brand Custom-made
Weight 29,7 kg
Woofer voice coil 3 "
Woofer voice coil (mm) 76.5 mm
Load rating (RMS) 600 W
Peak power 1200 W
Frequency response 40 - Crossover Hz
SPL (1W/1m) 99 dB
Max. SPL 127 dB
Impedance 8 Ohm(s)
Loudspeaker inputs 1
Speaker input connections Speakon compatible
Loudspeaker outputs 1
Speaker output connections Speakon compatible
Speakers per amplifier channel (DSP44/45K) 3
Cabinet material 18 mm Plywood
Cabinet surface Polyurea
Cabinet construction Bass Reflex

LD Systems STINGER SUB 15 G3 PC Padded protective Cover for STINGER® G3 Subwoofer 15"
Product type PA Subwoofer Accessories
Type Covers
Color Black
Material Nylon 1680D
Thickness of the padding 8 mm
Width 567 mm
Height 470 mm
Depth 625 mm
Weight 1,191 kg

LD Systems DSP 45 K RACK 4-Channel DSP Power Amplifier and Patchbay in 19" Rack Case
Product type Power Amplifiers
Type 19" / 3 HE
Weight 17,9 kg
