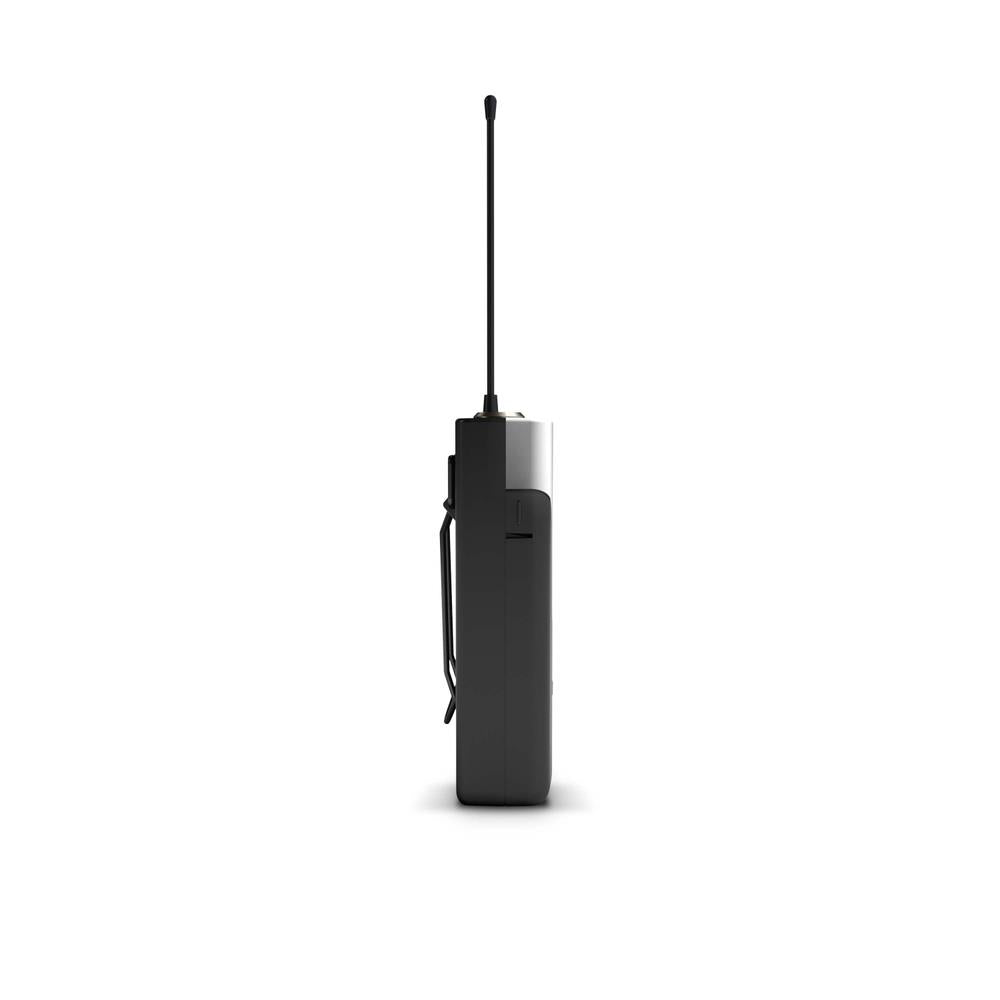

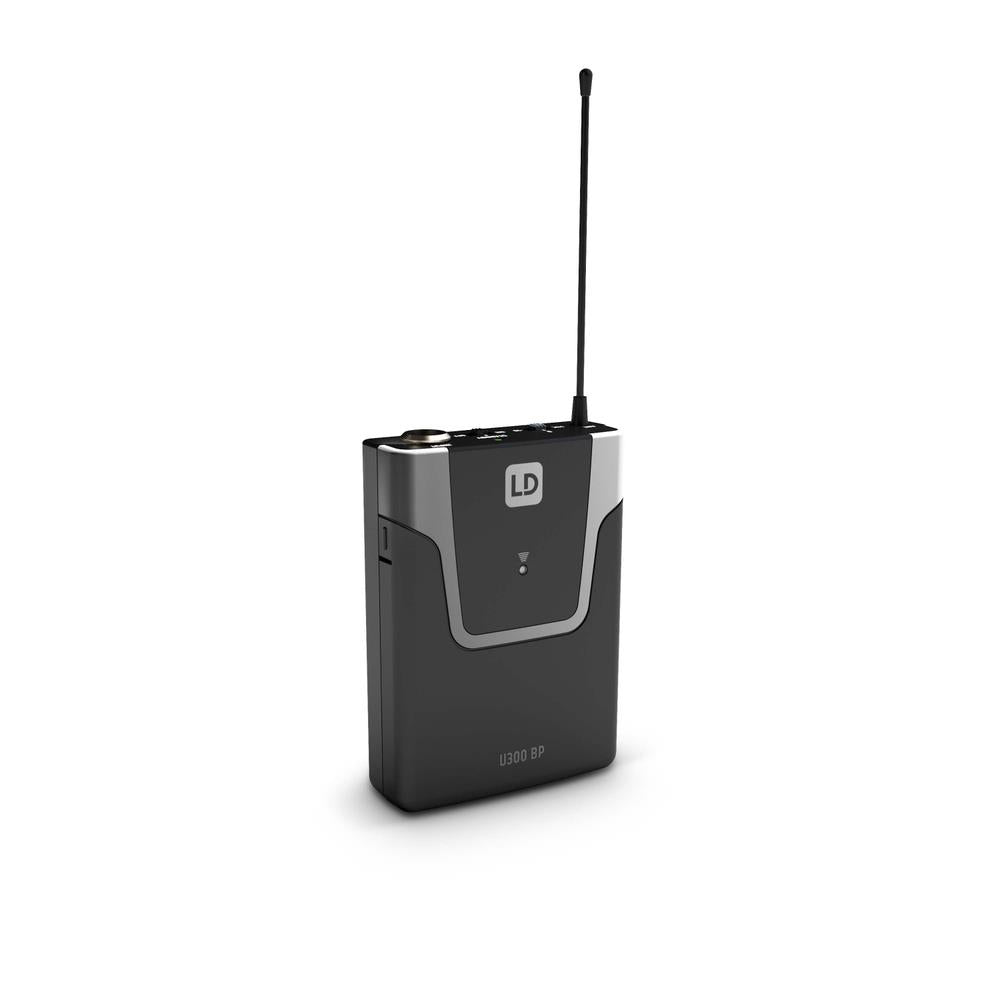

LD Systems U308 BP Bodypack Transmitter 823 - 832 MHz, 863 - 865 MHz band

Description:

Operating in the 823 - 832 MHz, 863 - 865 MHz band, this U300 Series bodypack transmitter features a miniature XLR input with 3-position level selector to accommodate microphones as well as active and passive instrument pickups. It has an output power of 10 mW and 25 Hz - 16 kHz frequency response to handle 5-string bass guitars with a low B string. The U308 BP provides over 10 hours of continuous operation on two AA batteries, easy IR syncing with the U308 receiver and pilot tone transmission to eliminate RF interference. The bodypack's on/off switch includes a convenient standby position for temporary muting.

Specifications:

General
Product type Wireless Microphone System Accessories
Type Bodypack
Transmission frequency range 823 - 832 MHz, 863 - 865 MHz
Channels 12
Groups 1
Inputs Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)
Frequency response 25 - 16,000
Signal-to-noise ratio 104 dB
Rated HF output power 10 mW

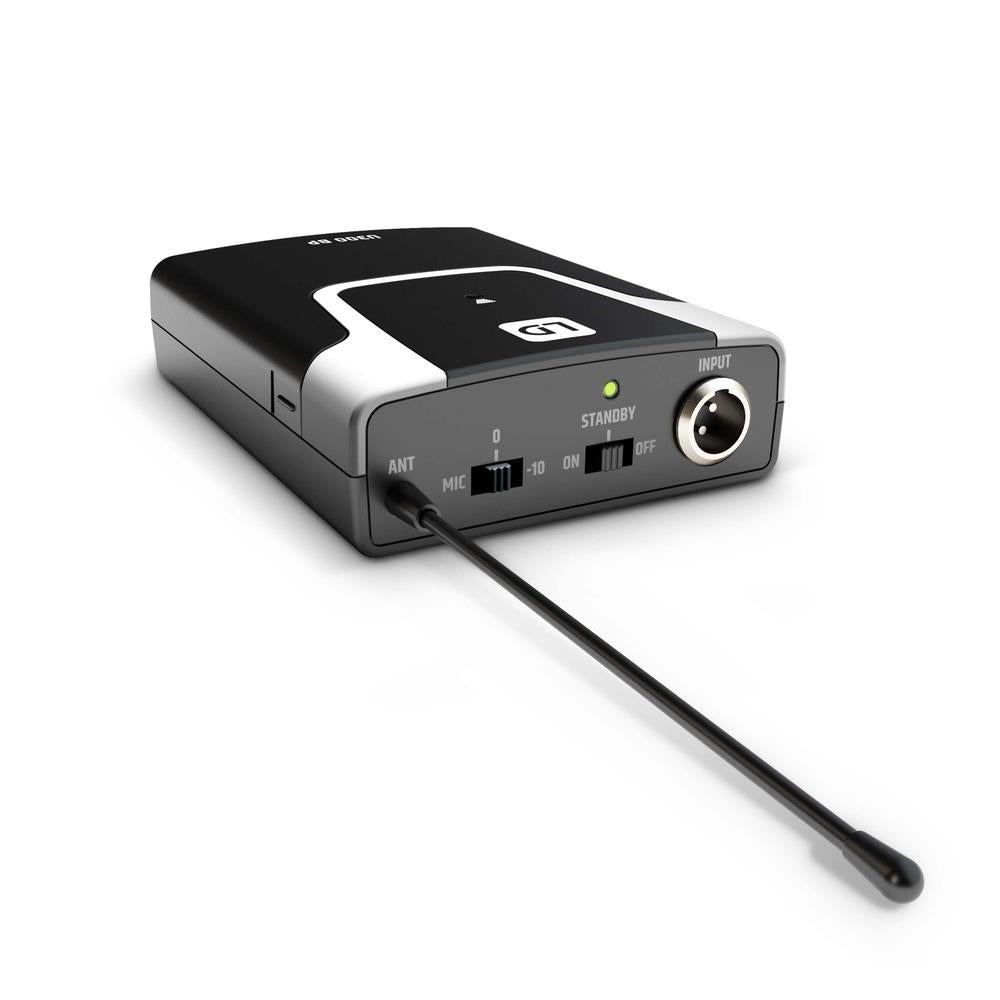

Controls Gain (3-way switch), Power On/Off
Indicators ASC IR Sync (Green/Amber Blinking LED), Battery (low battery: red), Power LED (Power ON: green)

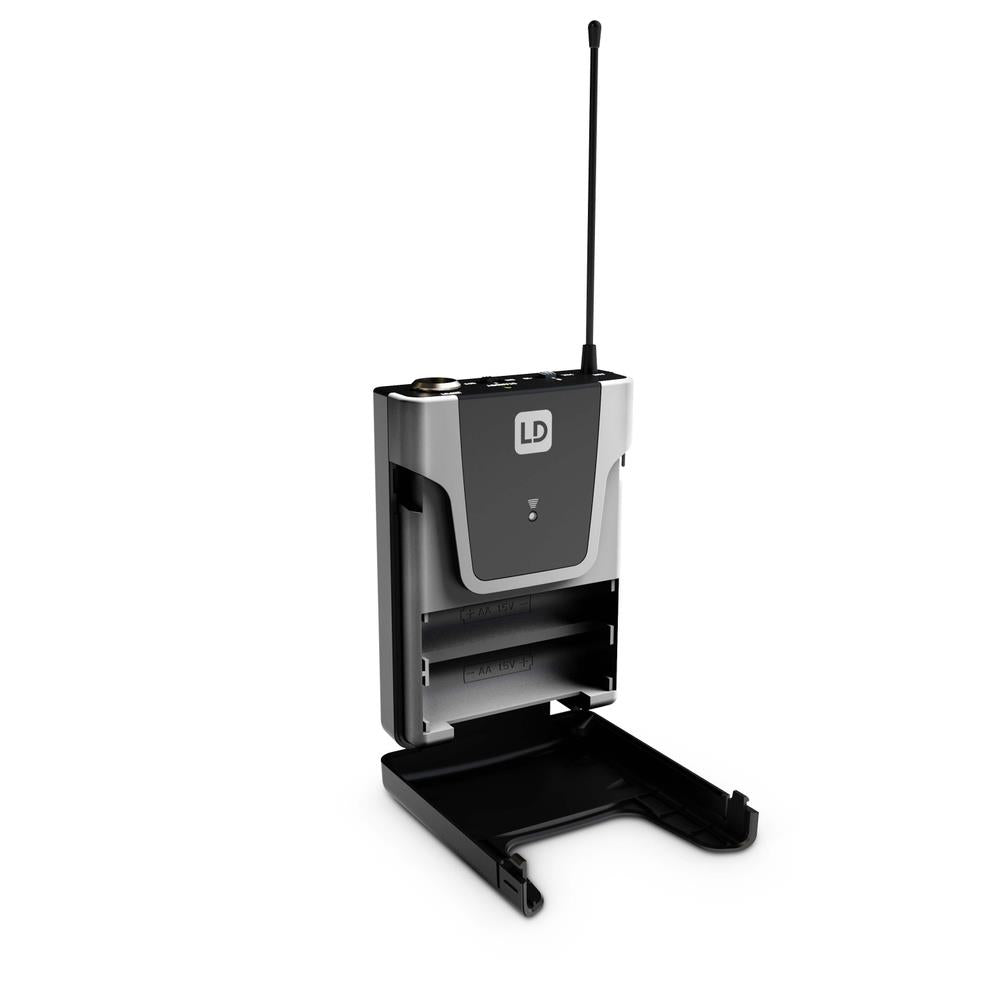

Power supply 2 x AA batteries
Operating time >10 h
Width 65 mm
Height 91 mm
Depth 25 mm
Weight 0,085 kg

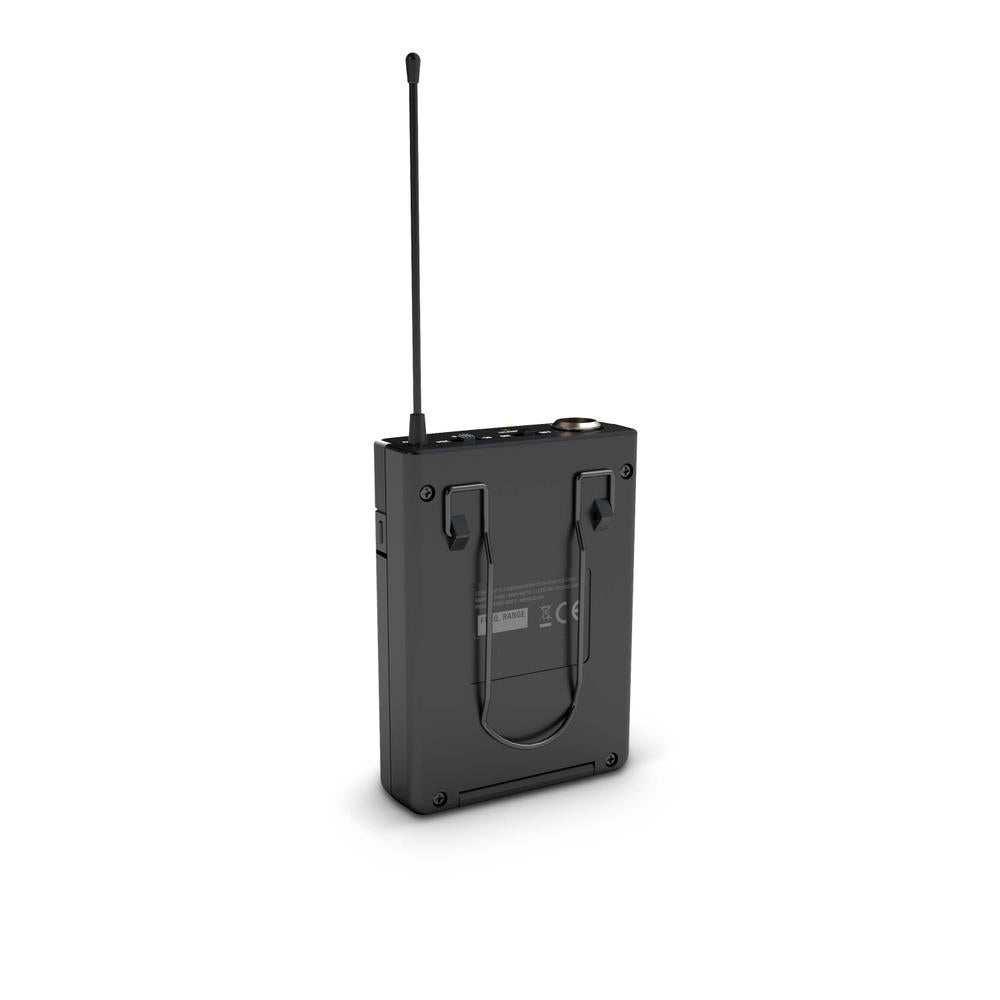

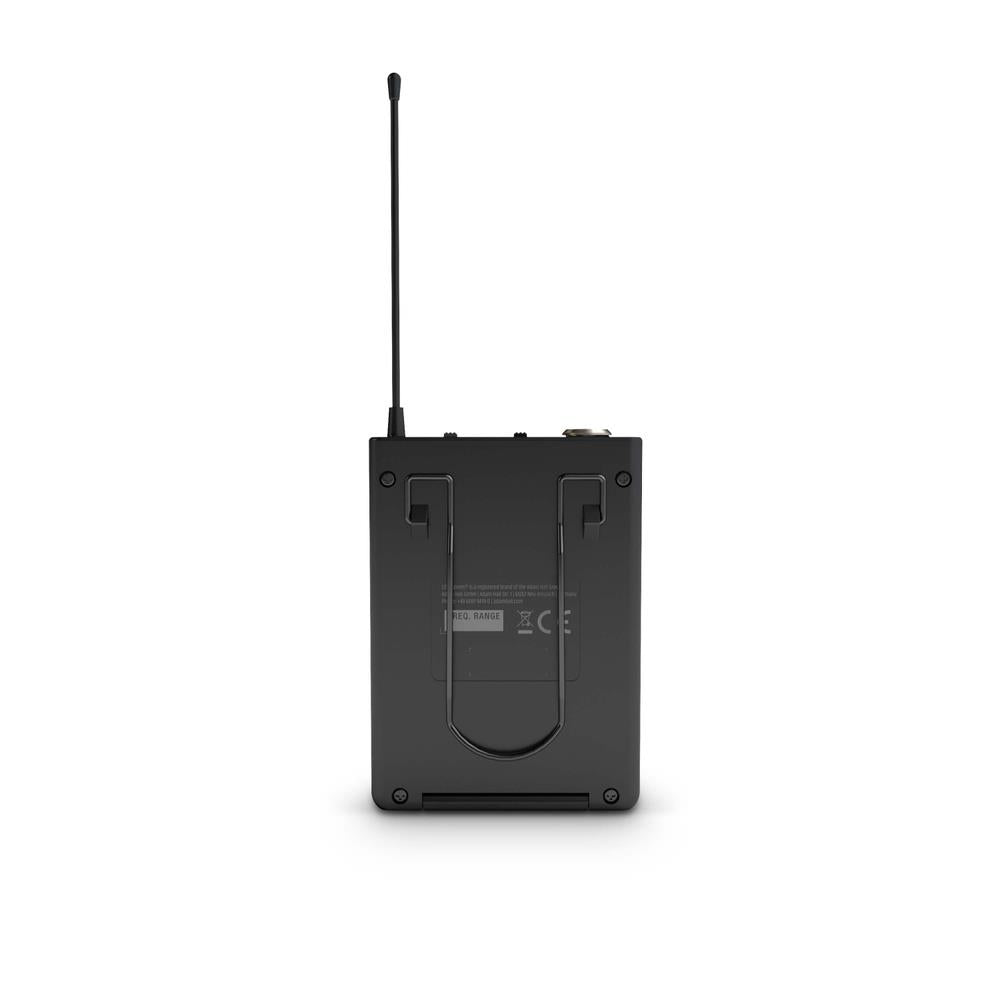

Other features Belt clip, IR frequency synchronisation, Pilot tone
