LD Systems WIN 42 AD 4-way Antenna Split Box
- £300.00
- £300.00
- Unit price
- per

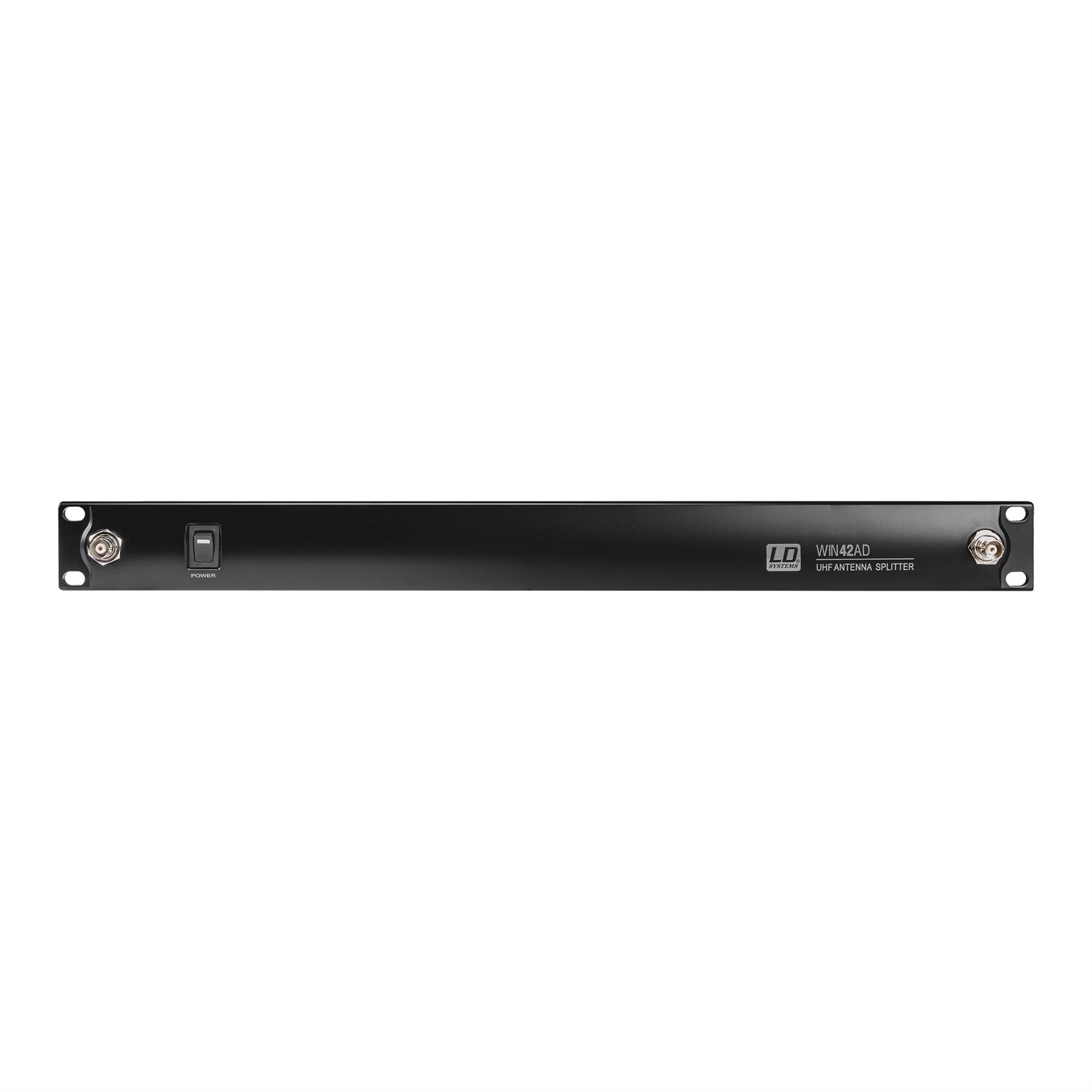

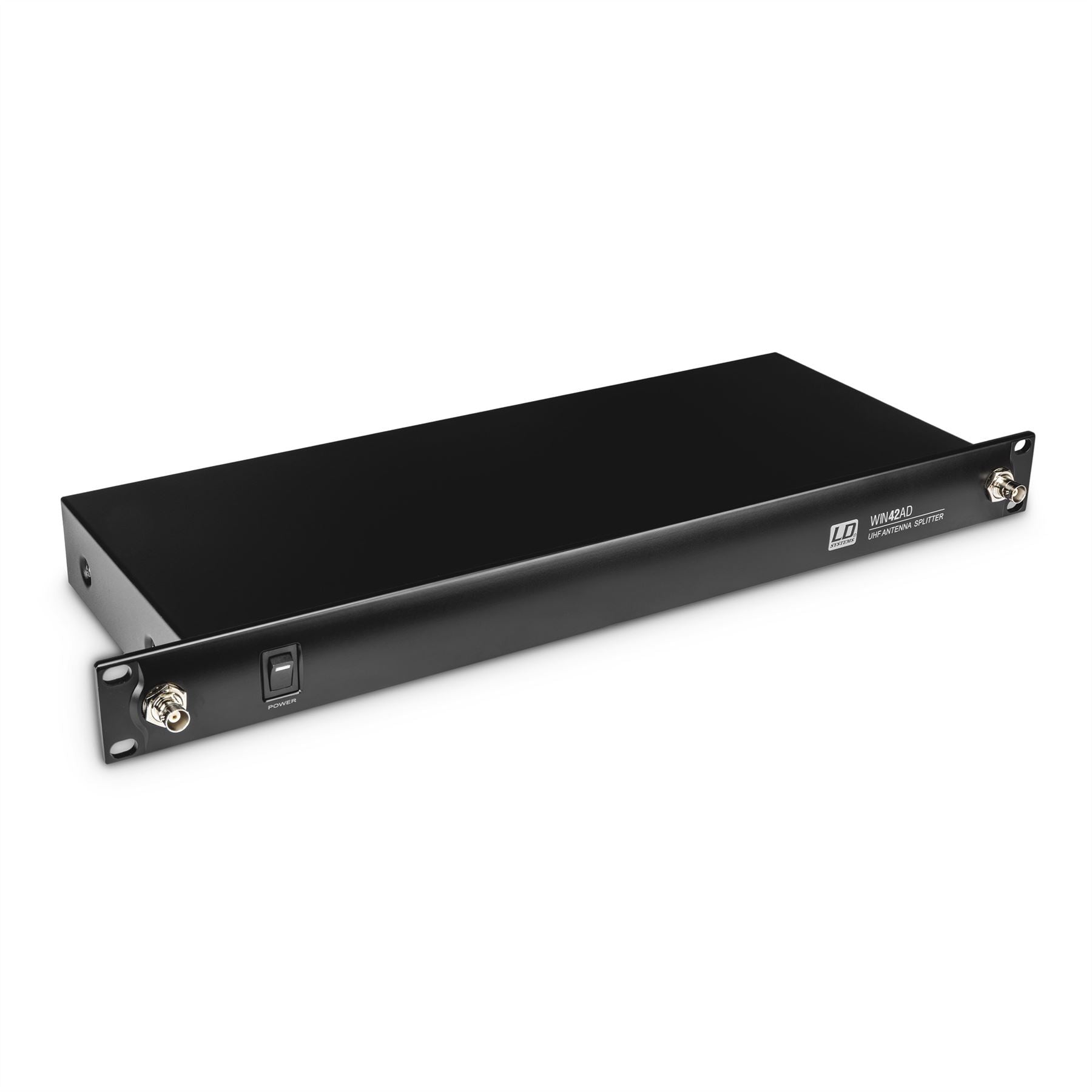

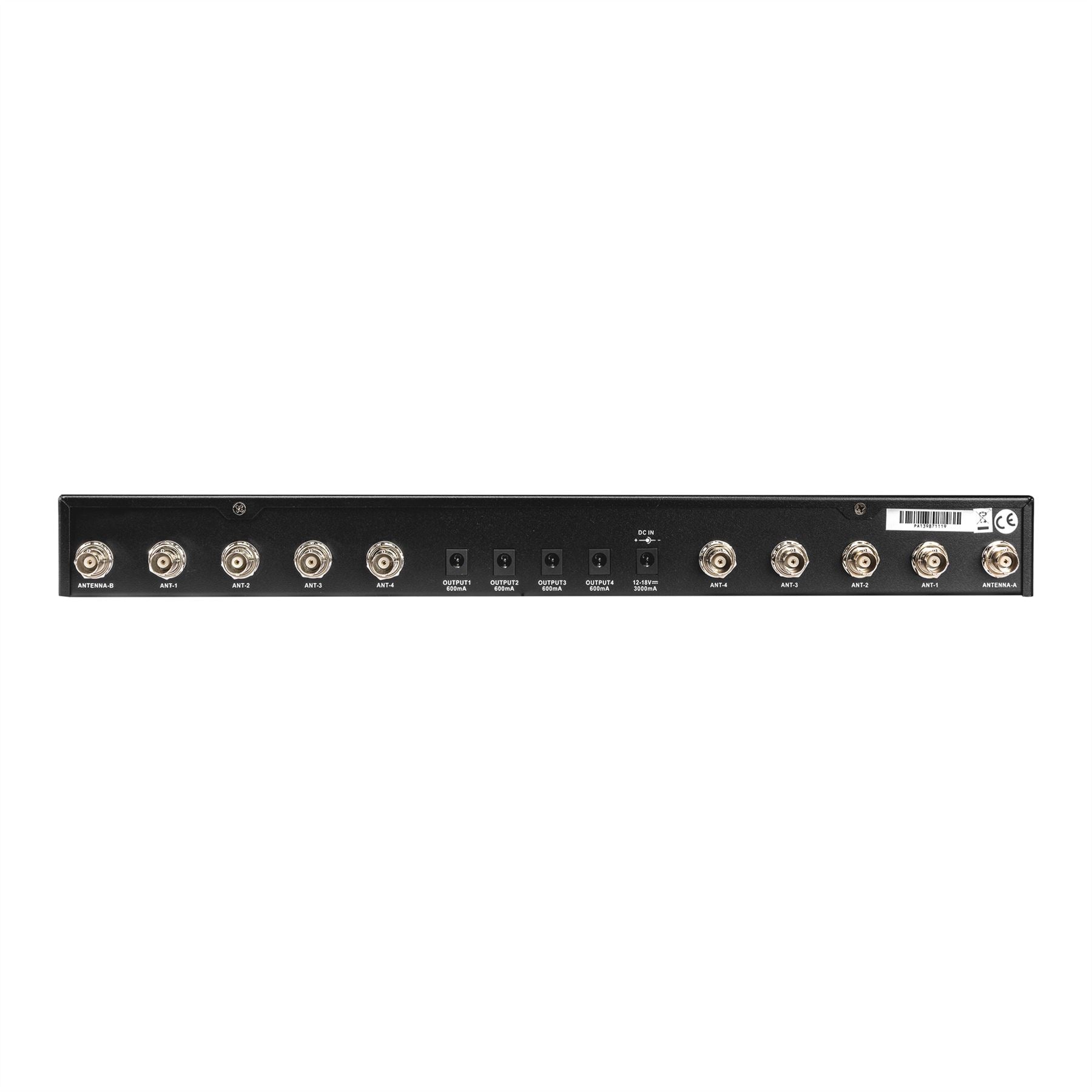

4-way Antenna Split Box
Antenna Split Box 4-way for all types of wireless microphone systems working in a range between 500.000 and 900.000 MHz.
Specifications
Product type: Wireless Microphone System Accessories
Type: Antenna Splitter
Frequency band: 500 - 900 MHz
Frequency bandwidth: 400 MHz
Signal gain: 3 dB
Antenna inputs: 2
Antenna input connection: BNC
Input impedance: 50 Ohm(s)
Power supply for antenna booster: 9 V
Antenna outputs: 4 x 2
Antenna output connection: BNC
Output impedance: 50 Ohm(s)
Power supply for radio receiver: 4 x 12 - 18 V DC V
Operating voltage: 12 - 18 V DC, 3A, 12 V DC - 18 V DC (100 mA)
Width: 482 mm
Height: 44.4 mm
Depth: 160 mm
Weight: 4,672 kg
Accessories (included): 10 x BNC Kabel, 0.5m, 2 x BNC adapter, 4 x DC cable, 0.5m, 4 x Output 600 mA, Plastic case, Power supply
