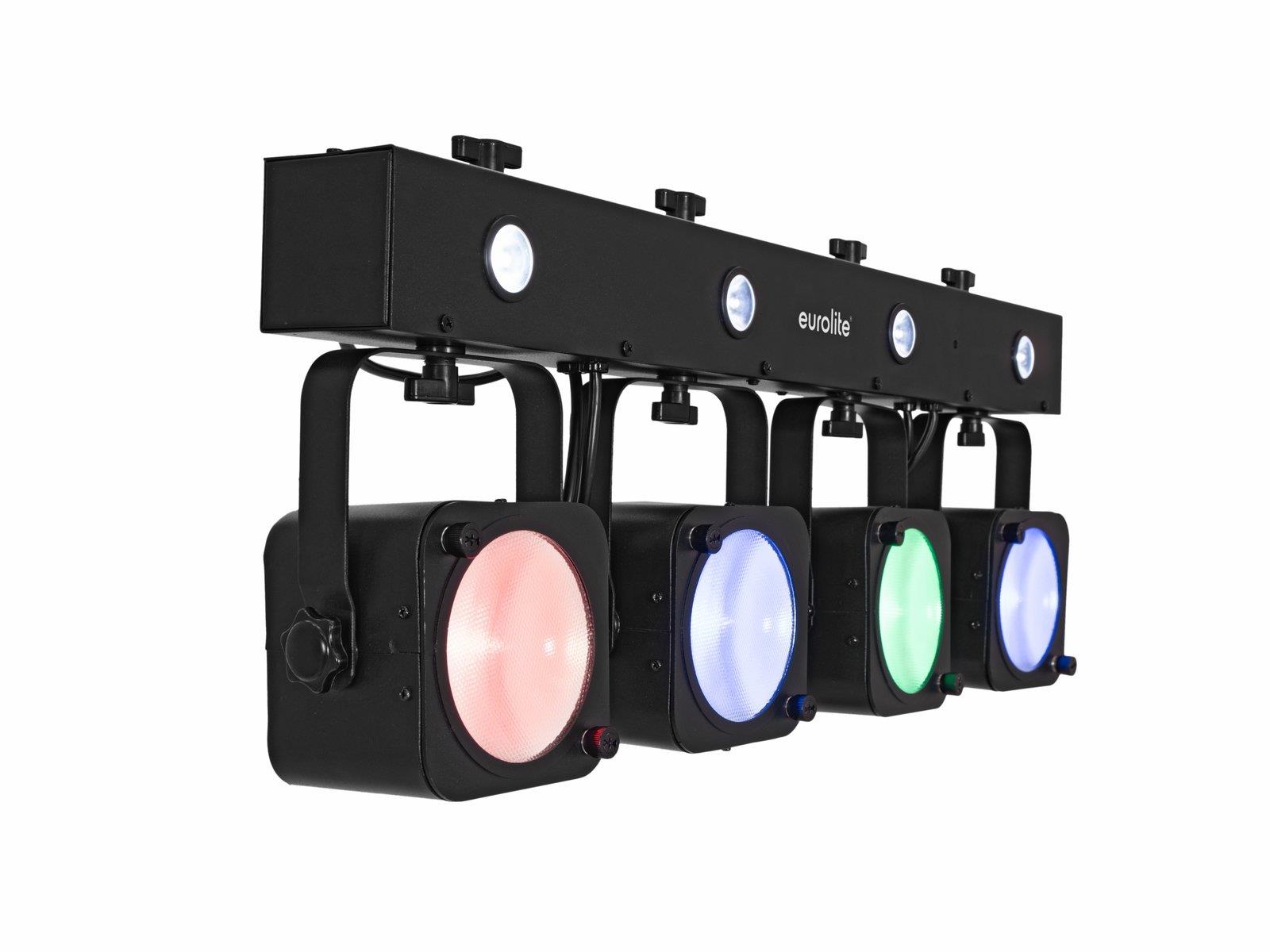

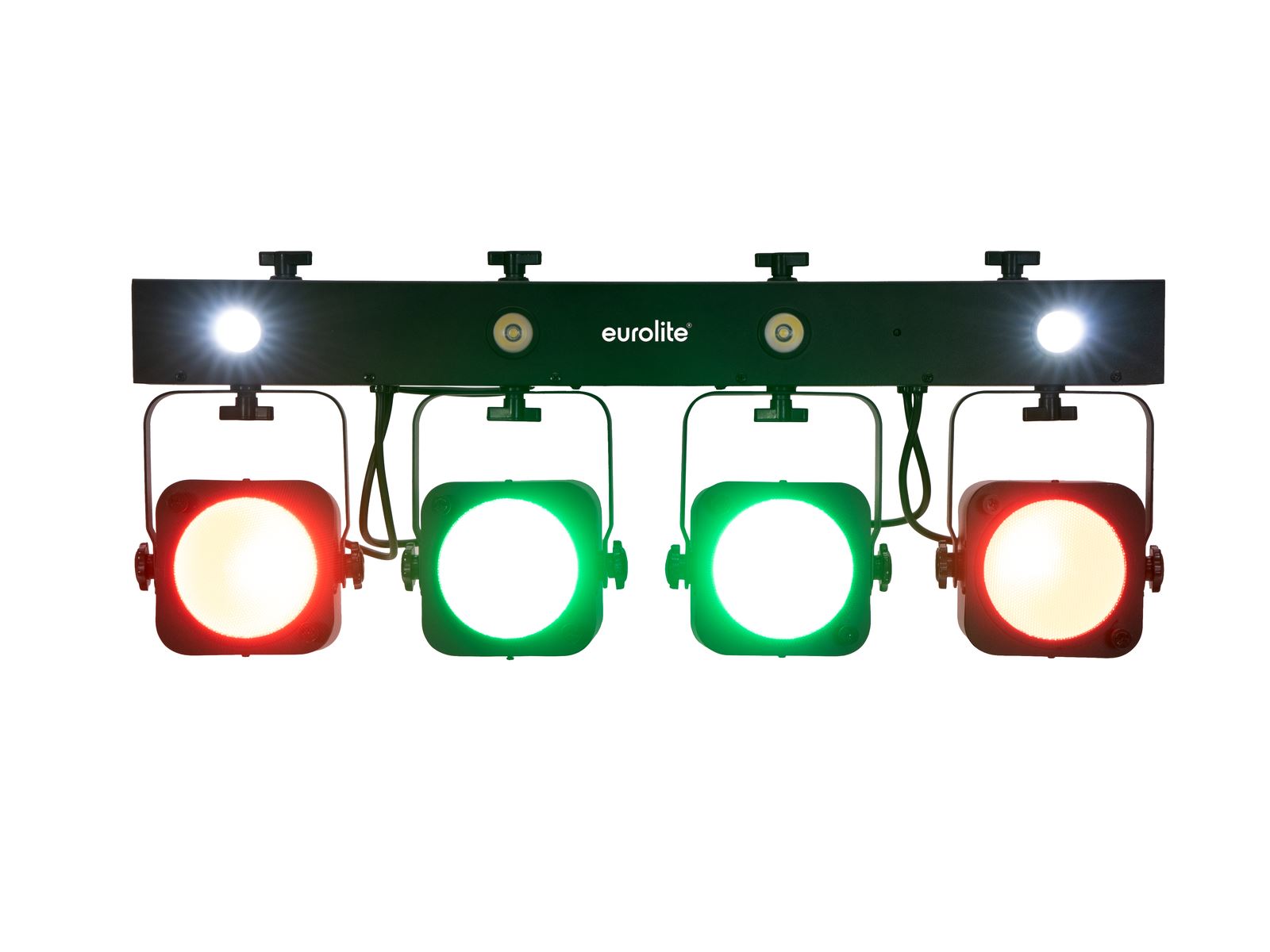

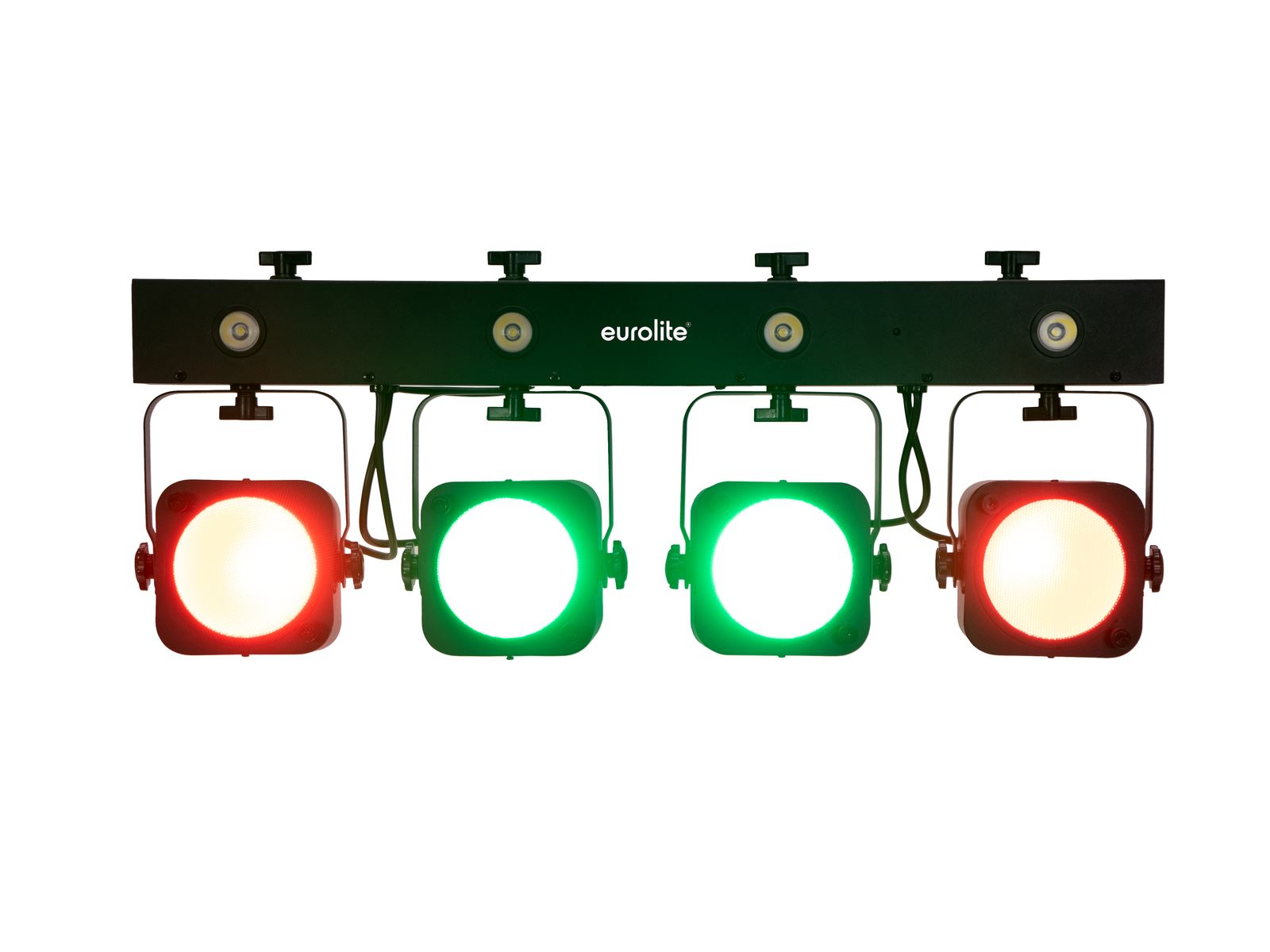

Eurolite LED KLS-190 Compact Light Set 4 x RGB 30W Spot Lighting DMX Parbar

A KLS with COB LEDs that convinces with its classic appearance and its powerful and homogeneous light: With the KLS-190, Eurolite now offers exactly such a spotlight bar.

EQUIPMENT
4 spots with 30 watts each and RGB colour mixing are used. The wide beam angle can be limited from 42° to narrow 9° by using a lens included in the delivery. The mounting of the lens is very simple and can be done in seconds. In addition, 4 cold white LEDs are installed in the bar, which can be used for stroboscope effects.

CONTROL AND STAND-ALONE PROGRAMS
The compact light set is controlled via DMX. For operation via wireless DMX, the KLS-190 offers a USB socket into which a Quick DMX receiver can be plugged. But even without external control, 19 well-thought-out stand-alone and audio programs each provide a variety of effects. The strobe LEDs can be switched on if desired in addition to the programs.

FLEXIBLE SETUP
The special mounting system of the KLS-190 not only allows the bar to be mounted on a stand, it also allows the stand rod to be pushed through to attach a spotlight or loudspeaker box on top. Up to 4 additional spotlights or effects can also be mounted on the KLS-190 itself. The power supply for these devices can be provided via the cold device output of the bar. A transport bag is included.

Specifications
Crossbar with integrated DMX control unit and stand sleeve
Ultra-light, ideally suited for mobile use
Suited for installation on a speaker stand (not included) or truss
Comes pre-assembled with practical transport bag
One high-power 3in1 LED per spot provides for an exquisite RGB colour mix
Strobe effect with 4 cold white 3 W LEDs
2 diffuser cover kits (9° and 42°) for a softer light with varying beam angles included in delivery
Movable and tiltable spotlights
Via DMX, each spot can be individually controlled
Auto, music, master/slave and DMX mode
19 professionally designed integrated show programs in auto and music mode
Direct colour selection for 18 preset colours
Stepless colour blend, colour change, colour fade, dimmer and strobe effect
Sound-control via built-in microphone, microphone sensitivity adjustable
Supports QuickDMX - the wireless DMX system from Eurolite
A built-in phantom-powered USB port for QuickDMX receivers (accessories)
4, 6, 7, 9, 13 or 16 DMX channels selectable
Flicker-free projection
Addressing and setting via control panel with 4-digit LED display

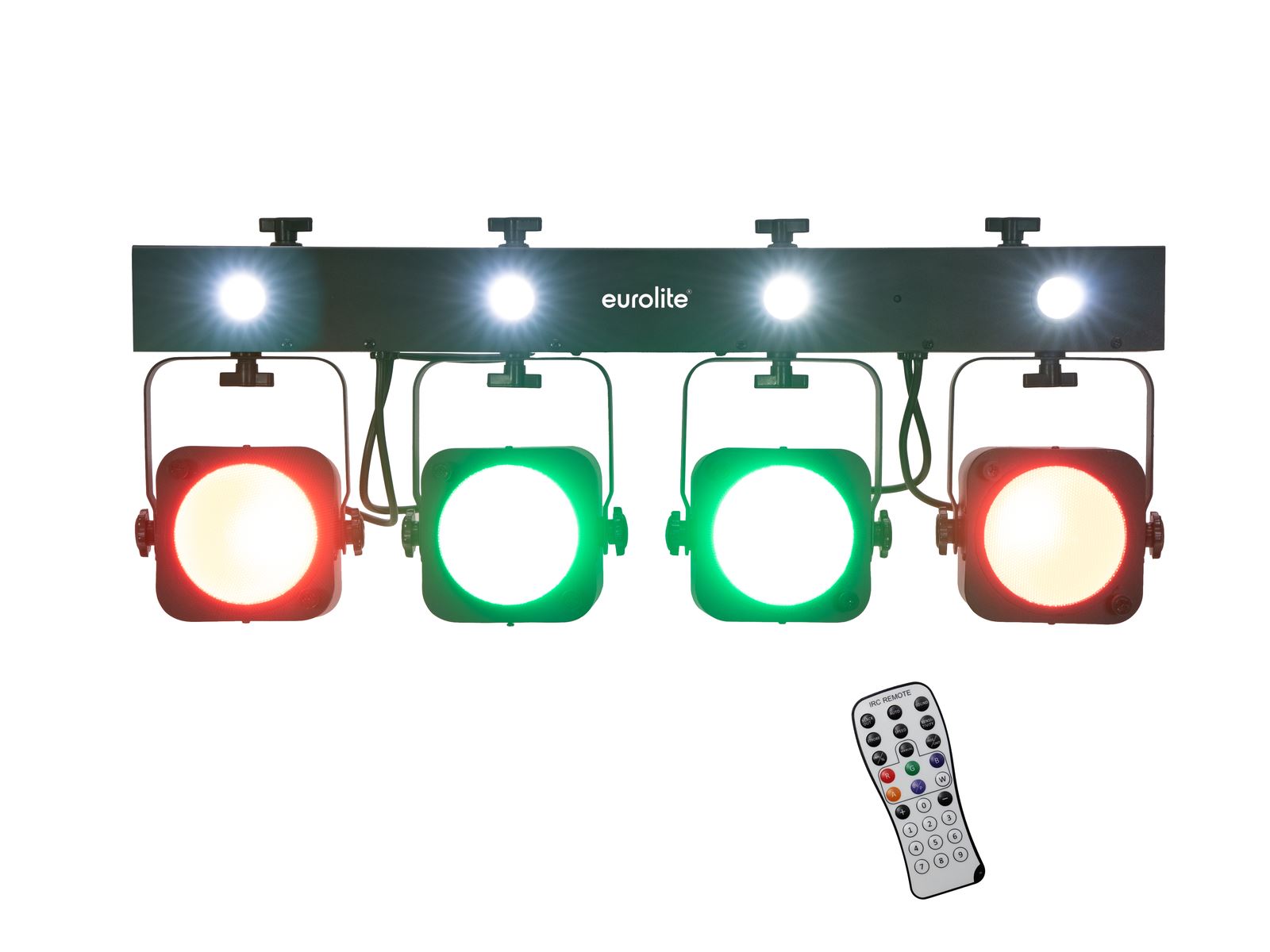

Additional controlling possibility via the EUROLITE IR-7 remote control, included in delivery
Black lacquered metal version with movable mounting bracket
Convection cooling entirely via cooling ribs, no fans, particularly quiet during operation
Feed-through output allows to power up to 8 devices
Ready for connection via IEC power cord with safety plug
Control: QuickDMX via USB (optional); DMX; Sound to light via Microphone; IR remote control included
Effect: Strobe effect
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 60 W
IP classification: IP20
LED: 4 x 30 W RGB (homogenous color mix)
4 x high-power 3 W CW
Beam angle: 9°
42°
DMX channels: 4; 6; 7; 9; 13; 16

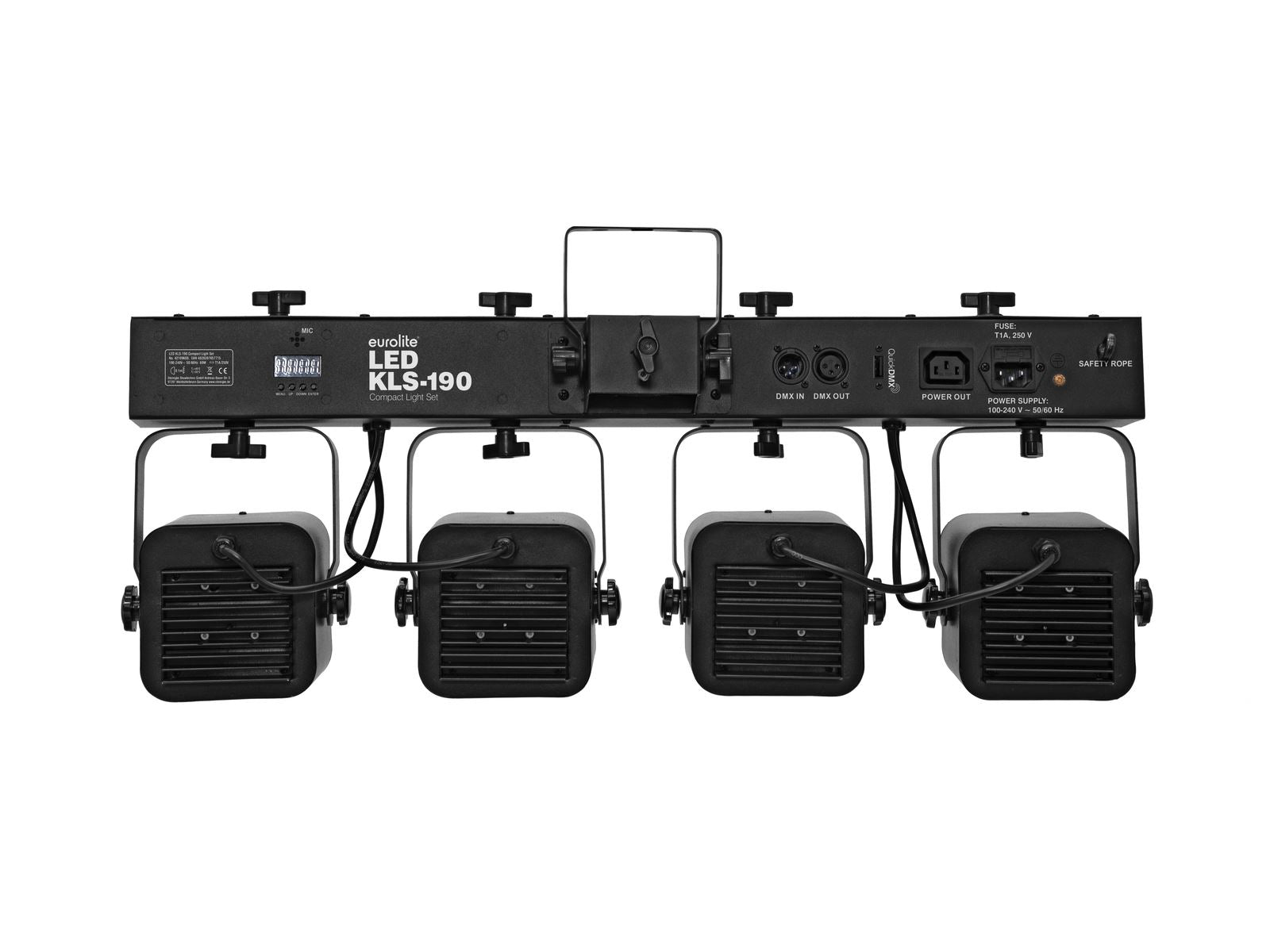

DMX input: 1 x 3-pin XLR (M) mounting version
DMX output: 1 x 3-pin XLR (F) mounting version
Cooling fan: No, cooling by convection
Control: QuickDMX via USB (optional)
DMX
Sound to light via Microphone
IR remote control included
Housing colour: Black
Legal specifications
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting

Dimensions
66 x 26.5 x 15cm

Weight
6.5kg
