Eurolite Led Pll-480 Qcl Panel
- £660.00
- £660.00
- Unit price
- per
DMX-controlled surface light with 480 4in1 RGBW LEDs
iFrame
Description

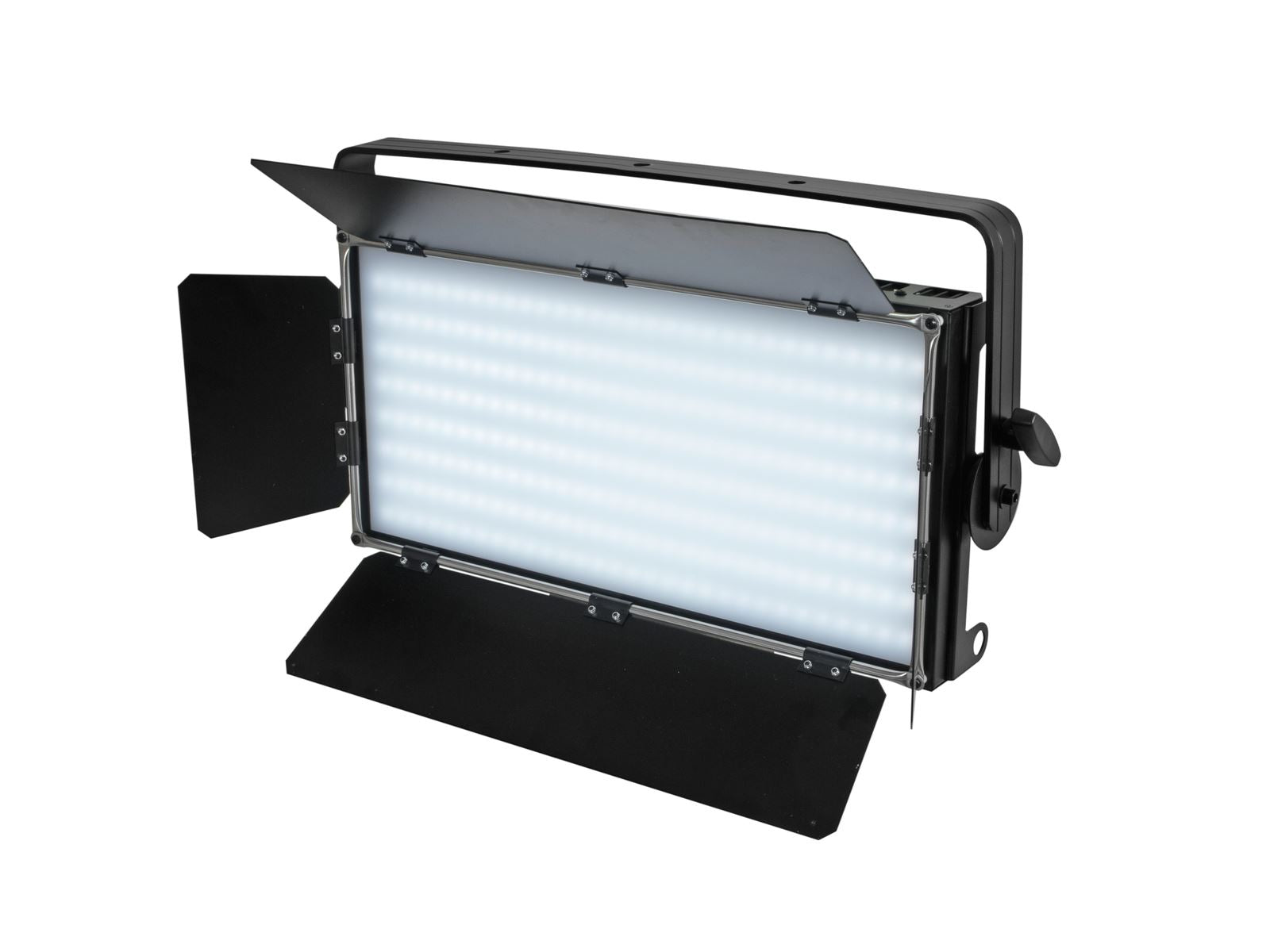

DMX-controlled surface light with 480 4in1 RGBW LEDs
- High-grade surface light with 480 super bright LEDs
- Ideal for photography, film, stage and trade fair lighting
- Energy saving, durable and environmental friendly
- Milky diffuser provides a homogeneous and soft continuous light
- 4 barn doors to avoid blinding the audience and for protection during transport
- Stepless RGBW color blend, color change, color fade, dimmer and strobe effect
- Variable PWM frequency (pulse-width modulation)
- Master/slave function
- Addressing and setting via control panel with LCD
- Slim, rugged metal housing
- Swivel mounting bracket
- Comfortable carrying handle
- Stand or crossbeam installation
- P-Con terminals for power linking up to 8 units
- LED: 480 x SMD 5050 4in1 QCL RGBW (homogenous color mix)
- Can be operated in 6; 4 CH mode
- The device is cooled by passive convection
- Controlling by DMX; Stand-alone; Master/slave function
- Is in Light J Software already preprogrammed
- Flicker-free projection
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 165 W |
| IP classification: | IP20 |
| Protection class: | Class I |
| Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
| Power output: | 1 x P-Con (gray), mounting version |
| Lamp type: | LED lamp |
| LED: | 480 x SMD 5050 4in1 QCL RGBW (homogenous color mix) |
| DMX channels: | 6; 4 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Passive convection |
| Control: | DMX; Light J Software; Stand-alone; Master/slave function |
| Beam angle: | 120? |
| Beam angle (1/2 peak): | 120? |
| Illuminance in Lux (lx): | R red 1m: 438 lx, 3m: 61 lx, 6m: 18 lx G green 1m: 633 lx, 3m: 88 lx, 6m: 25 lx B blue 1m: 209 lx, 3m: 29 lx, 6m: 8 lx CW 1m: 2130 lx, 3m: 296 lx, 6m: 87 lx All 1m: 2696 lx, 3m: 380 lx, 6m: 112 lx |
| Housing color: | Black |
| Display type: | LCD display |
| Dimension: | Width: 64 cm Depth: 13 cm Height: 33.5 cm |
| Weight: | 12.60 kg |
| Noise classification: | Class 0 (no noise at all) |
| Legal specifications | |
| Ecodesign regulation: | Yes |
| Special product: | Not designed for household room illumination |
| Purpose: | Show effect lighting |
