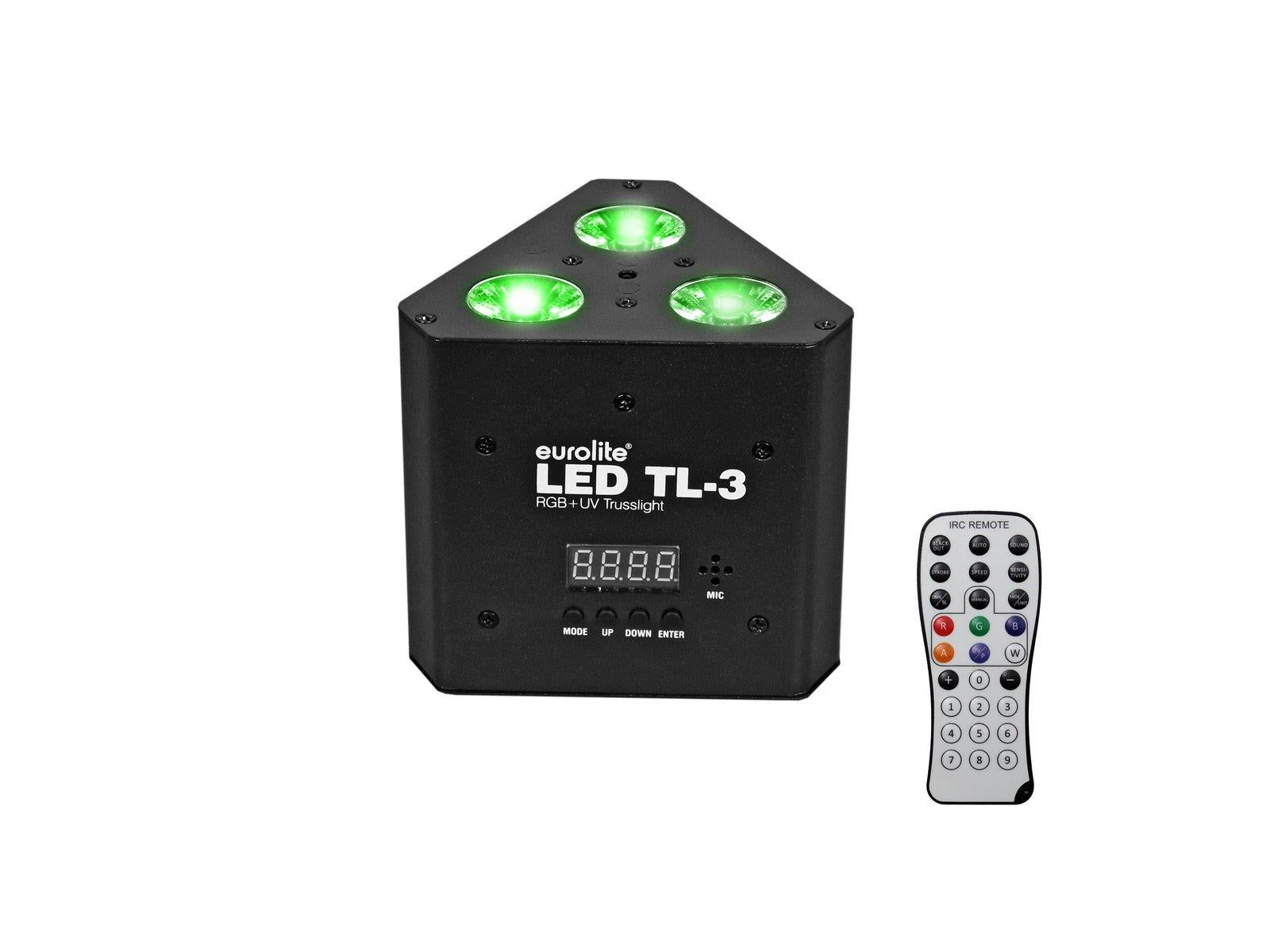

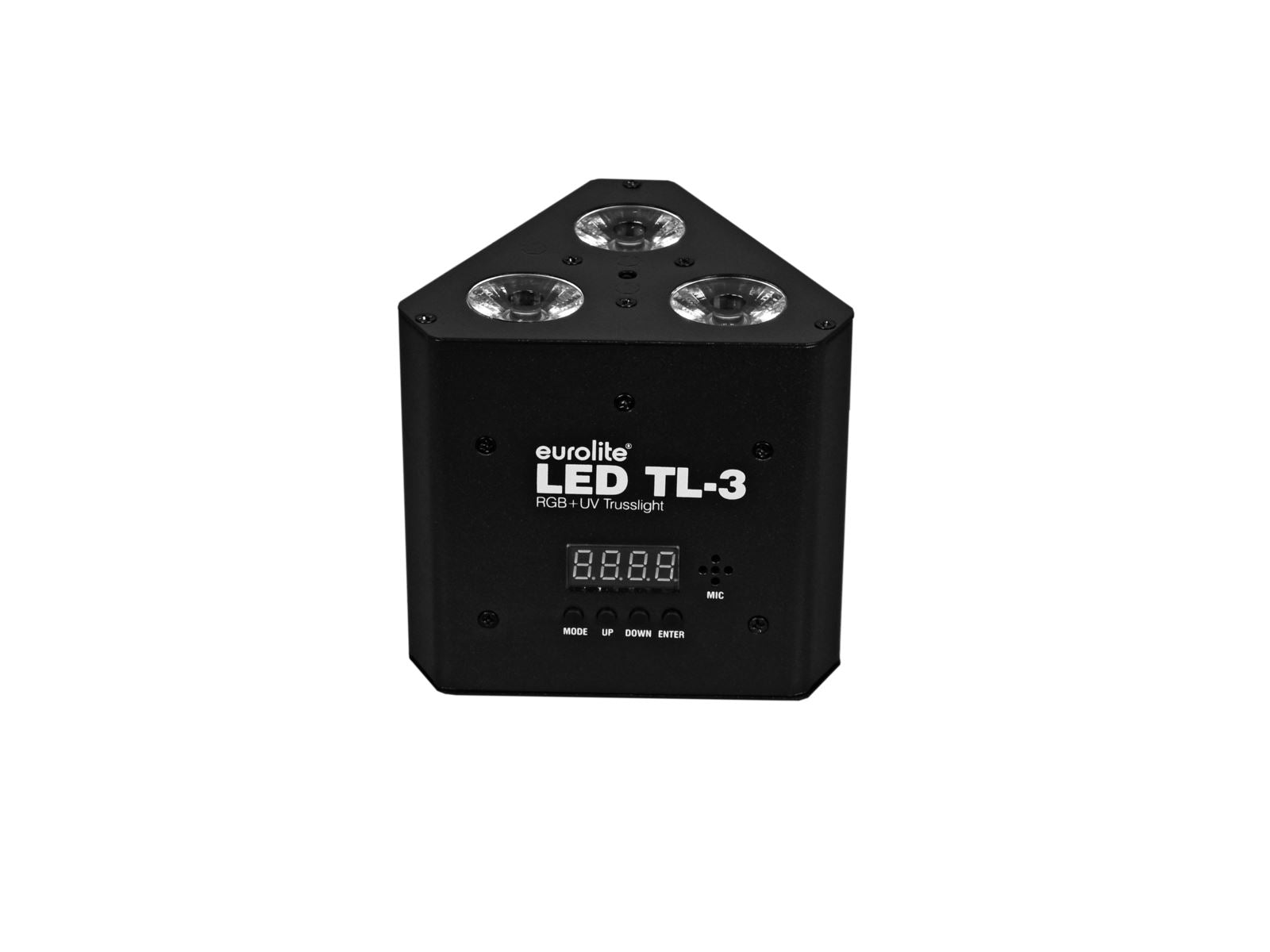

Eurolite TL-3 RGB+UV LED Wedge Triangle Truss Uplighter DMX DJ Disco Lighting


Variable truss light and uplight with bright 3 x 7 W RGB+UV LED

Vendor: Eurolite
SKU: 154-51915445
Icon In Stock In Stock
Icon Delivery Time

Variable truss light and uplight with bright 3 x 7 W RGB+UV LED

Compact and bright, making it perfect for truss installation
Equipped with 3 x 7 W 4in1 LED in the colours red, green, blue and UV
DMX-controlled operation or stand-alone operation with Master/Slave function
3, 4-1, 4 or 8 DMX channels selectable
Built-in auto and music show programs
Direct colour selection for 17 preset colours
Functions: static colours, stepless RGB+UV colour mixture, internal programs, dimmer, strobe effect with variable speed, sound-control, Master/Slave operation
Sound-control via built-in microphone with adjustable microphone sensitivity
Flicker-free projection
Supports QuickDMX - the wireless DMX system from Eurolite
A built-in phantom-powered USB port for QuickDMX receivers (accessories)
DMX control via any standard DMX controller

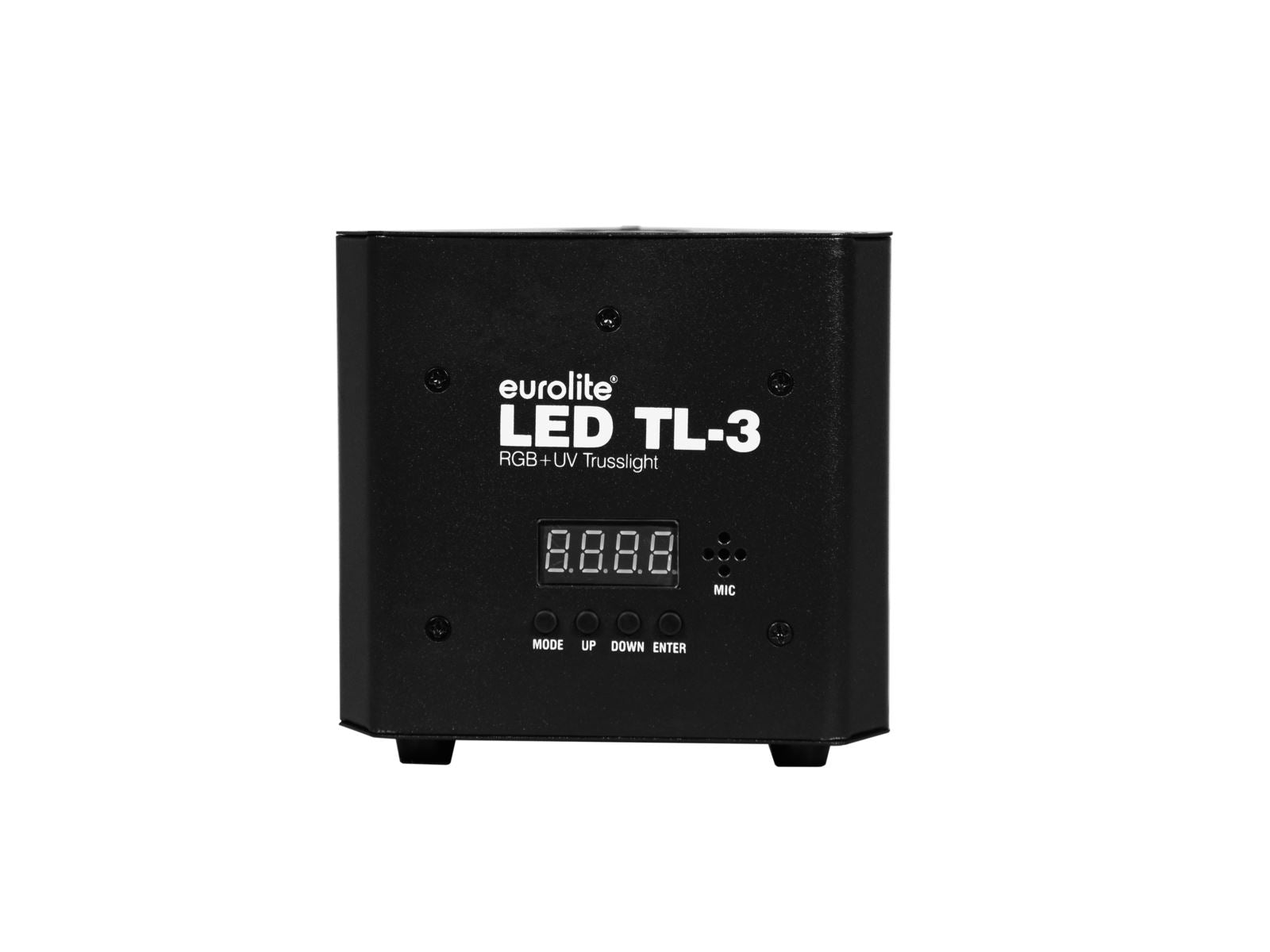

Addressing via control panel with 4-digit LED display
Convenient wireless control via included IR remote control EUROLITE IR-7
Ideal for booth construction, stages and anywhere trussing is used
Hanging as well as standing installation possible
M10 threaded insert for suspended installation
Additional rubber feet when the spot shall be positioned on the floor
Ready for connection via an included power cable with safety power plug
Feed-through output allows to power up to 8 devices
Control: IR remote control (provided); Stand-alone; QuickDMX; DMX; Master/slave function
Projection: flicker-free
Effect: UV; Strobe effect; Dimmable
Remote control

Battery: 1 x Button cell 3.0 V CR2025 lithium manganese built-in

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 15 W
Flash rate: 1 - 20 Hz
DMX channels: 3; 4; 4; 8

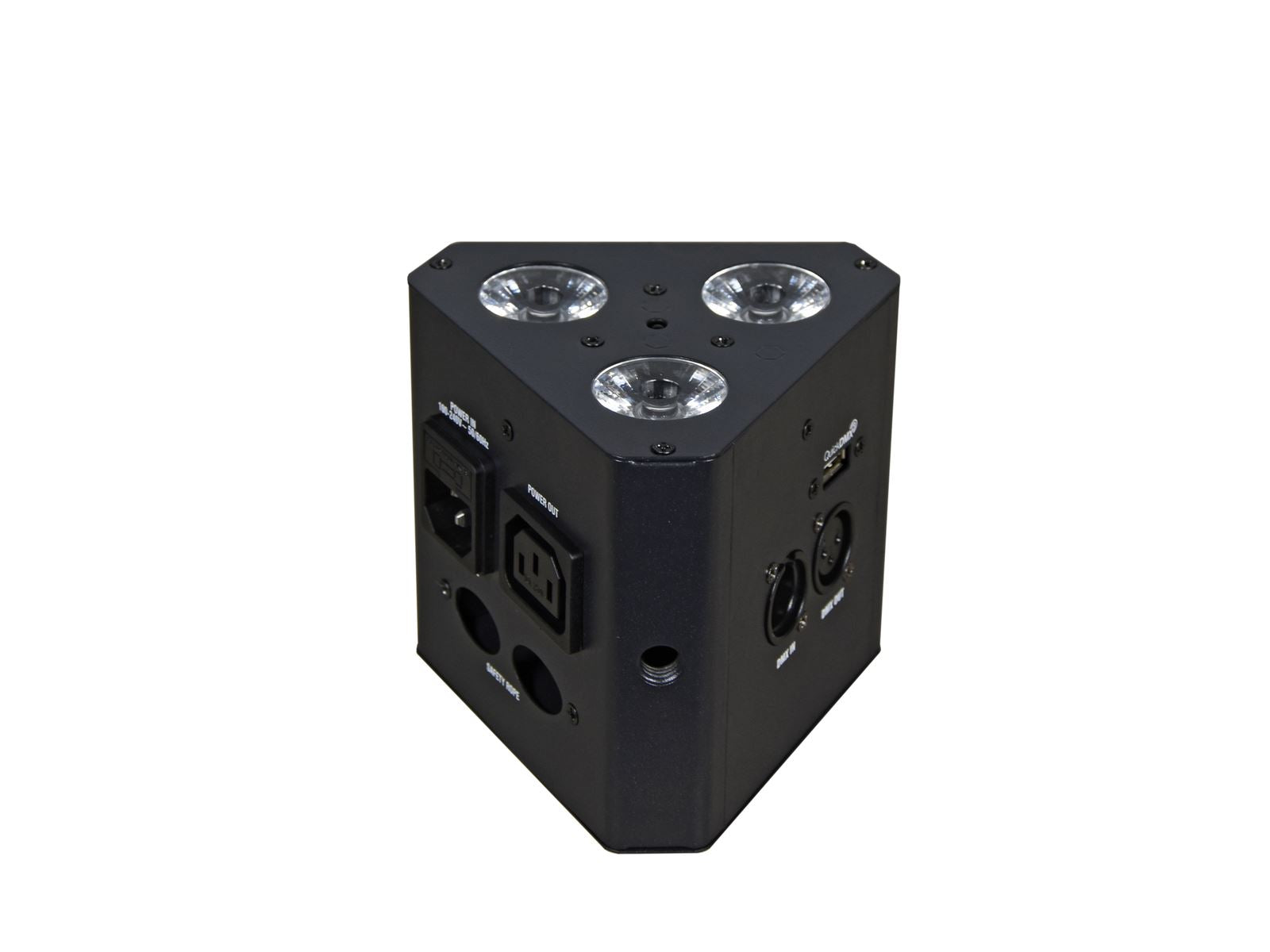

DMX input: 1 x 3-pin XLR (M) mounting version
DMX output: 1 x 3-pin XLR (F) mounting version
Fuse: , F fast-blow, 1 A Fuse replaceable

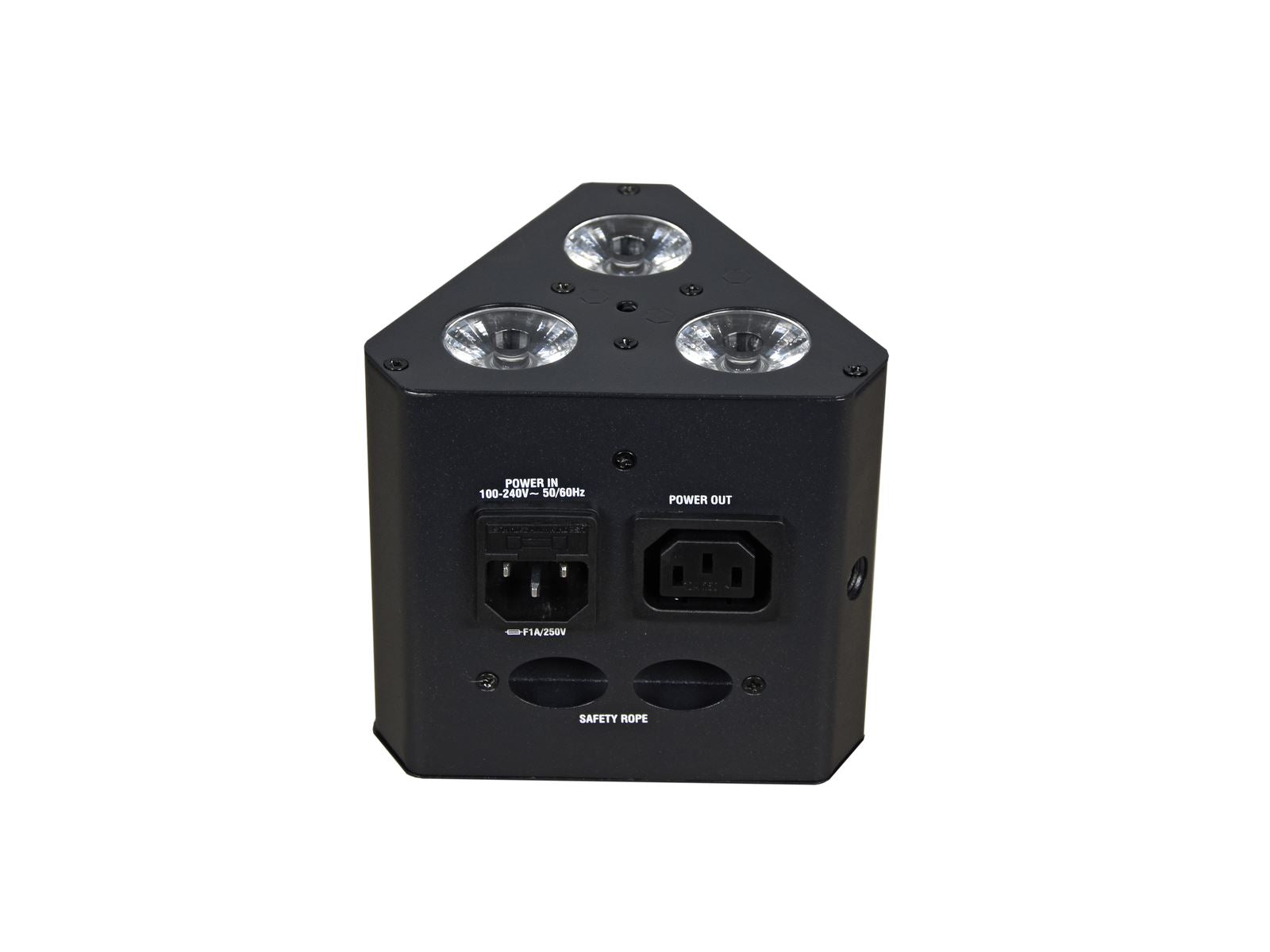

Power connection: Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Power output: 1 x Protective contact (F) mounting version
Control: IR remote control (provided)
Master/slave function
Beam angle: 16°
Case color: Black
Remote control
Battery: 1 x Button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting

12.2 x 11.7 x 10.8 cm

0.85 Kg
