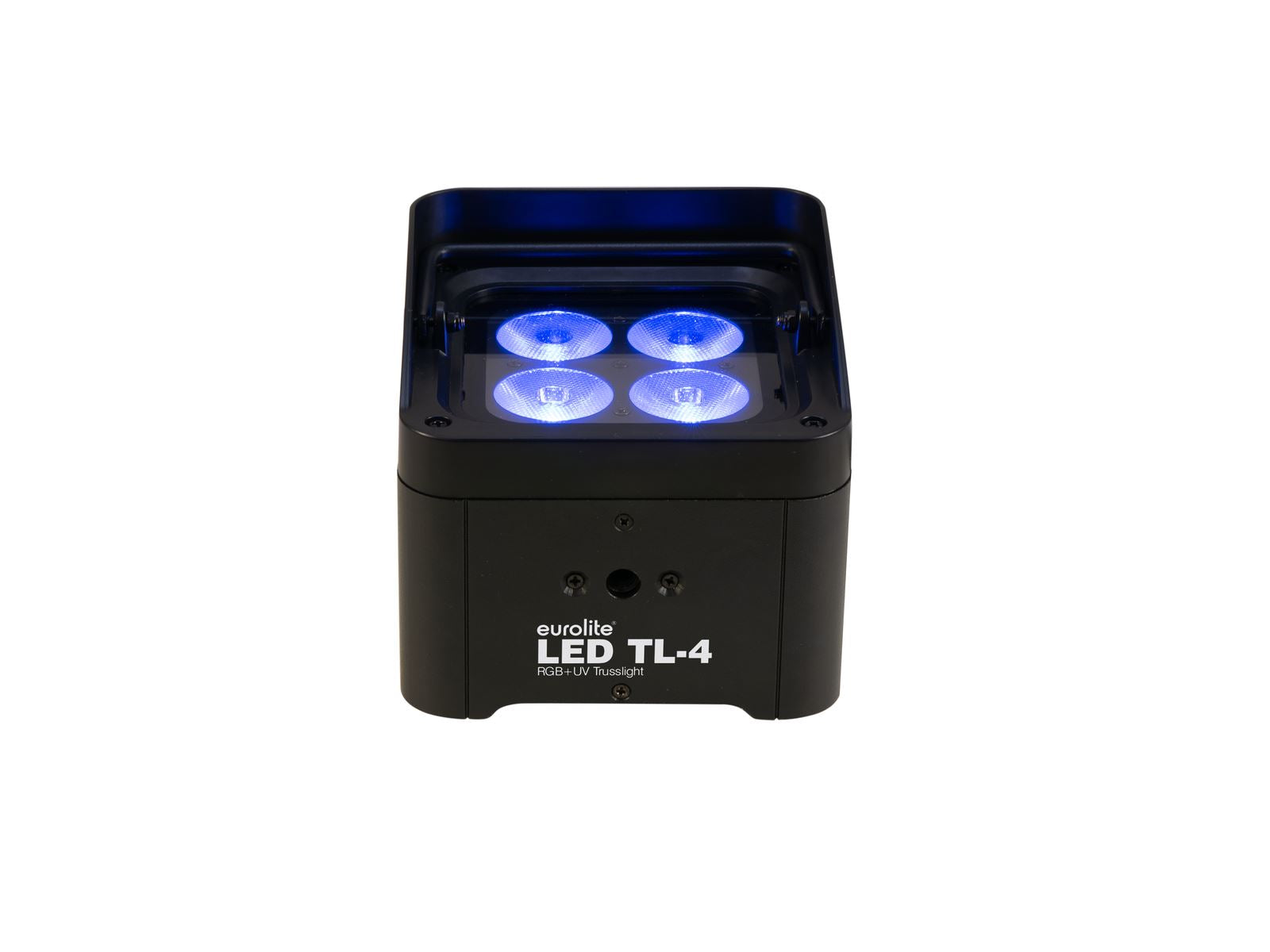

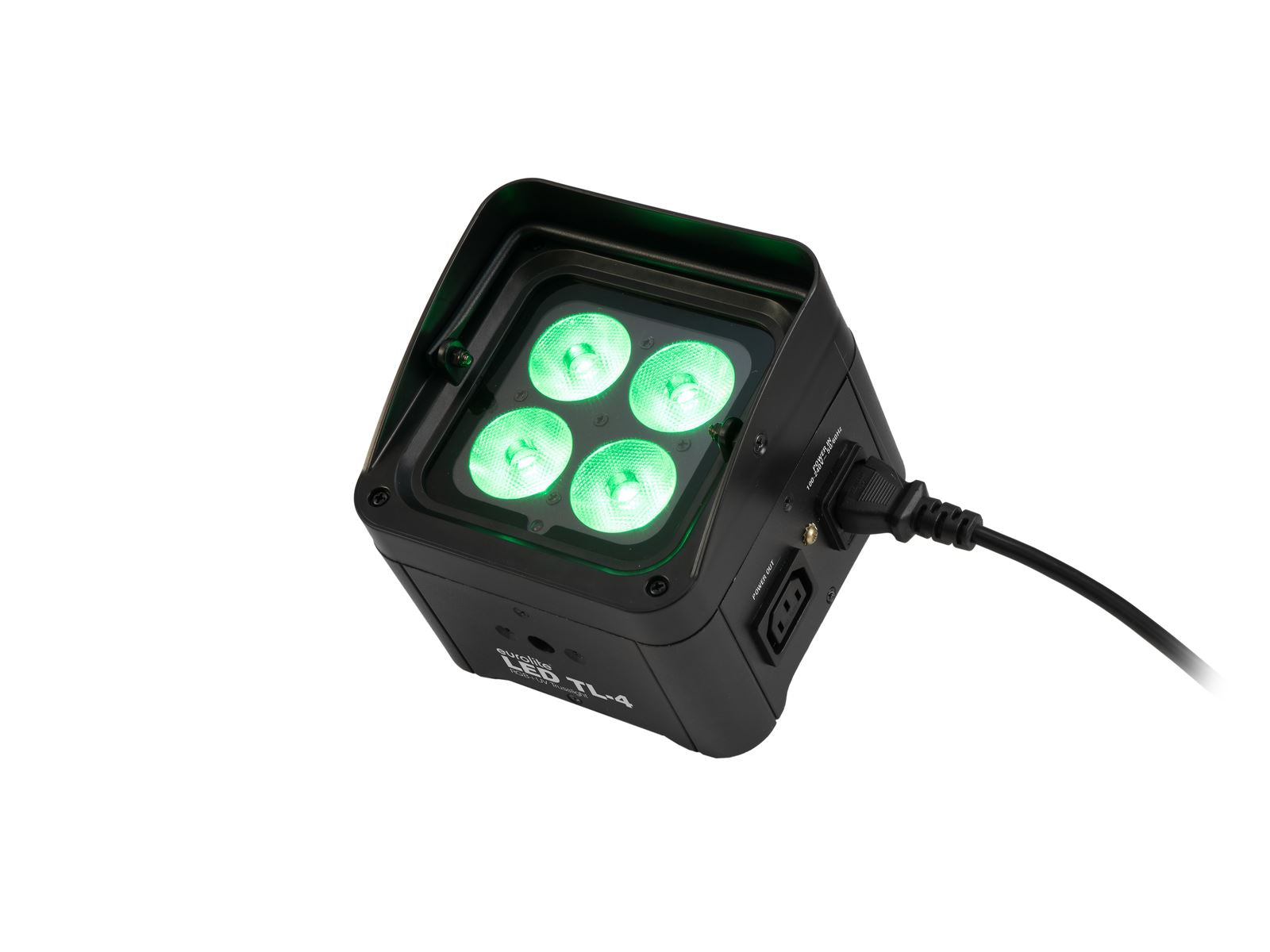

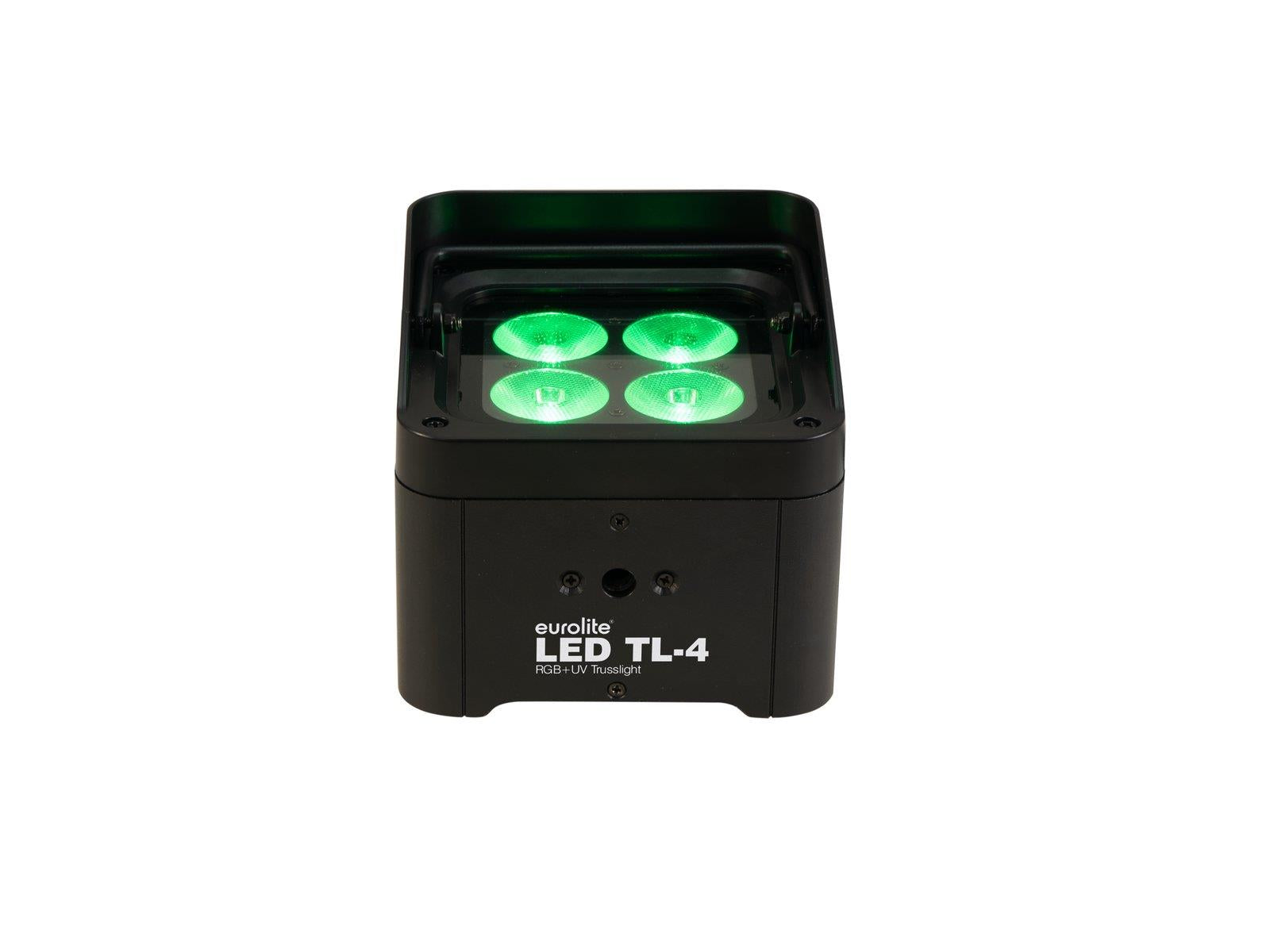

Eurolite LED TL-4 QCL RGB+UV Uplighter


Variable truss light and uplight with bright 4 x 8 W RGB+UV LED.

Vendor: Eurolite
SKU: 154-51915448
Icon In Stock In Stock
Icon Delivery Time

Variable truss light and uplight with bright 4 x 8 W RGB+UV LED.

Compact and bright, making it perfect for truss installation
Equipped with 4 x 8 W 4in1 LED in the colours red, green, blue and UV
DMX-controlled operation or stand-alone operation with Master/Slave function
3, 4-1, 4 or 8 DMX channels selectable
Built-in auto and music show programs
Direct colour selection for 18 preset colours
Functions: static colours, stepless RGB+UV colour mixture, internal programs, dimmer, strobe effect with variable speed, sound-control, Master/Slave operation
Sound-control via built-in microphone with adjustable microphone sensitivity
Flicker-free projection
Supports QuickDMX - the wireless DMX system from Eurolite
Built-in phantom-powered USB port for QuickDMX receivers (accessories)
DMX control via any standard DMX controller
Addressing via control panel with 4-digit LED display
Convenient wireless control via included IR remote control EUROLITE IR-7
Ideal for booth construction, stages and anywhere trussing is used
Hanging as well as standing installation possible
M10 threaded insert for suspended installation
Folding foot adjustable in 5 steps for flexible placement
Additional rubber feet when the spot shall be positioned on the floor
Ready for connection via an included power cable with safety power plug
Feed-through output allows to power up to 8 devices
LED: 4 x high-power 8 W 4in1 QCL RGB/UV (homogenous color mix)
Control: QuickDMX via USB (optional); IR remote control included; Sound to light via microphone; DMX

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 15 W
LED: 4 x high-power 8 W 4in1 QCL RGB/UV (homogenous color mix)
Flash rate: 0 - 20 Hz
DMX channels: 3; 4; 4; 8
DMX input: 1 x USB, type A
1 x 3-pin XLR (M) mounting version
DMX output: 1 x 3-pin XLR (F) mounting version
IP classification: IP20
Cooling fan: No, cooling by convection
Control: QuickDMX via USB (optional)
IR remote control included
Sound to light via Microphone
Beam angle: 13°
Case colour: Black

155 x 145 x 130 mm

1.56 kg
