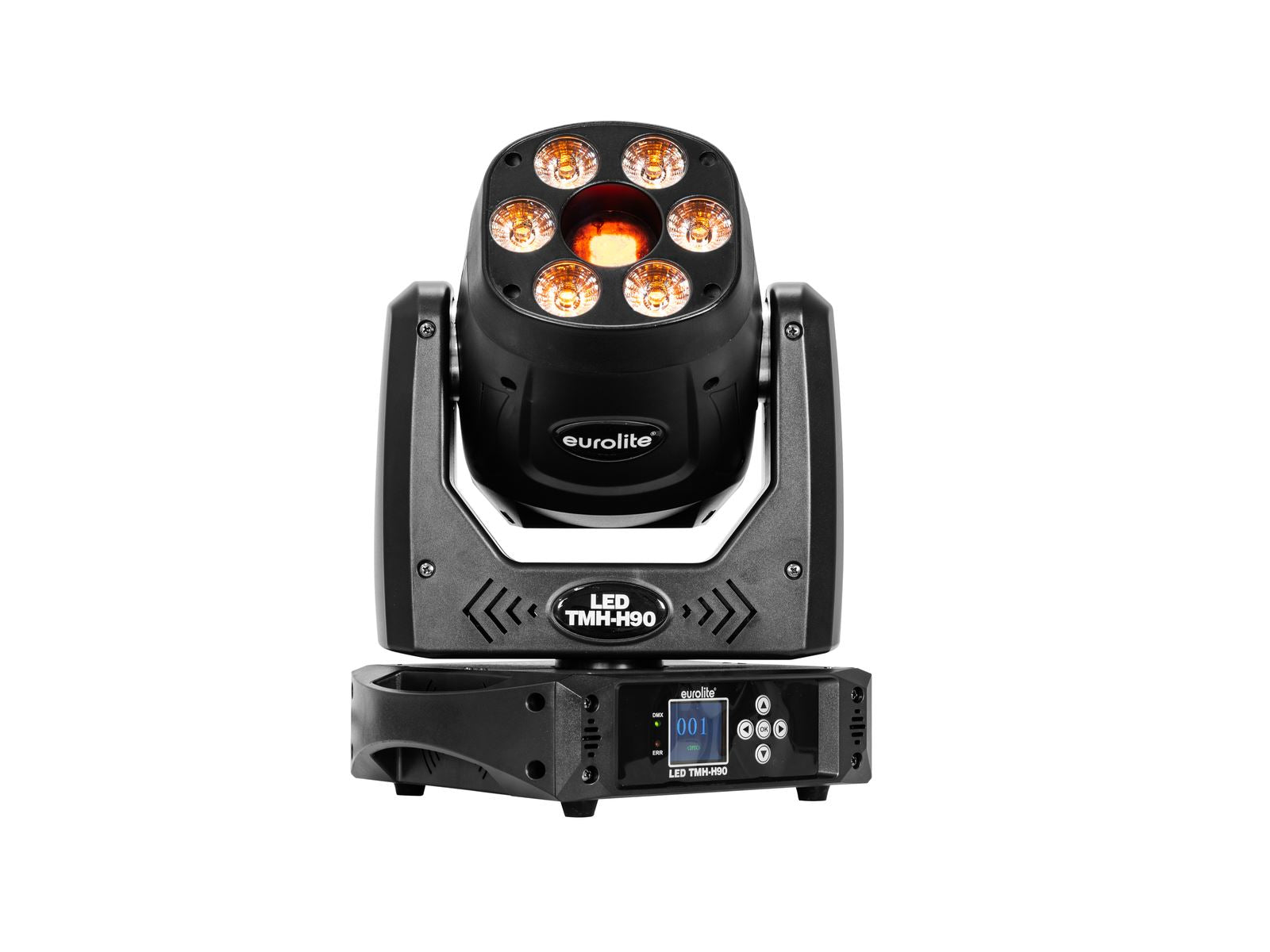

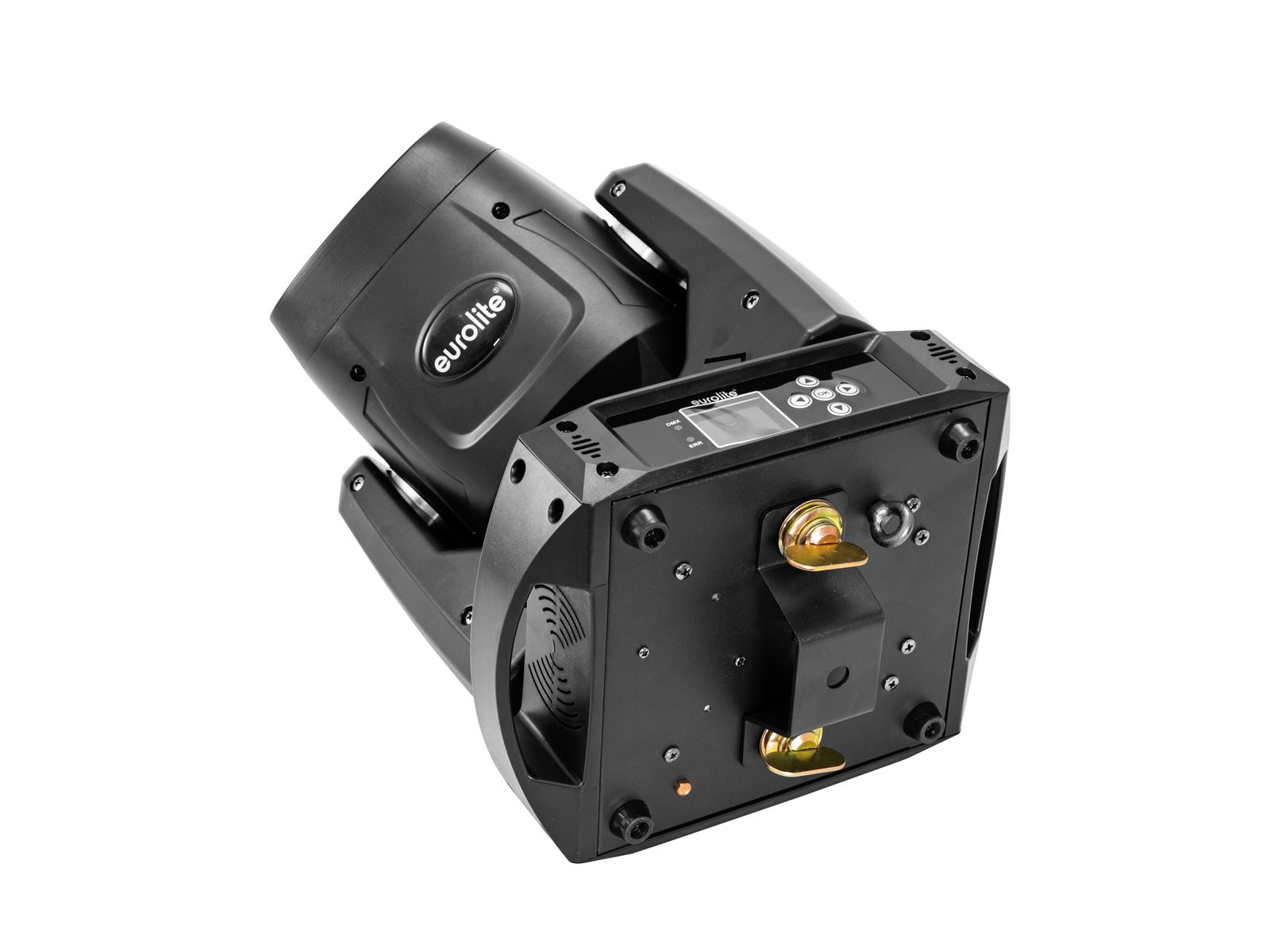

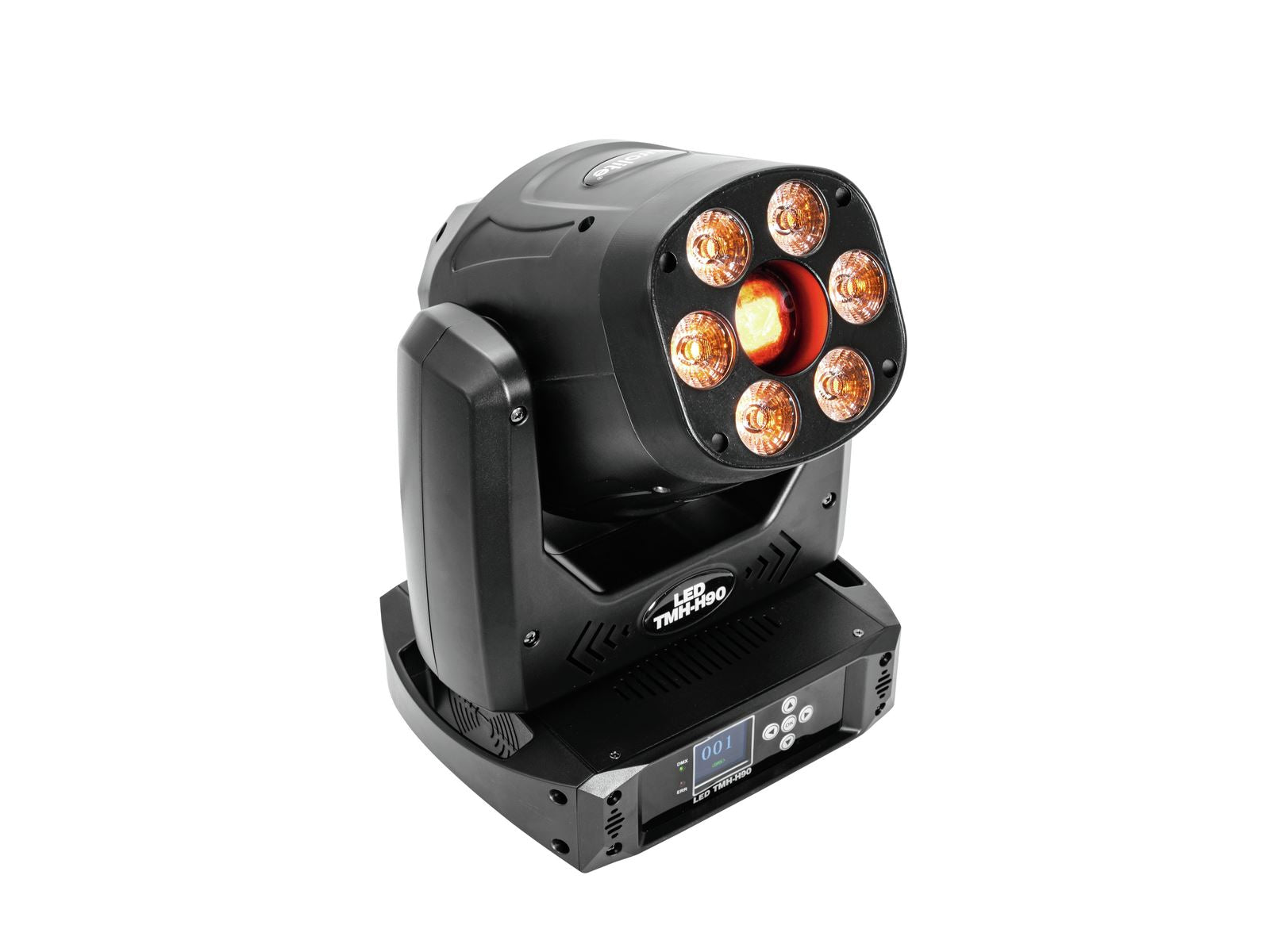

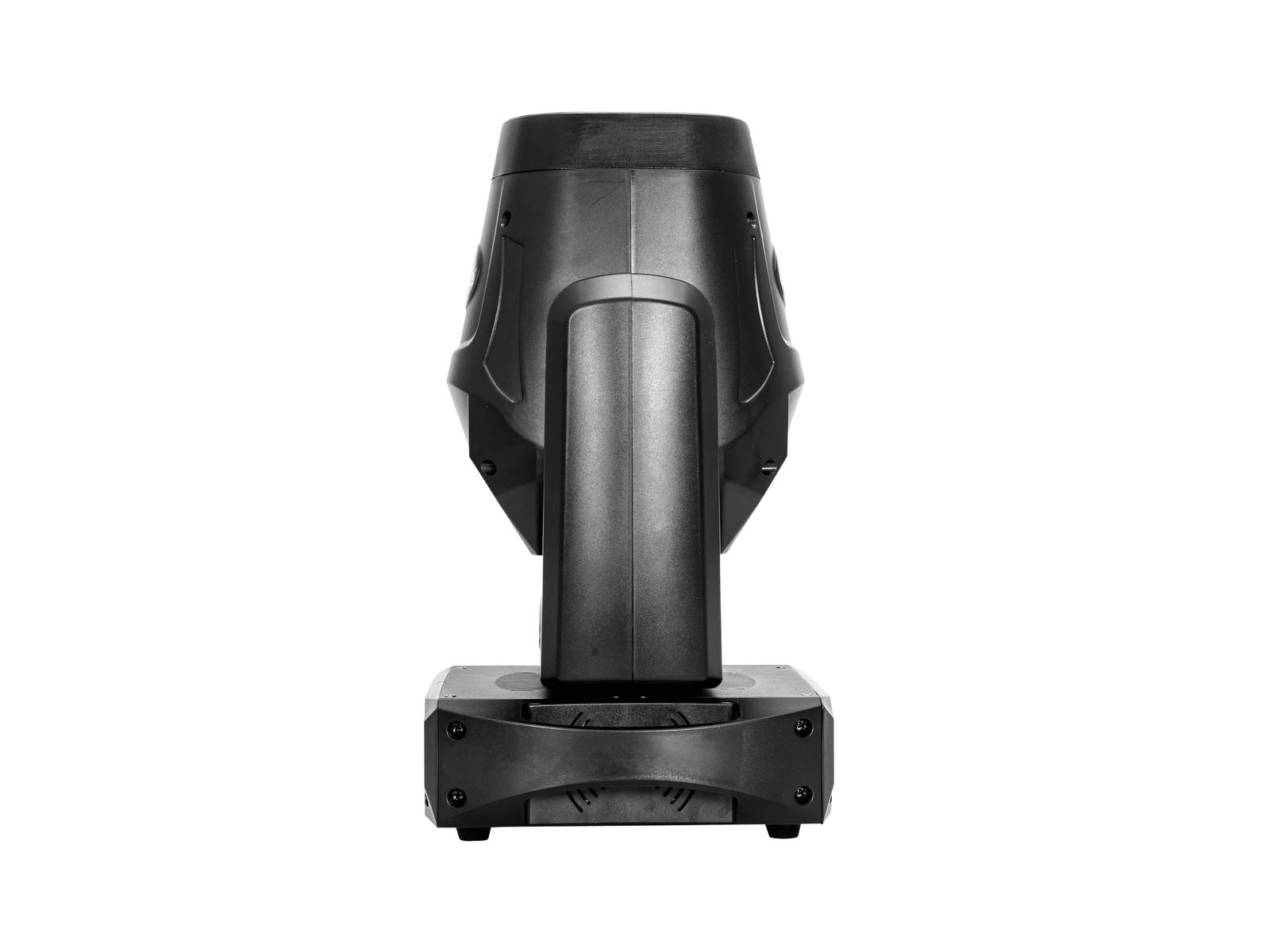

Eurolite Led Tmh-H90 Hybrid Moving-Head Spot/Wash Cob
- £465.00
- £465.00
- Unit price
- per
LED moving head hybrid spot/wash with color wheel, static and rotating gobo wheel, prism and focus
iFrame
Description
LED moving head hybrid spot/wash with color wheel, static and rotating gobo wheel, prism and focus
- Bright spotlight and full-fledged washlight in one device
- Positioning within 540? PAN and 200? TILT
- Exact positioning via 16 bit PAN/TILT movement resolution
- Auto, music, master/slave and DMX mode
- Sound-control via built-in microphone
- Rotating 3-facet prism
- The prism rotates at different speeds
- Strobe effect with 2-30 flashes per second
- Internal programs
- Dimmer
- Motorized focus
- Automatic position correction
- Supports QuickDMX - the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX receivers (accessories)
- Control board with LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT-Reverse, Program, Reset
- Switch-mode power supply for operation between 100 and 240 volts
- Additional rubber feet protect the device when positioned on the floor
- LED: 1 x COB (chip-on-board) 90 W CW
- LED: 6 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix)
- Color wheel 1 x 7 dichroic filters plus open
Rainbow effect with adjustable speed in both directions - Gobo wheel with static gobos, 7 gobos and open
shake effect - Gobo wheel with rotating gobos, 6 gobos and open
shake effect - Gobos changeable
- Slot-in gobo system for exchanging gobos without tools
- Can be operated in 25 CH mode
- The device is cooled by cooling fan
- Controlling by Stand-alone; DMX; QuickDMX via USB (optional); Sound to light via Microphone; Master/slave function
- Flicker-free projection
- Effect: Gobo effect
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 135 W |
| IP classification: | IP20 |
| Protection class: | Class I |
| Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
| Fuse: | 5 x 20 mm, T 2 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | 1 x COB (chip-on-board) 90 W CW 6 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix) |
| Max. TILT movement: | Exact positioning (16 bit resolution) 200? Auto position correction (feedback) |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540? Auto position correction (feedback) |
| Equipment: | Prism 3-fold; gobo wheel with rotating gobos Single in slot; gobo wheel with static gobos; Focus motor-driven; color wheel |
| Color generation: | Color wheel 1 x 7 dichroic filters plus open |
| Gobos: | Gobo wheel with static gobos, 7 gobos and open Shake effect Gobo wheel with rotating gobos, 6 gobos and open Outside diameter 21.8mm Image diameter 16mm Shake effect Gobos changeable Slot-in gobo system for exchanging gobos without tools |
| DMX channels: | 25 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone; DMX; QuickDMX via USB (optional); Sound to light via Microphone; Master/slave function |
| Beam angle: | 13? |
| Beam angle (1/2 peak): | Spot 13? Wash effect 20? |
| Beam angle (1/10 peak): | Wash effect 38? |
| Illuminance in Lux (lx): | Spot CW 1m: 49373 lx, 3m: 6186 lx, 6m: 1606 lx Wash effect R red 1m: 974 lx, 3m: 101 lx, 6m: 26 lx Wash effect G green 1m: 2008 lx, 3m: 244 lx, 6m: 66 lx Wash effect B blue 1m: 518 lx, 3m: 49 lx, 6m: 13 lx Wash effect CW 1m: 2527 lx, 3m: 257 lx, 6m: 69 lx Wash effect A amber 1m: 733 lx, 3m: 83 lx, 6m: 21 lx Wash effect UV 1m: 16 lx, 3m: 2 lx, 6m: 1 lx Wash effect all 1m: 5885 lx, 3m: 703 lx, 6m: 184 lx |
| Housing color: | Black |
| Display type: | Multicolor LCD display |
| Dimension: | Width: 25.0 cm Depth: 22.0 cm Height: 36.0 cm |
| Weight: | 6.50 kg |
| Legal specifications | |
| Ecodesign regulation: | Yes |
| Special product: | Not designed for household room illumination |
| Purpose: | Show effect lighting |
