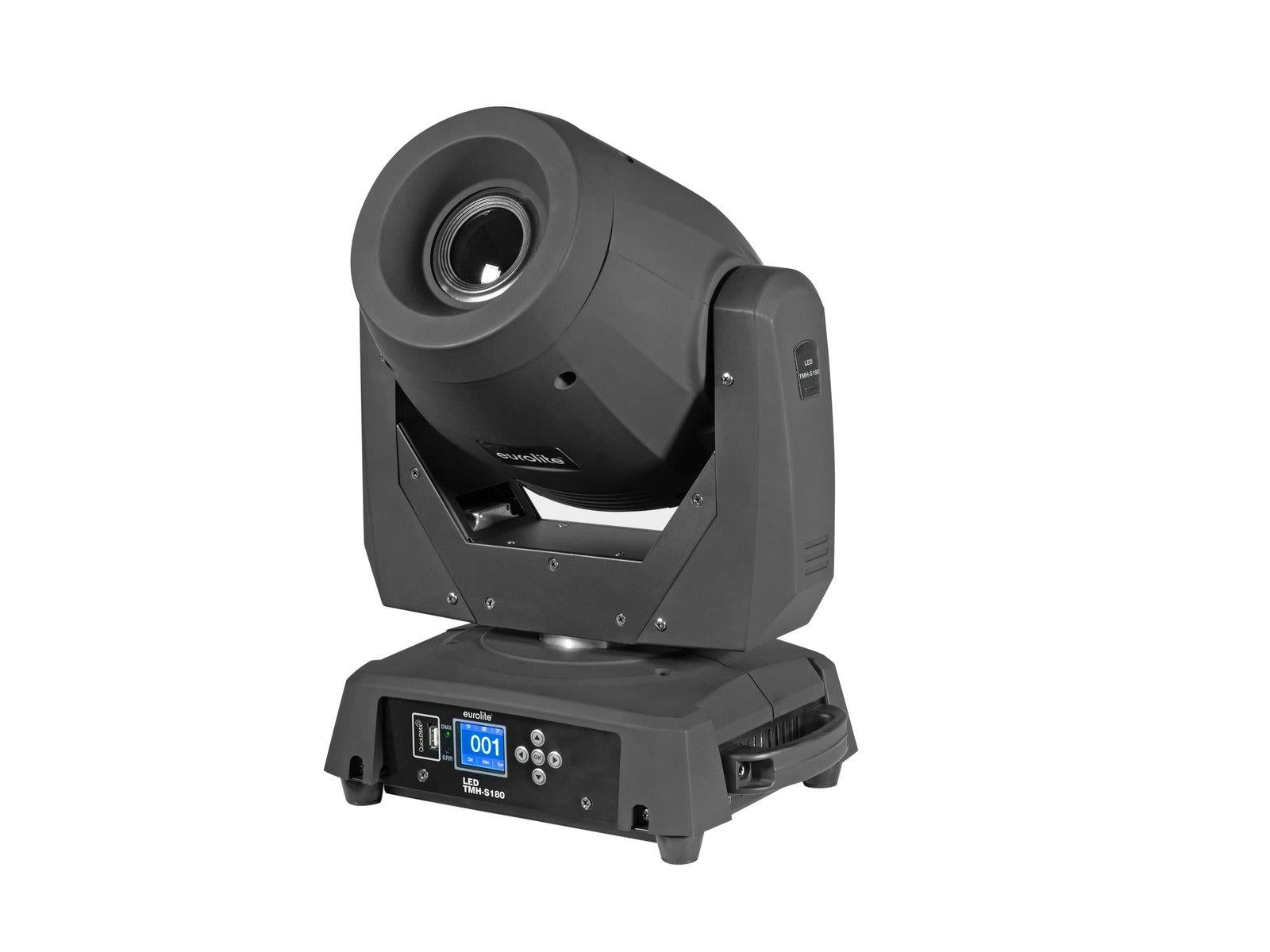

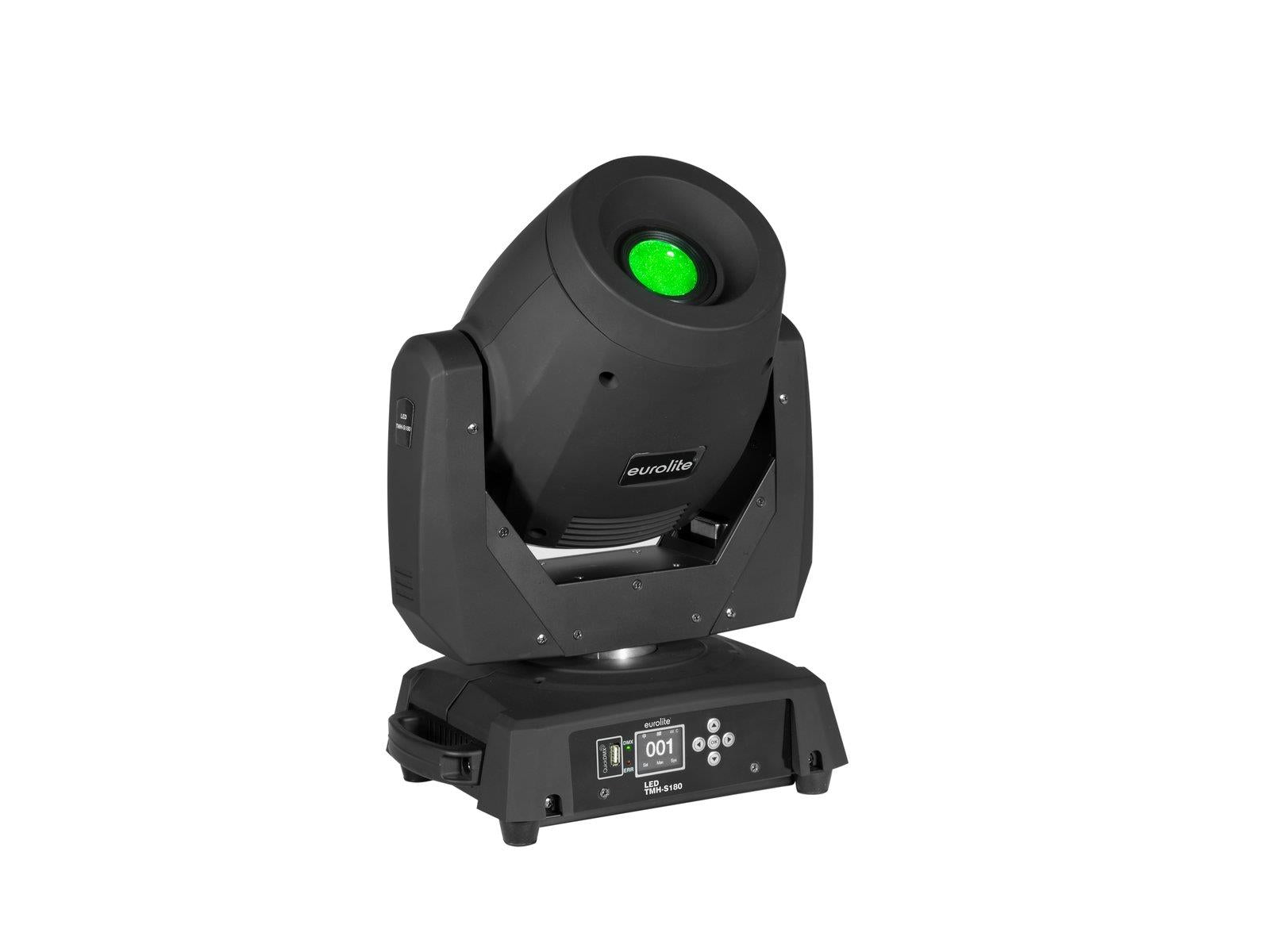

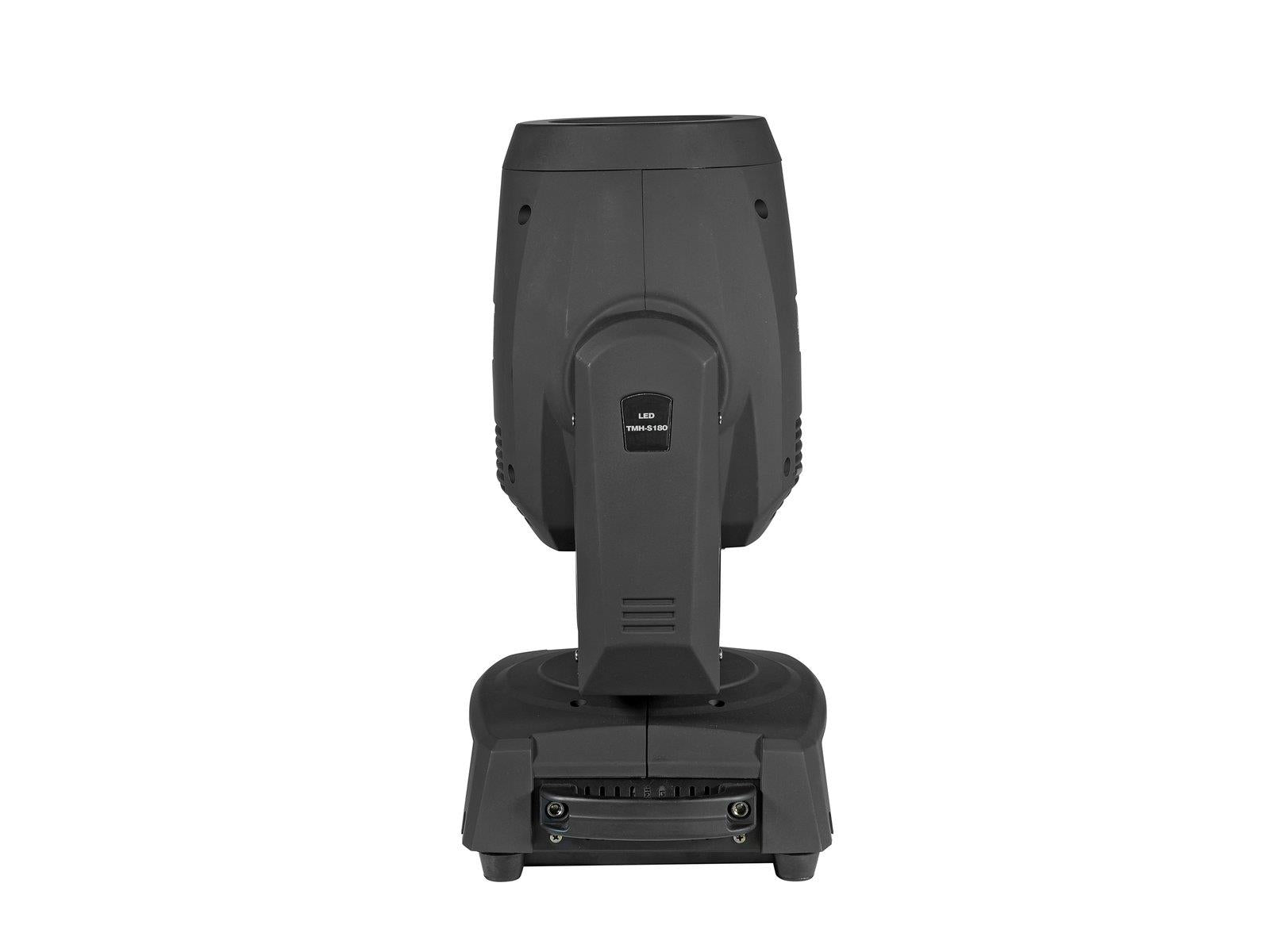

LED TMH-S180 Moving Head Spot 200W LED Gobos Color Wheel Prism

Description:

LED moving head spot with 200 W LED, rotating gobos, color wheel, prism and QuickDMX port

Rotating 3-facet prism
Exact positioning via 16 bit PAN/TILT movement resolution
Strobe effect 0-18 Hz
Random strobe effect
Electronic dimmer (0-100%)
Automatic position correction
Mains input and output for power linking up to 8 units
1 powerful LED 200 W COB (chip-on-board) cold white (CW)
Color wheel with 8 dichroic filters plus open
Rainbow effect with adjustable speed
Gobo wheel with rotating gobos, 7 gobos and open
shake effect
Gobos changeable
Slot-in gobo system for exchanging gobos without tools
Integrated Showprograms
Can be operated in 13; 15 CH mode
The device is cooled by cooling fan
Controlling by stand-alone; DMX; Sound to light via Microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional)
Preprogrammed in Light´J; LED PC-Control 512; Light Captain
Flicker-free
Effect: Multi beam effect; gobo effect
With a beam angle of 10°
LCD display

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 265 W
IP classification: IP20
Protection class: Class I

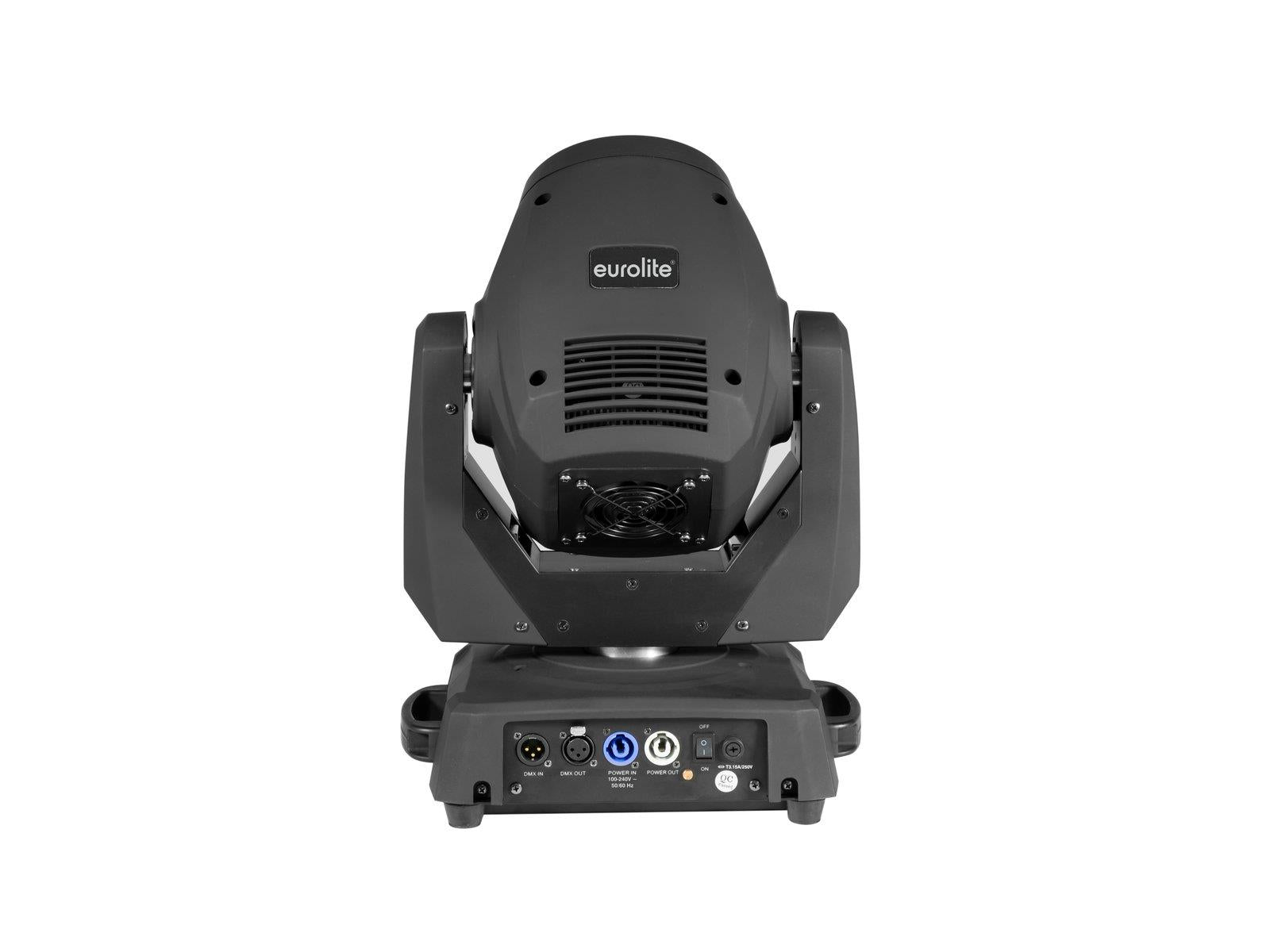

Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output: P-Con (gray), mounting version
Fuse: 5 x 20 mm, T 3,15 A Fuse replaceable
Lamp type: LED lamp
LED: 1 x 200 W COB (chip-on-board) cold white (CW)
Max. TILT movement: Exact positioning (16 bit resolution) 270° Auto position correction (feedback)
Max. PAN movement: Exact positioning (16 bit resolution) 540° Auto position correction (feedback)
Flash rate: 0 - 18 Hz
Equipment:
Gobo wheel with rotating gobos; Prism 3-fold; Focus motor-driven
Color generation: Color wheel with 8 dichroic filters plus open
Gobos:
Gobo wheel with rotating gobos, 7 gobos and open
Outside diameter 23,5mm
Image diameter 15mm
Shake effect
Gobos changeable Slot-in gobo system for exchanging gobos without tools
DMX channels: 13; 15
DMX input: 3-pin XLR (M) mounting version
DMX output: 3-pin XLR (F) mounting version
Cooling: Cooling fan
Control:
Stand-alone; DMX; Sound to light via Microphone; Light´J; LED PC-Control 512; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); Light Captain
Beam angle: 10°
Beam angle (1/2 peak): 10°
Illuminance in Lux (lx): Cold white (CW) 3m: 20700 lx, 6m: 5273 lx
Housing color: Black
Display type: LCD display
Dimensions:
Width: 32,5 cm
Depth: 27,0 cm
Height: 45,5 cm
Weight: 11,60 kg
