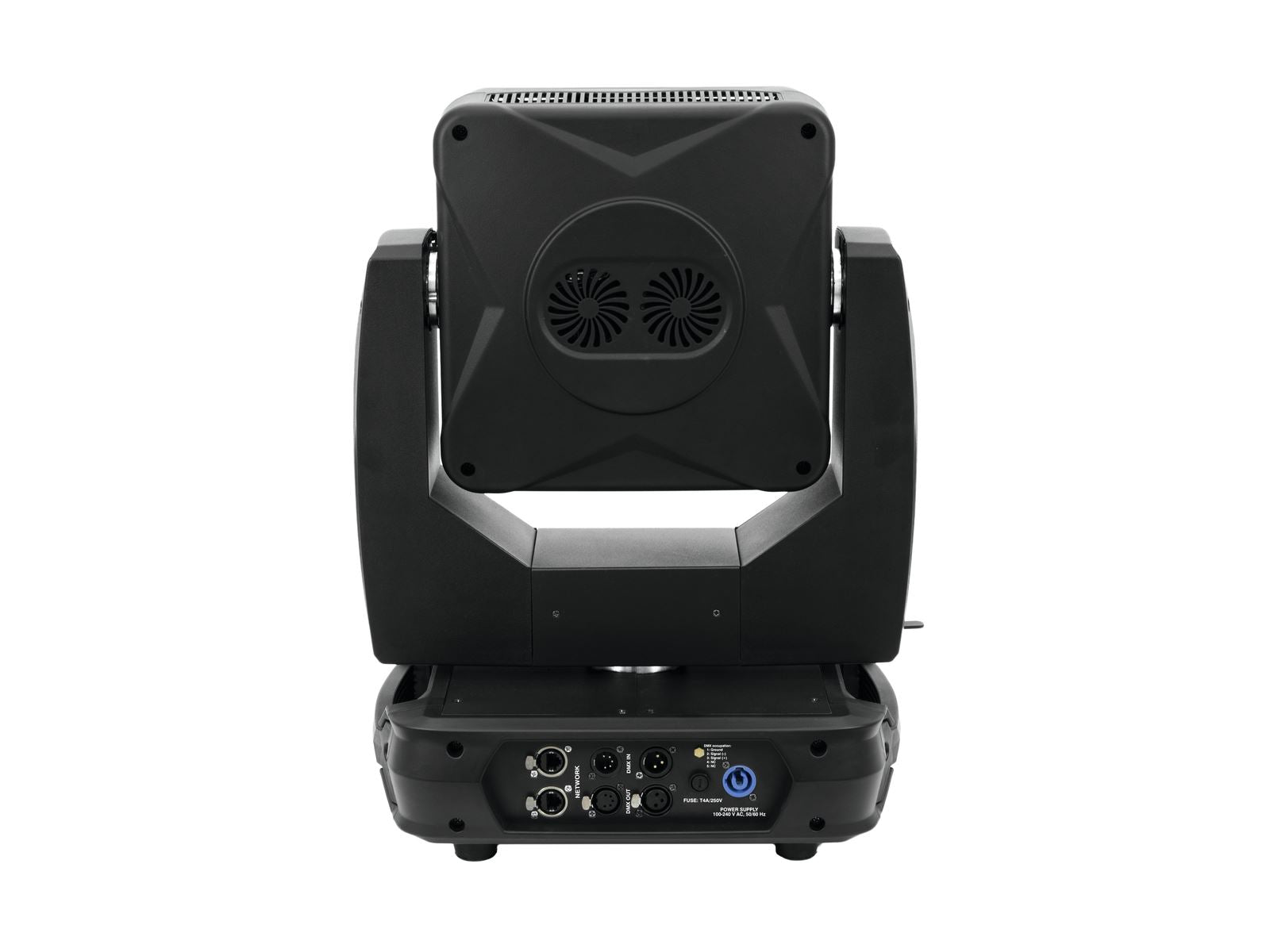

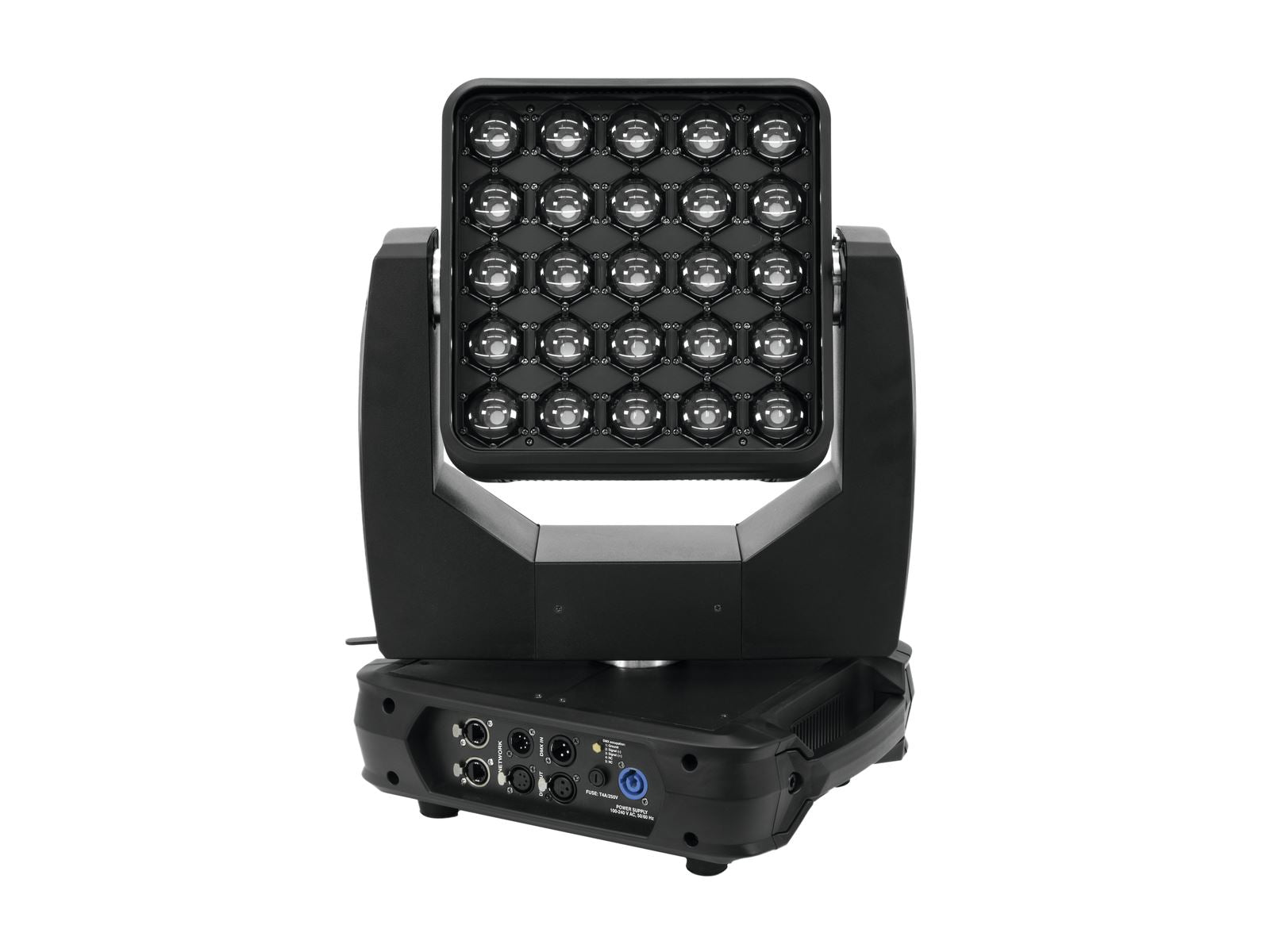

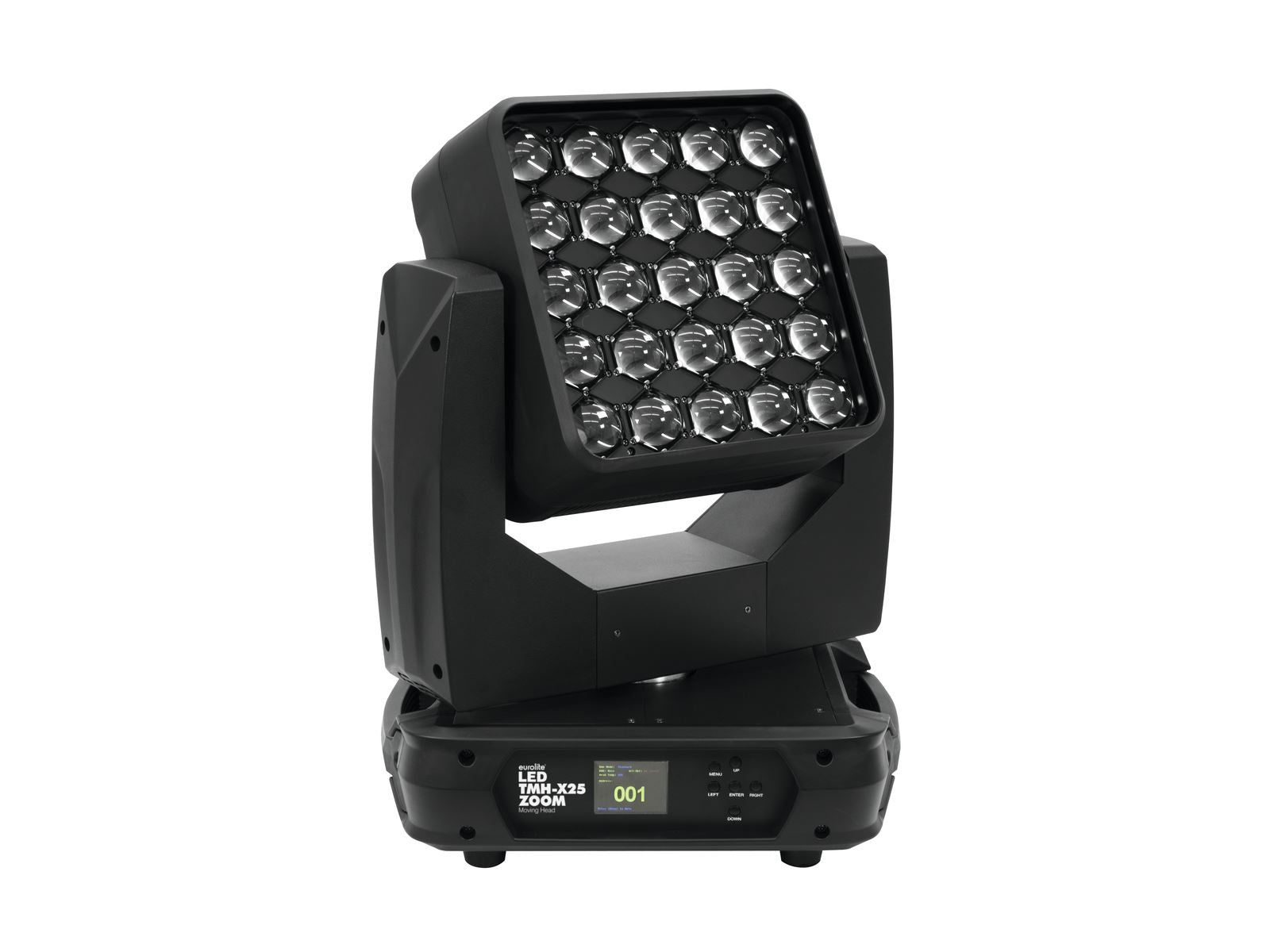

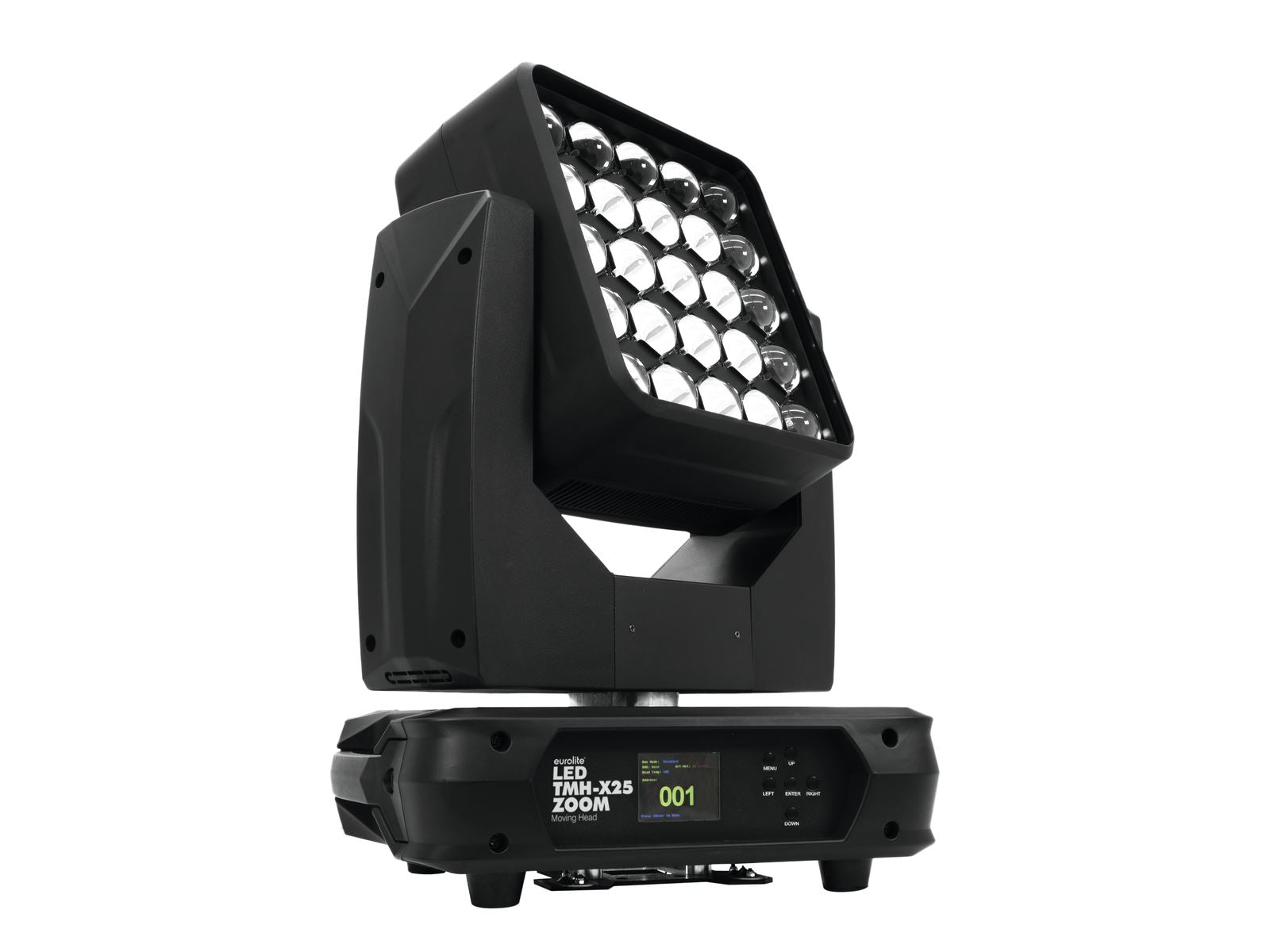

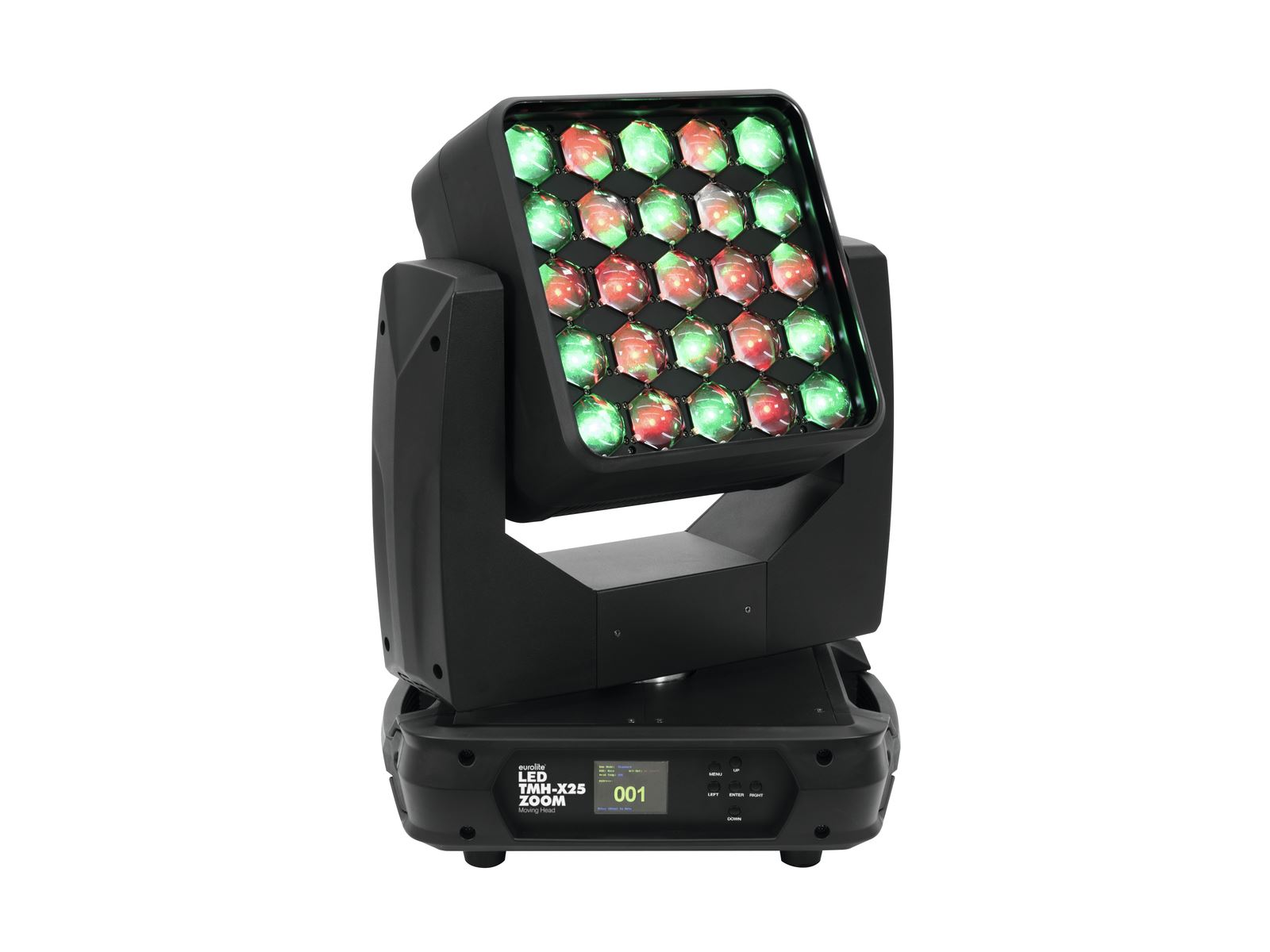

Description
5x5 Matrix Panel, bright 12 W RGBW LEDs, large zoom
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 450 W |
IP classification: | IP20 |
Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
Lamp type: | LED lamp |
LED: | 25 x COB (chip-on-board) 12 W 4in1 QCL RGBW (homogenous color mix) |
Max. TILT movement: | Exact positioning (16 bit resolution) plus infinity Auto position correction (feedback) |
Max. PAN movement: | Exact positioning (16 bit resolution) 540? Positioning switchable to 630? plus infinity Auto position correction (feedback) |
Flash rate: | 0 - 20 Hz |
Equipment: | Zoom motor-driven |
DMX channels: | 13; 24; 88; 113 |
DMX input: | 1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version |
DMX output: | 1 x 3-pin XLR (F) mounting version 1 x 5-pin XLR (F) mounting version |
Network connection: | Protocol: ArtNet 3 via 2x RJ-45 E-Con (F) mounting version |
Cooling: | Cooling fan |
Control: | DMX; Stand-alone; EUROLITE LED PC-Control 512 software |
Beam angle: | 7.5 - 69? |
Beam angle (1/2 peak): | 7.5 - 60? |
Beam angle (1/10 peak): | 11 - 69? |
Illuminance in Lux (lx): | Narrow R red 3m: 4095 lx, 6m: 1114 lx Wide R red 3m: 238 lx, 6m: 66 lx Narrow G green 3m: 8135 lx, 6m: 2314 lx Wide G green 3m: 493 lx, 6m: 140 lx Narrow B blue 3m: 1638 lx, 6m: 476 lx Wide B blue 3m: 102 lx, 6m: 30 lx Narrow CW 3m: 10691 lx, 6m: 3011 lx Wide CW 3m: 626 lx, 6m: 179 lx Narrow all 3m: 22665 lx, 6m: 6337 lx Wide all 3m: 1345 lx, 6m: 380 lx |
Housing color: | Black |
Dimension: | Width: 41.5 cm Depth: 31 cm Height: 53.5 cm |
Weight: | 18.40 kg |
Noise classification: | Class 3 (clearly perceptible sounds) |
Legal specifications | |
Ecodesign regulation: | Yes |
Special product: | Not designed for household room illumination |
Purpose: | Show effect lighting |
