LEDJ Mini Box G3 PRO W-DMX Wireless DMX Transceiver TRUE1

Description

The Mini Box G3 PRO is a compact wireless DMX transceiver designed for professional lighting control applications. Operating as either a transmitter or receiver from a single unit, it provides a flexible way to distribute one full DMX universe wirelessly without the need for separate transmit and receive devices.

Compatible with the W-DMX G3™ protocol, the unit supports full DMX512 transmission with a line-of-sight operating range of up to 250 metres. It operates within the licence-free 2.4 GHz ISM band, making it suitable for use in a wide range of live events, installations, theatres and production environments.

The robust metal enclosure features 5-pin XLR DMX input and output connections alongside PowerTwist TR1 power input and output for convenient integration into professional lighting systems. An M10 rigging point allows the unit to be securely mounted using a suitable clamp.

Features

Single-universe wireless DMX transmitter and receiver

Transmit or receive operation from a single unit

Compatible with W-DMX G3™ protocol

Full DMX512 support

Wireless range up to 250 metres line of sight

Operates in the 2.4 GHz ISM band

Licence-free operation worldwide

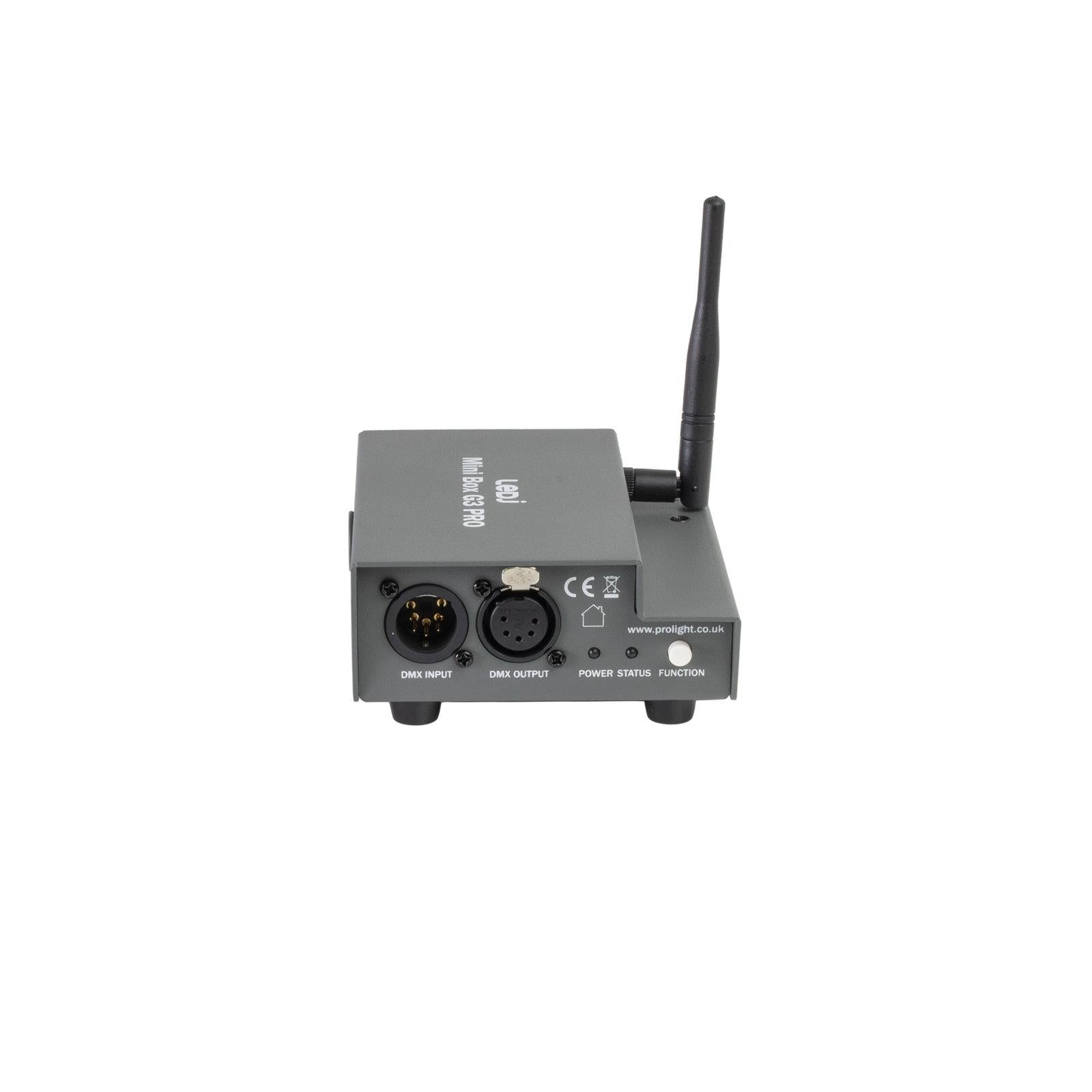

5-pin XLR DMX input and output

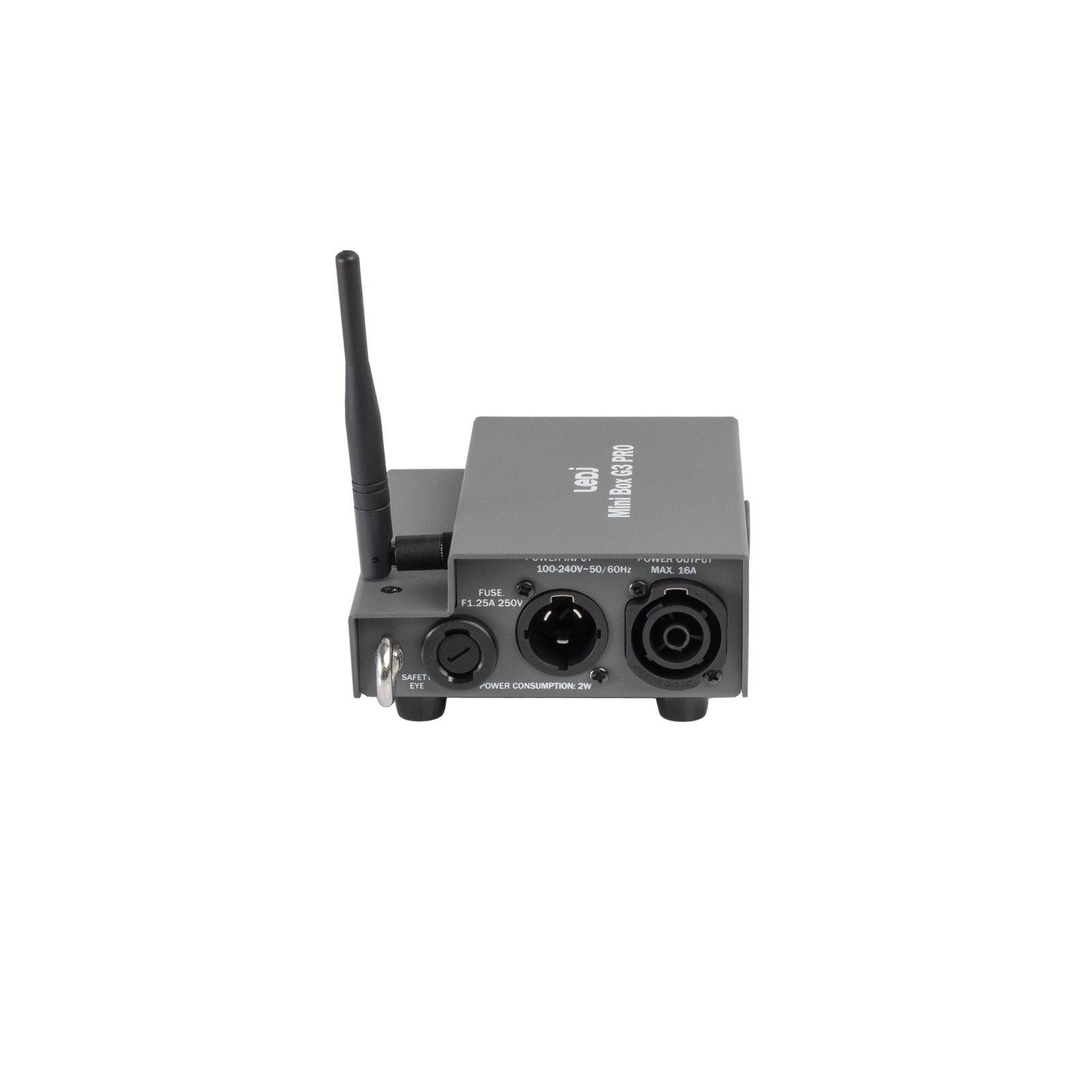

PowerTwist TR1 power input and output

Compact metal housing

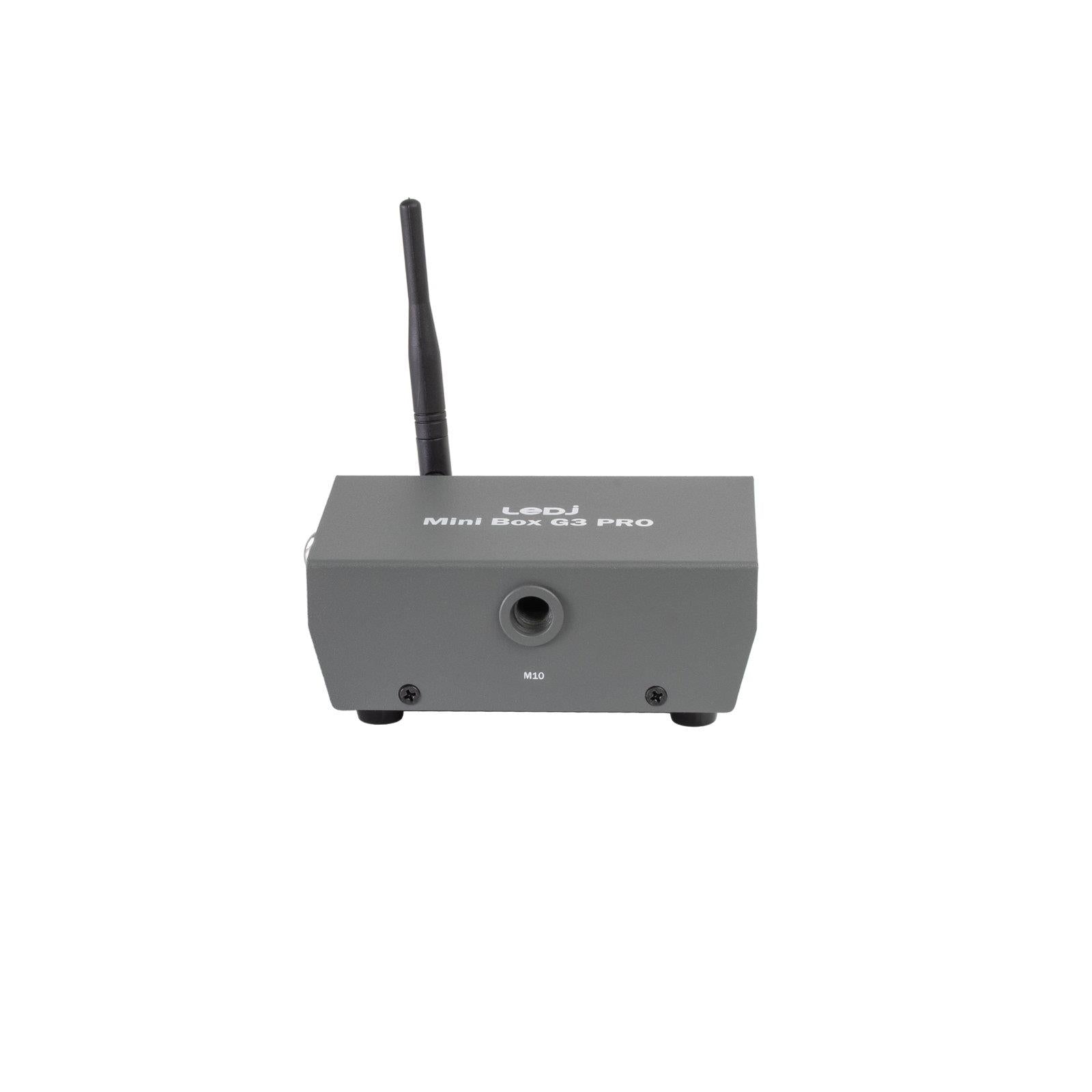

M10 rigging point for mounting clamp

Suitable for professional lighting and event applications

Specifications

Type : Wireless DMX Transceiver

DMX Universes : 1

Protocol : W-DMX G3™ Compatible

DMX Support : DMX512

Operating Frequency : 2.4 GHz ISM Band

Wireless Range : Up to 250 m Line of Sight

DMX Connections : 5-Pin XLR Input / Output

Power Connections : PowerTwist TR1 Input / Output

Rigging Point : M10

Power Consumption : 2 W

Power Supply : 100-240 V AC, 50/60 Hz

Fuse : T1.25A 250 V

Dimensions (H x W x D) : 50 x 132 x 103 mm

Weight : 0.65 kg
