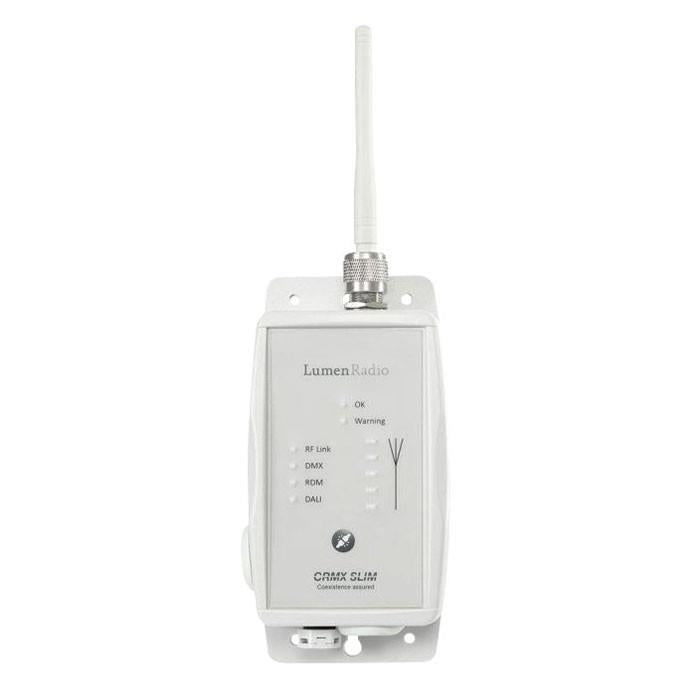

Lumenradio CRMX Slim TX IP65 DMX Transmitter with DALI/DSI

Description:

The LumenRadio CRMX Slim RX RDM is an IP65 rated receiver for one DMX/RDM universe being transmitted at maximum refresh rate from any CRMX transmitter. The CRMX Slim RX RDM is the smallest available RDM-enabled wireless DMX control product rated for true outdoor use. It can be easily mounted inside light poles or anywhere else where space is at a premium. When used with an RDM-compliant CRMX transmitter, the CRMX Slim RX RDM also supports RDM (ANSI E1.20). Use it together with the LumenRadio SuperNova management software to monitor signal strength and make settings remotely. Connect it to any RDM-enabled fixture to receive wireless feedback from the fixture.

The CRMX Slim RX RDM includes all the advanced features such as Automated Cognitive Coexistence, DMX fidelity, the industry’s lowest latency at 5 ms, 128-bit encryption and much more. It also gives you the ability to configure and monitor your fixtures via RDM without the need for a cable.
The CRMX Slim RX RDM supports DALI and DSI, making it a part of the first product range for wireless DALI/DSI that is truly designed to operate in any environment. The built-in DMX to DALI/DSI converter is easily configured via RDM.

Specifications:

Wireless Specifications
Wireless Mode G3, G4s, CRMX
Reaction Time 5 ms
Control and Programming
Protocols DALI, DMX, RDM
Electrical Specifications and Connections
Power Supply 100-240 V AC 50-60 Hz
Power Consumption 10 W
Power Connector In Terminal
DMX Connector Out Terminal
Mechanical Specifications
Length (mm) 90 mm
Width (mm) 40 mm
Height (mm) 174 mm
Weight 0.25 kg
IP Rating IP65
Colour White
Thermal Specifications
Maximum Ambient Temperature 40 °C
Minimum Ambient Temperature -20 °C
