Eurolite Lvh-4 Video Booster

£56.00; £56.00
Unit price: per

Video line amplifier with equalizer

Vendor: Eurolite

SKU: 154-81013204

In Stock

Quantity:

I agree with

iFrame

DETAILS
DELIVERY AND RETURNS

Description

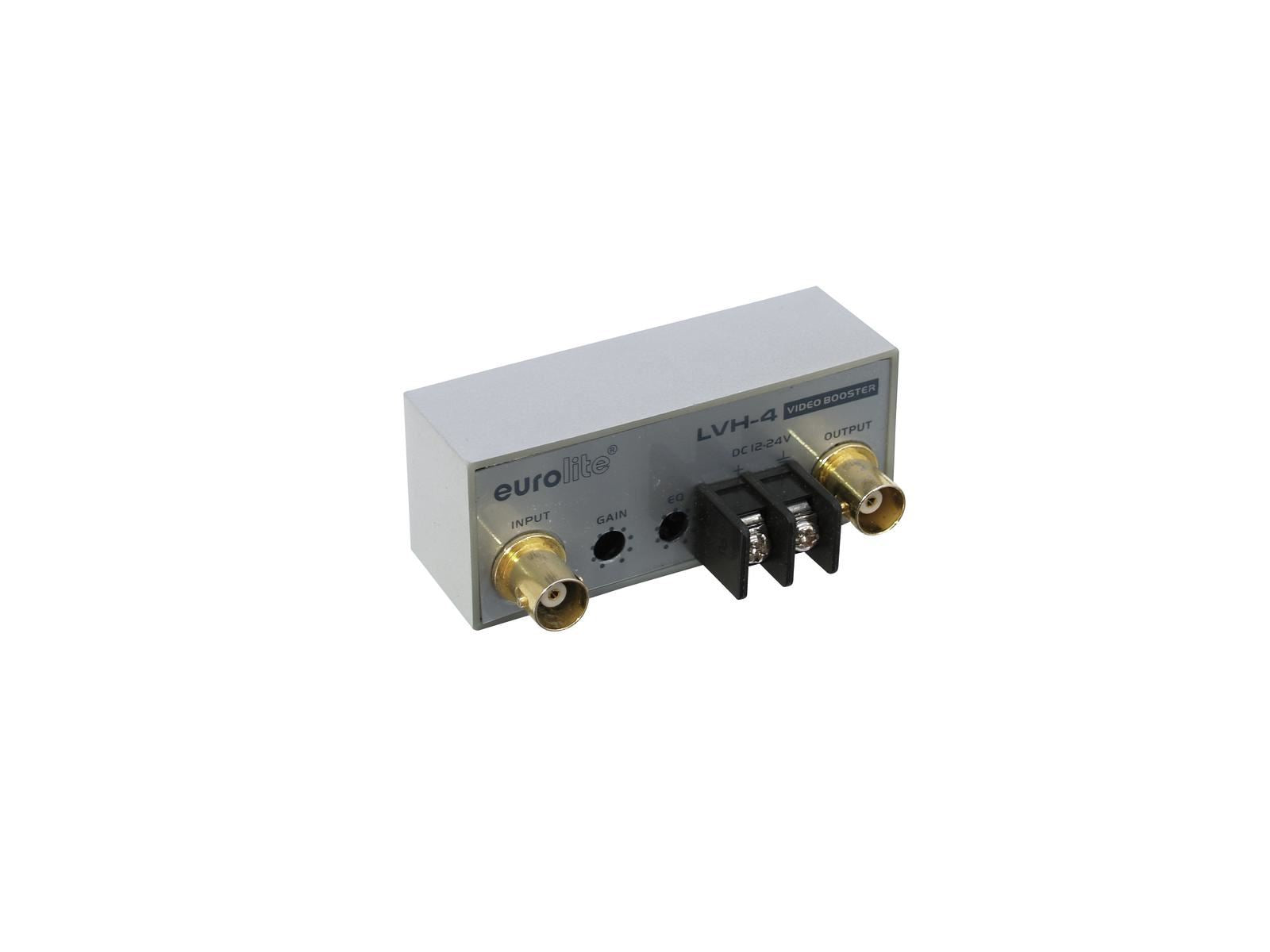

The Video Booster amplifies your signal to keep the quality high even over long distances of up to 600 meters. Of course, it can also be used to amplify a naturally weak signal to reach the desired quality standard. All this comes in an extremely compact design.

Video line amplifier with equalizer

Equalizes and compensates for signal losses inherent in long cable runs (max. 600 m)
75 ohms input and outputs via BNC plugs
Separate controls for amplification and equalization
12-24 V AC/DC power supply via signal source or external source (not included)
Ultra compact

Power supply:	12-24 V DC 30 mA 12-24 V AC 30 mA
S/N ratio:	>70 dB
Dimension:	Width: 7.6 cm Depth: 4.1 cm Height: 3.1 cm
Weight:	0.07 kg
1 x video input:	1 Vpp/ 75 ohms, BNC
1 x video output:	1 Vpp/ 75 ohms, BNC
Gain:	adjustable to +5 dB
Bandwidth:	10 MHz
Equalization adjustment:	0 dB to +4 dB/ 3.58 MHz
	0 dB to +7 dB/ 5 MHz
