MACKIE THUMP18SV4 18" Powered Subwoofer

Description

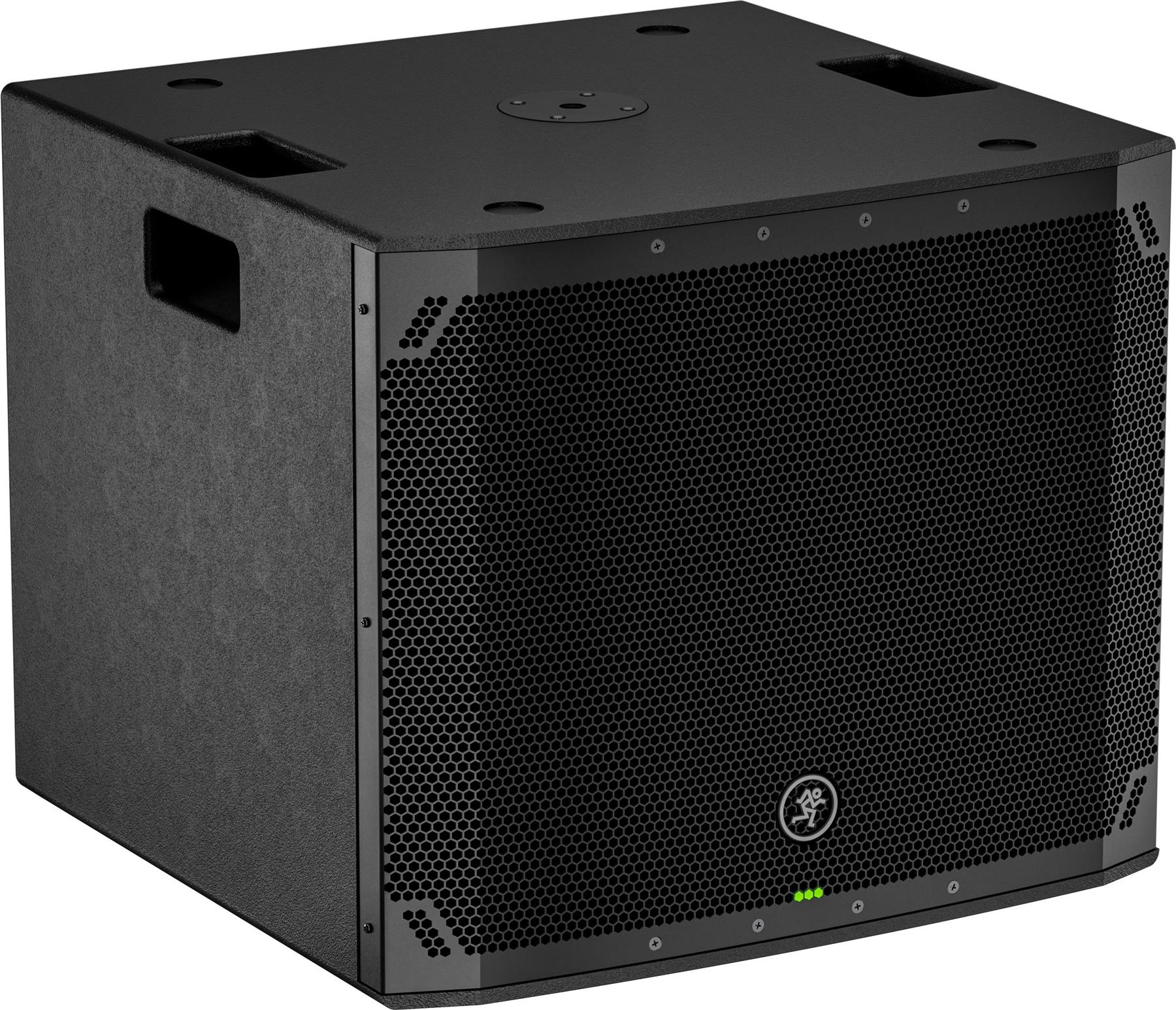

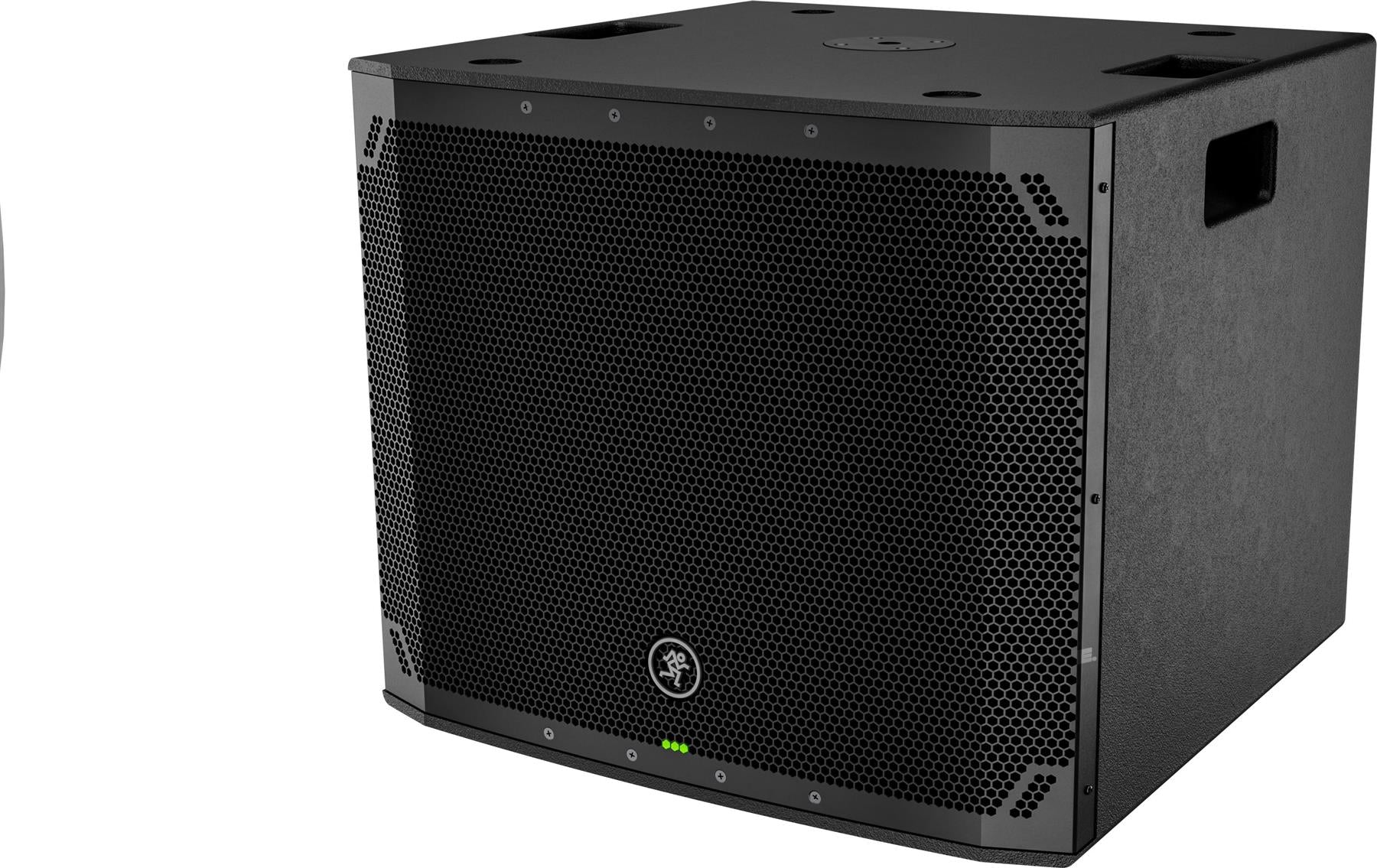

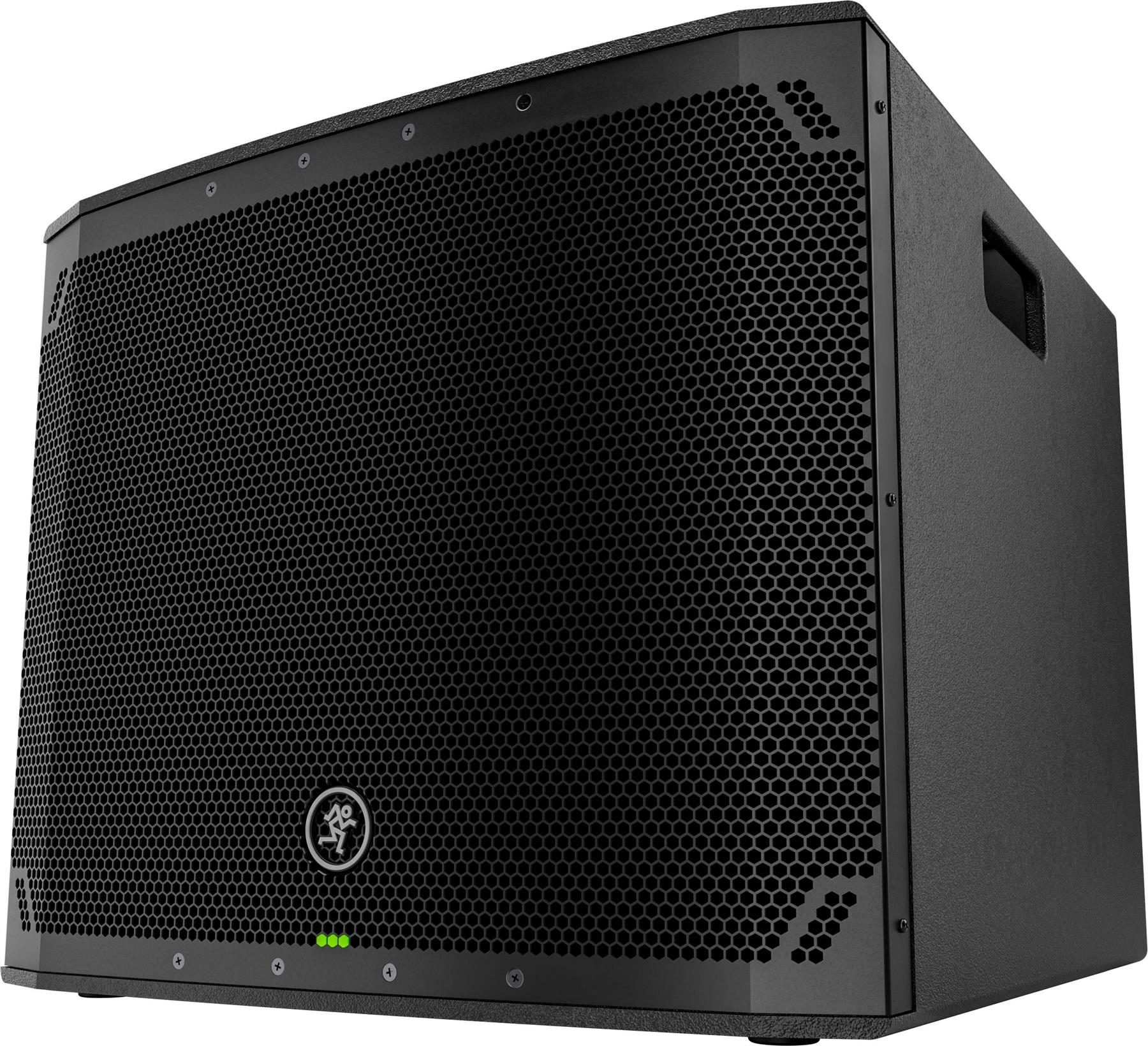

The Mackie Thump18Sv4 active subwoofer is designed to add powerful low-end performance to any PA system, delivering deep bass and punchy impact for live events, DJs, venues, and mobile sound applications. Combining a high-efficiency 1400W Class-D amplifier with an 18" high-performance woofer, it produces up to 132 dB SPL with impressive low-frequency extension down to 28 Hz for floor-shaking bass response.

Built for professional use, the Thump18Sv4 features a rugged yet lightweight enclosure with integrated handles for easier transport and setup. Selectable high-pass modes allow seamless integration with Mackie Thump loudspeakers or other PA systems, while variable crossover control provides additional flexibility for customised system tuning.

Designed for versatile deployment, the subwoofer includes stereo XLR inputs and outputs, mono or stereo summing options, phase inversion, and adjustable output levels. Pole mounting compatibility allows a full-range loudspeaker to be mounted directly above the subwoofer for a compact, professional PA setup.

Features

1400W Class-D amplifier delivering up to 132 dB SPL
18" high-performance woofer with low-frequency response down to 28 Hz
Optimised for live sound, DJs, venues, and mobile PA systems
Selectable high-pass modes for easy integration with Mackie Thump loudspeakers
Variable crossover mode for matching with other PA speakers
1.4 ms alignment delay included across all crossover modes

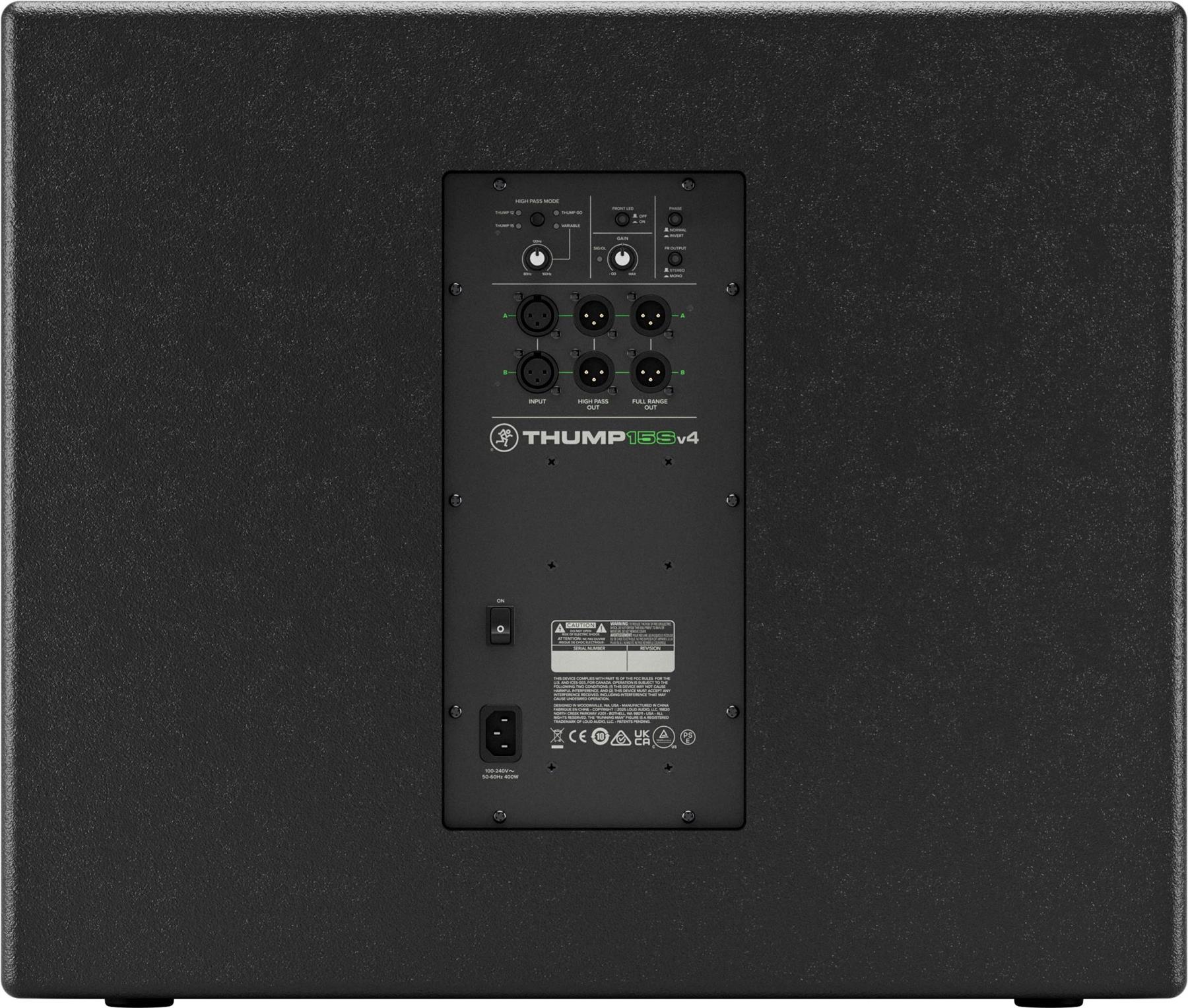

Stereo XLR inputs for mixers, DJ controllers, and audio sources
Stereo XLR high-pass outputs for loudspeaker connection
Stereo XLR full-range outputs for linking additional subwoofers
Stereo or mono summing modes for flexible system configuration
Phase invert switch for system alignment
Variable level control from mute to +6 dB

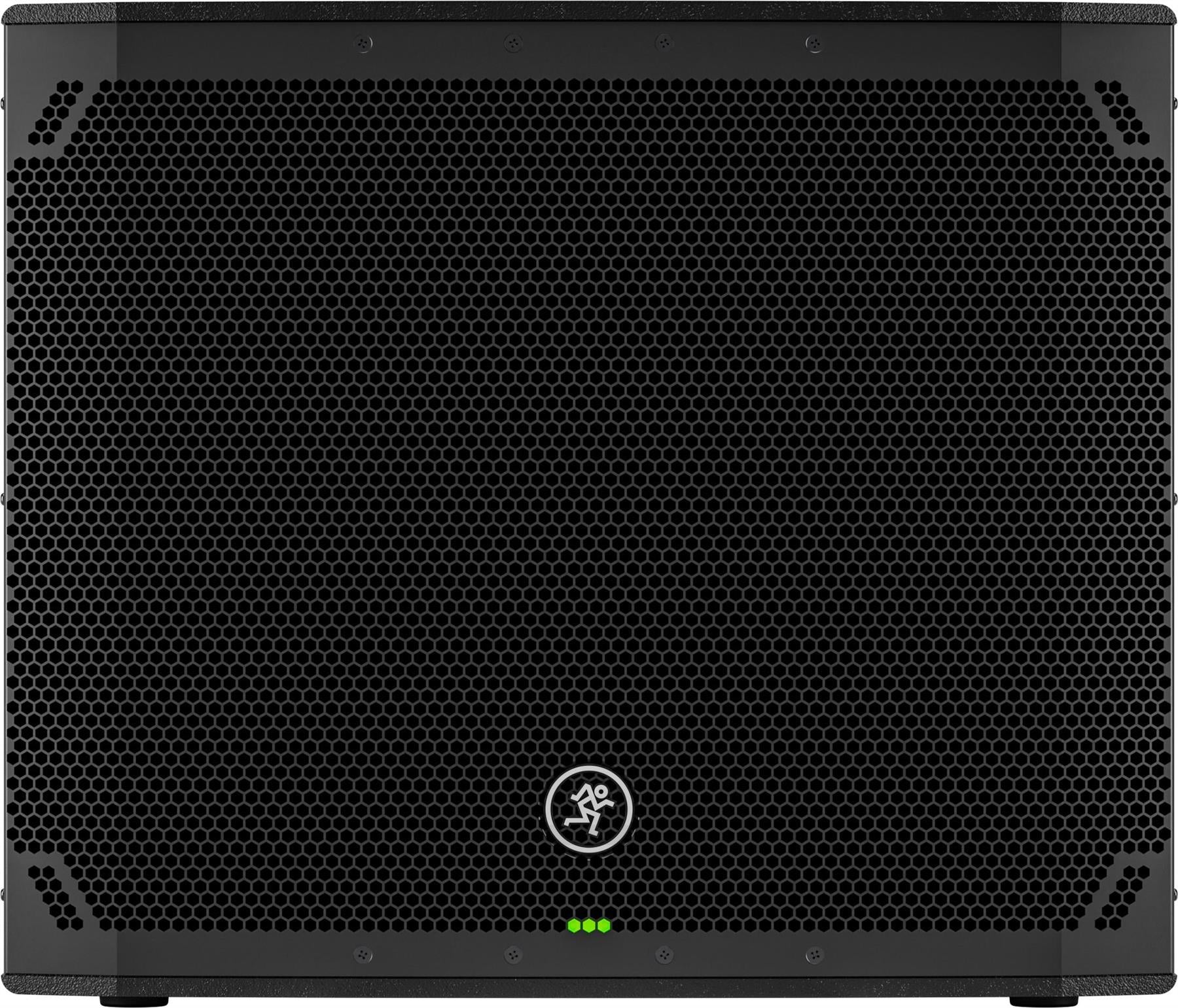

Defeatable front LED indicator
Rugged lightweight enclosure with integrated carry handles
M20 threaded pole mount for speaker pole installation
Compatible with Mackie SPM400 speaker pole (sold separately)

Specifications

Amplifier type: Class-D
Amplifier power: 1400 W
Maximum SPL: 132 dB
Woofer size: 18"
Low-frequency response: 28 Hz
Inputs: Stereo XLR
High-pass outputs: Stereo XLR
Full-range outputs: Stereo XLR
High-pass modes: Thump 12 (140 Hz), Thump 15 (110 Hz), Thump GO (150 Hz), Variable
Alignment delay: 1.4 ms
Level control: Mute to +6 dB
Phase control: Phase invert switch

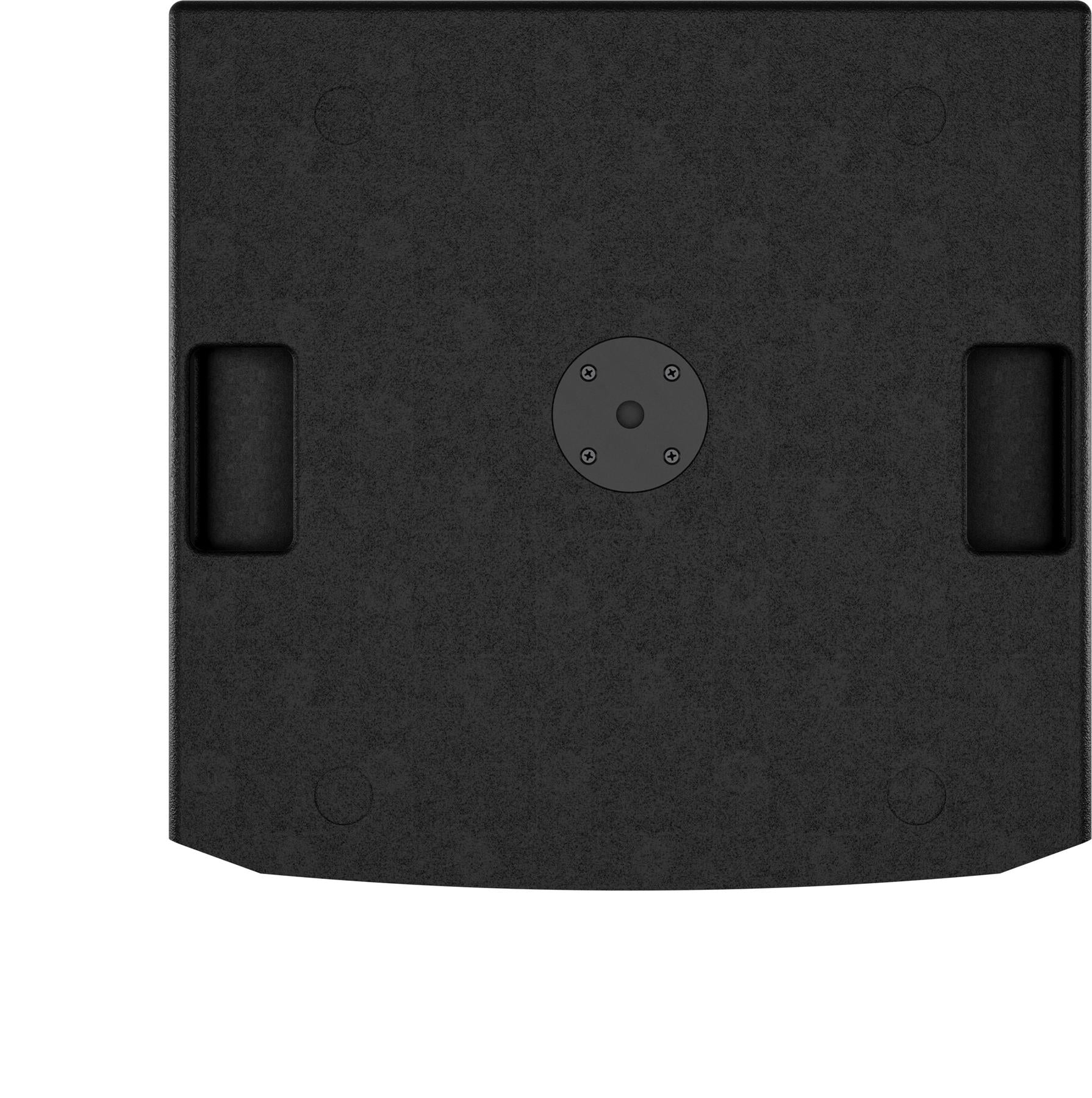

Pole mount: M20 threaded mount
Construction: Rugged lightweight enclosure
Handles: Integrated carry handles
Height: 541 mm
Width: 630 mm
Depth: 605 mm
Weight: 31.9 kg
