Madrix Neo - Usb Dmx512 Interface

Description
MADRIX NEO is an easy to use and effective DMX512 USB interface. This DMX512 interface includes already a MADRIX 3 software license for 512 DMX channels. You can use this interface to send or receive DMX512 using MADRIX. MADRIX NEO comes in a robust enclosure made of light metal - ideal for the use on stages.

MADRIX USB/DMX interface to issue a DMX universe over XLR

• MADRIX NEO is a reliable, easy-to-use, and high-quality DMX512 USB hardware interface including MADRIX software for LED control and MADRIX 3 software license
• The interface can be used for DMX input or DMX output to connect DMX512 devices to your computer
• The MADRIX software license for 512 DMX channels per device is already included and automatically activated when connected to MADRIX
• MADRIX NEO can be easily connected to your computer using the USB port
• Features a 5-pin, female NEUTRIK XLR port
• If you want to use DMX-IN, please use a 5-pin XLR male to 5-pin XLR male gender changer
• Full USB 2.0 support, Power over USB, Hot Swapping, and Plug & Play
• Multiple devices can be used together without problems
• Solid metal enclosure with eye-catching design

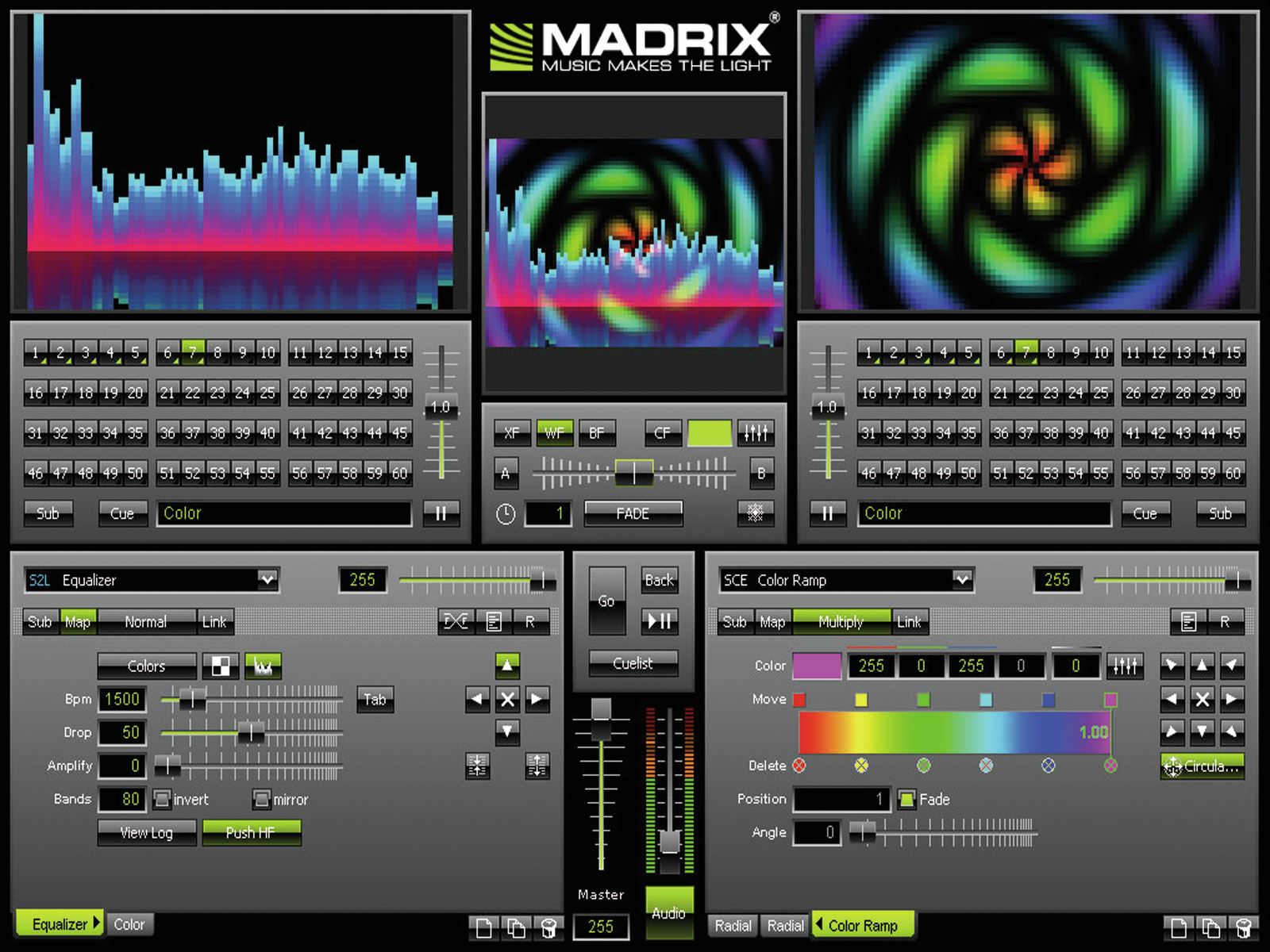

• MADRIX is a powerful, easy-to-use, and award-winning LED lighting control software
• Allows you to realize all kinds of different LED projects and lighting designs
• A normal PC/laptop can be used for professional LED control
• Allows mapping in 2D (pixel mapping) as well as real, spatial 3D (voxel mapping)
• The software generates unique effects, visuals, and animations live and in real time
• No additional content is required
• Already includes a multitude of stock effects that are fully customizable (in speed, color, shape, direction, size, movement, position, brightness, etc.)
• Analyzes incoming audio signals Sound2Light and Music2Light in real time
• New lighting scenes can easily be created in seconds
• Variety of options to combine visuals and graphical elements (layers, mix modes, filters, etc.)
• 256 x 256 Storage Places to organize and store effects
• DJ-like operation with 2 decks (Left/Right) and a crossfader
• 3 real-time previews to show your visual effects in advance (incl. 2D/3D, zoom, rotation)
• Controls up to 4 color channels per pixel/voxel (e.g. 1-channel, 2-channel, RGB, RGBW fixtures)
• Freely configurable Cue List for automated playback of a show (incl. time, date, duration, etc.)
• Supports Time Code from Art-Net, MIDI, SMPTE, and system time
• Remote control available via DMX-IN, Art-Net Remote, MIDI-IN, HTTP (internet browser), CITP
• Accompanying Fixture Editor provided including large fixture library

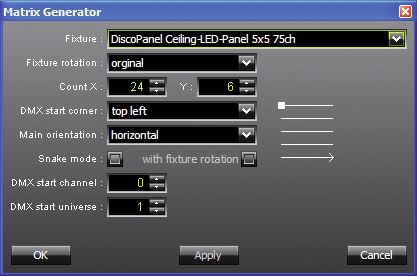

• Includes various other tools and features (DMX Fader Tool, DMX Watcher, Matrix Generator, Patch Editor, Touch Screen window, backup system, scripting, mapping, scaling, etc.)
• MADRIX minimum system requirements: 2.0 GHz dual-core CPU, OpenGL 2.0 graphics card (NVIDIA recommended), 2 GB RAM, 1 GB free harddisk space, 1280 x 768 screen resolution, network card, sound card, USB 2.0
• MADRIX supported operating systems: Microsoft Windows Vista 7 8 8.1 10 (compatible with 32 bit and 64 bit)
• Installation instructions and software available in English, Spanish, French, and Simplified Chinese
• User manual and quick start guide available in English
• Free software demo version, user manuals, and more information available at www.madrix.com
• Package Contents: 1x MADRIX NEO - DMX512 interface, 1x USB cable, 1x Quick Start Guide, 1x CD-ROM with MADRIX - Software and drivers
• Can receive and process up to 512 DMX channels
• Can transmit up to 512 DMX channels
• Controlling by DMX via USB built-in
• Made in Germany
