Omnitronic Mcs-1250 Mk2 6-Zone Pa Amplifier

6-zone audio amplifier with matrix assignment, 2 x 50 W / 4 ohms per zone
Vendor: Omnitronic
SKU: 154-10452480
Icon Out of Stock Out Of Stock


6-zone audio amplifier with matrix assignment, 2 x 50 W / 4 ohms per zone

  • 6-zone stereo amplifier for multi-zone PA applications
  • Updated version with touch pad wall controller
  • 12 x 50 W/4 ohms per zone
  • Bridge mode with 100 W/8 ohms individually selectable per zone
  • Efficient Class D technology
  • 6 stereo inputs expandable to 18 stereo zones with further units
  • Matrix input assignment: input sources are freely assignable to each channel
  • 6 pre-amp outputs to connect external power amplifiers
  • Convenient control via touch pad wall controller or IR remote control

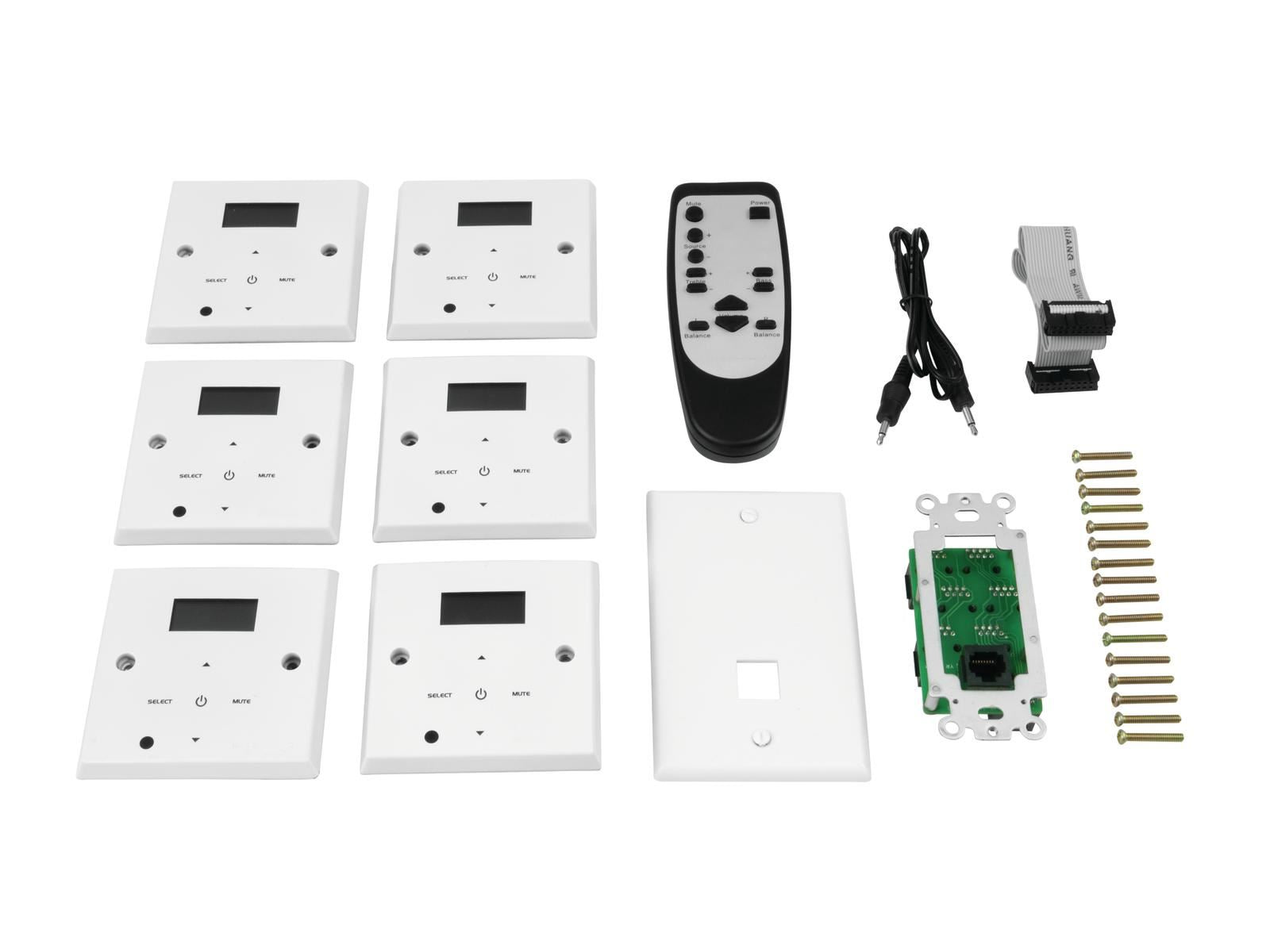

  • Incl. 6 wall controllers with touch-sensitive surface (touch pad), LCD with blue backlight and IR receiver
  • Wall controller allows selecting the audio source and volume, treble, bass adjustment for each zone individually
  • Incl. wall hub for up to 6 wall controllers
  • Incl. IR remote control
  • Signal inputs: 4 x stereo RCA, 2 x 3.5 mm jack and 1 x Toslink for digital audio signals
  • Speaker connection via terminal blocks

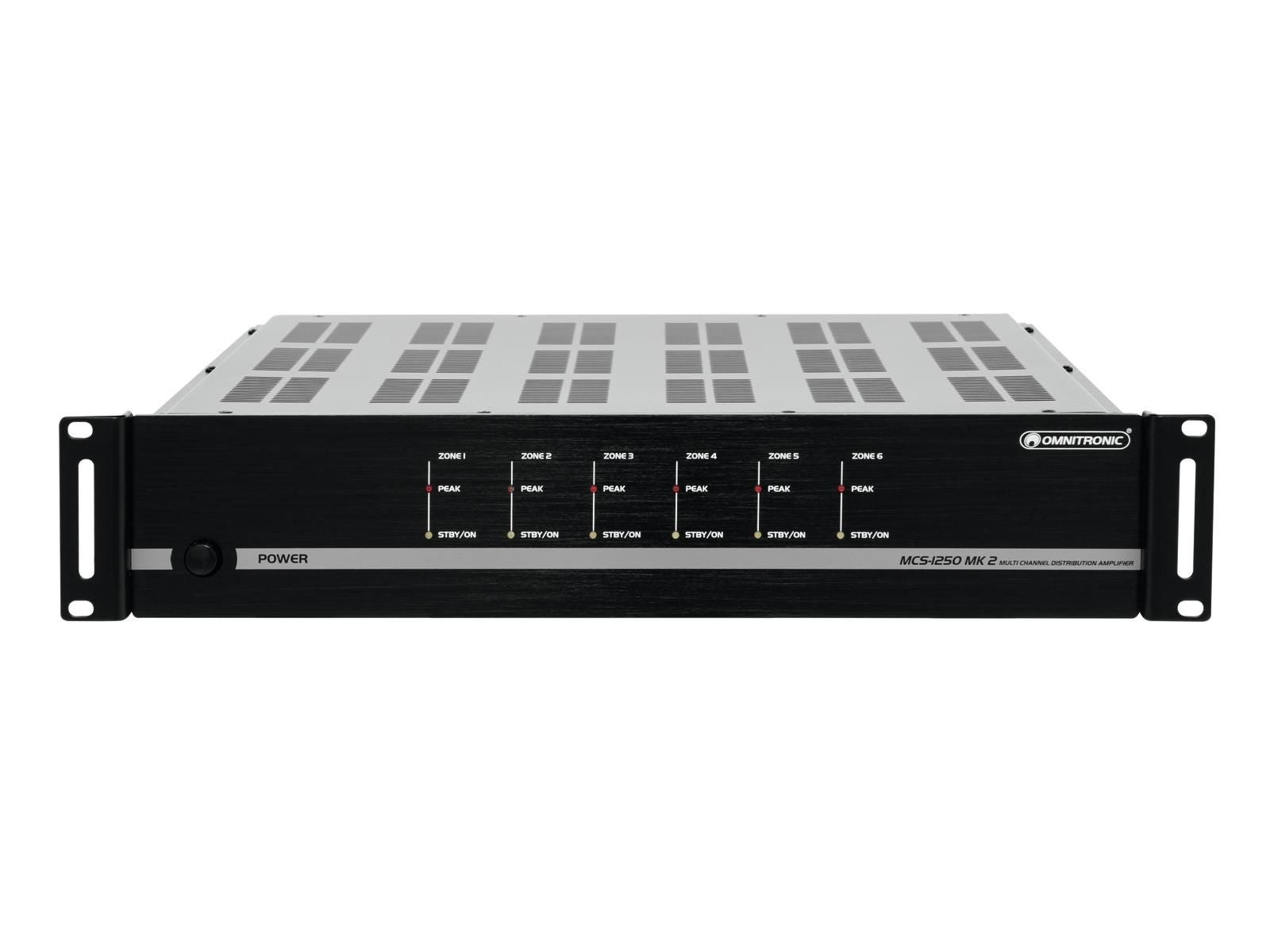

  • 6 zone status indicators on the front panel
  • Automatic gain control selectable for level matching of signal sources
  • Terminals for IR emitters (accessory) allow extending the IR signals from the remote controls of the signal sources
  • RS232 port enables two-way communication with a home automation system
  • Trigger input for muting
  • 6 trigger outputs for switching external amplifiers
  • Controlling by IR remote control
  • The device can be connected via RJ45 (F) mounting version to the PC
  • (19") 48.3 cm rack installation 2 U

Power supply: 115/230 V AC, 50/60 Hz
Power consumption: 1250 W
Output power: 12 x 25 W RMS (8 ohms)
12 x 50 W RMS (4 ohms)
6 x 100 W RMS bridged (8 ohms)
Power connection: Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Frequency range: 20 - 20000 Hz
S/N ratio: >85 dB
THD: <0.1 % at 1 kHz
Impedance: Input 47 kOhm
Control: IR remote control
Circuitry: Class D
Control elements: Mode switch (stereo/bridged), power switch
Controls: Short-circuit; overheat; overload
Status LED: Standby, power, peak

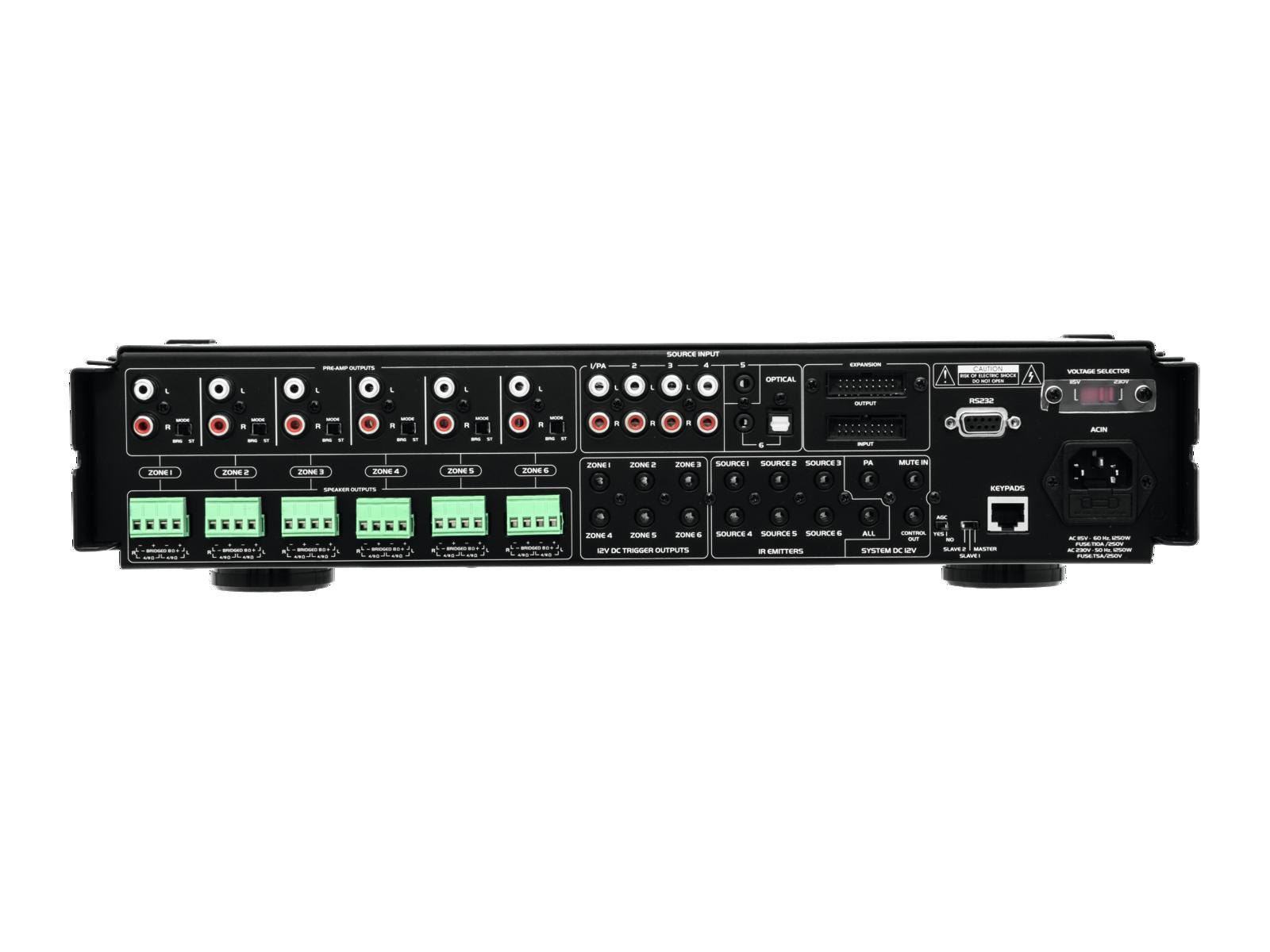

Connections: Input: 4 x line via stereo RCA
Input: 2 x line via 3.5 mm jack (stereo) mounting version
Input: 1 x line via toslink
Input: 1 x Keypad via RJ45 (F) mounting version
Input: 7 x IR-Extension/receiver via 3.5 mm jack (mono) mounting version
Input: 1 x Muting via 3.5 mm jack (mono) mounting version
Output: 6 x Trigger via 3.5 mm jack (mono) mounting version
Output: 6 x speakers via screw terminal
1 x Home automation via RS 232
Input sensitivity: 250 mV
PC connect: Via RJ45 (F) mounting version
Housing design: (19") 48.3 cm rack installation 2 U
Dimension: Width: 48.3 cm
Depth: 42 cm
Height: 8.9 cm
Weight: 12.70 kg
Remote control
Battery: 2 x 1.5 V AAA Micro R03 zinc carbon (provided)
