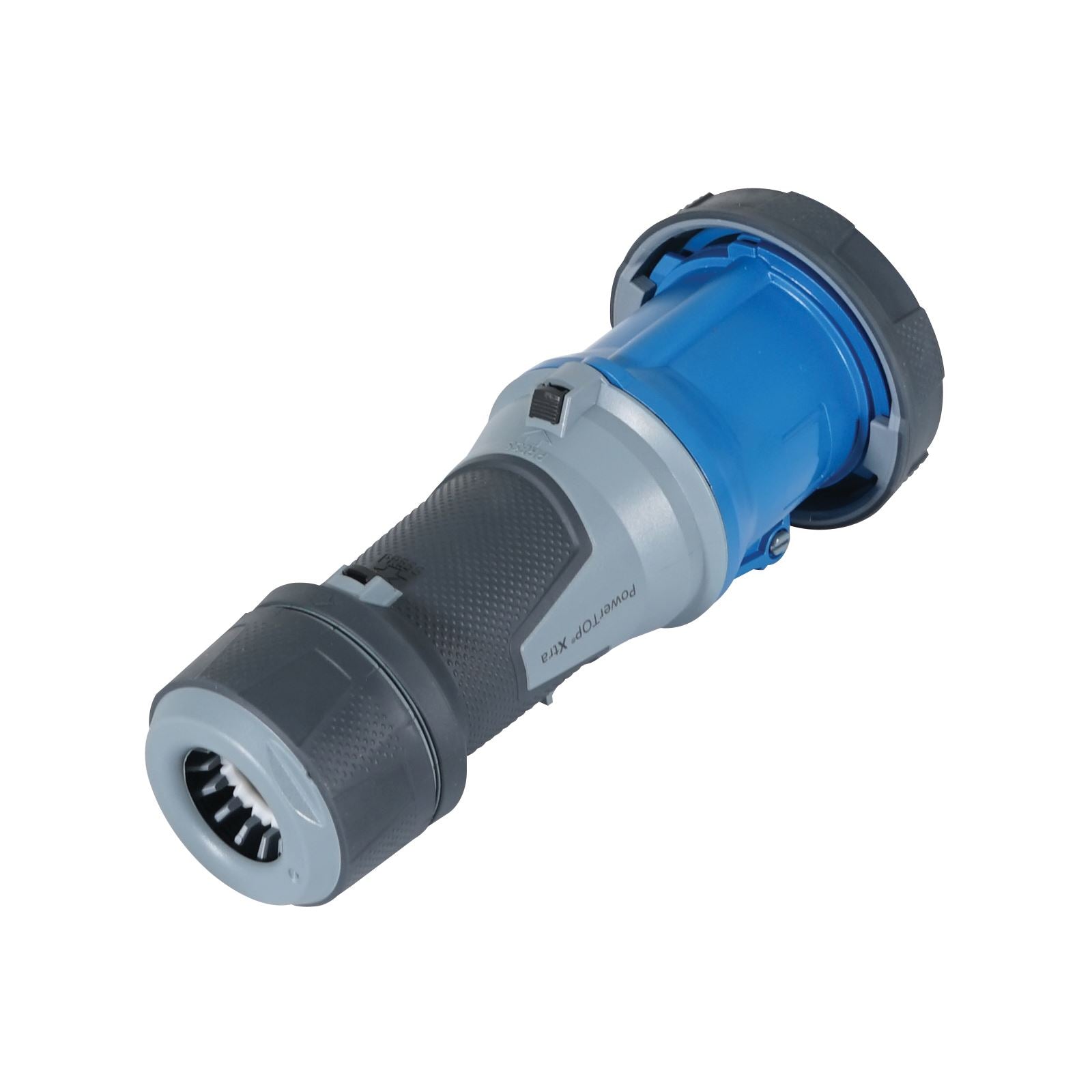

Mennekes 63A 230V 2P+E IP67 PowerTOP Xtra Connector (14202)

Description

As a specialist for plugs and sockets Mennekes is known worldwide for setting standards. With the PowerTOP© Xtra it has always been their aim to deliver the highest quality products for practical use. Mennekes have combined all their know-how into a clearly structured product family and completely redefined their CEE plugs, sockets and phase inverters. In the future there will only be ONE PowerTOP© Xtra family with solutions for any area of application. Plugs and sockets inverters have been completely redesigned and optimised in every detail! Together with the well-proofed PowerTOP© Xtra in 63A or 125A, the new PowerTOP© Xtra family sets the CEE with X-CONTACT inside!

• 63A 240V 2P+E male configuration
• Screw terminals
• Rubberised grip area
• Frame terminals
• Highly heat resistant contact carrier
• Nickel plated XCONTACT for minimal insertion forces
• Cable gland and sealing
• Strain relief and protection against kinking
• Enclosure with thread lock and two safety slides
• IP67 Rated

Specifications

• Cable sizes: 6.016.0mmý

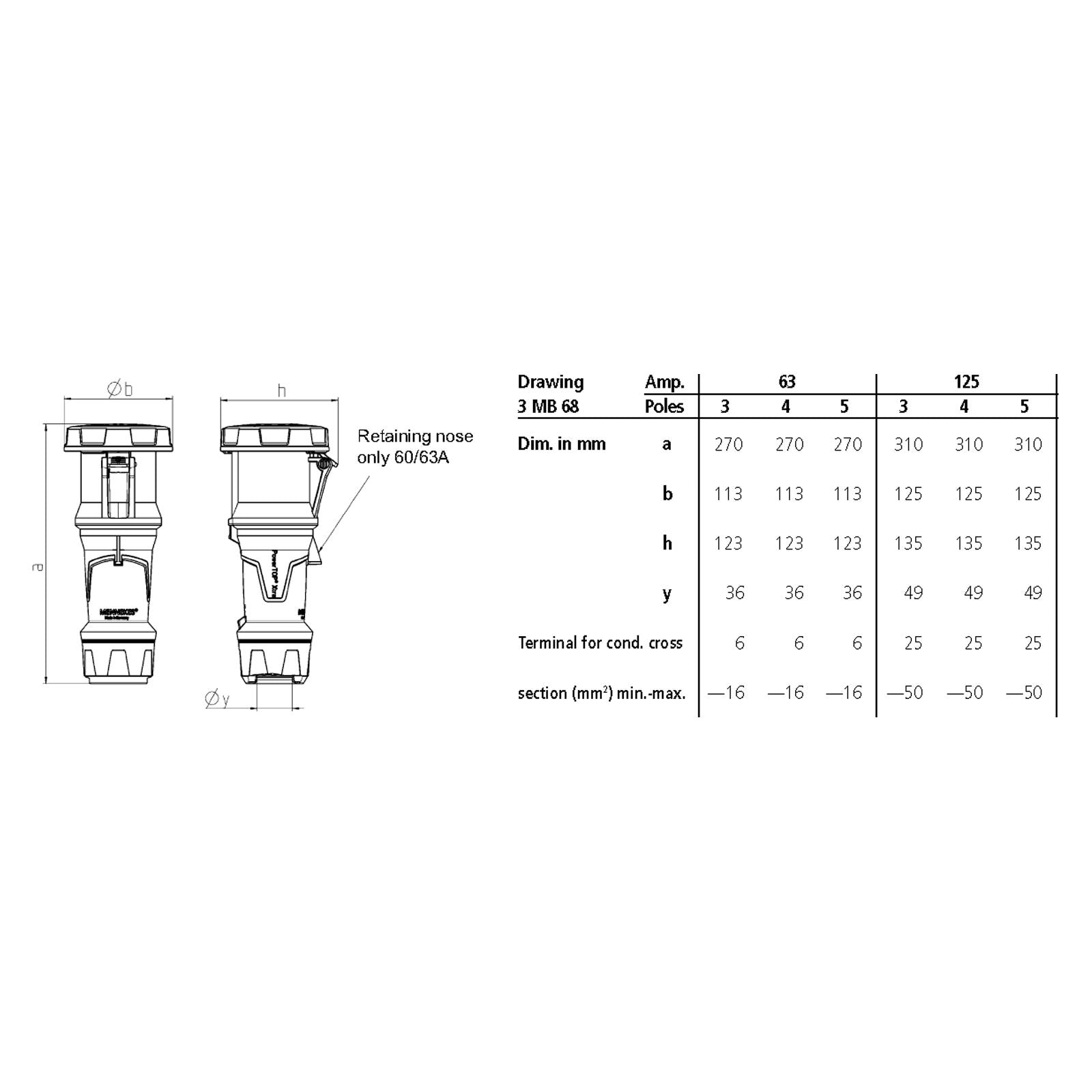

• Dimensions: 250 x 114mm
• Weight: 0.84kg
