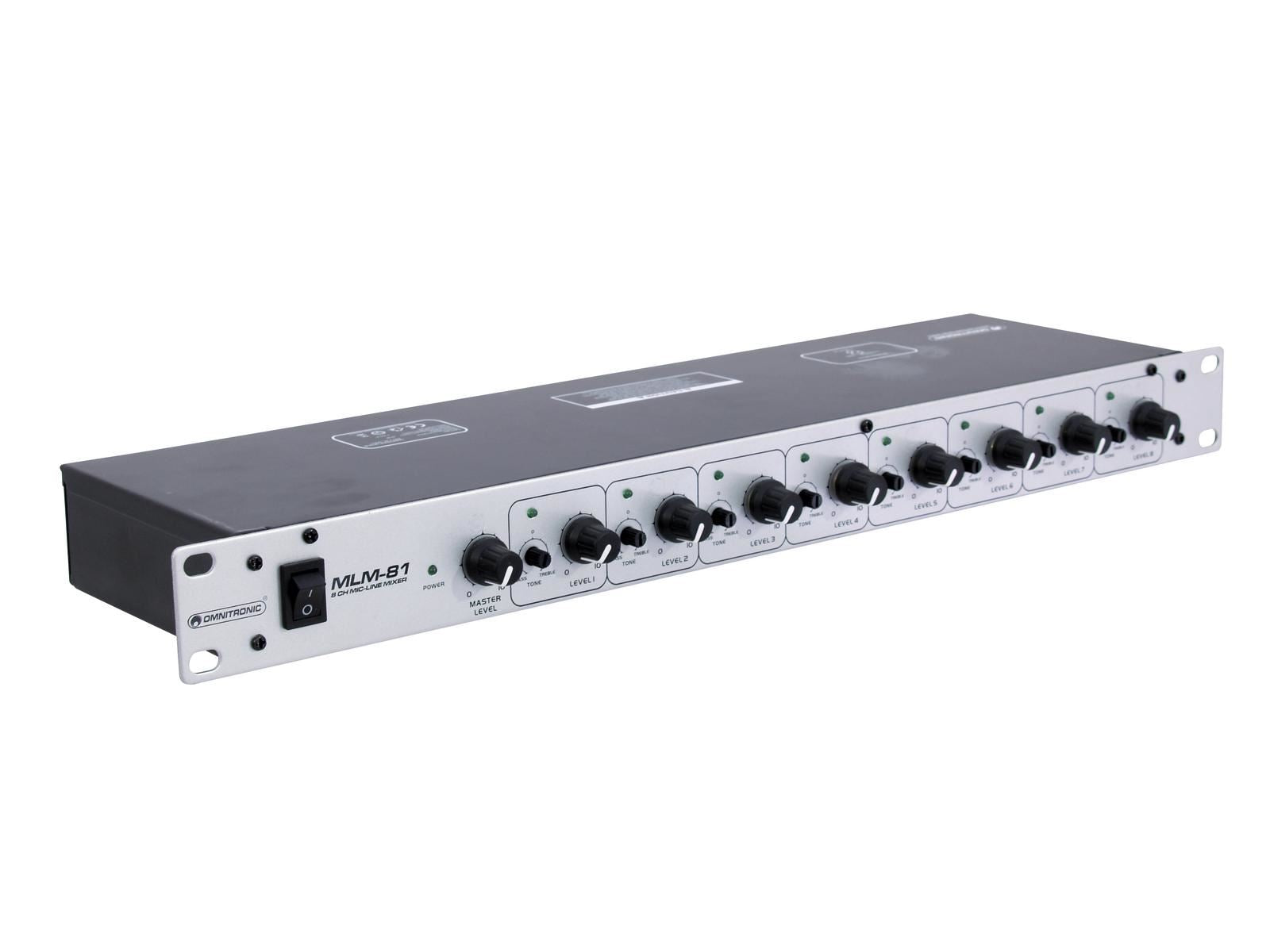

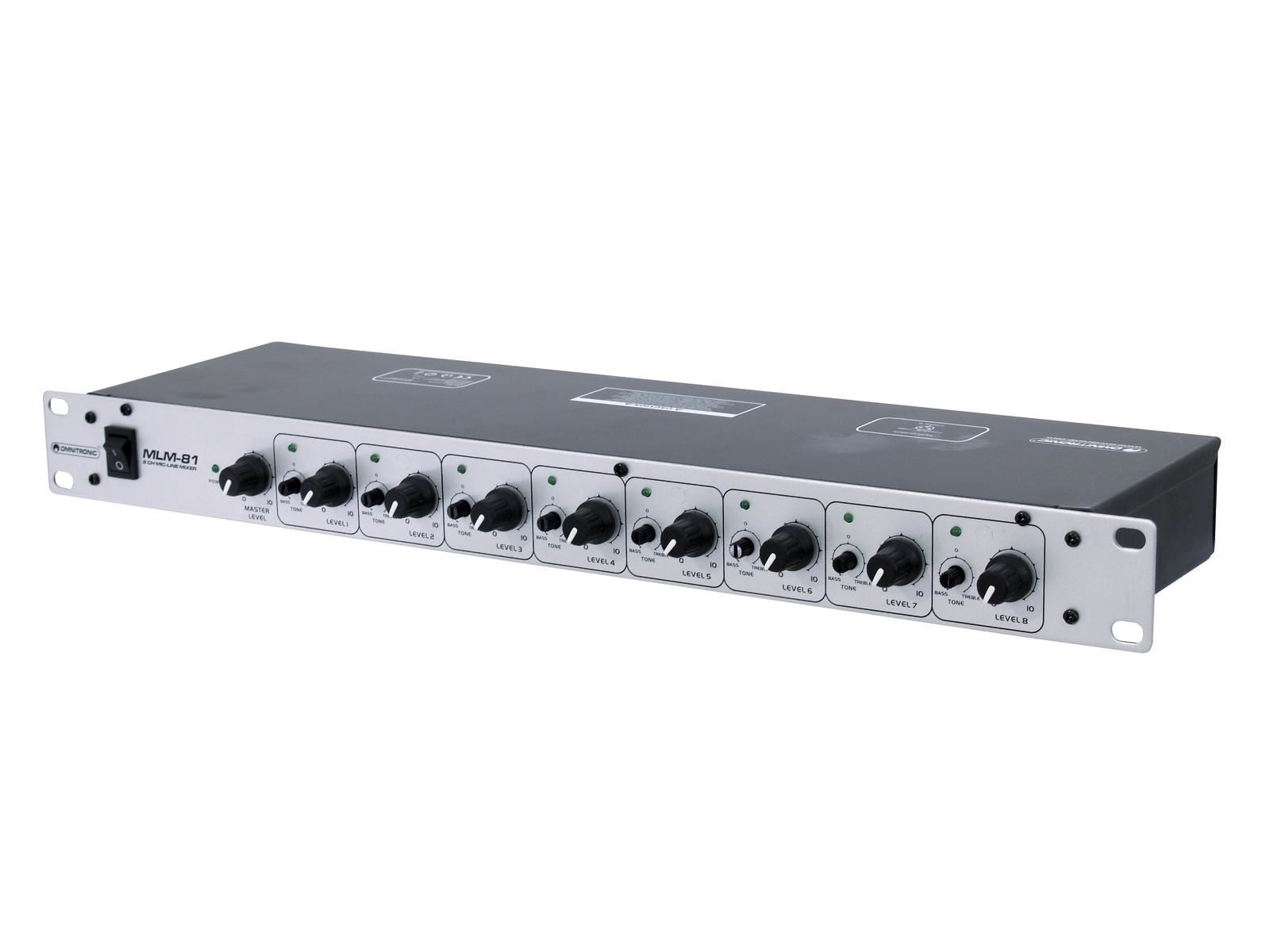

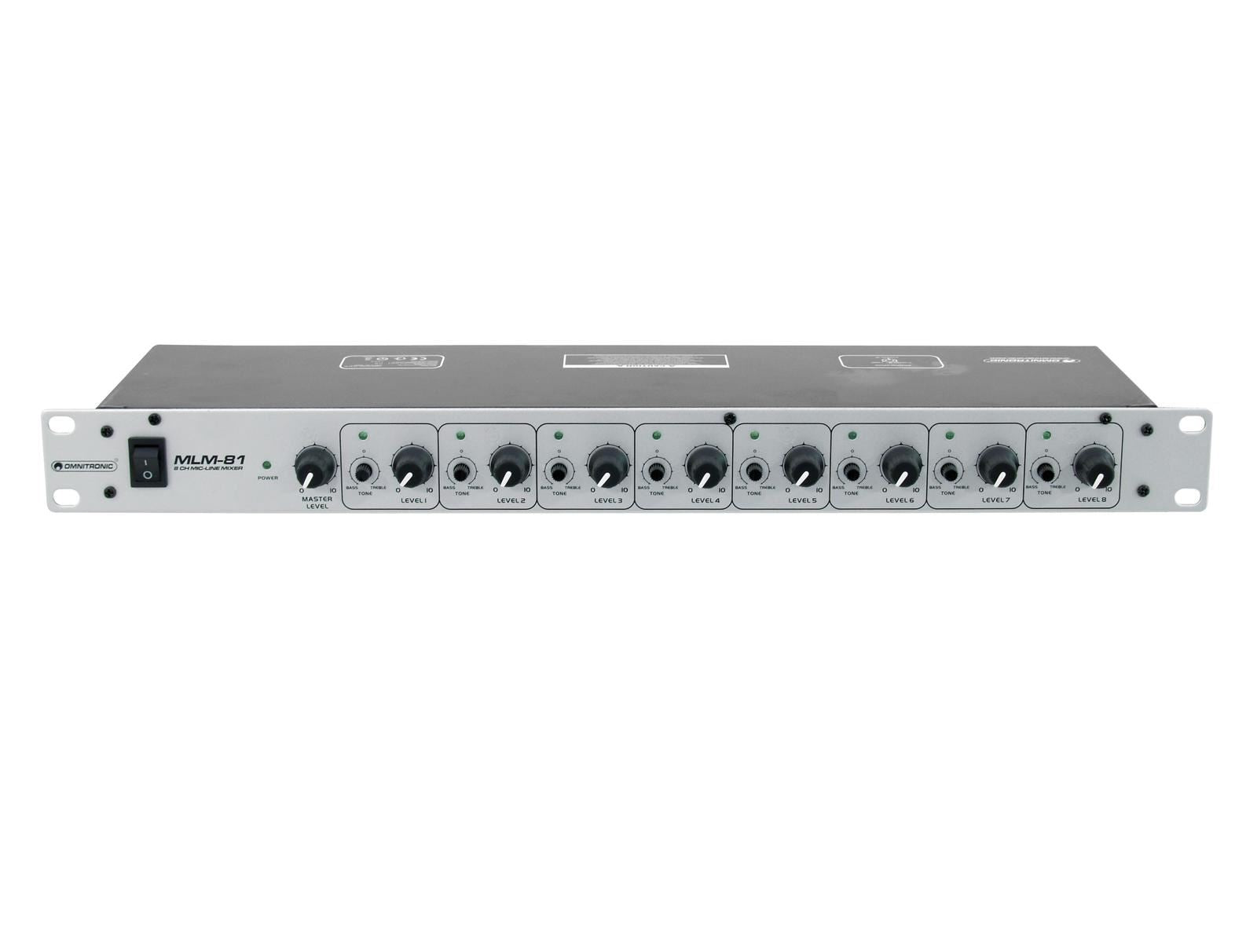

Omnitronic Mlm-81 Microphone/Line Mixer

Microphone line mixer, 8 channels
Vendor: Omnitronic
SKU: 154-10304150
Icon In Stock In Stock
Icon Delivery Time

OMNITRONIC MLM-81 mixes up to 8 mono input signals to one output. Via individual level and tone controls, the different sources can be controlled and perfectly dovetailed. The MLM-81 is not only suited for panel discussions or symposiums but for press conferences as well and - due to its compact design - occupies almost no space.

Microphone line mixer, 8 channels

  • For mixing up to 8 mono input signals to 1 mono output
  • 8 mic/line channels with separate level and tone controls and signal LEDs
  • Each channel with balanced XLR mic input and unbalanced 6.3 mm jack (1/4") input
  • Each mic input with optional 12 V phantom power via DIP switches
  • Master level control; master out via balanced 6.3 mm jack (1/4")
  • Feed-through output (independent of master control) for connecting a further MLM-81
  • Each 6.3 mm line input can be separately converted to a line output via internal jumpers
  • (19") 48.3 cm rack installation 1 U

Power supply: 230 V AC, 50 Hz
Power consumption: 10.00 W
Protection class: Class I
Power connection: Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
S/N ratio: >106 dB
THD: <0.003 % at 1 kHz
Phantom power: 12 V DC
Impedance: Input Microphone: 600 Ohm
Input line: 18 kOhm
Input AUX: 10 kOhm
Output 51 Ohm
Gain: Input: Microphone 69 dB
Input: line 26 dB
Housing color: Silver
Status LED: Power, signal

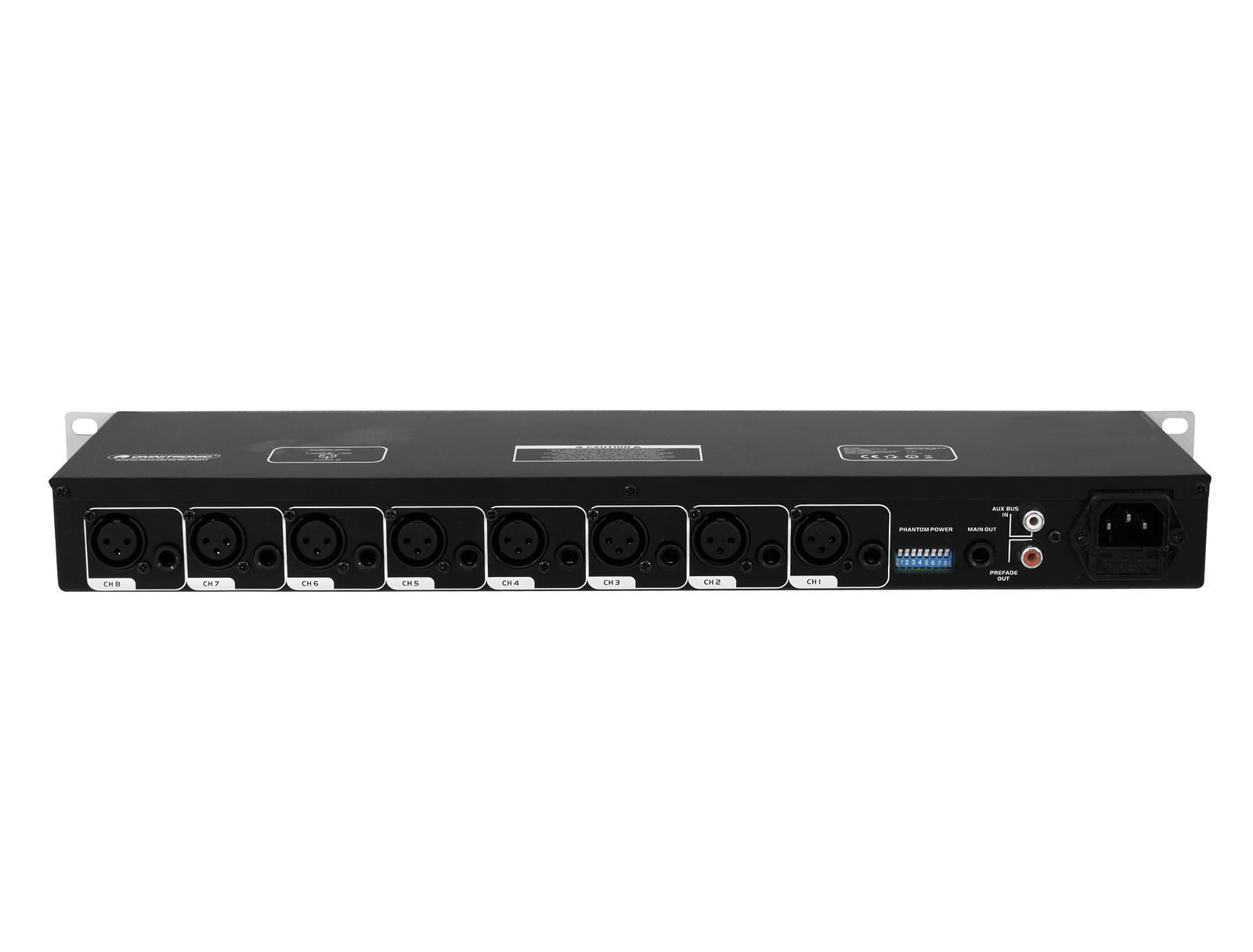

Connections: Input: 8 x Microphone via 3-pin XLR
Input: 8 x line via 6.3 mm jack socket (mono) mounting version
Input: 1 x AUX via RCA (f) mounting version
Output: 1 x line via 6.3 mm jack socket (mono) mounting version
Output: 1 x AUX via RCA (f) mounting version
Chanals: Input chanel: 8 x mono via XLR or jack, channel control via Rotary knob, Tone control EQ
Master output: 1 x mono via Plug 6,3mm/3,5mm (Jack), channel control via Rotary knob
Max. level: Input: Microphone -23 dBV
Input: line +22 dBV
Output: +17 dBV
Housing design: (19") 48.3 cm rack installation 1 U
Dimension: Width: 48.3 cm
Depth: 15.2 cm
Height: 4.45 cm
Weight: 2.30 kg
