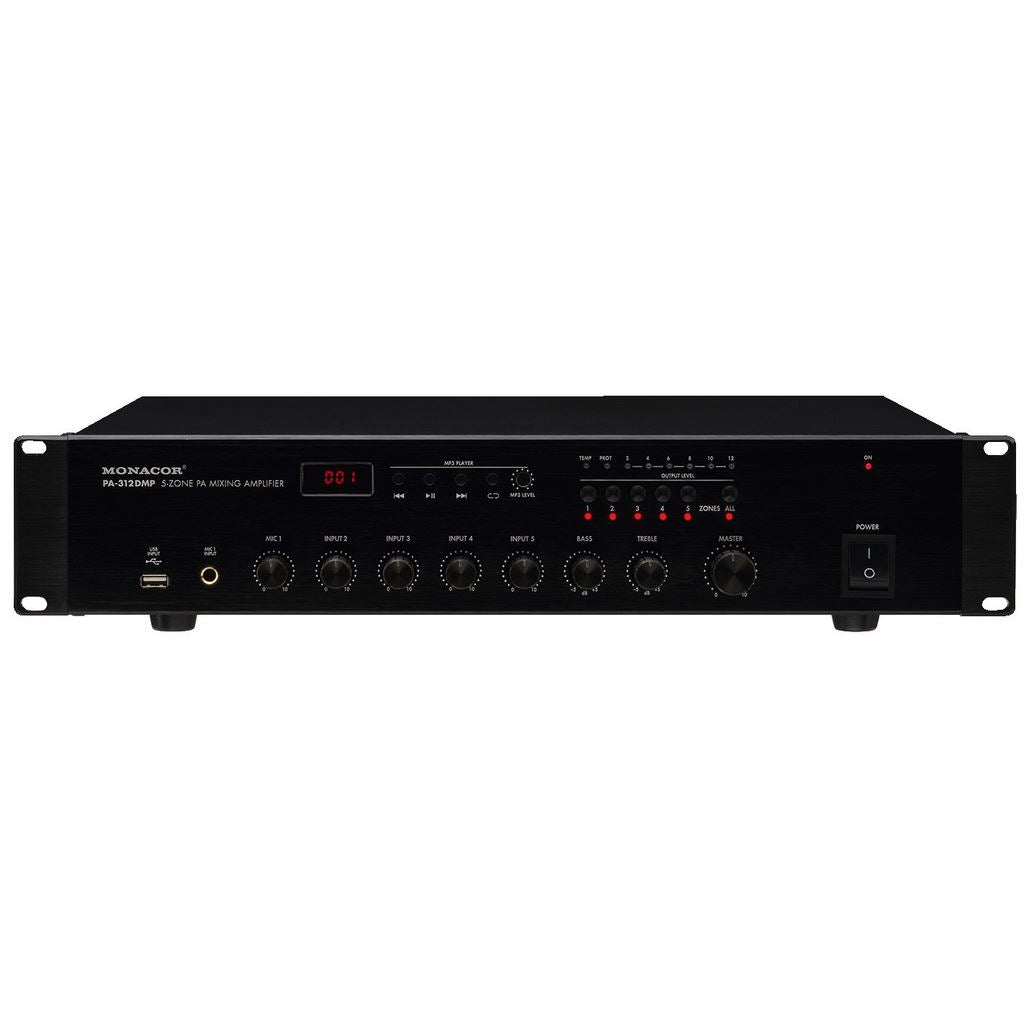

Monacor PA-312DMP PA Mixing Amplifier 100V Sound System USB MP3


The PA-312DMP is a 5-Zone Mixer Amplifier with 4 x Line Inputs, 3 x Microphone Inputs and an Integrated USB player.

Vendor: Monacor
SKU: 139-PA-312DMP
Icon Out of Stock Out Of Stock

The PA-312DMP is a 5-Zone Mixer Amplifier with 4 x Line Inputs, 3 x Microphone Inputs and an Integrated USB Player which plays MP3 tracks from a FAT32 formatted USB stick. The PA-312DMP Has a 100V/70V Output with a Maximum Power Output of 120W, It can also output to a 4-16 Ohm Load of Low Impedance Speakers.

1 x 120 W
Adjustable MP3 player with USB interface, illuminated display, supplied with remote control
Autostart function (after switching on the amplifier, the MP3 player starts with the last played song)
5 zones, can be switched individually
1 unbalanced microphone input
2 balanced microphone inputs, can optionally also be used as line inputs
2 aux inputs
1 emergency input with adjustable automatic talk-over
Speaker outputs via screw terminals
1 line output
Input and output level controls
2-way tone control for the output
48 V phantom power supply for channels 2 and 3, can be activated as required
482 mm (19") rack installation


Output power 120 WRMS, 160 WMAX
Mic input 5 mV/600 Ω (XLR, bal.)
2.5 mV/2 kΩ (6.3 mm jack)
Line input 775 mV/10 kΩ
Aux input 350 mV/10 kΩ
Telephone input 775 mV/10 kΩ (EMC)
Speaker output 4-16 Ω, 70/100 V
Frequency range 50-16,000 Hz
Equalizer bass ±10 dB/100 Hz
Equalizer, treble ±10 dB/10 kHz
S/N ratio 66 dB (mic)
80 dB (aux)
THD < 0.5 %
Power supply 230 V/50 Hz/420 VA
Inputs 1 x 6.3 mm jack (mic 1)
2 x 6.3 mm jack, 2 x XLR (mic 2-3)
2 x RCA L/R (line 2-3)
2 x RCA L/R (aux 1-2)
screw terminals (emergency)
Outputs 2 x RCA L/R (mix out)

482 x 88 x 335 mm

9.5 kg
