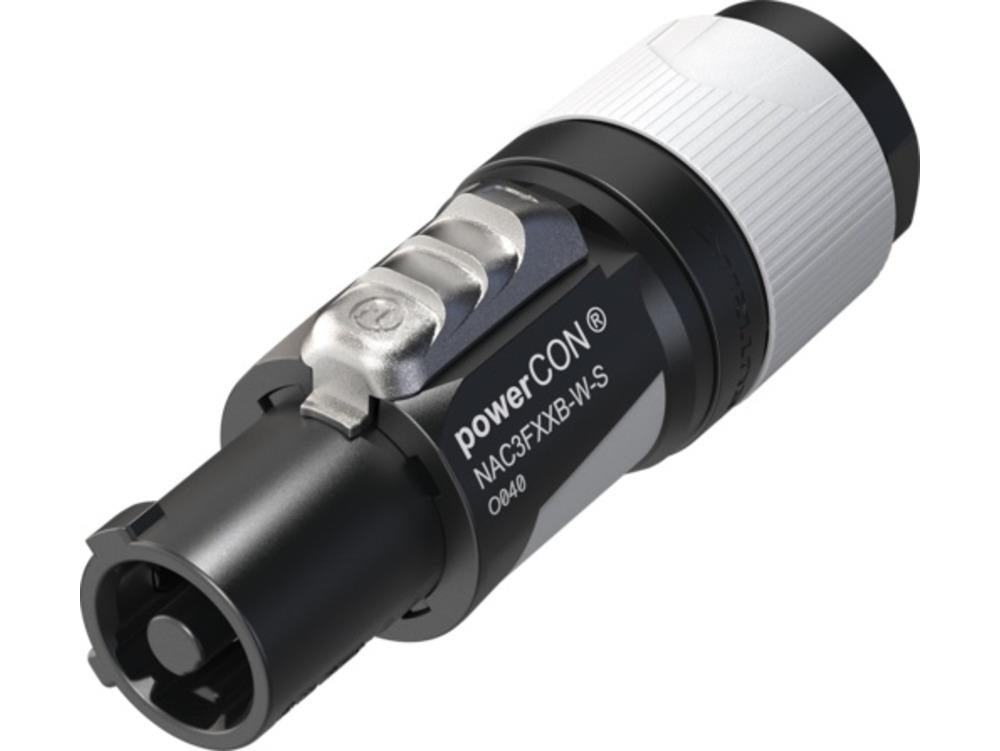

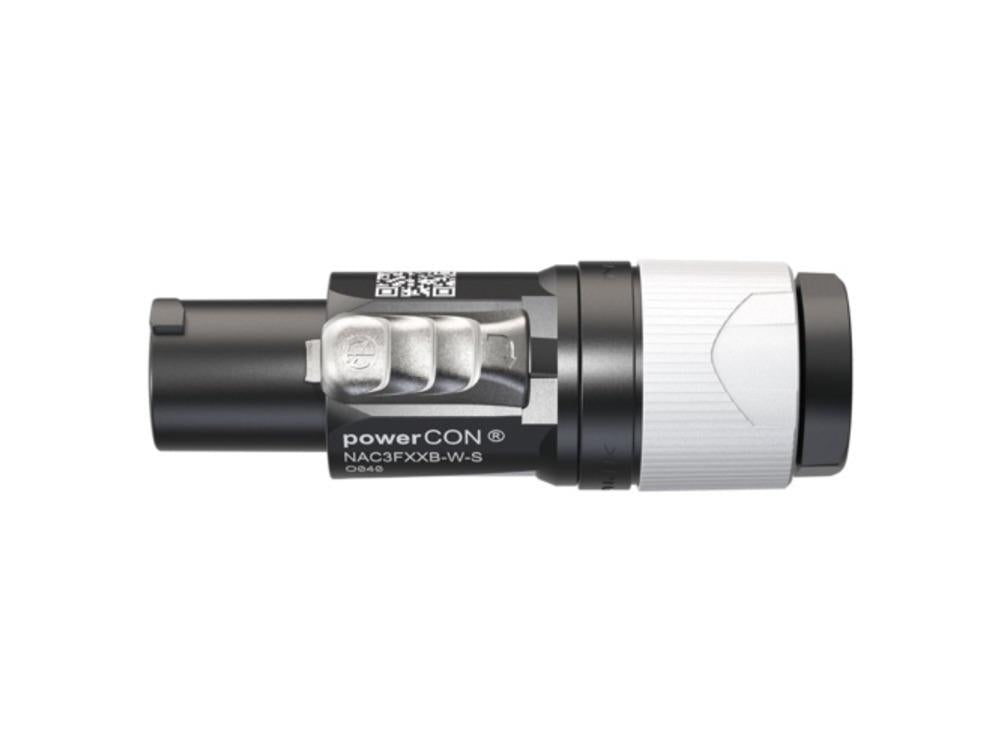

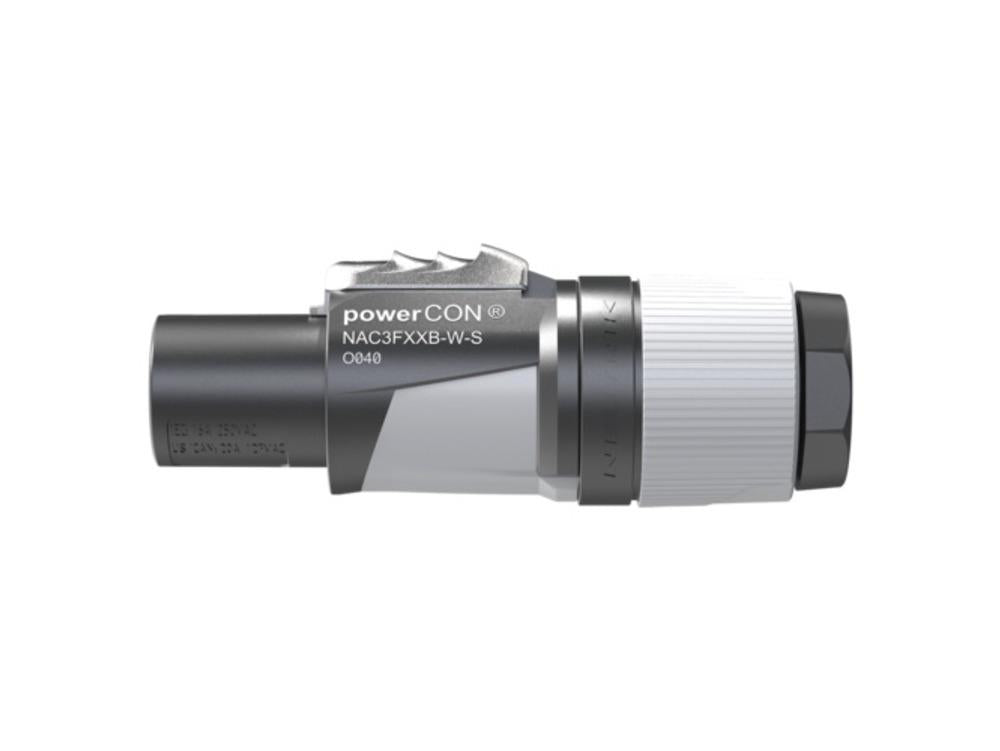

Neutrik powerCON NAC3FXXB-W-S (for cable diameters 6 - 12 mm)

Description

The Neutrik powerCON NAC3FXXB-W-S is a rugged locking AC mains cable connector designed for secure power-out connections. Keyed and colour coded in grey, it helps prevent incorrect mating with power-in versions while providing a reliable twist-lock connection for demanding professional applications.

Part of the powerCON FXXA/FXXB series, this single phase 3-conductor connector offers Circuit Breaking Capability when used with compatible powerCON XX Series receptacles. With screw terminal assembly, robust strain relief, and support for cable diameters from 6 mm to 12 mm, it provides a dependable solution where a tough, lockable mains connector is required.

Features

Locking AC mains cable connector for secure power-out connections
Grey colour coding for power-out identification
Keyed design helps prevent incorrect mating with power-in versions
Single phase 3-conductor connector design
Circuit Breaking Capability when mated with powerCON XX Series receptacles
Suitable replacement for appliance couplers where a rugged locking connection is required
Ergonomic slip-proof two-component moulded housing
Unique Neutrik locking bushing and strain relief
Suitable for cable diameters from 6 mm to 12 mm
Easy twist-lock system for secure connection
Screw terminal assembly for cable termination
Mechanical strain relief alignment for easier assembly
Improved kink protection with two-component bushing
Built to Neutrik’s robust and reliable quality standard

Specifications

Product type: Locking AC mains cable connector
Model: NAC3FXXB-W-S
Series: powerCON FXXA/FXXB
Connector version: Power-out
Colour coding: Grey
Assembly type: Screw terminal
Cable diameter compatibility: 6 mm – 12 mm
Conductors: Single phase, 3 conductor
Keying: Power-out keyed version
Circuit Breaking Capability: Yes, when mated with powerCON XX Series receptacles
Housing: Slip-proof two-component moulded housing
Strain relief: Neutrik locking bushing and strain relief
Kink protection: Two-component bushing
Certifications: IEC EN 60320-1, UL 60320-1, CSA C22.2 No. 60320-1
Suitable component use: Cord sets according to IEC 60799 / UL 817 and equipment according to IEC 62368-1
