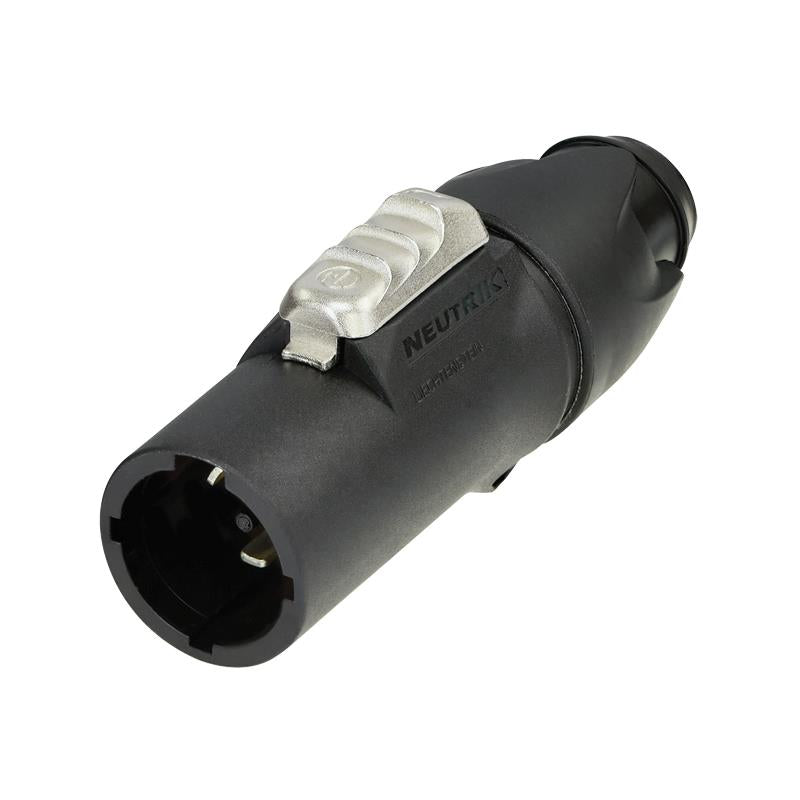

Neutrik PowerCON TRUE1 Cable Connector NAC3MX-W-TOP

Description
The powerCON TRUE1 TOP is a locking 16 A true mains connector for indoor or outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The connector can be connected or disconnected under load or live, ideal for use in the harsh and demanding environment applications of entertainment equipment like PA systems, LED screens or lighting.

Features
Male cable connector
Screw terminals
Heavy duty sealed power connector for harsh and demanding environment
Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover SCNACFPX)
Uses high impact UVresistant materials
True mains connector with breaking capacity (CBC)
Lockable 16 A single phase connector (USA: 20A)
Easy and reliable twist lock system
Extremely robust and reliable
Unique Neutrik cable retention
ENEC certified according to IEC 60320

Specifications
Wire size: 2.5 mm
Number of electronical contacts: 2+PE
Rated current per contact: 16A rms (USA: 20 A)
Rated voltage: 250 V ac
