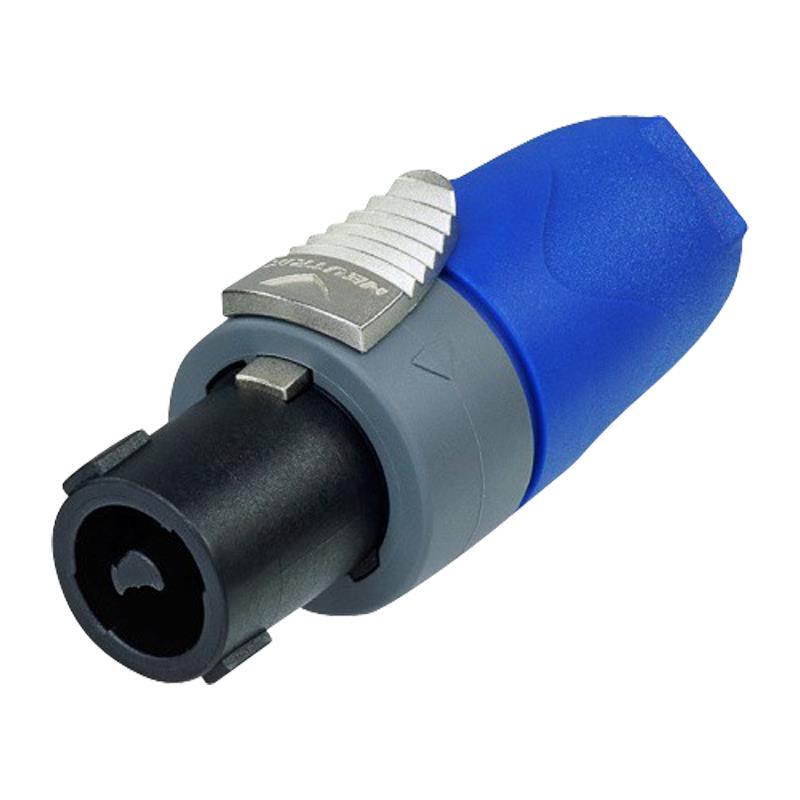

Neutrik SpeakON Cable Connector NL2FX

Description
2 pole cable connector, quick lock, integrated chuck type strain relief for cables 6 - 10mm diameter, intermates with 4-pole chassis connector and makes contact with +1/-1. Industry-standard connectors designed to operate in high current, inductive load environment of loudspeaker/amplifier connections. The cable connectors feature the traditional Neutrik chuck type cable clamp, a unique locking principle and touch proof contacts.

Features
Current rating 30 A rms continuous
Reliable and robust
easy and fast to assemble
Contacts are touch proof and meet all safety requirements (IEC
UL
CSA)
Accurate and dependable twist lock latching system ''Quick Lock''
High impact material for insert and housing
longlasting and dependable
Chuck type strain relief system for secure clamping of cable

Specifications
Rated current per contact: 30 A rms continuous
Rated current per contact: 40 A audiosignal
duty cycle 50 %
Rated voltage: 250 V (Insulation)
Cable O.D. 610mm
Wire size: 4mm
