NUX B-6 Pro Saxophone Wireless Set Radio Mic System

Description

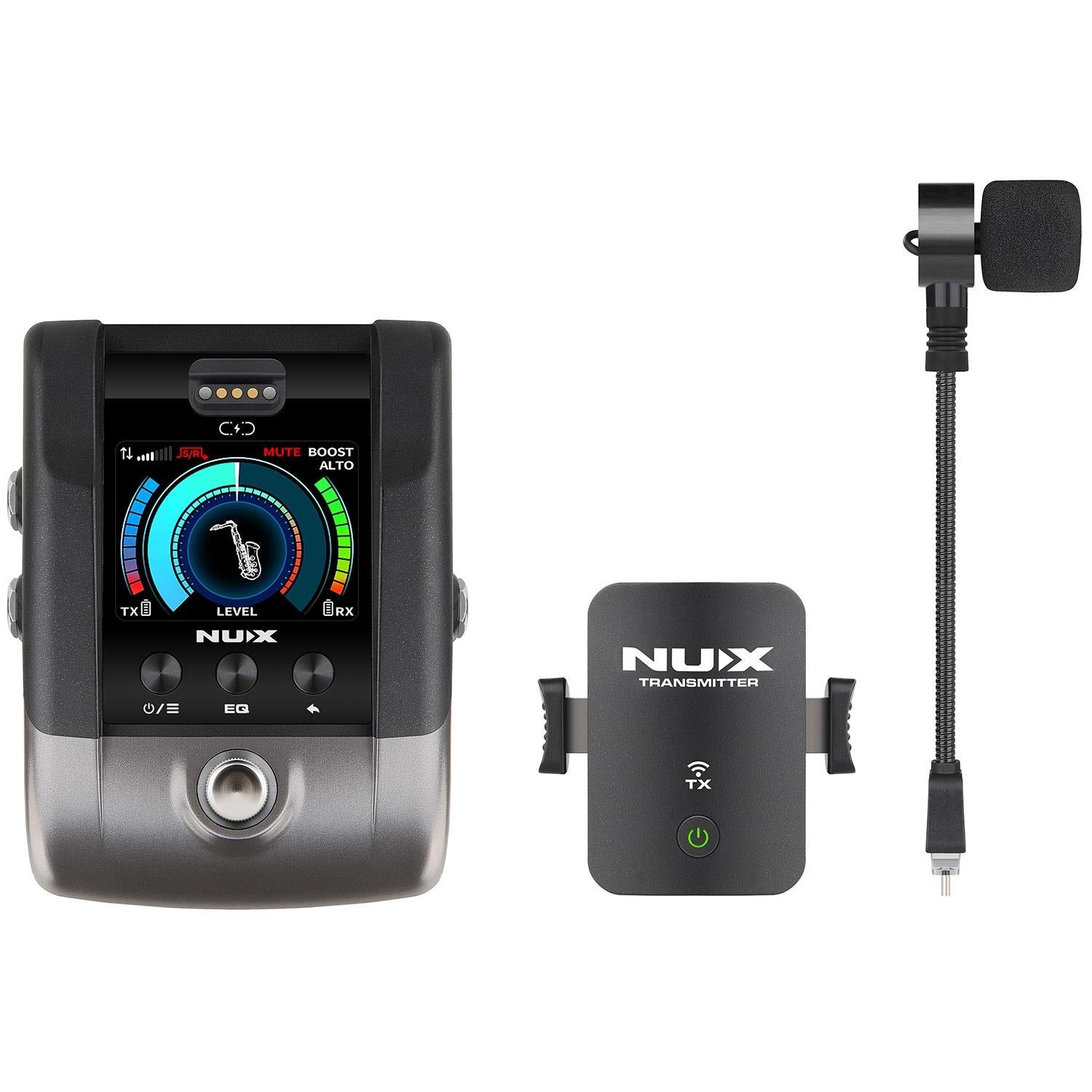

The B-6 Pro Saxophone Wireless Set is a professional digital wireless system designed specifically for saxophone and trumpet players requiring reliable wireless performance, flexible tonal control, and advanced stage functionality. Operating on the license-free 2.4GHz frequency band, the system combines a compact rechargeable clip-on transmitter with a multifunction floor receiver that also serves as a tuner, DI box, charging station, and effects control hub.

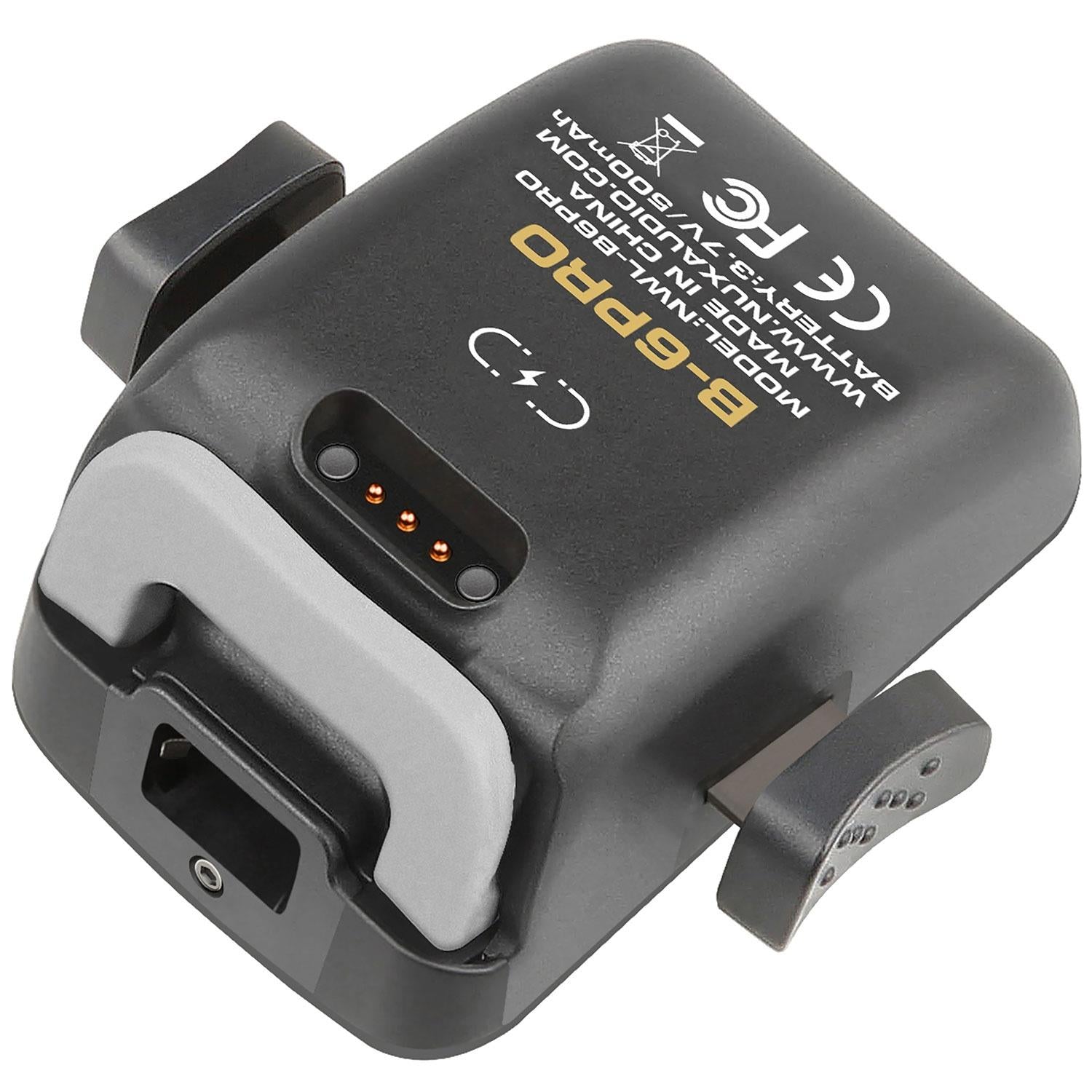

The lightweight transmitter features a precision adjustable clamp for secure attachment to saxophones and trumpets, while the flexible gooseneck microphone allows accurate positioning for optimal sound capture. The custom electret condenser capsule is mounted within a specially designed suspension system to minimise key noise and unwanted mechanical resonance during performance.

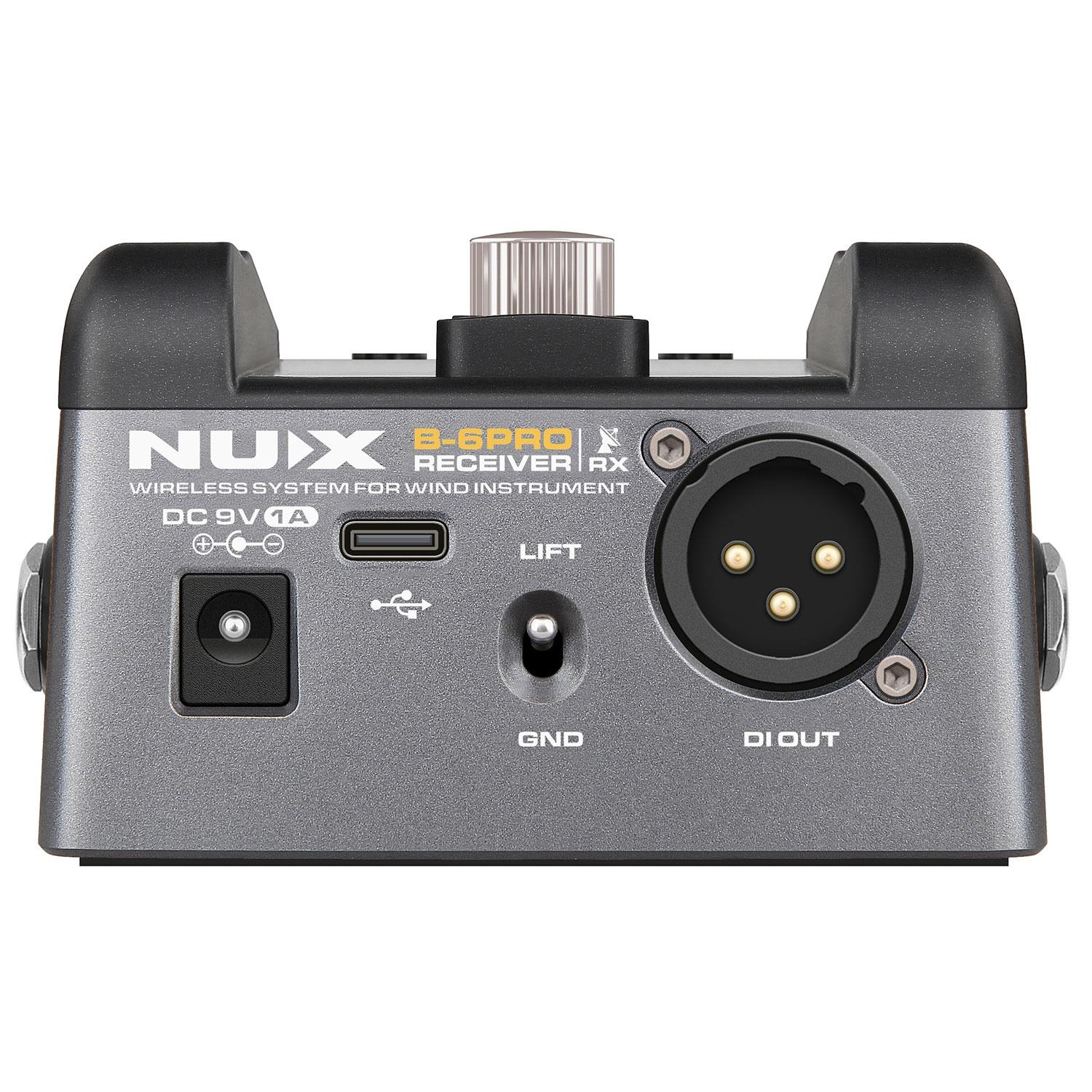

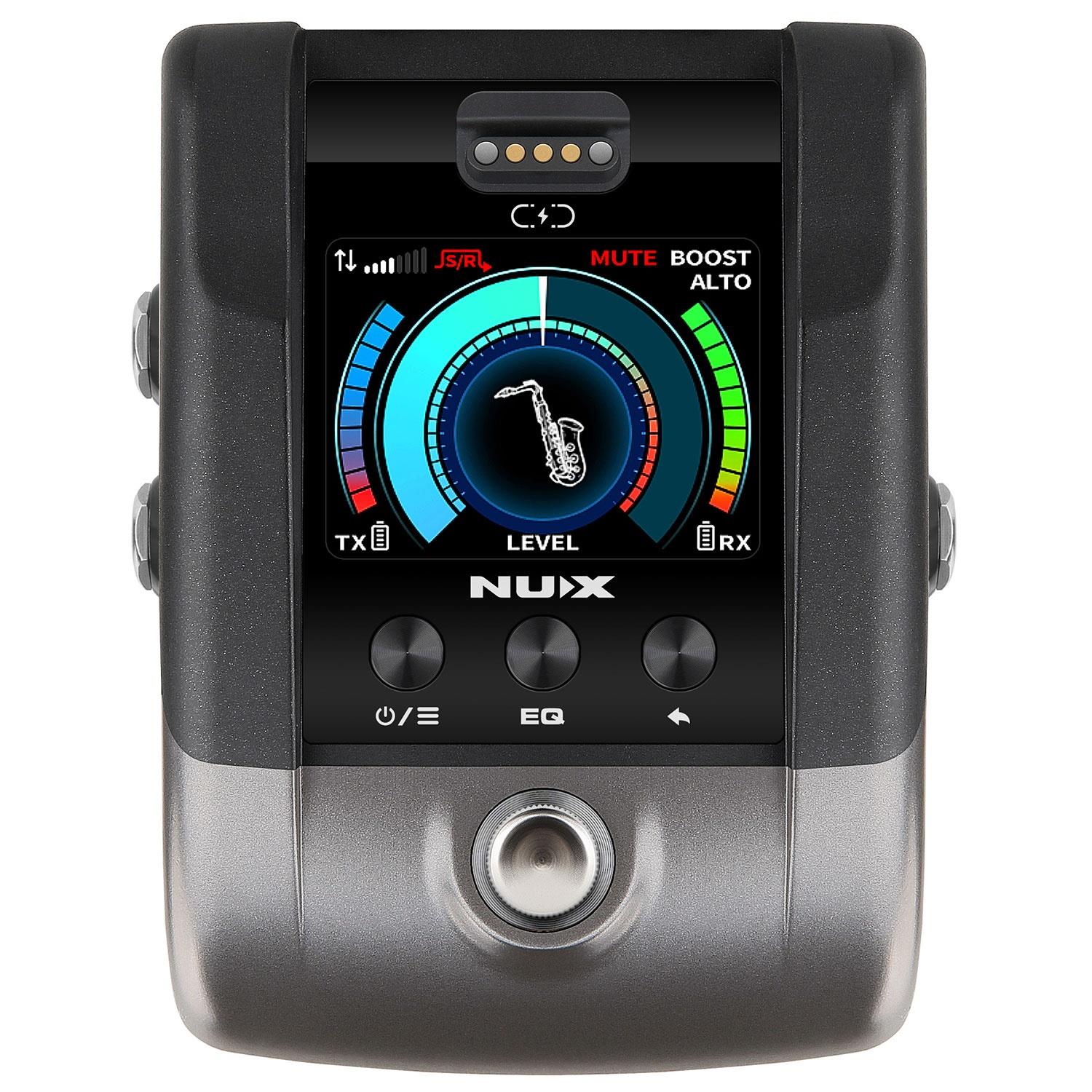

The stomp-style receiver provides extensive performance tools including selectable EQ presets, user-programmable EQ slots, signal boost functionality, tuner operation, effects loop integration, and balanced XLR output connectivity. With ultra-low latency transmission, frequency hopping technology, rechargeable operation, and professional audio quality, the B-6 Pro is ideal for live performance, touring musicians, stage productions, and professional brass and woodwind applications.

Features

Professional wireless system for saxophone and trumpet
2.4GHz digital wireless transmission
License-free operation with automatic pairing
Frequency hopping technology for stable wireless connection
Rechargeable transmitter and receiver
Precision adjustable bell clamp for saxophone and trumpet
Flexible locking gooseneck microphone
Custom suspended electret condenser microphone capsule
Designed to minimise key noise and unwanted resonance
Ultra-low selectable latency modes
11 preset EQ profiles
2 user-editable EQ presets
Integrated digital tuner
Switchable solo boost function
Send-return loop for external effects
Balanced XLR output and 6.3mm jack outputs
USB-C connection for firmware updates and PC audio streaming
Footswitch with configurable functions
Receiver also functions as charging station and DI box
Colour display menu system

Specifications

Product name : B-6 Pro Saxophone Wireless Set
Product type : Wireless instrument microphone system
Instrument compatibility : Saxophone, trumpet
Wireless frequency range : 2400 – 2483.5MHz
RF output power : Max. 10mW E.I.R.P.
Wireless range : Up to 50m
Transmission type : Digital 2.4GHz
Latency : 3.6ms / 6.1ms / 9.9ms selectable
Sampling format : 48kHz / 24-bit
Frequency response : 20Hz – 20kHz
THD + N : <0.01%
Dynamic range : 112dBA
Microphone type : Electret condenser
Polar pattern : Cardioid
Microphone sensitivity : -51dB
EQ presets : 11 factory presets + 2 user presets
Outputs : Balanced XLR, 6.3mm jack
Additional functions : Tuner, boost, send-return loop, DI functionality
USB connection : USB-C
Power supply : 9V DC 1A pin-negative adaptor included
Battery type : Rechargeable lithium
Battery capacity transmitter : 3.7V 500mAh
Battery capacity receiver : 3.7V 3000mAh
Battery life transmitter : Approx. 7 hours
Battery life receiver : Approx. 11 hours
Auto power off : After 10 minutes without wireless connection
Dimensions transmitter : 61 x 60 x 30mm
Weight transmitter : 60g
Dimensions receiver : 120 x 93 x 60mm
Weight receiver : 420g
