OMNITRONIC ODX-208TMB Installation Speaker 100V black

Description

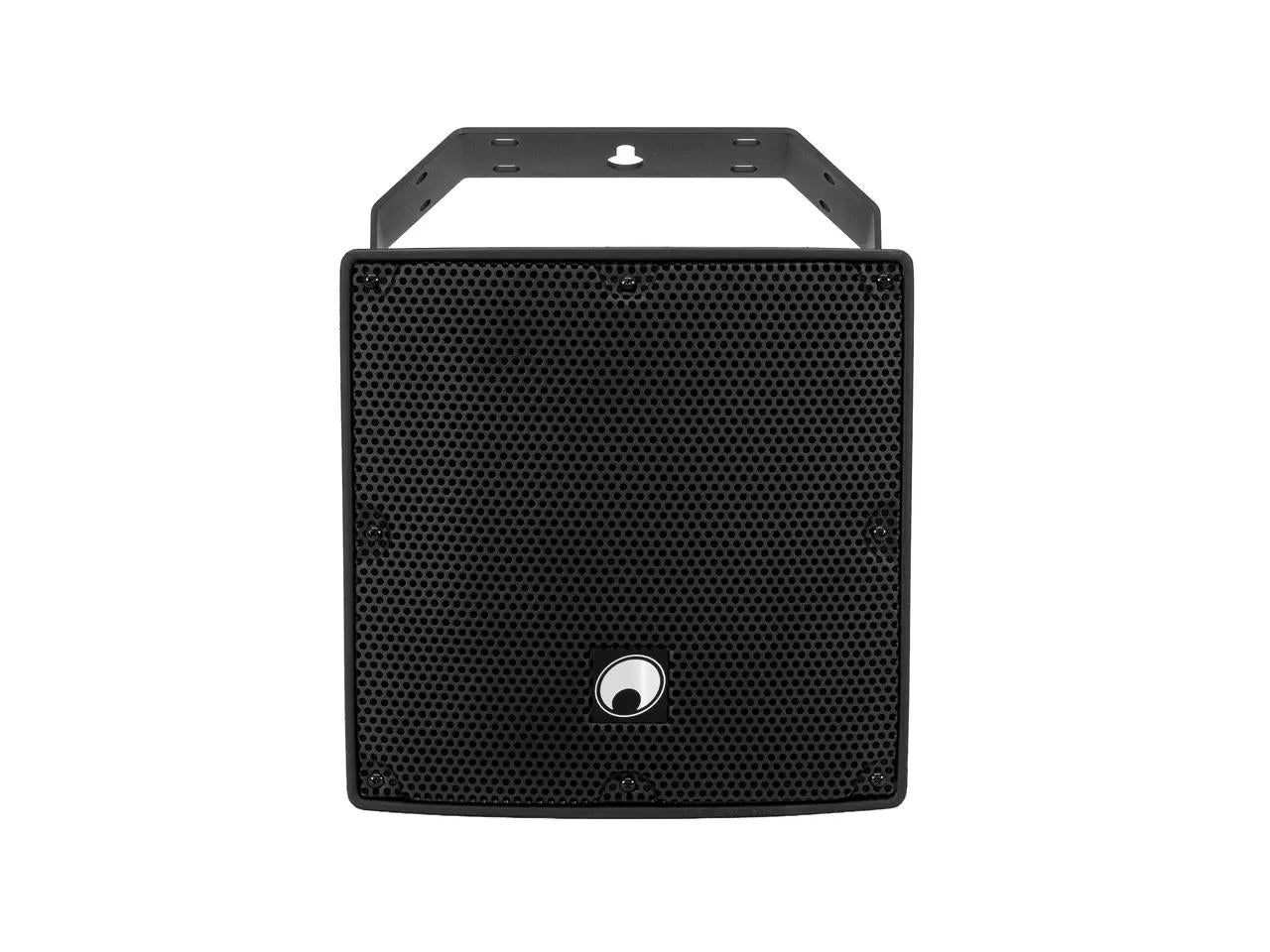

This weatherproof 8-inch wall speaker is designed for reliable outdoor and indoor installation, delivering clear and well-balanced sound across a wide frequency range. With a robust IP56-rated enclosure, it is suitable for use in challenging environments such as sports facilities, public venues, and outdoor areas. The 2-way coaxial design combines a powerful woofer with a dome tweeter to provide strong low-end response and detailed high frequencies, making it ideal for both music and speech applications.

Features

8-inch 2-way coaxial speaker for full-range audio performance
150 W RMS power handling with up to 300 W program power
IP56-rated weatherproof construction for outdoor use

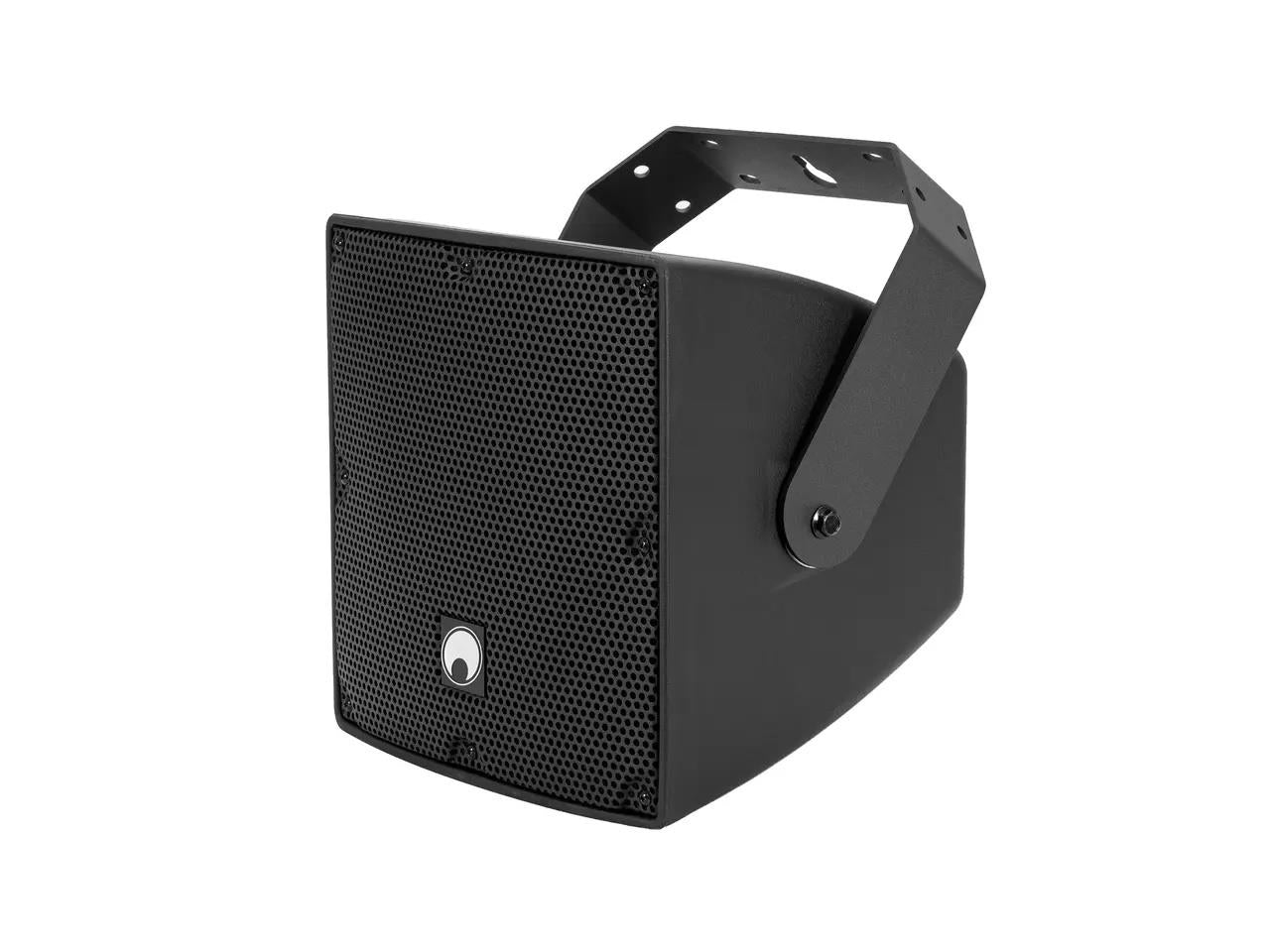

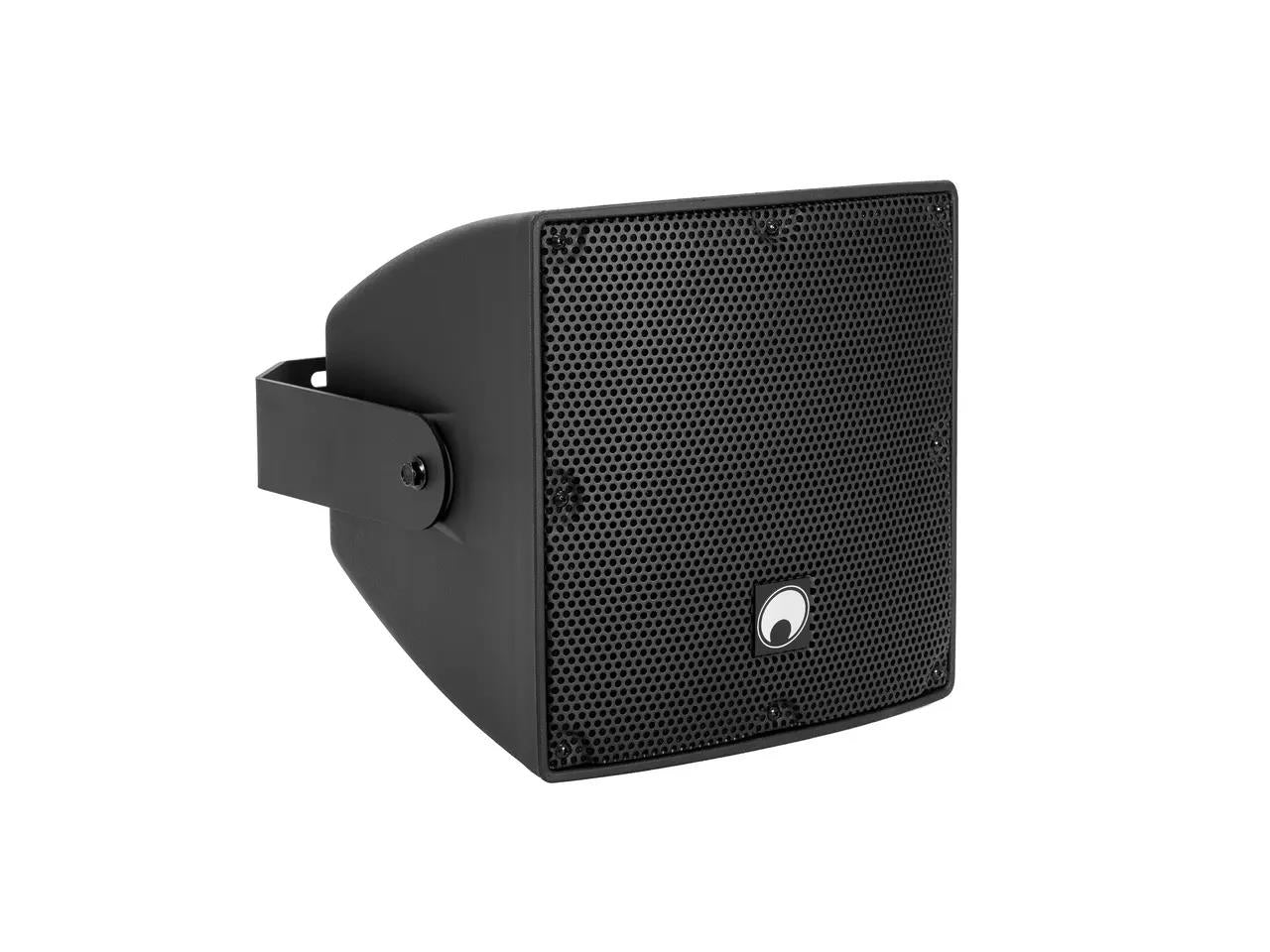

Integrated mounting bracket for easy installation
Wide 90° x 90° dispersion for even sound coverage
Selectable power taps for 100V line systems
8 ohm operation option for low-impedance systems
Aluminium grille with acoustic foam for protection and sound clarity
Screw terminals for secure connection and parallel wiring
Well-balanced sound suitable for music and speech

Specifications

Power handling: 150 W RMS, 300 W program
Frequency response: 80 Hz – 18 kHz
Sensitivity: 96 dB (1W/1m)
Maximum SPL: 118 dB
Dispersion: 90° x 90°
Impedance: 8 ohms or 100V line
Power taps (100V): 37.5 W, 75 W, 150 W selectable
Crossover frequency: 2300 Hz

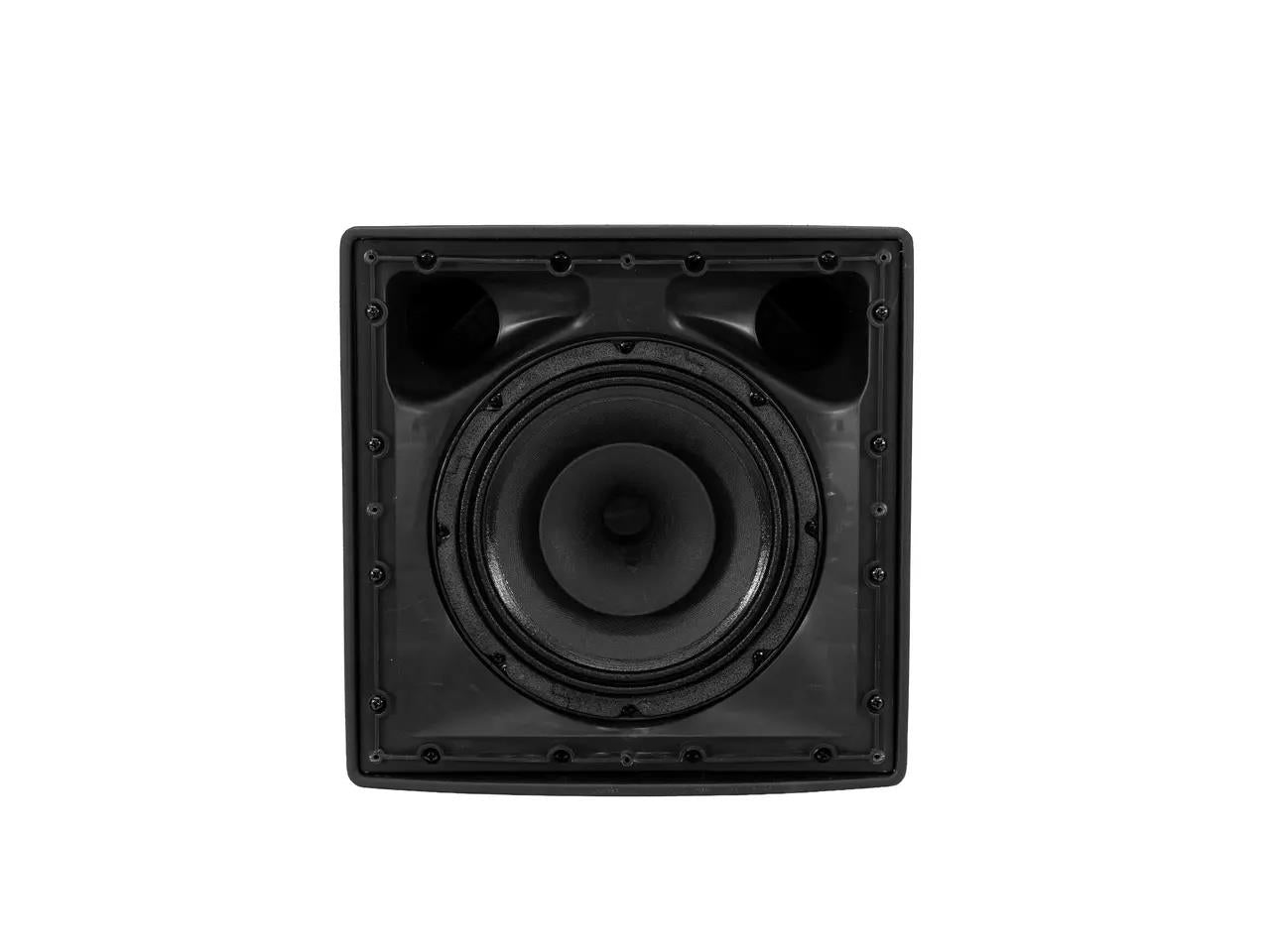

Driver configuration: 8" woofer with 2" voice coil and 1" compression tweeter with 1.4" voice coil

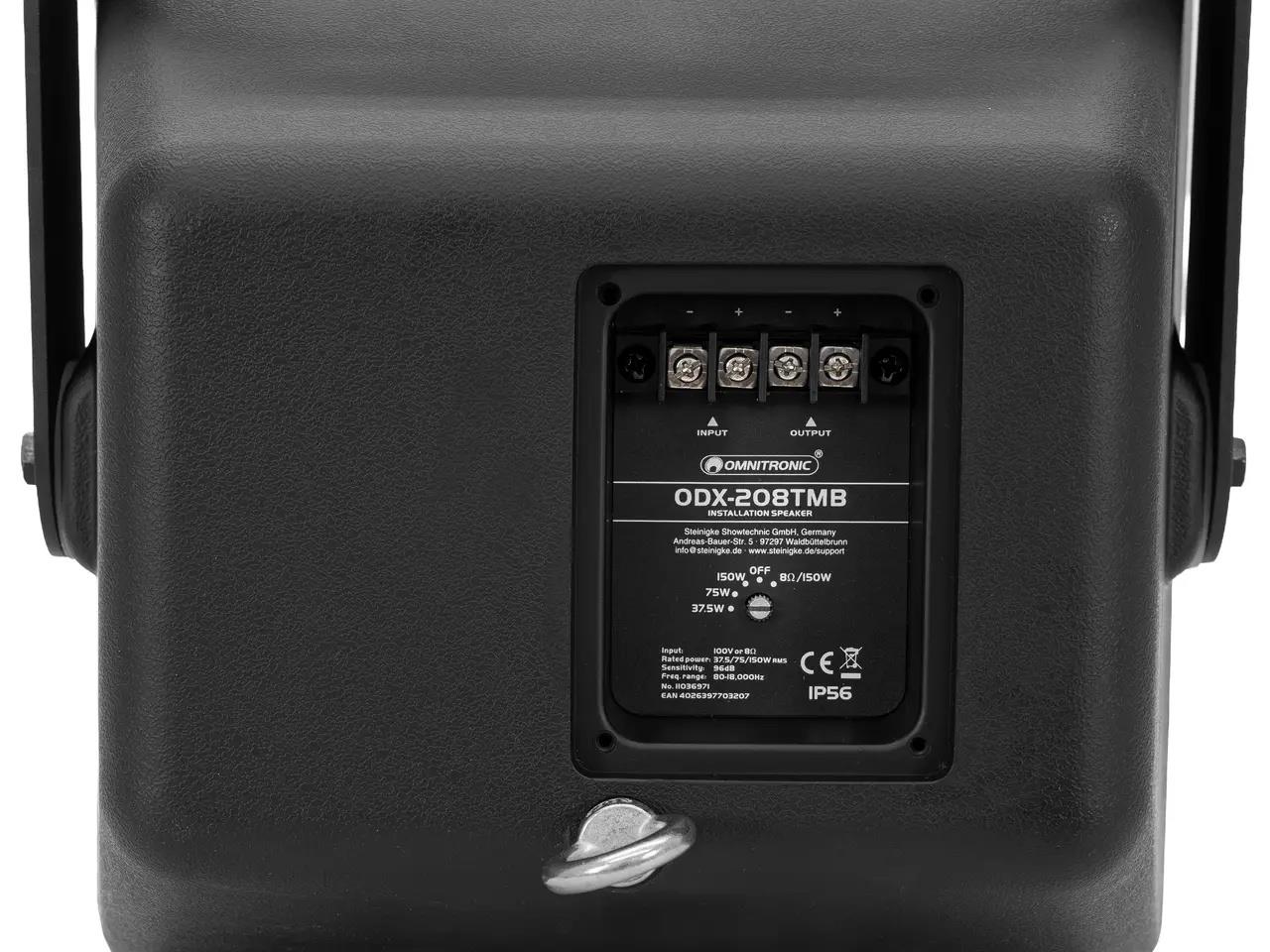

Connection: Screw terminal input
Enclosure: Wall/ceiling mountable with bracket
Material: Aluminium basket, paper cone
Colour: Black
Dimensions (W x D x H): 300 x 280 x 300 mm
Weight: 10.60 kg
