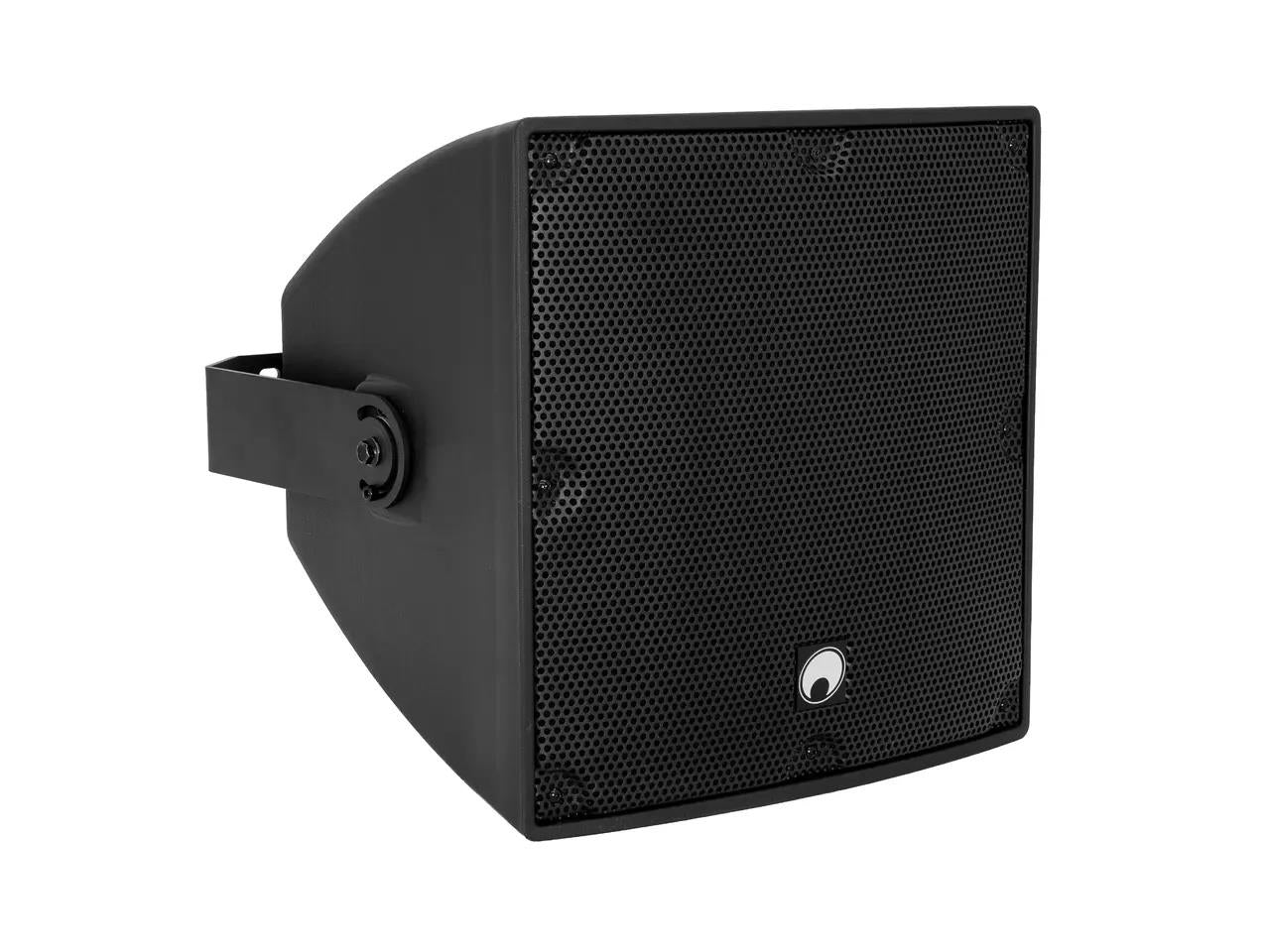

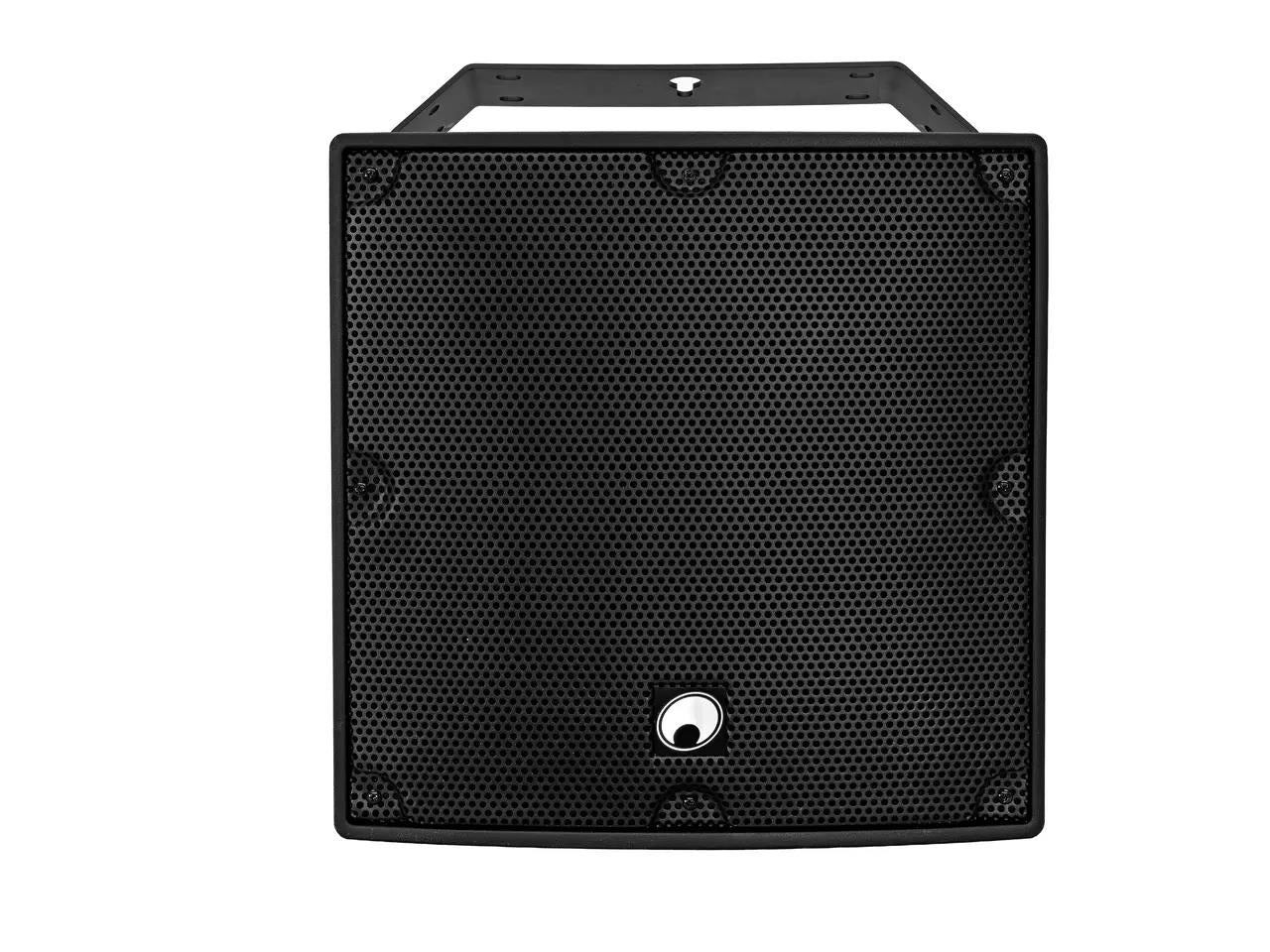

OMNITRONIC ODX-212TMB Installation Coxial 12" Speaker 100V black IP65 600W

Description

This weatherproof 12-inch wall speaker is designed for high-performance audio in both indoor and outdoor installations. With a robust IP56-rated enclosure, it delivers powerful and reliable sound in demanding environments such as sports facilities, multi-purpose halls, and commercial venues. The 2-way coaxial design combines a large woofer with a high-frequency tweeter to produce deep bass, clear mids, and detailed highs, making it suitable for both music playback and speech applications.

Features

12-inch 2-way coaxial speaker for full-range audio performance
300 W RMS power handling with up to 600 W program power
IP56-rated weatherproof construction for outdoor installations

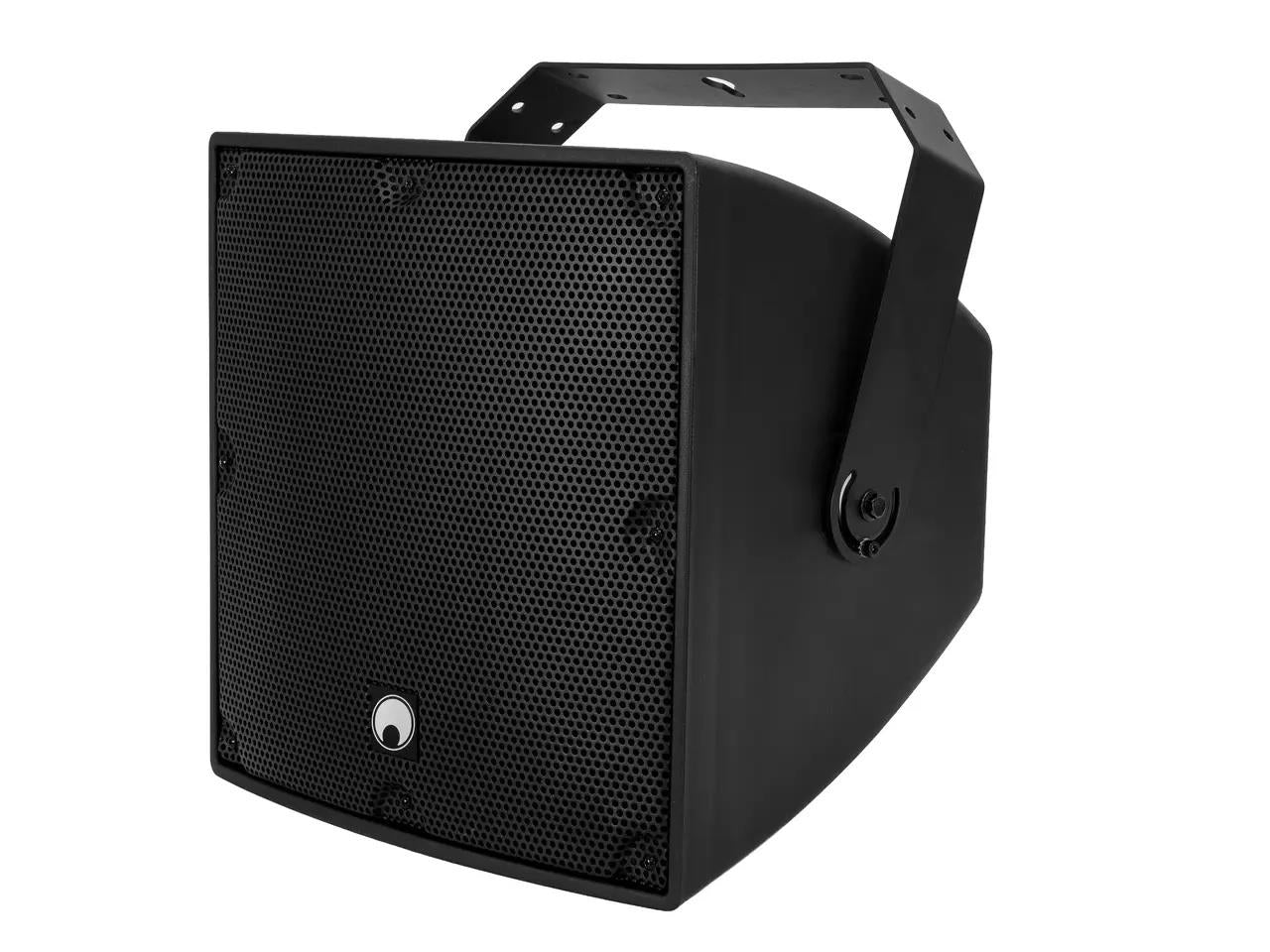

Integrated mounting bracket for secure wall or ceiling mounting
Wide 80° x 80° dispersion for even sound coverage
Selectable power taps for 100V line systems
8 ohm operation option for low-impedance systems
Aluminium grille with acoustic foam for protection and sound clarity
Screw terminals for secure connection and parallel wiring
Well-balanced sound suitable for music and speech

Specifications

Power handling: 300 W RMS, 600 W program
Frequency response: 55 Hz – 18 kHz
Sensitivity: 98 dB (1W/1m)
Maximum SPL: 123 dB
Dispersion: 80° x 80°
Impedance: 8 ohms or 100V line

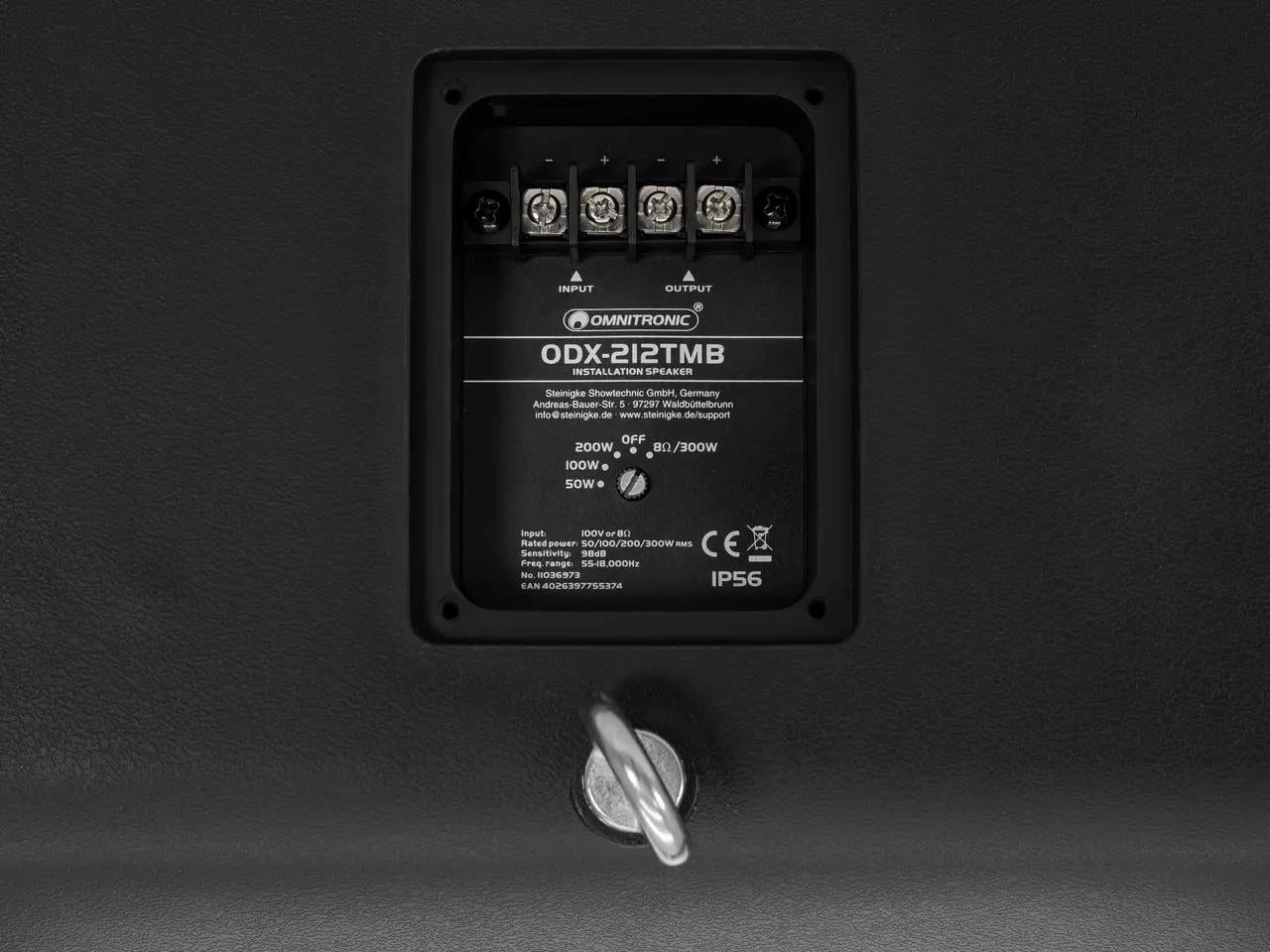

Power taps (100V): 50 W, 100 W, 200 W selectable
Crossover frequency: 2000 Hz

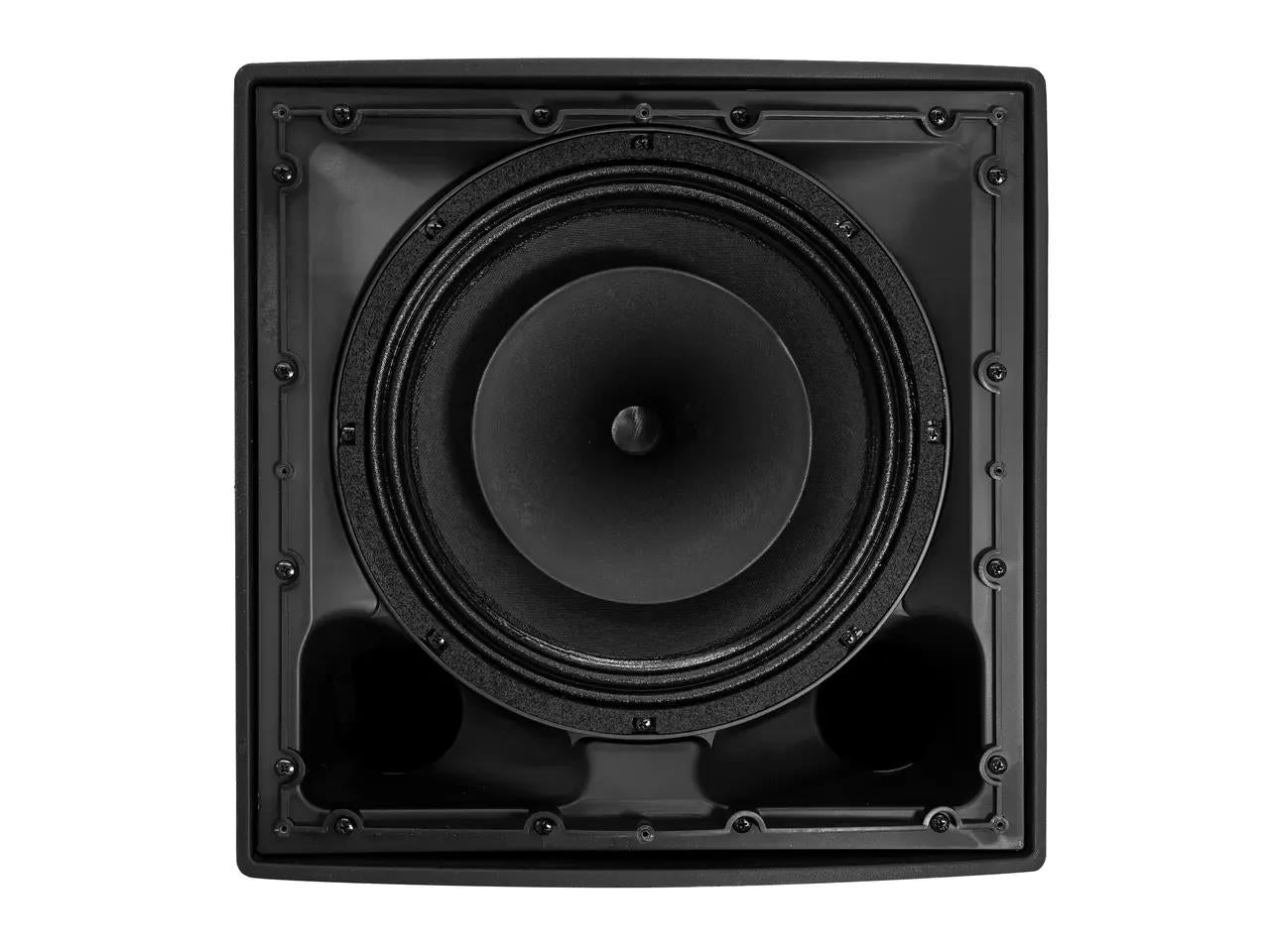

Driver configuration: 12" woofer with 3" voice coil and 1" compression tweeter with 1.7" voice coil
Connection: Screw terminal input
Enclosure: Wall/ceiling mountable with bracket
Material: Plastic enclosure with aluminium grille
Colour: Black
Dimensions (W x D x H): 400 x 380 x 410 mm
Weight: 19.95 kg
