Omnitronic Pas Mk3 Band Set

Description

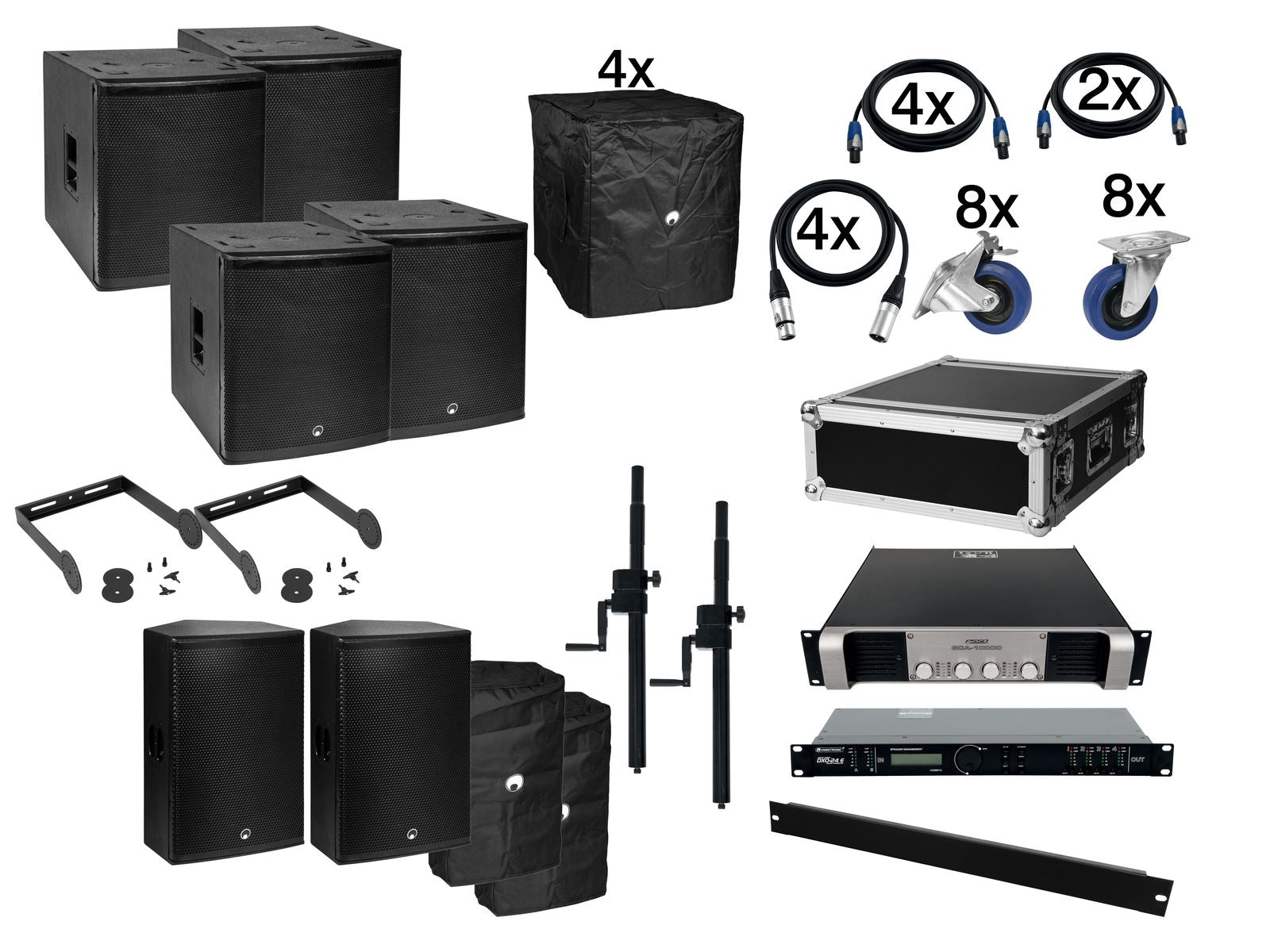

4x subwoofer, 2x 2-way top, power amp, flightcase, controller, 10x connection cables and accessories

11039482 OMNITRONIC PAS-215 MK3 2-Way Top

Passive speaker with 15" woofer, 1" driver and 400 W RMS

• Rugged full-range top speaker, qualified for suspension
• Trapezoidal, multi-functional multiplex cabinet with scratch-resistant lacquer surface
• 2-way bass-reflex system with 38 cm woofer (8 cm voice coil)
• 2.5 cm compression driver with ferrite magnet (3.8 cm voice coil with polymer diaphragm)
• Parallel Speaker connections
• Optimized for combination with PAS subwoofers
• Dual flange with 0? and 5? tilt angle enables flexible positioning
• M8 threaded inserts for suspended installation
• Protective grille and recessed aluminum handlebars
• Applications: standing, on a subwoofer or speaker stand, suspended

11039490 OMNITRONIC PAS-181 MK3 Subwoofer

Passive 18" bassreflex subwoofer with 900 W RMS, 8 ohms

• Rugged Pro PA subwoofer
• 45 cm (18") bass speaker
• Parallel Speaker connectors
• Rugged multiplex cabinet
• Scratch-resistant lacquer surface
• Metal handlebars
• Impact-resistant steel grille with acoustic foam
• Flange for mounting top speakers
• Transport aid: Wheels optional

60004559 OMNITRONIC Distance Tube Subwoofer/Satellite with Crank

Variable distance tube (M20 thread), height adjustable via crank 80-110 cm

• Connecting tube for satellite systems
• Height adjustable via crank 80-110 cm
• M20 thread
• Powder-coated steel version
• Color: black

10451697 PSSO QCA-10000 4-Channel SMPS Amplifier

PA amplifier with SMPS, 4 x 2150 W / 2 ohms, 4 x 2100 W / 4 ohms

• 4-channel PA amplifier with class I circuitry
• 4 x 2100 W/4 ohms
• Low weight and height due to integrated switch mode power supply
• Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, international concerts)
• Speaker switch-on delay
• 3 operating modes can be selected (stereo, parallel or bridged)
• 4 level controls for precise level adjustment
• Input sensitivity adjustable
• LED VU meter and LEDs for activated protective circuit (protect), overload (clip), and signal per channel
• Complete protection set against short-circuit, overheat, clipping, overload, DC voltage and VHF signals
• Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
• Speaker outputs via lockable Speaker plugs
• Rugged steel chassis with aluminum front panel
• Rack installation with 2 units
• Neutrik Speakon outputs
• Air flow from front to rear
• The device is cooled by 2x temperature-controlled fan
• (19") 48.3 cm rack installation 2 U

30109784 ROADINGER Amplifier Rack PR-2, 4U, 47cm deep

Flightcase for 483 mm units (19")

• Profile rails with 4 U mounting facility for 483 mm units (19"), e.g. PA amplifiers, power packs, additional equipment
• Front and rear rack rails
• 2 removable covers (double-door version)
• Max. depth 420 mm (plus 90 mm per cover)
• High-quality workmanship with plywood multilayered glued, black laminated
• Aluminum profile frames (30 mm) with rounded edges
• Three-leg, medium-sized steel ball corners
• 4 high-quality butterfly locks (w/o locking function)
• 2 wooden slide rails on the bottom
• 2 chrome case handles
• Delivery includes mounting screws
• Available in different height units (1 U = 44 mm)
• 4 U

10356321 OMNITRONIC DXO-24E Digital Controller

Digital stereo active crossover with 2 inputs and 4 outputs, incl. software

• Flexible routing configurations for all standard mono and stereo output operating modes
• 2 analog inputs and 4 analog outputs (XLR)
• Active frequency filter types (Bessel, Butterworth and Linkwitz-Riley) with slopes up to 24 dB/octave split up the audio signal into different frequency bands
• Incl. software editor (for PC and Mac) for remote control via computer through USB interface: store, transfer, and manage your presets
• Up to 30 user presets storable in the device via software
• Alphanumeric LCD screen with 2 lines of 16 characters each
• Input sensitivity digitally adjustable
• Inputs and outputs with 4-digit LED level meter as well as clip and limit LED indicator
• Mute switch with LED indicator per output
• 7-band parametric EQ per output
• Up to 7 ms signal delay adjustable for the outputs
• Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
• Switchable phase
• Lock function for protecting the program settings
• Windows XP, Vista, 7, 10 and Mac OS X 10.5.8 and better
• Digital signal processor
• The device can be connected via USB to the PC in connection with DXO Software
  The firmware can be updated via the PC connection
• (19") 48.3 cm rack installation 1 U

30100150 OMNITRONIC Front Panel Z-19U-shaped, steel,black 1U

U-front panel in different sizes

• 1 mm steel, black, powder-coated
• Weight 465-1350 g (depending on the version)
• 1 U

3000400D ROADINGER Swivel Castor RD-100 100mm blue

Swivel castor

• Housing made of steel, zinc-plated
• Blue elastic tyre ? 100 mm, hub width 40 mm
• Hole pattern 80 x 60 mm, clear span 42 mm
• Carrying capacity: 200 kg per set (4 castors)

3000400C ROADINGER Swivel Castor RD-100B 100mm blue with brake

Lockable swivel castor

• Double-action brake (wheel and swivel)
• Housing made of steel, zinc-plated
• Blue elastic tyre ? 100 mm, hub width 40 mm
• Hole pattern 80 x 60 mm, clear span 42 mm
• Carrying capacity: 200 kg per set (4 castors)

30227840 PSSO XLR cable 3pin 1m bk Neutrik

Dependable microphone cable

• High quality connection for microphones etc.
• High conductivity
• Slim and short construction
• Made in Germany

3022790K PSSO Speaker cable Speakon 2x2.5 1.5m bk

High-quality speaker cable

• With Neutrik plugs from Liechtenstein
• Cable from German production
• 2 pole speaker cable
• With Neutrik Speakon cable plugs
• Cable cross-section: 2.5 mm?
• Cable length 1.5 m
• Cable diameter 8 mm
• Weight 0.2 kg

30227912 PSSO Speaker cable Speakon 2x2.5 10m bk

High-quality speaker cable

• With Neutrik plugs from Liechtenstein
• Cable from German production
• 2 pole speaker cable
• With Neutrik Speakon cable plugs
• Cable cross-section: 2.5 mm?
• Cable length: 10 m
• Cable diameter: 8 mm
• Weight: 1 kg

11039534 OMNITRONIC PAS-215 MK3 Cover

15" protective cover

• Suitable for PAS-215 MK3
• Durable black Oxford nylon fabric

11039537 OMNITRONIC PAS-181 MK3 Cover

18" protective cover

• Suitable for PAS-181 MK3
• Durable black Oxford nylon fabric
