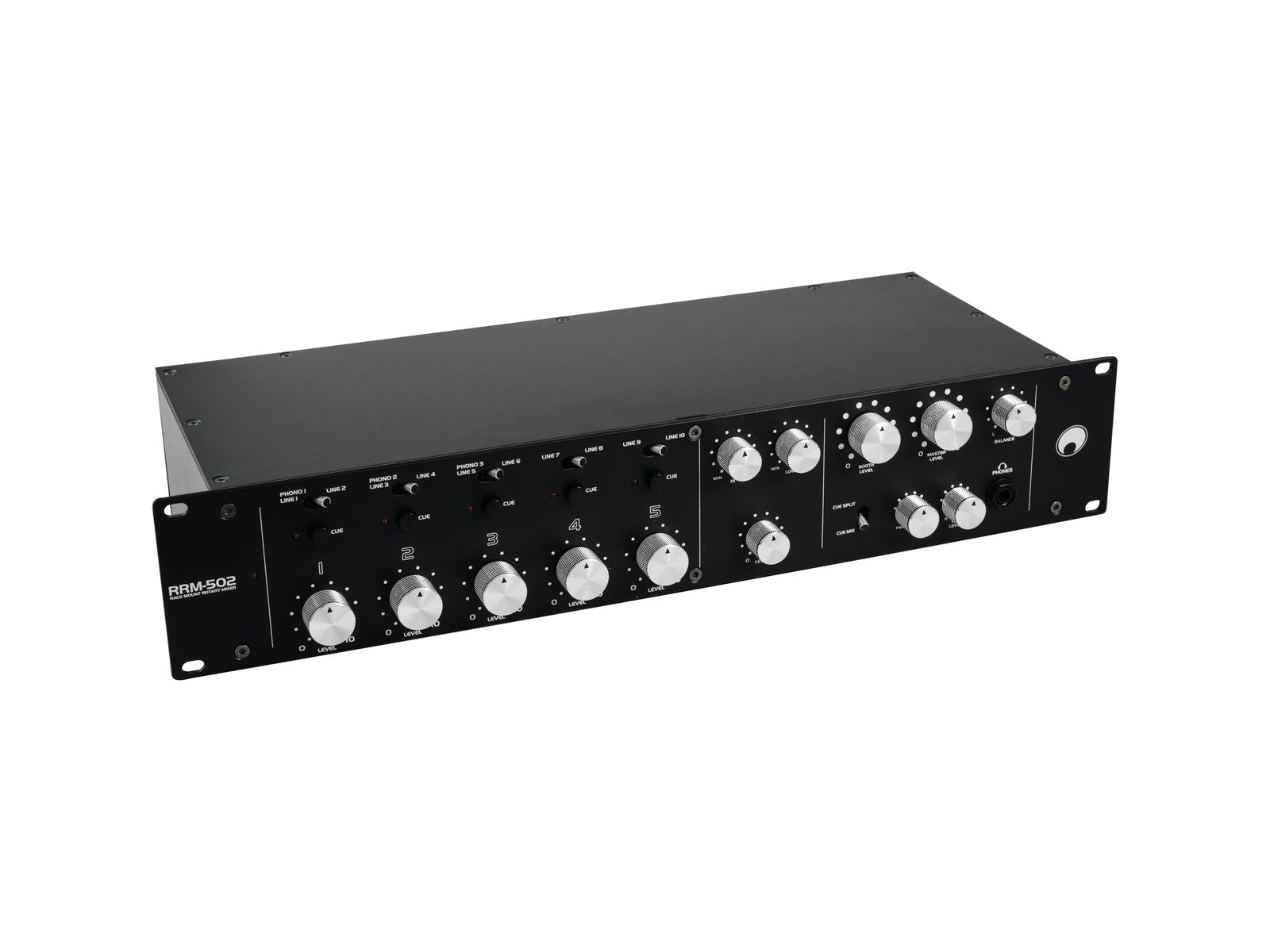

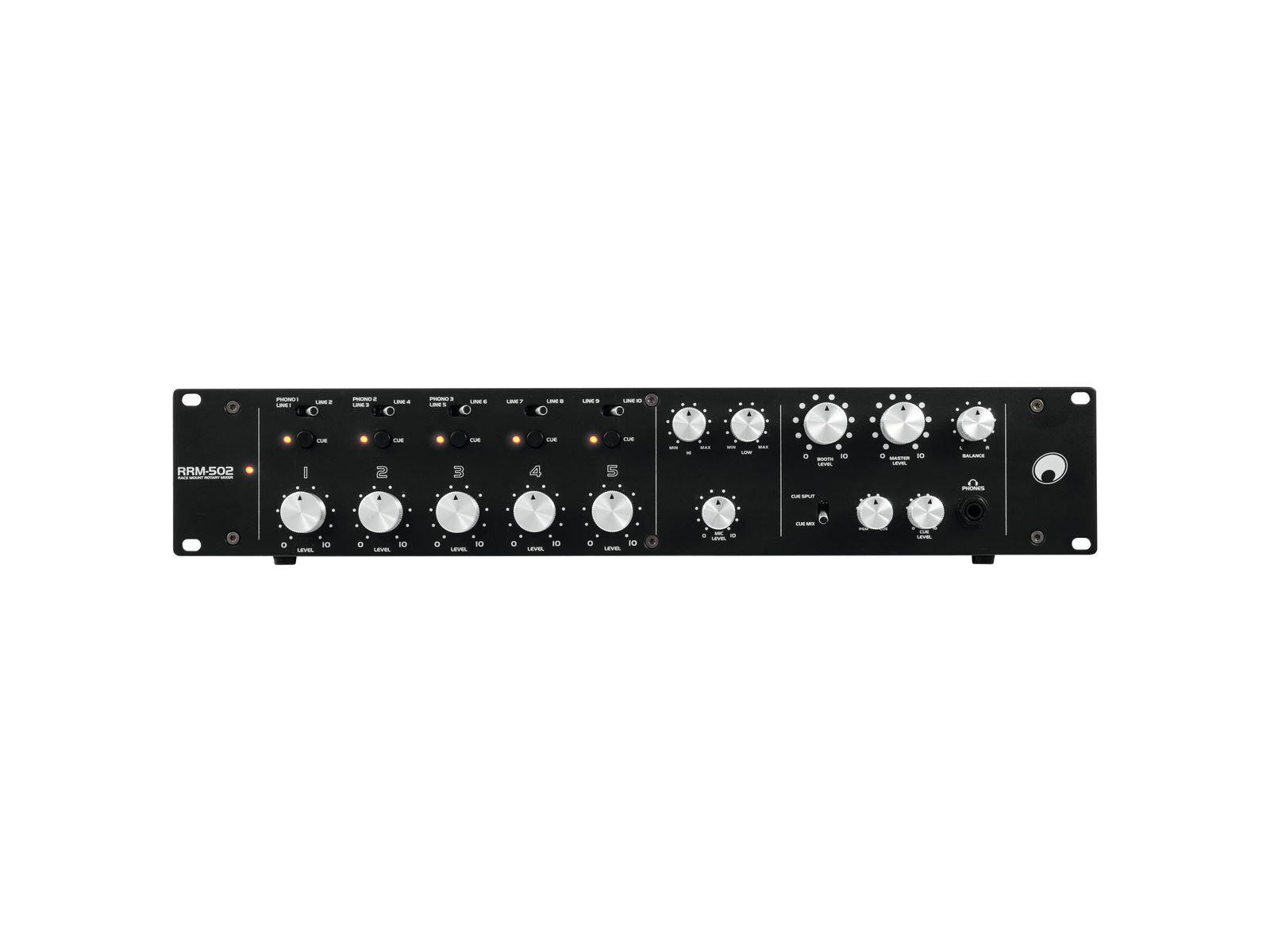

Omnitronic Rrm-502 5-Channel Rotary Mixer

Omnitronic Rrm-502 5-Channel Rotary Mixer

£484.99; £484.99
Unit price: per

5-channel rotary mixer for DJs

Vendor: Omnitronic

SKU: 154-10355925

Out Of Stock

This product has been discontinued.

Please find alternative products or check out similar products below.

iFrame

DETAILS
DELIVERY AND RETURNS

DETAILS

Description

5-channel rotary mixer for DJs

Classic rotary mixer with 5 input channels for DJs

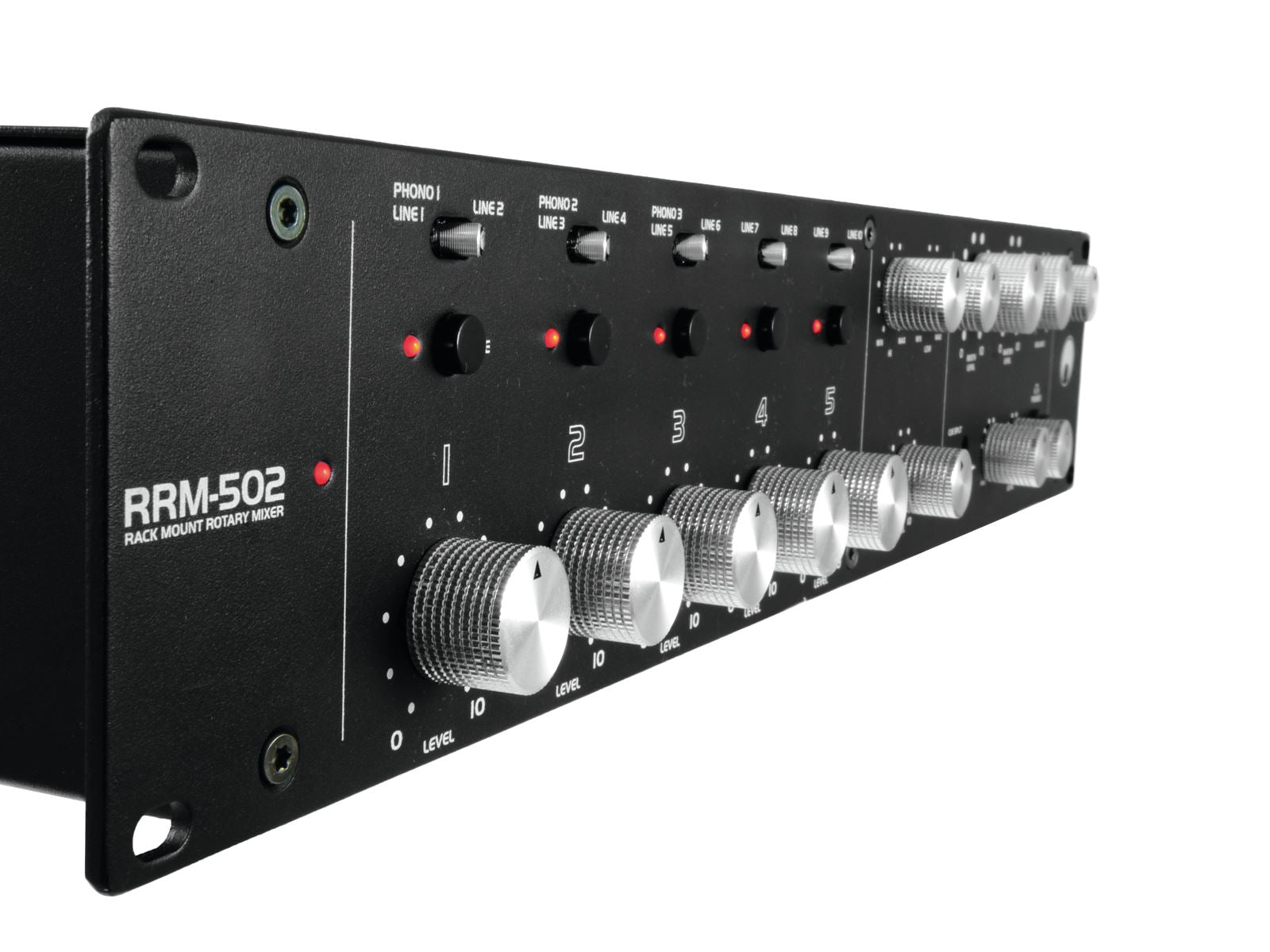

Vintage ALPS potentiometers (Blue Velvet RK27)
High-grade components ensure long life and excellent sound quality
Gain control, cue button and source selector per channel
10 line inputs, 3 of which switchable phono/line
DJ microphone channel with separate level control and 2-band EQ
Prefader listening to input channels and the master output via adjustable headphones output, with cue mix/split function
Master, booth and balance control
Record output, switchable pre/post
FX send/return for external FX unit
Rack installation, 2 U
(19") 48.3 cm rack installation 2 U

Power supply:	230 V AC, 50 Hz
Power consumption:	15 W
Protection class:	Class I
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Fuse:	Device fuse 5 x 20 mm, T 0.5 A Fuse replaceable
Frequency range:	Microphone 20 - 20000 Hz Line 20 - 20000 Hz Phono 40 - 18000 Hz
S/N ratio:	>78 dB phono >80.5 dB Microphone >89 dB line
THD:	Line <0.02 % at 1 kHz Phono <0.1 % at 1 kHz
Gain:	Input: line 20 dB Input: phono 75 dB Input: Microphone 44 dB
Control elements:	Cue mix split function, Crossfader
Status LED:	Power, CUE

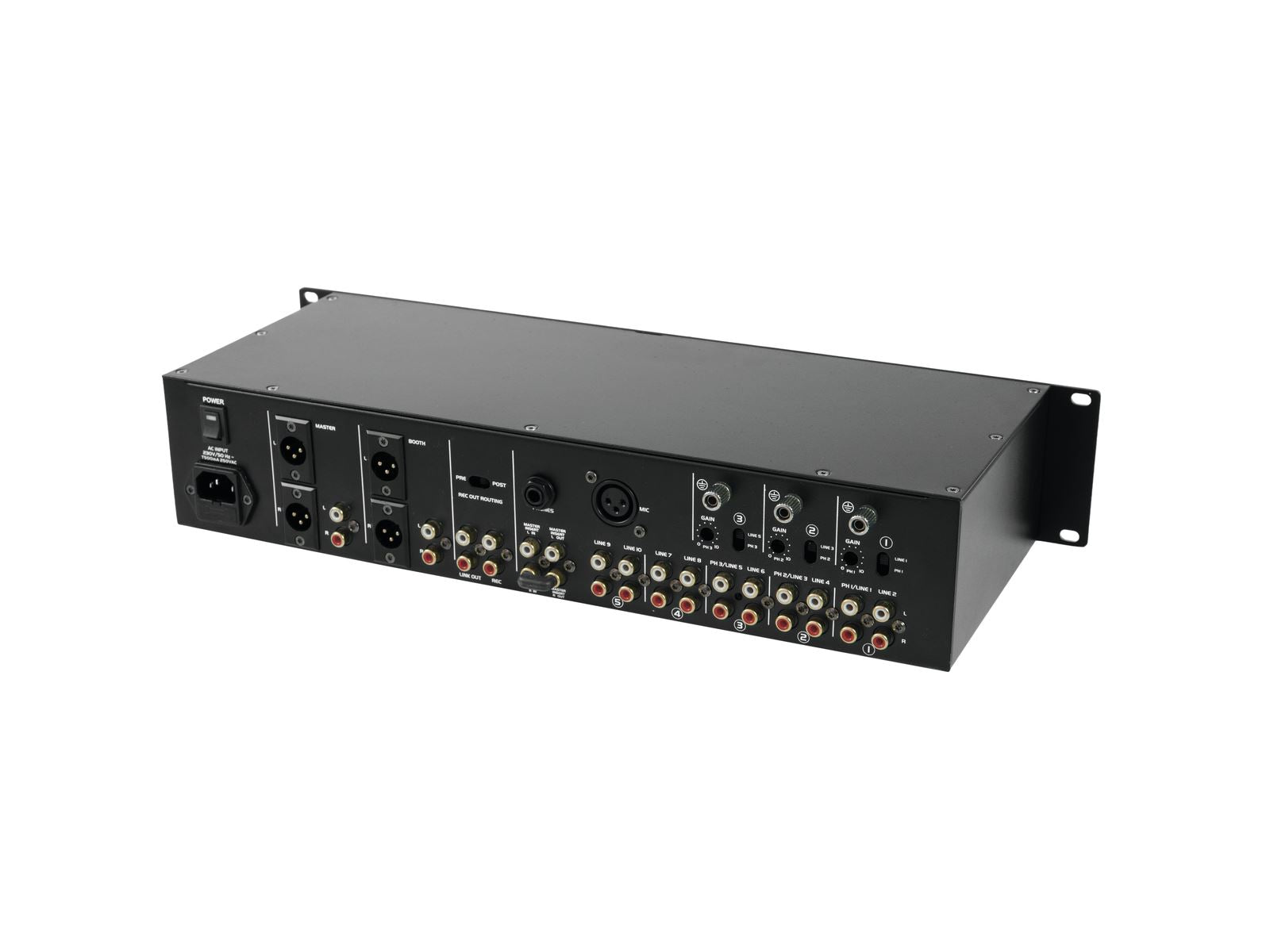

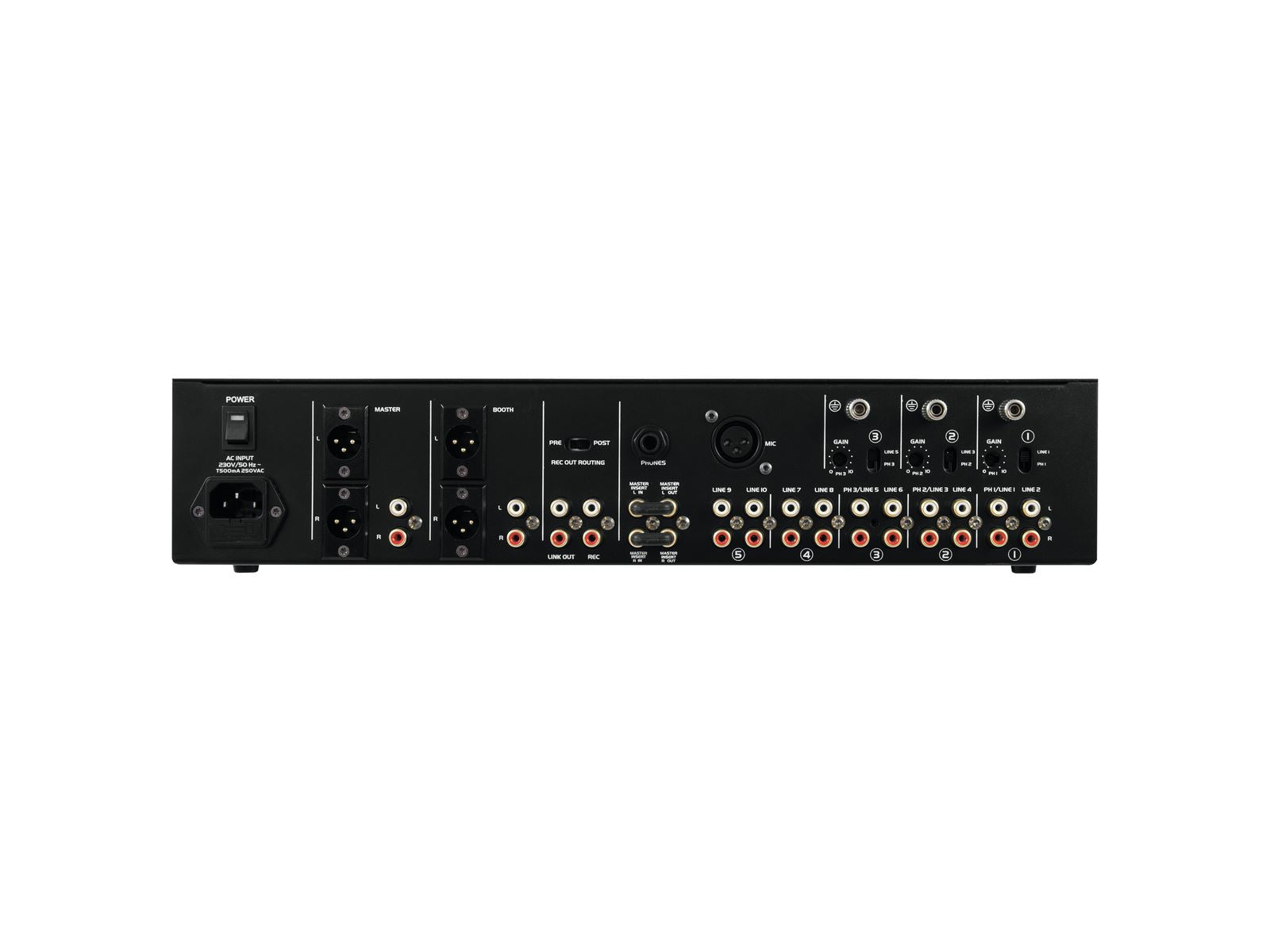

Connections:	Input: 7 x line via stereo RCA Input: 3 x line/phono via stereo RCA Input: 1 x Microphone via 6.3 mm jack socket (mono) mounting version Insert: 2 x master via stereo RCA Output: 2 x master via 3-pin XLR Output: 1 x master via stereo RCA Output: 2 x booth via 3-pin XLR Output: 1 x booth via stereo RCA Output: 1 x rec. via stereo RCA Link: 1 x line via stereo RCA
Chanals:	Input chanel: 3 x stereo with Line-Line/Phono switch via RCA, channel control via Rotary knob, 2-band tone control EQ, gain control, CUE switch, Input chanel: 2 x stereo with Line-line switch via RCA, channel control via Rotary knob, CUE switch, Microphon chanal: 1 x mono via Plug 6,3mm/3,5mm (Jack), channel control via Rotary knob, balancecontrol, Master output: 1 x stereo via XLR or RCA, channel control via Rotary knob, balancecontrol, Booth output: 1 x stereo via XLR or RCA, channel control via Rotary knob, Cue mix split function, Headphones output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary knob, pre-post switch, Rec. output: 1 x stereo via RCA
Max. level:	Output: +22 dBu
Housing design:	(19") 48.3 cm rack installation 2 U
Dimension:	Width: 48.3 cm Depth: 20 cm Height: 8.9 cm
Weight:	4.73 kg
