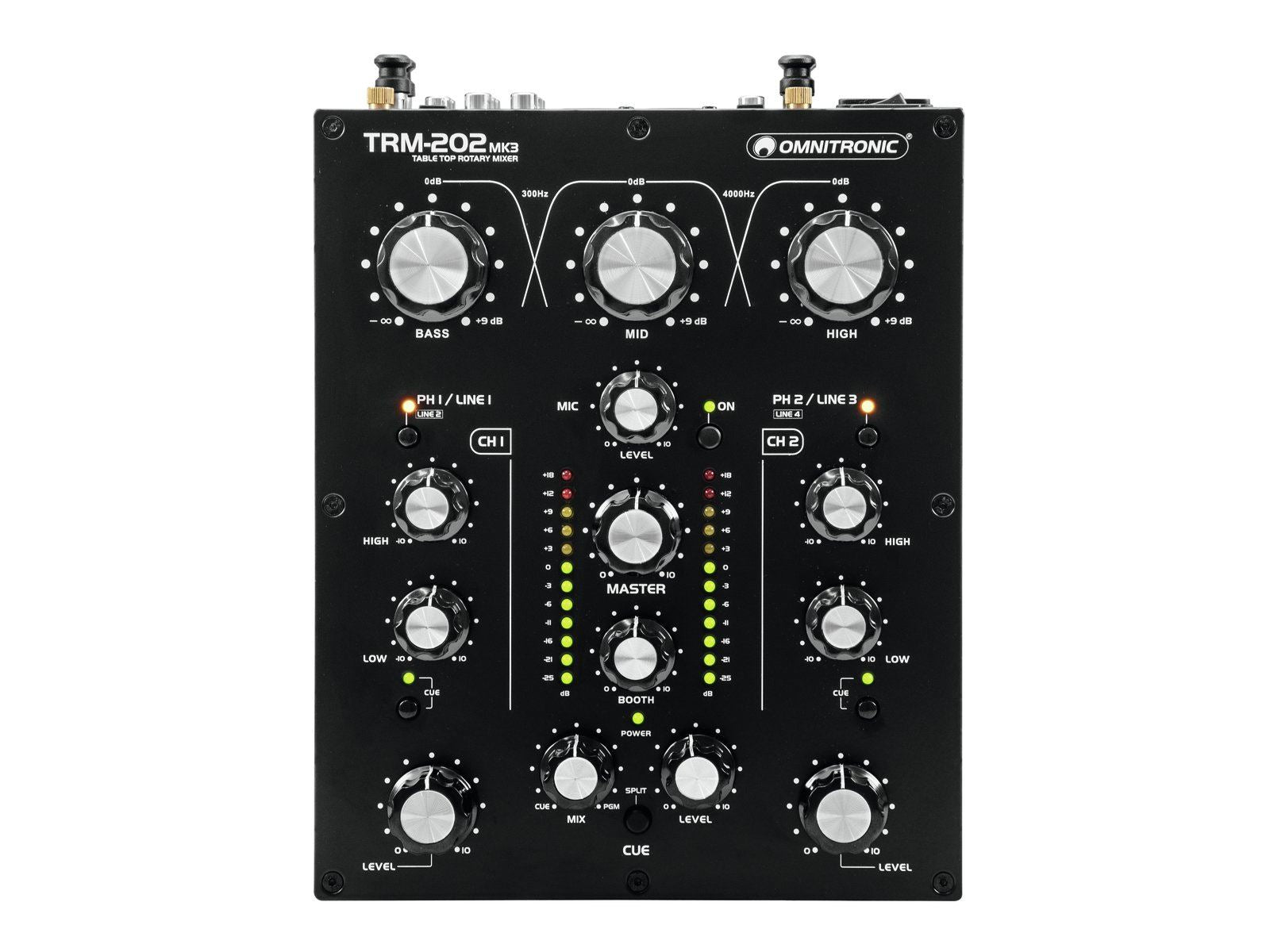

Omnitronic TRM-202 MK3 Channel DJ Mixer Rotary Mixing Console *B-STOCK*

Description

EX DEMO UNIT, NOT THE ORIGINAL BOX, NO USER MANUAL, BOX DAMAGED AND TAPED

2-channel rotary mixer with 3-band frequency isolator for DJs

• Classic rotary mixer with 2 input channels and integrated 3-band frequency isolator for DJs
• Gain control, 2-way equalizer (Highs/Lows) and phono/line switching per channel
• Dedicated boost and kill cut
• Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing
• Vintage ALPS potentiometers (Blue Velvet RK27)
• High-grade components ensure long life and excellent sound quality
• DJ microphone input with separate level control
• Prefader listening to input channels and the master output via adjustable headphones output, with cue mix/split function
• 12-digit stereo LED level meter and master level control
• Booth output with separate level control
• Inputs: 4 x line and 2 x phono (RCA L/R), DJ microphone (XLR) and headphones (jack)
• Outputs: master and booth (XLR/RCA L/R), record (stereo RCA)
• Desktop console housing
• Power supply:10-240V AC, 5060Hz
• Power consumption:20W
• Protection class:Class I
• Power connection:Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
• Frequency range:Microphone 20- 200 HzLine 20- 200 HzPhono 40- 1800Hz
• S/N ratio:>77 dB phono>80dB Microphone>85 dB line
• THD:Line <00 % at 1 kHzPhono <01 % at 1 kHz
• Gain:Microphone 44 dBLine 20dBPhono 60dB to +75 dB
• Isolators:Master Gain:- ? bis +9Low/mid 30 Hz, 18db/oct , ButterworthMid/high 400Hz, 18db/oct , Butterworth
• Control elements:Power switch, source selector
• Status LED:Power, master level meter, chanal source, CUE, Microphone
• Connections:Input: 2 x line via stereo RCAInput: 2 x line/phono via stereo RCAInput: 1 x Microphone via 3-pin XLROutput: 1 x headphones via 6.3 mm jack socket (stereo) mounting versionOutput: 1 x rec. via stereo RCAOutput: 2 x booth via 3-pin XLROutput: 1 x booth via stereo RCAOutput: 2 x master via 3-pin XLROutput: 1 x master via stereo RCA
• Chanals:Input chanel: 2 x stereo with Line-Line/Phono switch via RCA, channel control via Rotary, 2-band tone control EQ, Phono gain rotery,, source selector, CUE switch,Microphon chanal: 1 x mono via XLR, channel control via Rotary knobBooth output: 1 x stereo via XLR or RCA, channel control via Rotary knobMaster output: 1 x stereo via XLR or RCA, channel control via Rotary knobHeadphones output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary knob
• Max. level:Output: +22 dBu
• Housing design:Desktop console housing
• Dimension:Width: 19 cmDepth: 25 cmHeight: 107 cm
• Weight:2.68 kg
