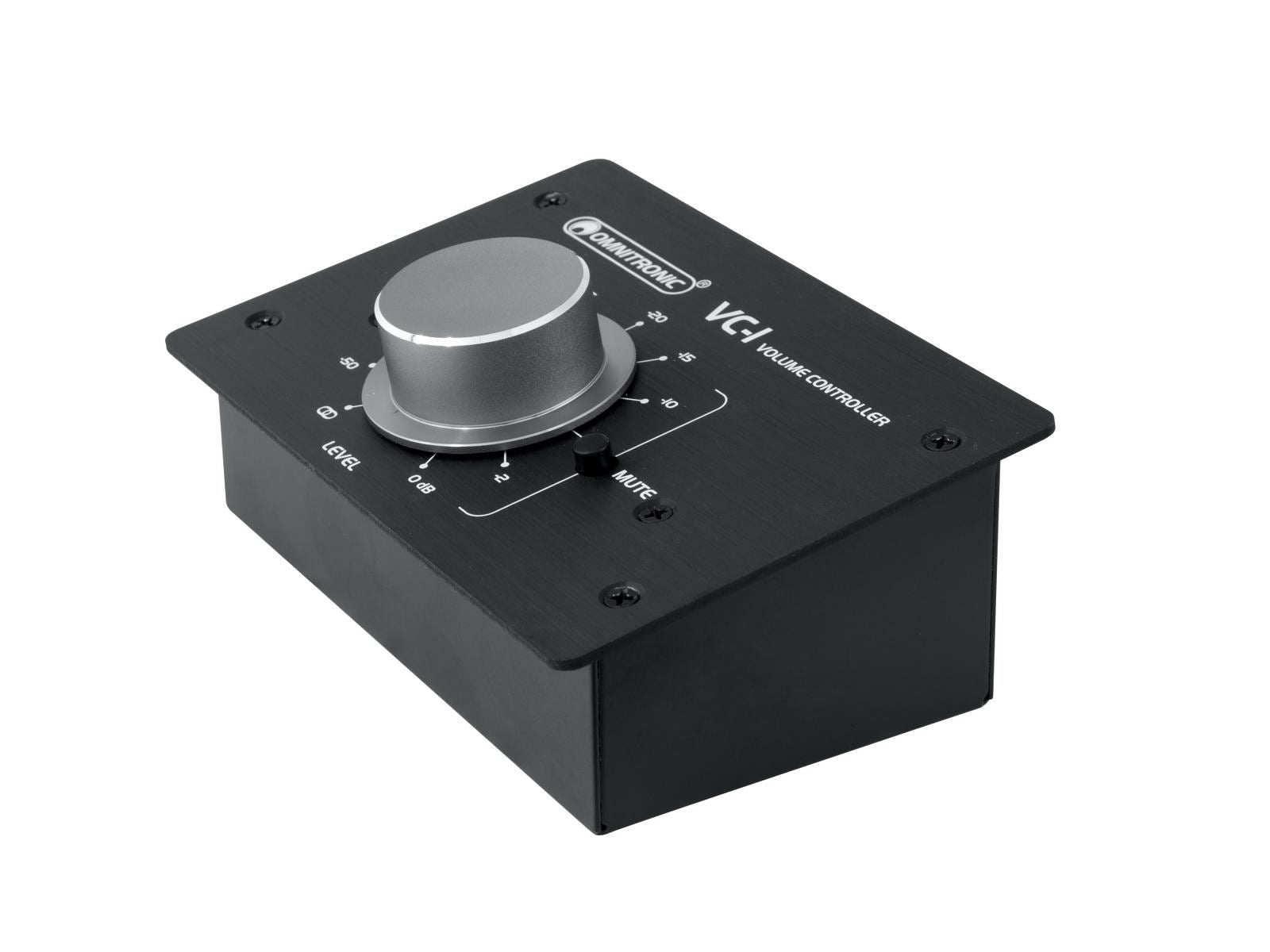

Omnitronic VC-1 Volume Controller Passive Volume Control Dial XLR Jack


Wireless DMX system 2.4 GHz - two transceivers with W-DMX unit in one 19" housing.

Vendor: Omnitronic
SKU: 154-10355795
Icon In Stock In Stock
Icon Delivery Time

Wireless DMX system 2.4 GHz - two transceivers with W-DMX unit in one 19" housing.

Wireless transmission of DMX data
Switching between transmitter and receiver
Compatible with Wireless Solution W-DMX systems
Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
AFHSS technology ensures interference-free operation also alongside other DMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
Operating range up to 500 m (with line-of-sight)
1 to 512 receivers can be controlled by each transmitter
Simultaneous operation of up to 6 transmitters, thus control of 6 DMX universes (3072 DMX channels) possible
Plug & Play: quick and easy setup with one operating button
LED indication for operation and functions
DMX input and output, 3-pin XLR
2.4 GHz - license-free worldwide
483 mm device (19")
Rack installation, 1 U
Control: W-DMX
Control: DMX


Power supply: 230 V AC, 50 Hz
Power consumption: 4 W
Carrier frequency: 2.4 GHz ISM band, 58 channels
Modulation: AFHSS
Coverage: up to 500 m (line-of-sight)
Parallel operation: max. 6 transmitters (16 in advanced mode)
Antenna: 5 dBi
Latency: <5 msec
DMX channels: 1024 (2 universes)
DMX connectors: 3-pin XLR mounting socket
3-pin XLR mounting plug
Power consumption: 4 W
DMX control channels: 1024
IP classification: IP20
Colour: Black

160 x 483 x 44 mm

1.98 kg
