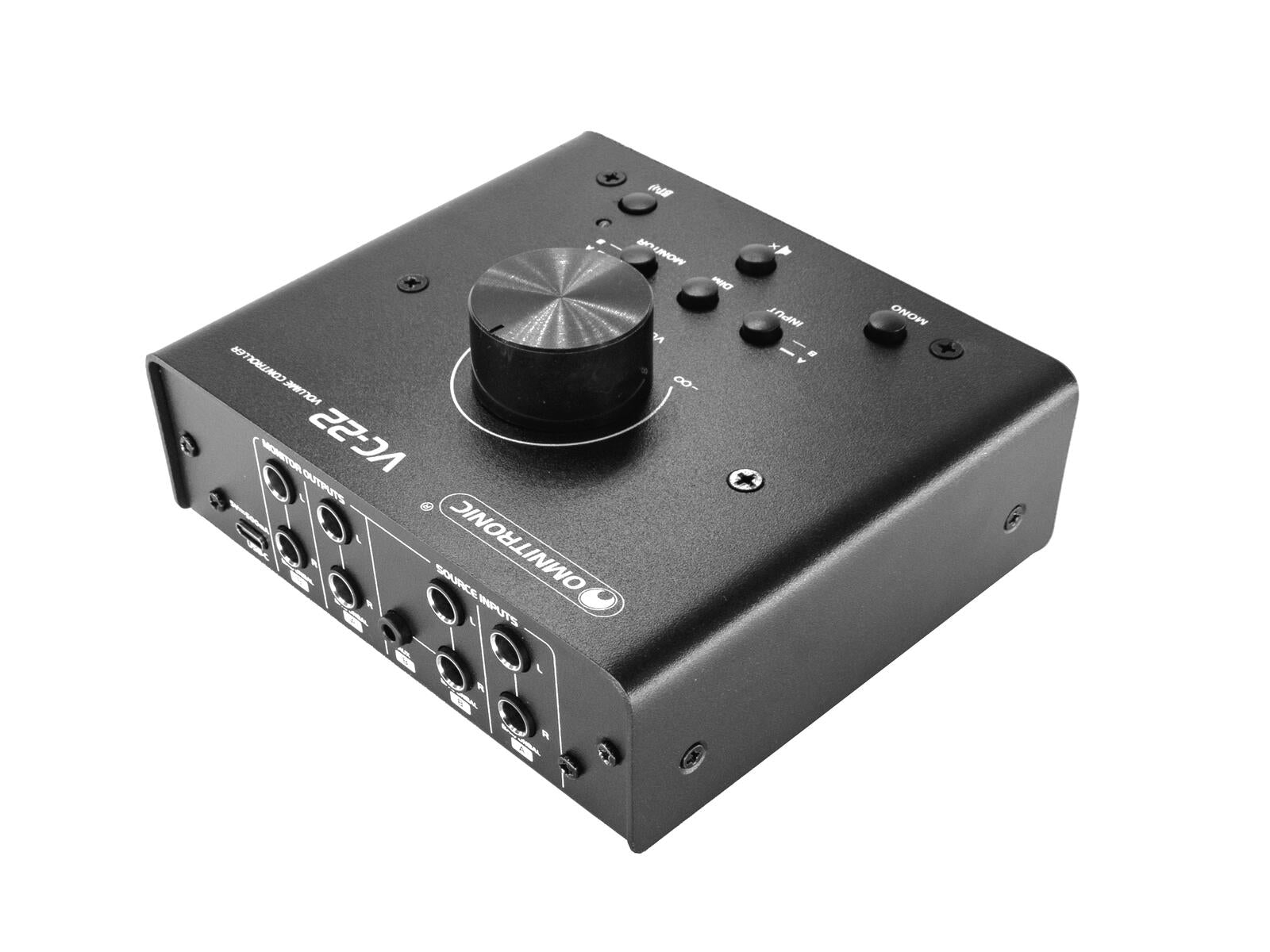

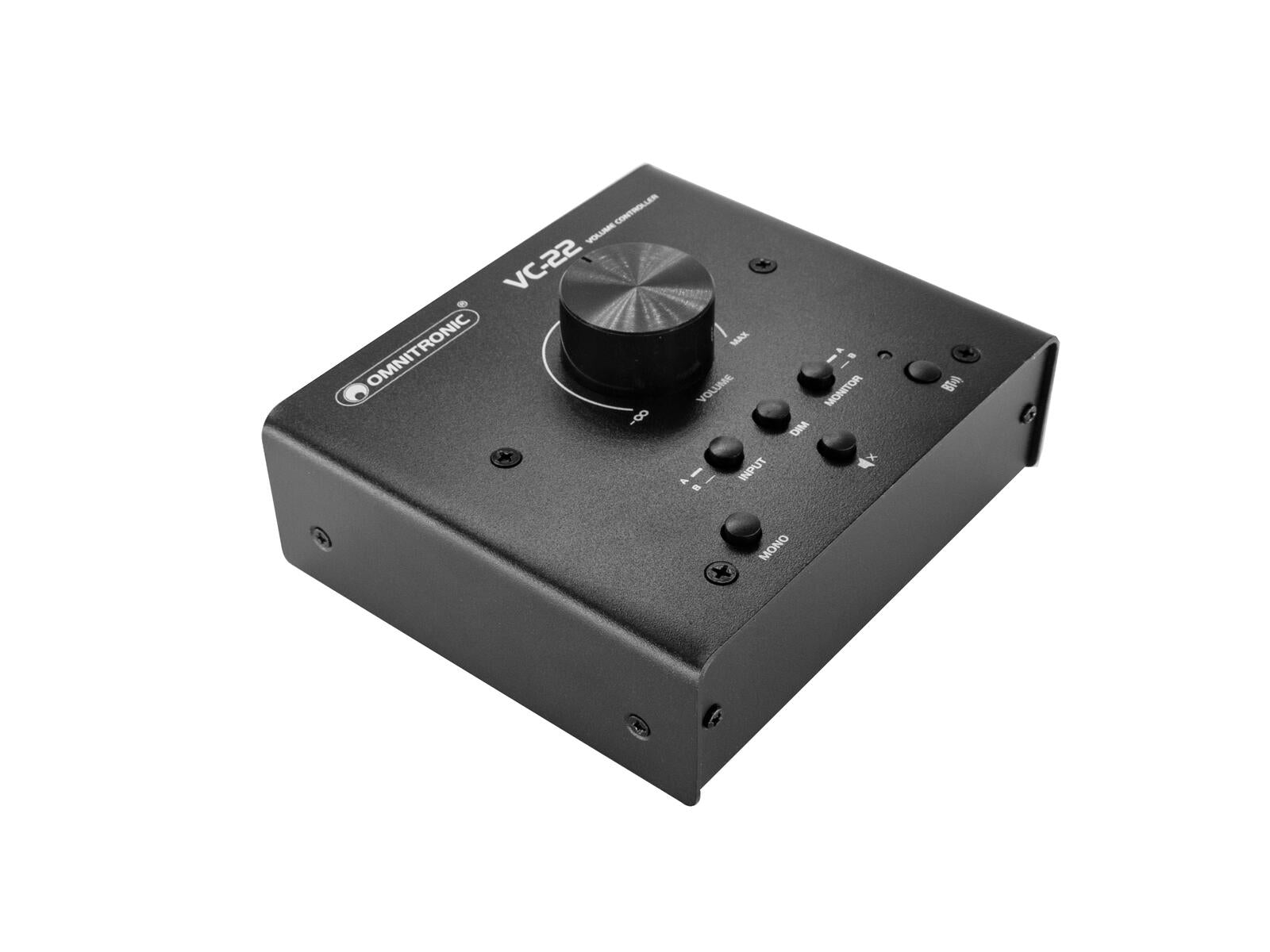

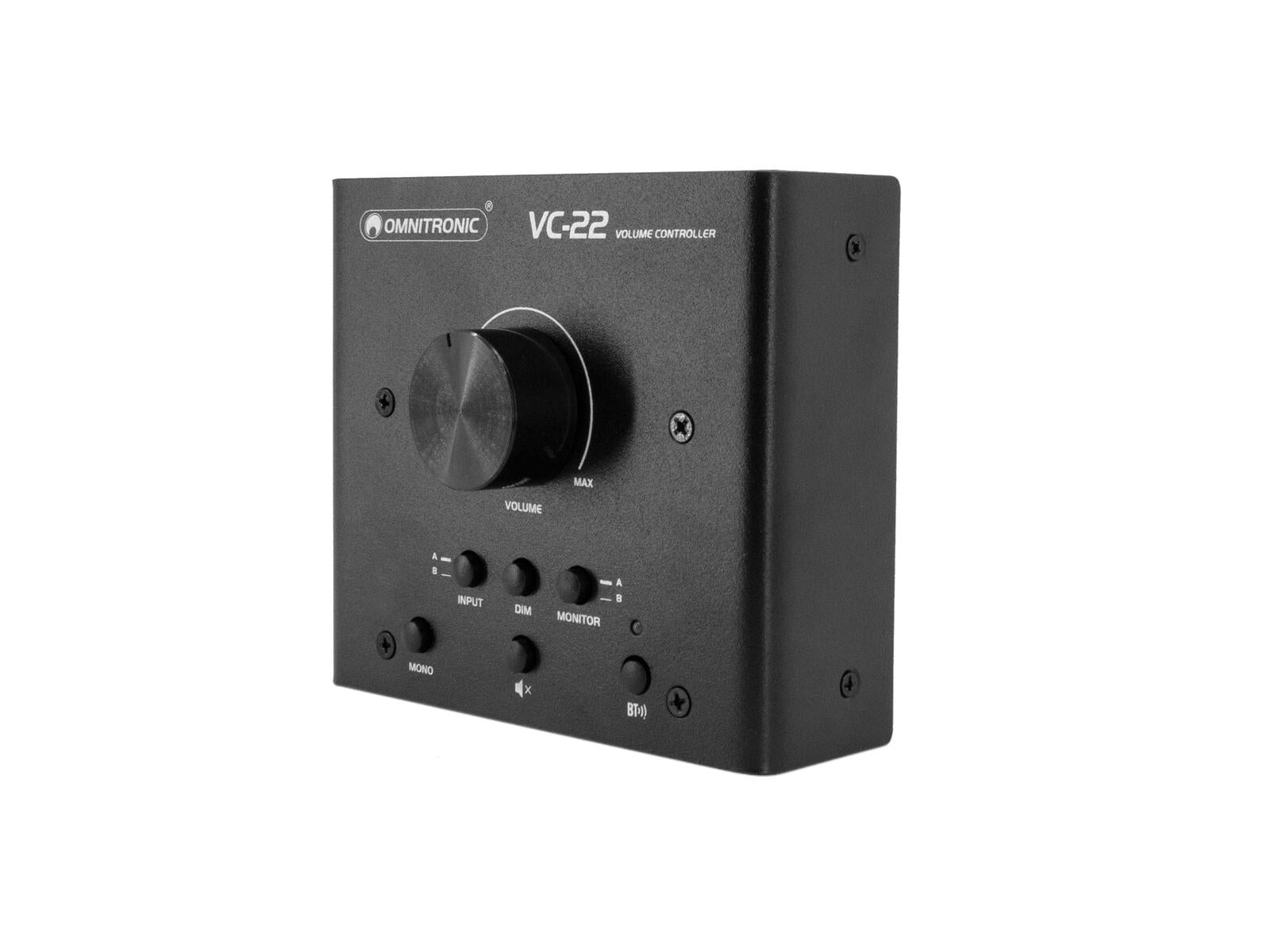

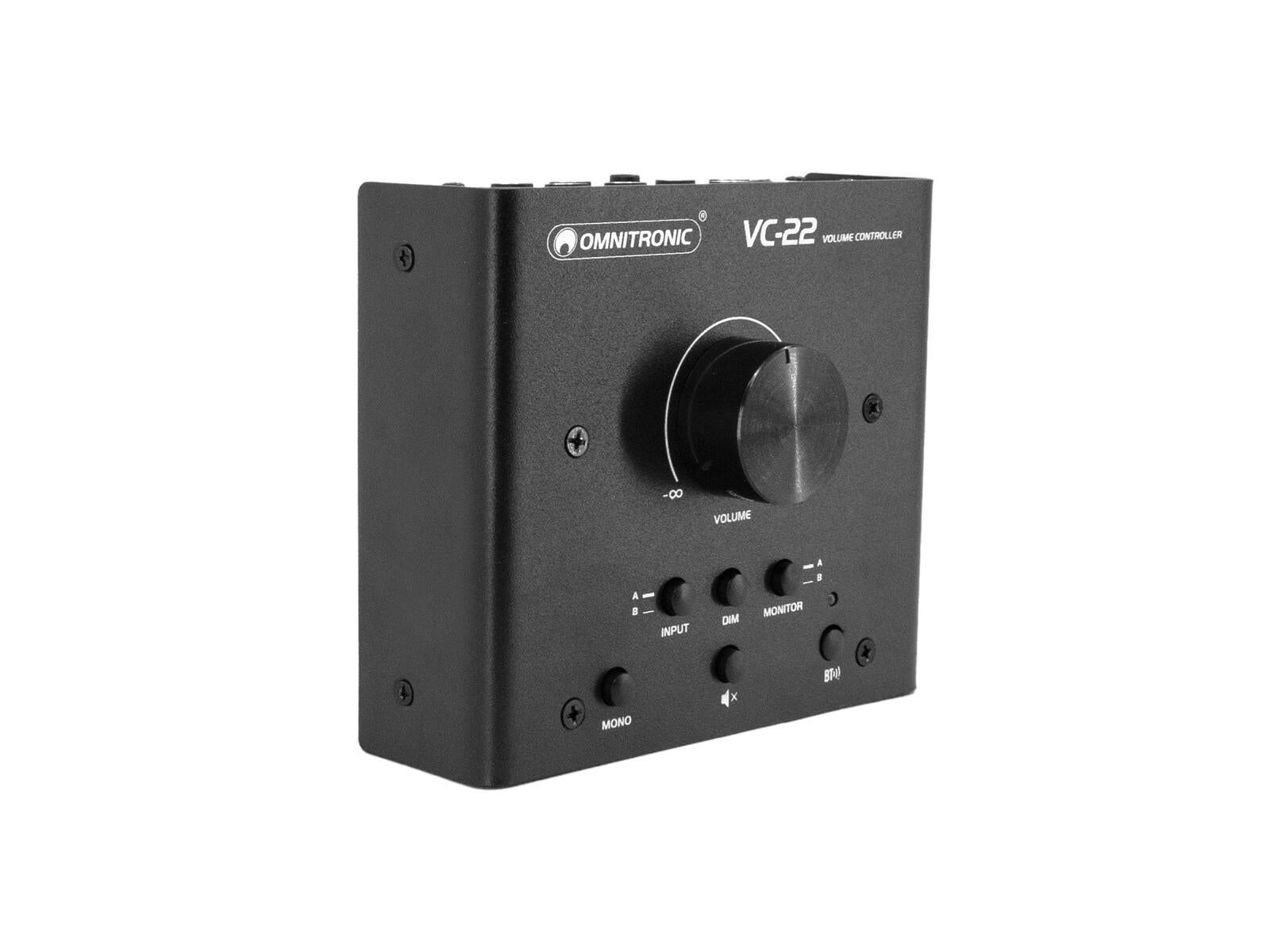

Omnitronic VC-22 Active Volume Controller inc Source Selection & Bluetooth

The OMNITRONIC VC-22 is an active monitor controller designed for seamless integration between your audio sources and monitoring setup. Featuring two selectable input sources and two output monitor pairs, it provides precise control over your signal path—perfect for studios, podcasting, or multimedia workspaces. A large rotary dial offers tactile volume adjustment, while Bluetooth connectivity adds the convenience of wireless playback. Housed in a desktop console design, the VC-22 supports both wired and Bluetooth input options and delivers clean signal routing with flexible switching capabilities.

Features:
Active monitor controller with source and monitor selection
Selectable between 2 stereo input sources and 2 output monitor pairs
Large rotary level control for master output
Supports Bluetooth audio streaming with 10m range
Stereo/mono switch and mute function for output control
Ideal for use between PC sound cards and active monitors or amps
Includes USB-C to USB-A power cable
Desktop housing with durable matte black finish
LED pairing indicator and quick Bluetooth setup
Compact footprint ideal for desktops and studios

Specifications:
Power Supply: 5V DC via USB-C (cable included)
Power Consumption: 1 W
Frequency Range: 20 – 20000 Hz
Bluetooth Range: Up to 10 m indoors
Bluetooth Device Name: VC-22

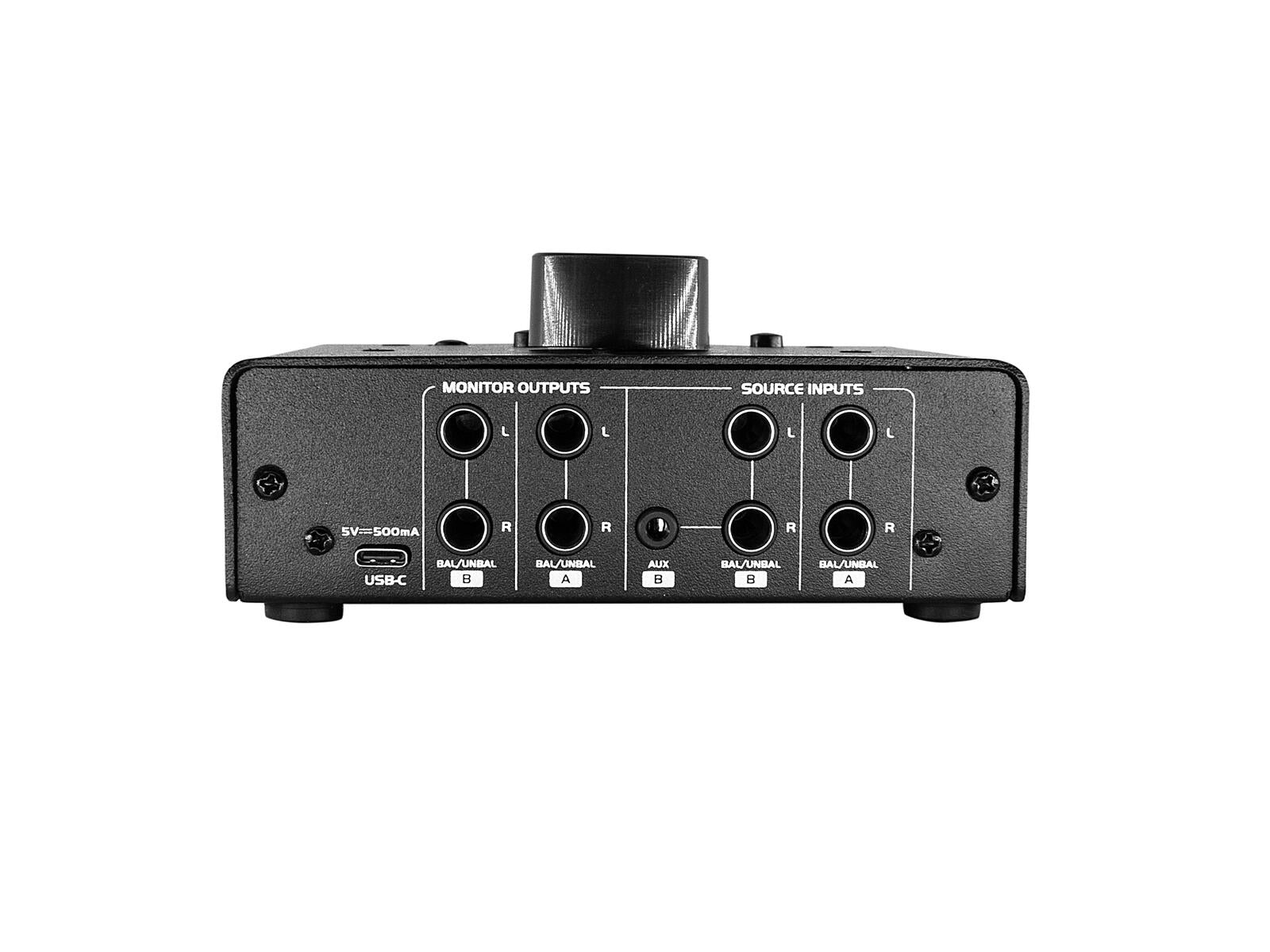

Input Connections:
– 4 x 6.3 mm mono jack sockets (line)
– 1 x 3.5 mm stereo jack (line)
Output Connections:
– 4 x 6.3 mm mono jack sockets (line)
Input Channels: 1 x mono + stereo via jack or Bluetooth
Master Output: 1 x mono + stereo via jack
Controls: Rotary level dial, mute, stereo/mono switch, speaker selector
Housing Type: Desktop console
Protection Class: Class III
IP Classification: IP20
Dimensions (WxDxH): 13.8 x 12 x 6.4 cm
Weight: 0.570 kg
Cable Length (USB): 1.5 m
Cable Weight: 0.020 kg
Housing Color: Matte black
Included Accessories: USB-C to USB-A cable
