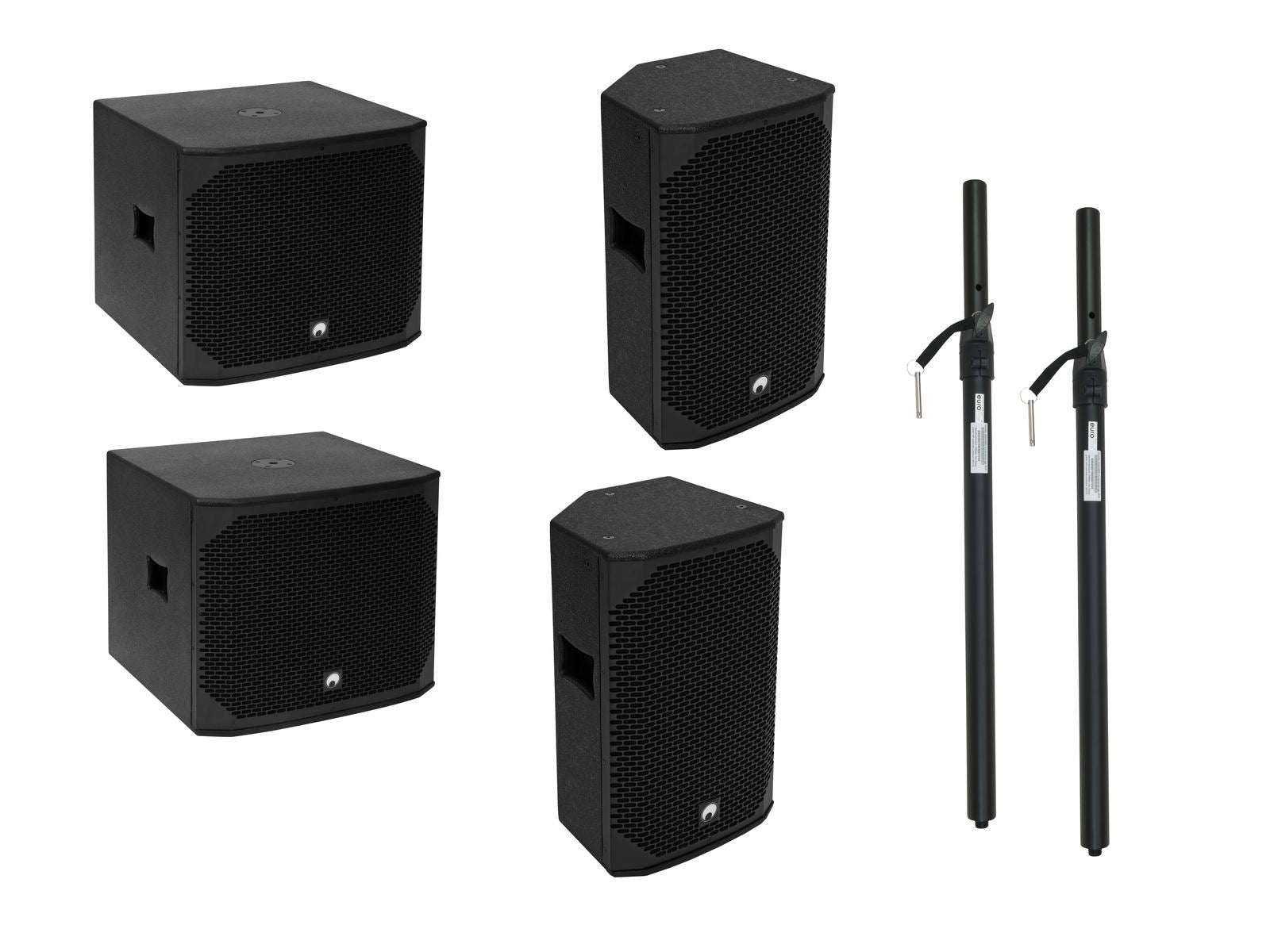

OMNITRONIC PA Set AZX active M/L

2x active 18" PA bassreflex subwoofer with 2x active speaker with 12" woofer incl. distance tube

OMNITRONIC AZX-118A PA Subwoofer active 400W

Active 18" PA bassreflex subwoofer, 400 W

• 46 cm (18") bass speaker with 76 mm voice coil
• Class D amplifier with 400 W
• XLR inputs and parallel outputs L/R
• XLR output L/R with high-pass filter
• Adjustable crossover frequency 80-200 Hz
• Phase reversal switch
• Limiter for overload protection
• Limit, signal and power LED
• M20 metal flange for mounting top speakers
• Carrying handles
• Housing made of 15 mm MDF
• Scratch-resistant lacquer surface
• Impact-resistant steel grille with acoustic foam

OMNITRONIC AZX-212A 2-Way Top active 250W

Active speaker with 12" woofer, 1.35" titanium driver, LF 200 W RMS, HF 50 W RMS

• 2-way bass-reflex enclosure with 30 cm woofer and 3.5 cm titanium driver
• Balanced signal input XLR/6.3 mm jack, switchable mic/line
• HF adjustment -4 dB, -2 dB, 0 dB
• Limiter for overload protection
• Limit, signal and power LED
• Housing made of 15 mm MDF
• Scratch-resistant lacquer surface
• Carrying handles
• Impact-resistant steel grille with acoustic foam
• Dual flange with 0° and 5° tilt angle enables flexible positioning
• M10 threaded inserts for suspended installation
• Applications: standing, as monitor, on a subwoofer or speaker stand, suspended

OMNITRONIC Distance Tube Subwoofer/Satellite M20

Variable distance tube

• Connecting tube for satellite systems
• Locking screw and bolt
• Powder-coated steel version
• Thread: M20 thread
• Weight: 107,64 kg
• OMNITRONIC AZX-118A PA Subwoofer active 400W
• Power supply: 230 V AC, 50 Hz
• Power consumption: 650 W
• Power connection: Mains input IEC connector (M) mounting version power
• supply cord with safety plug (provided)
• Rated power: 400 W RMS
• Frequency range: 40 - 250 Hz
• Sensitivity: 95 dB (1W/1m)
• Crossover frequency: 80-200 Hz
• Attachment system: M20 thread
• Circuitry: Class D
• Connections: Input: line via 2 x 3-pin XLR
• Output: line via 2 x 3-pin XLR
• Output: high-pass via 2 x 3-pin XLR
• Speakers: 1 x woofer (18") approx. 45 cm
• Voice coil lows (2.5") approx. 6.35 cm
• Type of speaker: Subwoofer
• Type: Vented
• Material: MDF (Medium-density fibreboard), 15 mm
• Dimensions: Width: 66,5 cm
• Depth: 66,5 cm
• Weight: 33,65 kg
• OMNITRONIC AZX-212A 2-Way Top active 250W
• Power supply: 230 V AC, 50 Hz
• Power consumption: 650 W
• Power connection: Mains input IEC connector (M) mounting version power
• supply cord with safety plug (provided)
• Rated power: 200 W RMS LF 50 W RMS HF
• Frequency range: 55 - 20000 Hz
• Sensitivity: 95 dB (1W/1m)
• Attachment system: Bead Ø 35mm variable tilt
• Circuitry: Class D Biamp
• Equalizer: Master: 1 x 2-band tone control
• Connections: Input: 1 x 3-pin XLR/6.35mm jack (F) combination socket
• (mounting version)
• Output: line via 1 x 3-pin XLR
• Input channels: 1 x mono with Mic-line switch via 3-pin XLR/6.35mm jack
• (F) combination socket (mounting version), channel control via Rotary dial
• Speakers: Woofer (12") approx. 30 cm with ferrit magnet
• Voice coil lows (2") approx. 5 cm
• Voice coil compression tweeter highs (1.35") approx. 3,5 cm
• Type of speaker: Compact cabinet speaker
• Material: MDF (Medium-density fibreboard), 15 mm
• Dimensions: Width: 43 cm
• Depth: 40,5 cm
• Height: 67 cm
• Weight: 19,15 kg
• OMNITRONIC Distance Tube Subwoofer/Satellite M20
• Maximum carrying capacity: 30 kg
• Tube diameter sector: 41 - 35 mm
• Height: Maximum: 135 cm
• Minimum: 75 cm
• Attachment system: Ø 35mm
• Type (general stands): Distance tube
• Color: Black
• Thread: M20 thread
• Weight: 1,02 k
