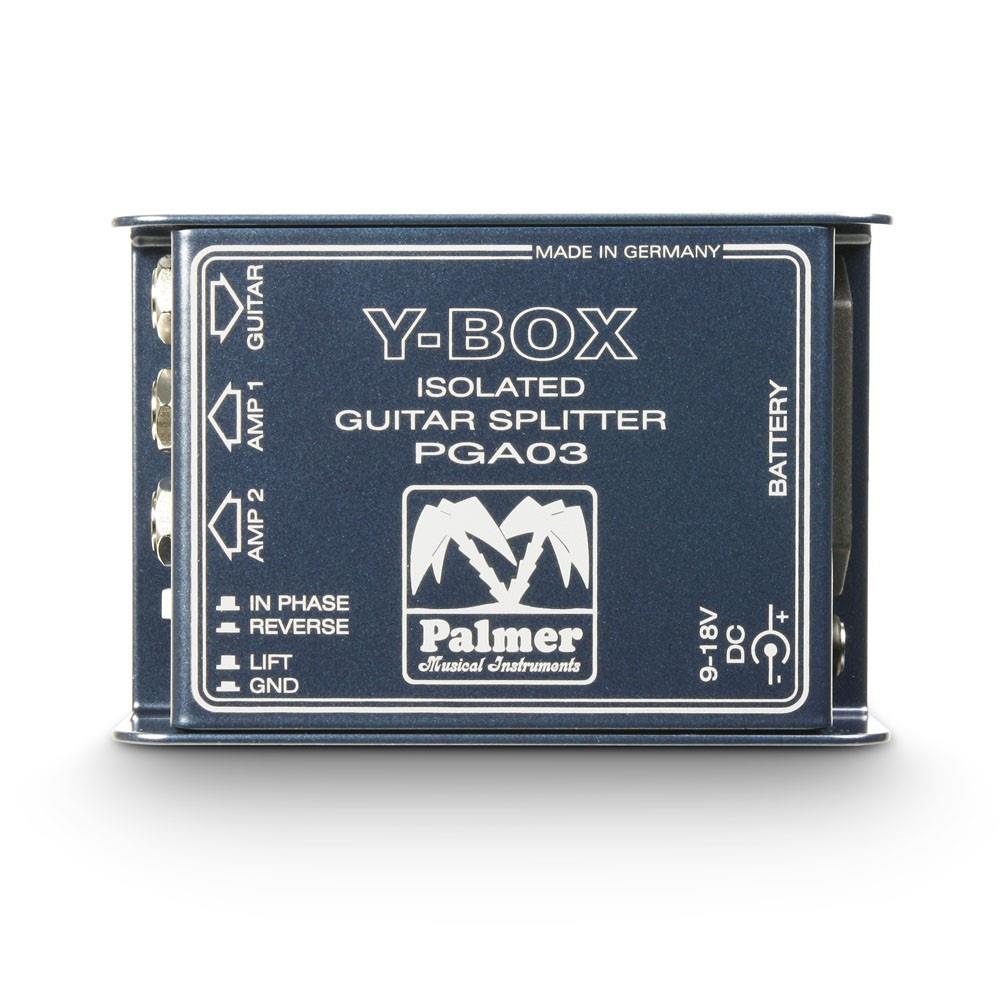

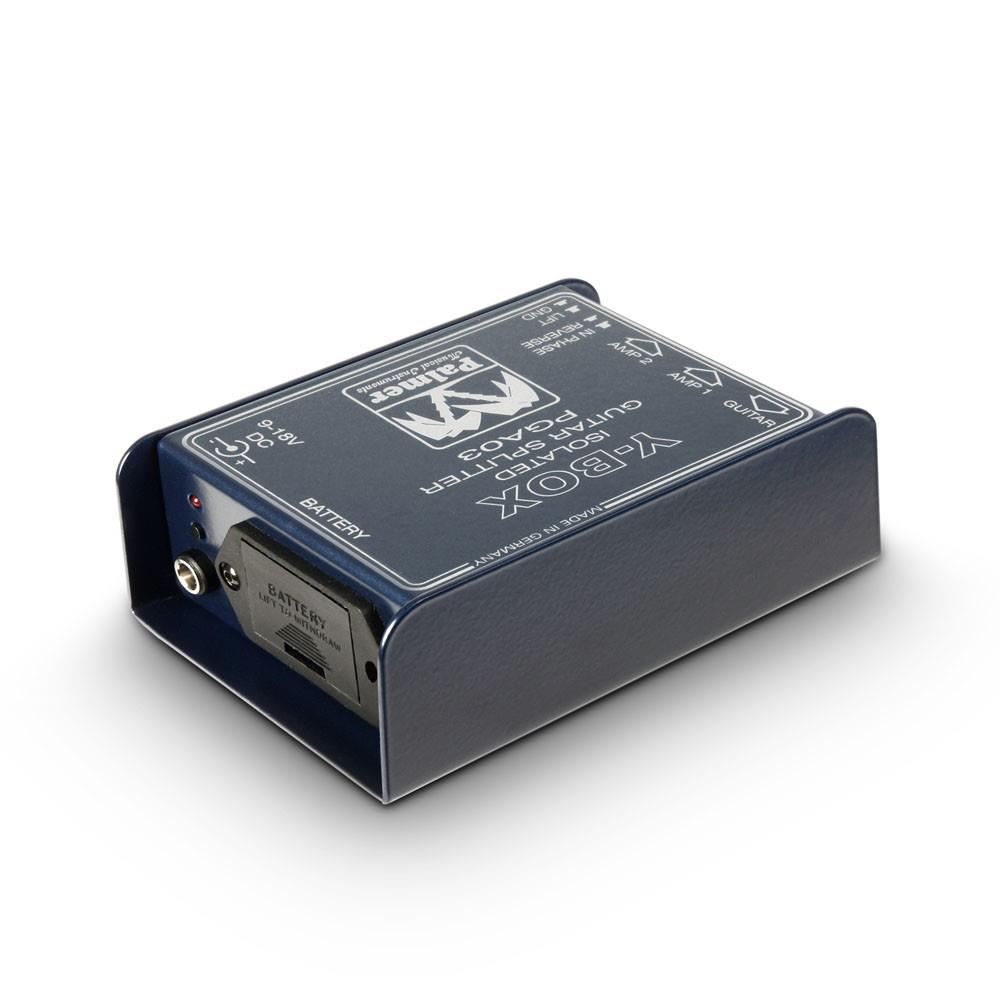

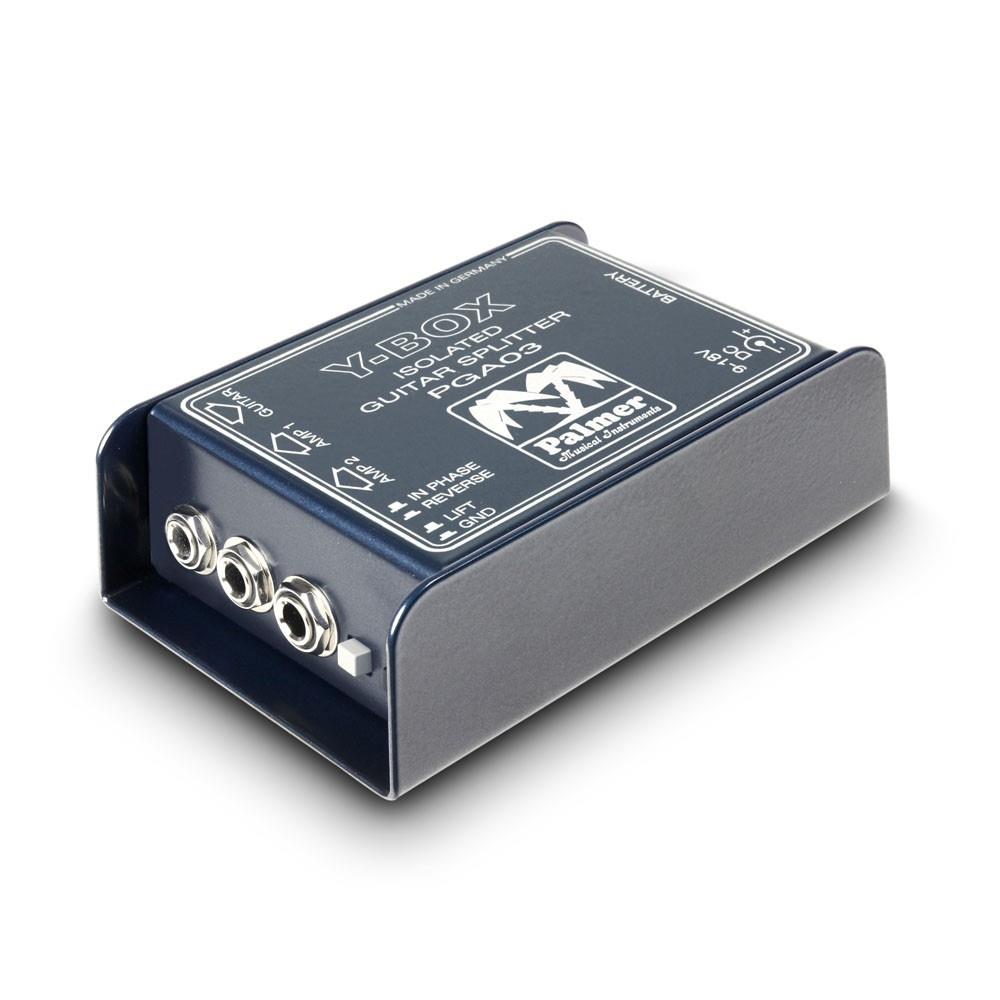

Palmer GA 03 Splitter for Guitar Amplifier Amp Y Split

Description:

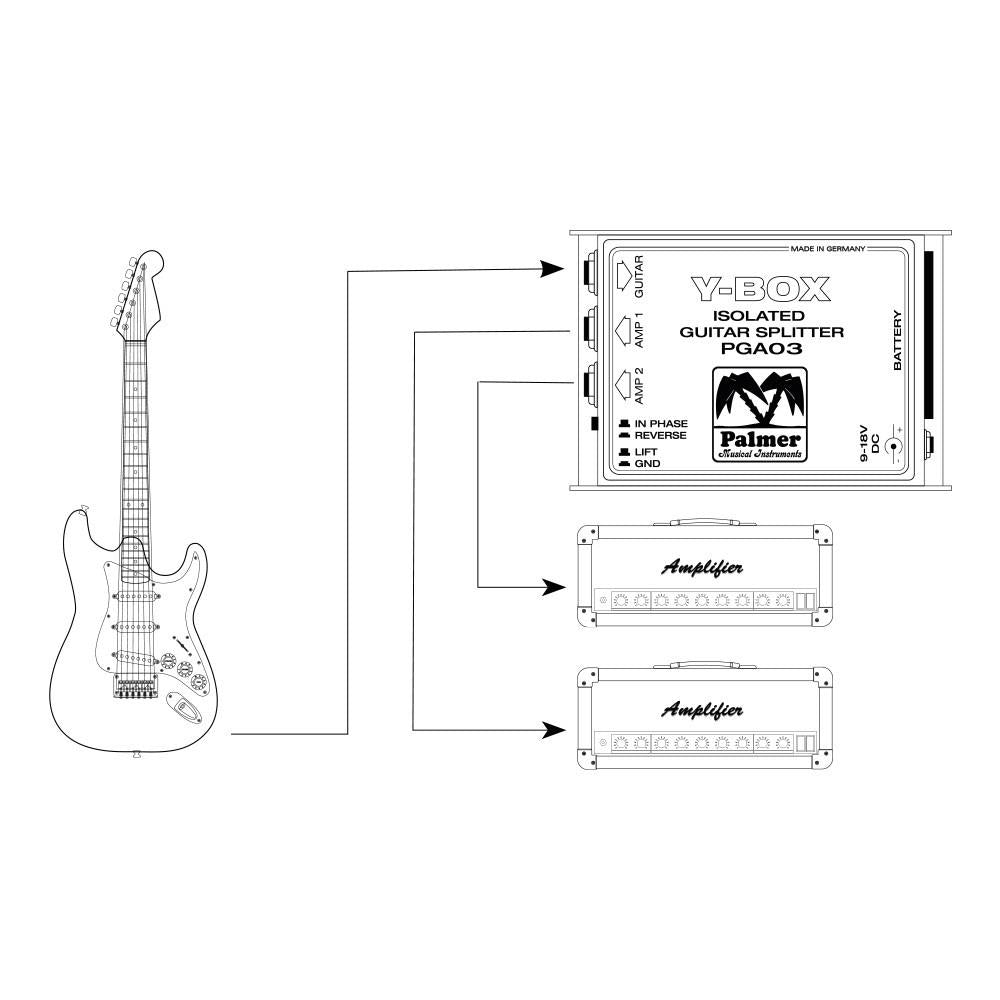

"When I run my guitar into two amps simultaneously, I always get a loud hum". This is a rather common problem, often discussed in the technology section of relevant industry magazines. The Palmer Y box is the solution. Converting the hi-Z guitar signal, the FET input circuitry also drives a transformer which routes the ungrounded signal to the output to eliminate ground loop hum. 9V battery operation is recommended.

The PGA03 Y-box can also be used as a line driver for long cable runs. Also, the PGA03 features a phase reverse switch for the AMP 2 output when using pre-amps or amps that are out of phase.

Specifications:

Split type 1 in 2
Inputs 1

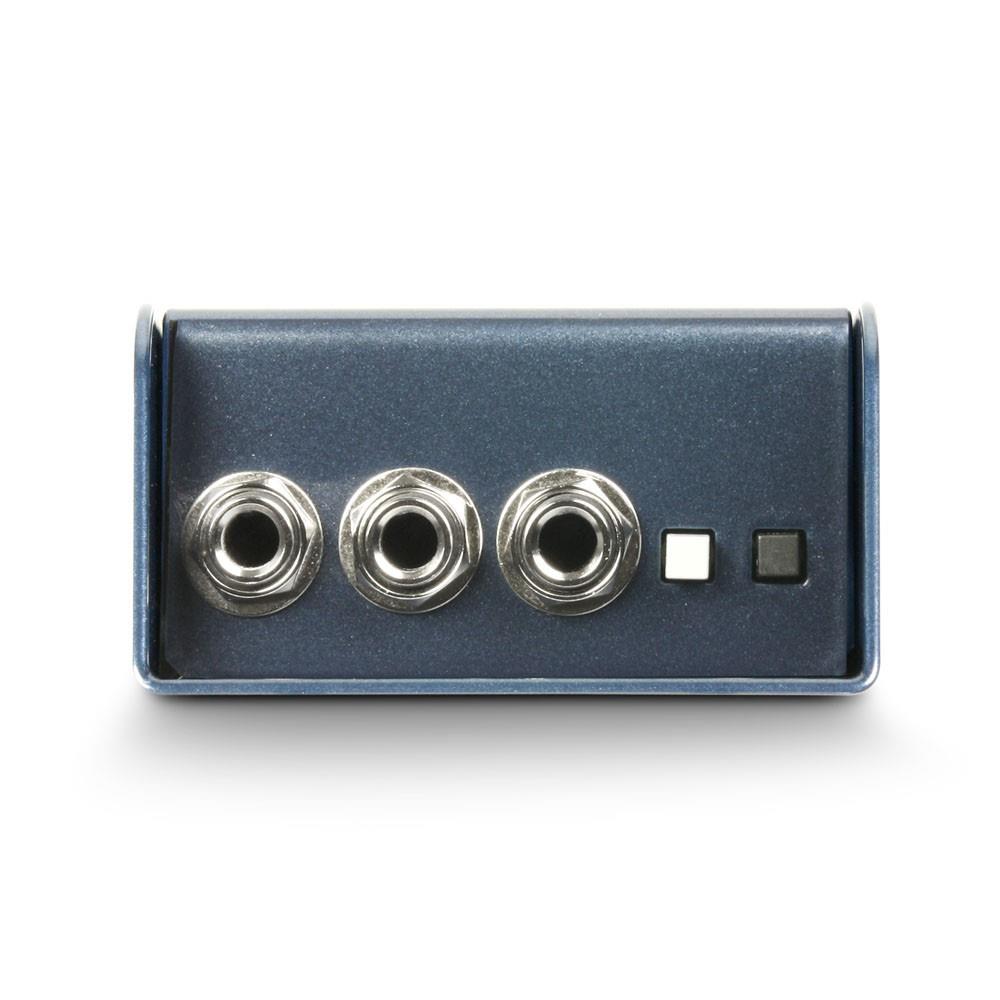

Input connectors 6.3 mm jack
Adjustable input no
Number of split-outputs per canal 1
Output connectors 6.3 mm jack
THRU outputs/channel 1
Transformer isolated outputs Yes
Adjustable output no
Controls ground lift, phase
Indicators Power

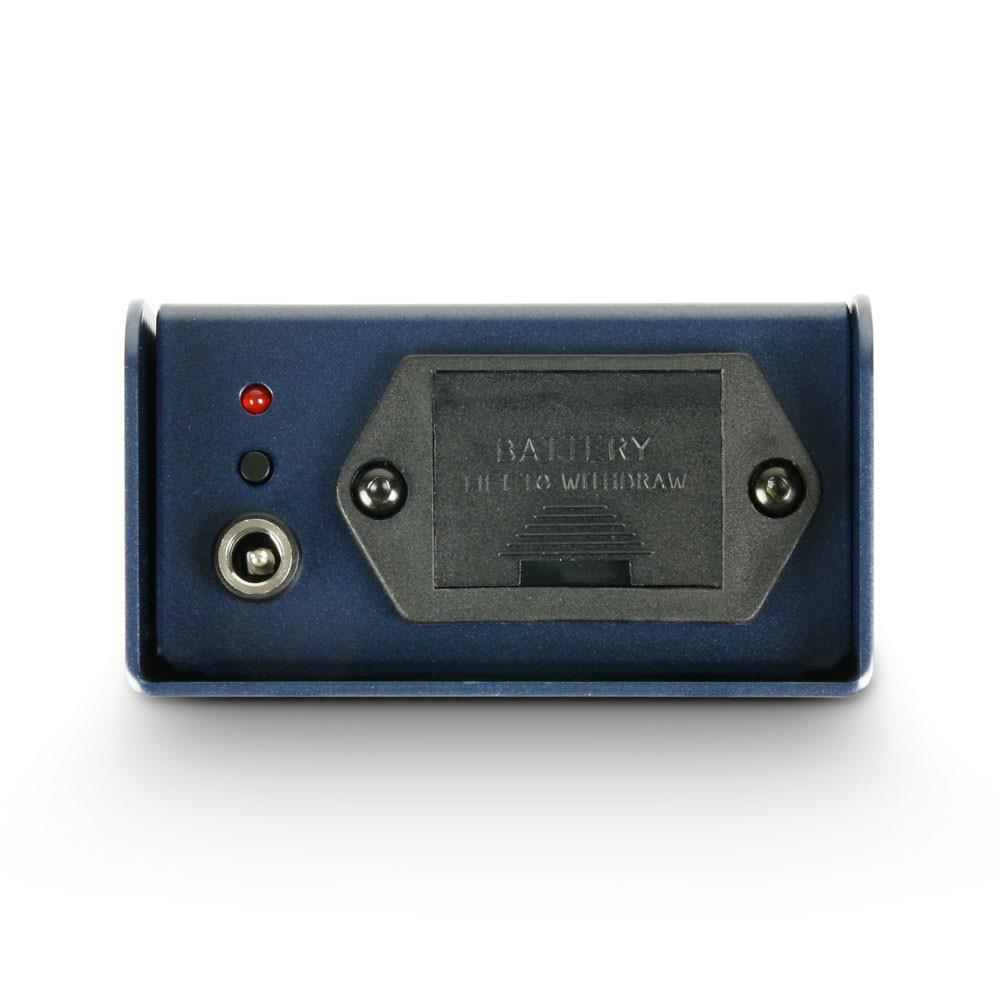

Operating voltage 9 V block, 9 V DC power supply
Width 125 mm
Depth 80 mm
Height 45 mm
Cabinet material sheet steel
Cabinet surface Powder coated
Weight 0,528 kg
