Palmer MB L Dual Channel Line Merger Passive
- £234.00
- £234.00
- Unit price
- per

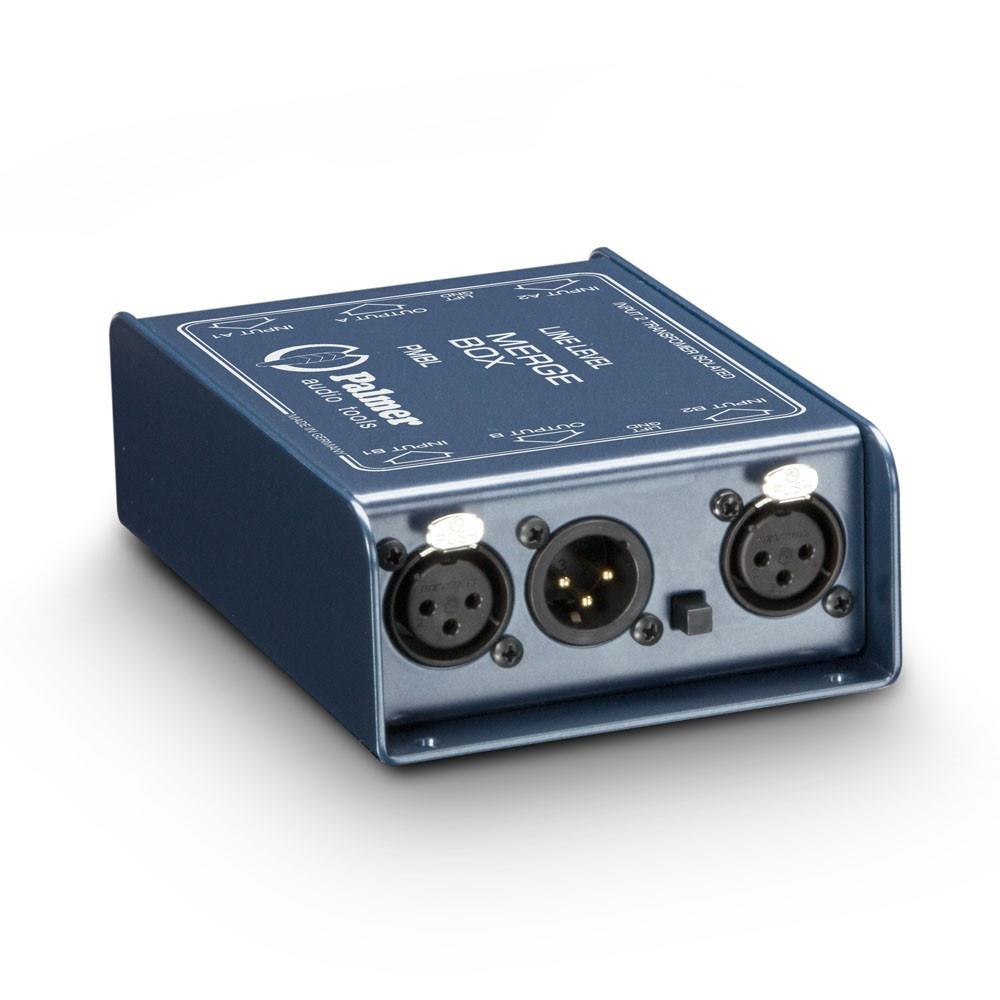

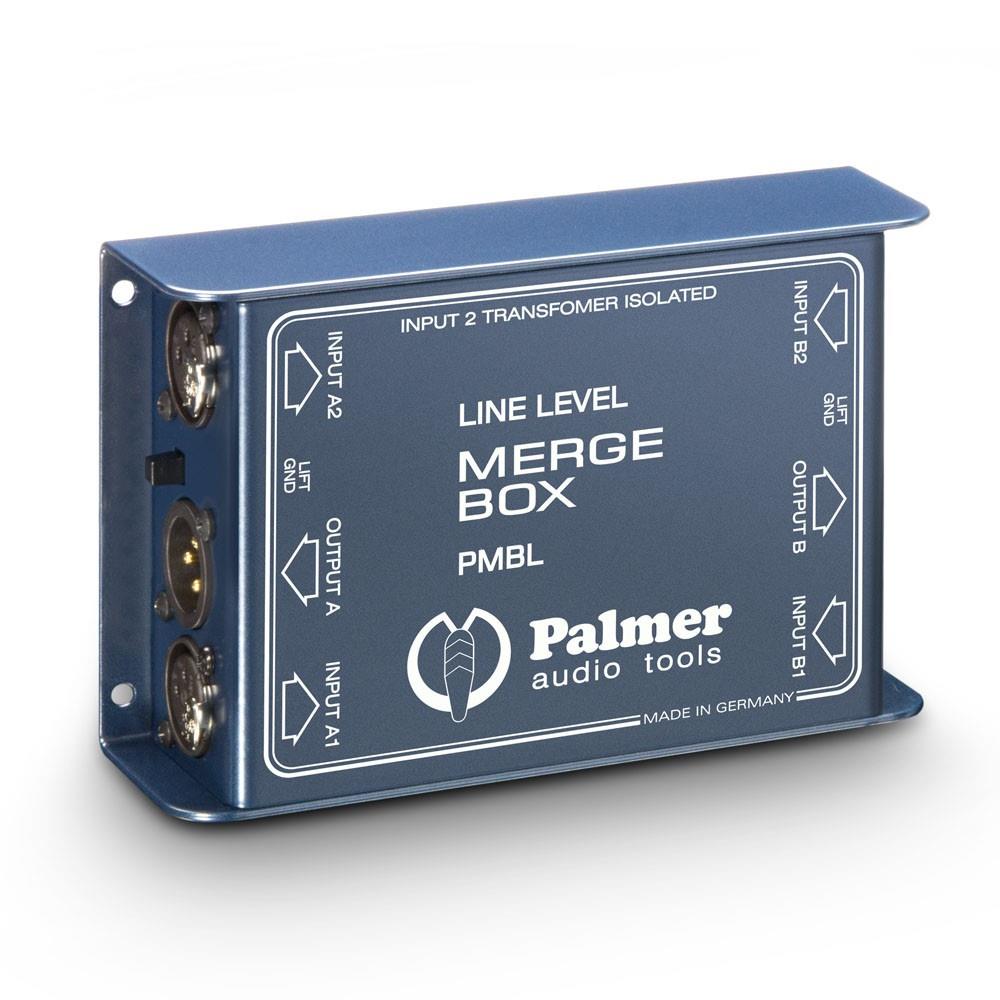

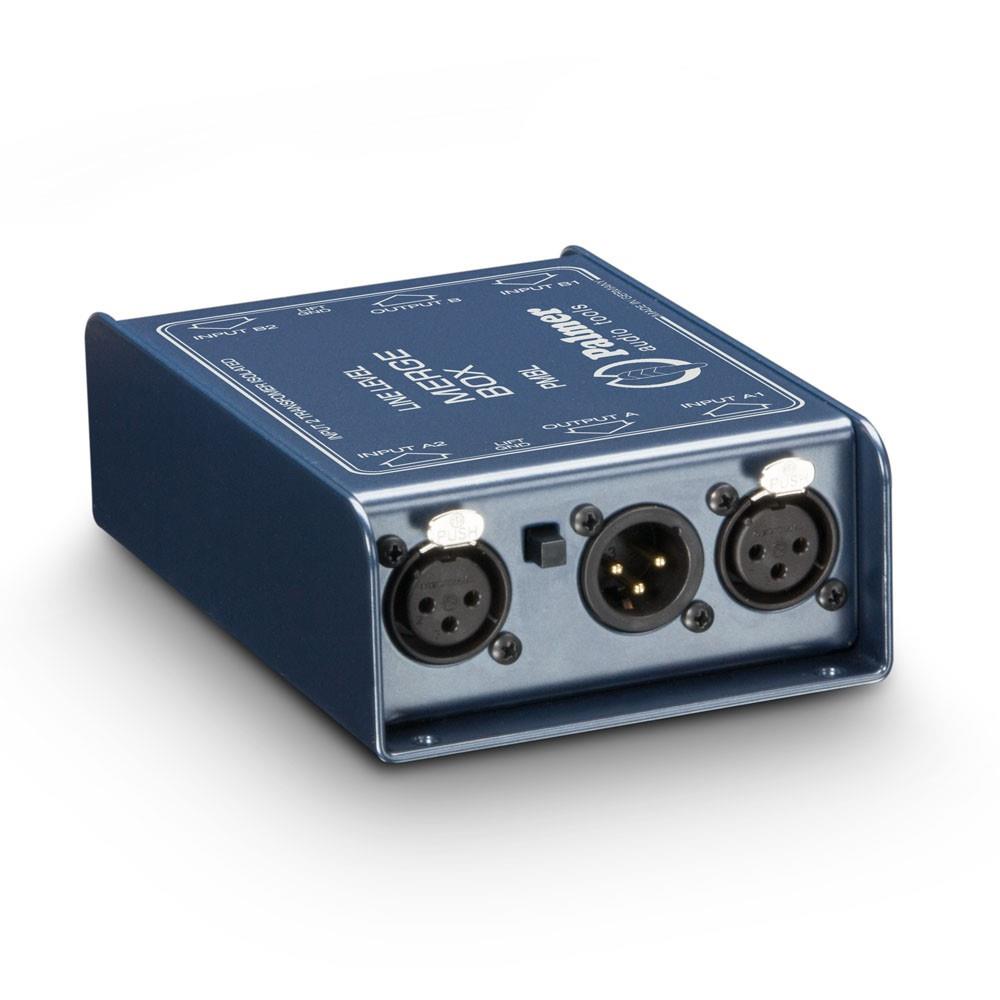

The PMBL is a 2 channel passive line level merge box. Each channel has 2 balanced XLR/f inputs.
Description:

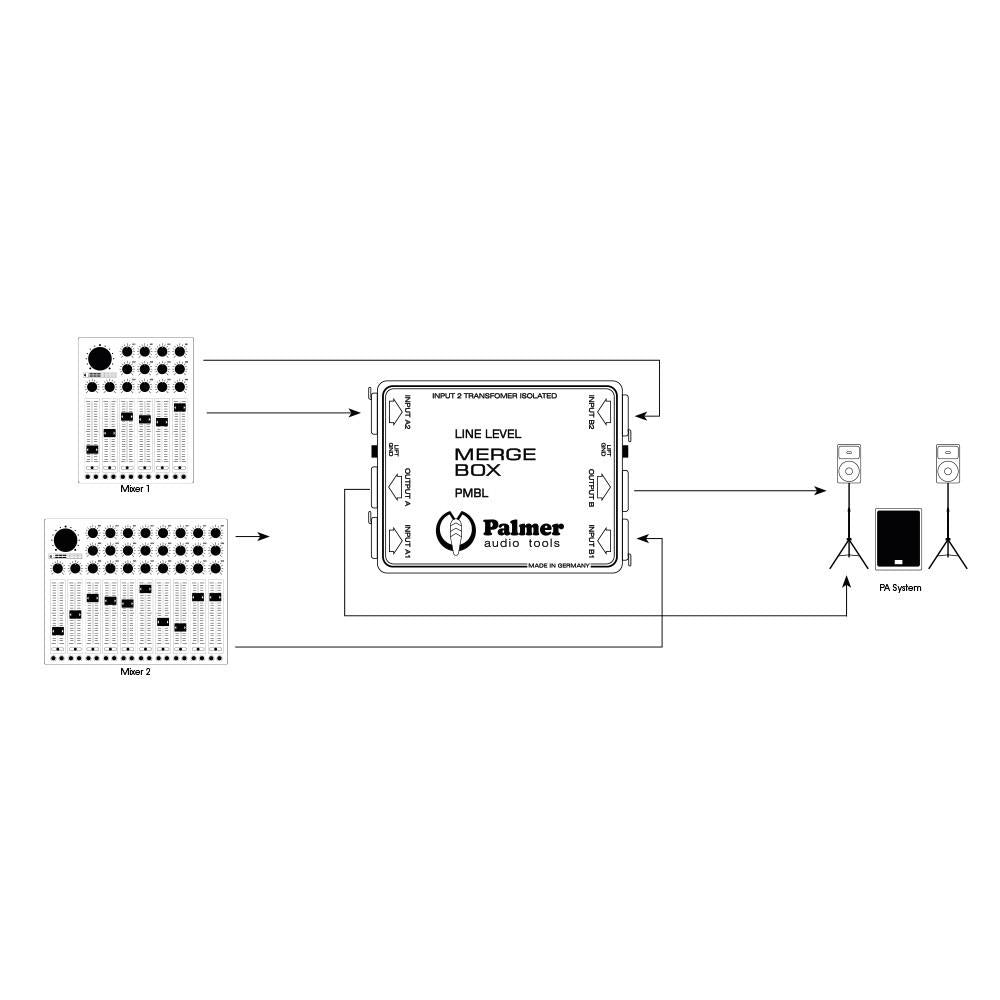

The PMBL is a 2 channel passive line level merge box. Each channel has 2 balanced XLR/f inputs. The input signal is merged via a resistor network to a XLR/m output.The top side input is transformer isolated. Possible applications might be the routing of two mixing desks to one power amp or mixing a stereo signal down to mono. Our transformer technology allows for an unbalanced top side input to be sent out balanced.
Specifications:
Type passive
Inputs 4
Input connectors XLR
Input impedance 2 k Ohm(s)
Outputs 2
Output connectors XLR
Output impedance 600 Ohm(s)
Max. output level +20 dBu (balanced) dBu
Controls ground lift
Width 110 mm
Depth 125 mm
Height 38 mm
Cabinet material Die-cast aluminium
Cabinet surface Powder coated
Weight 0,6 kg
