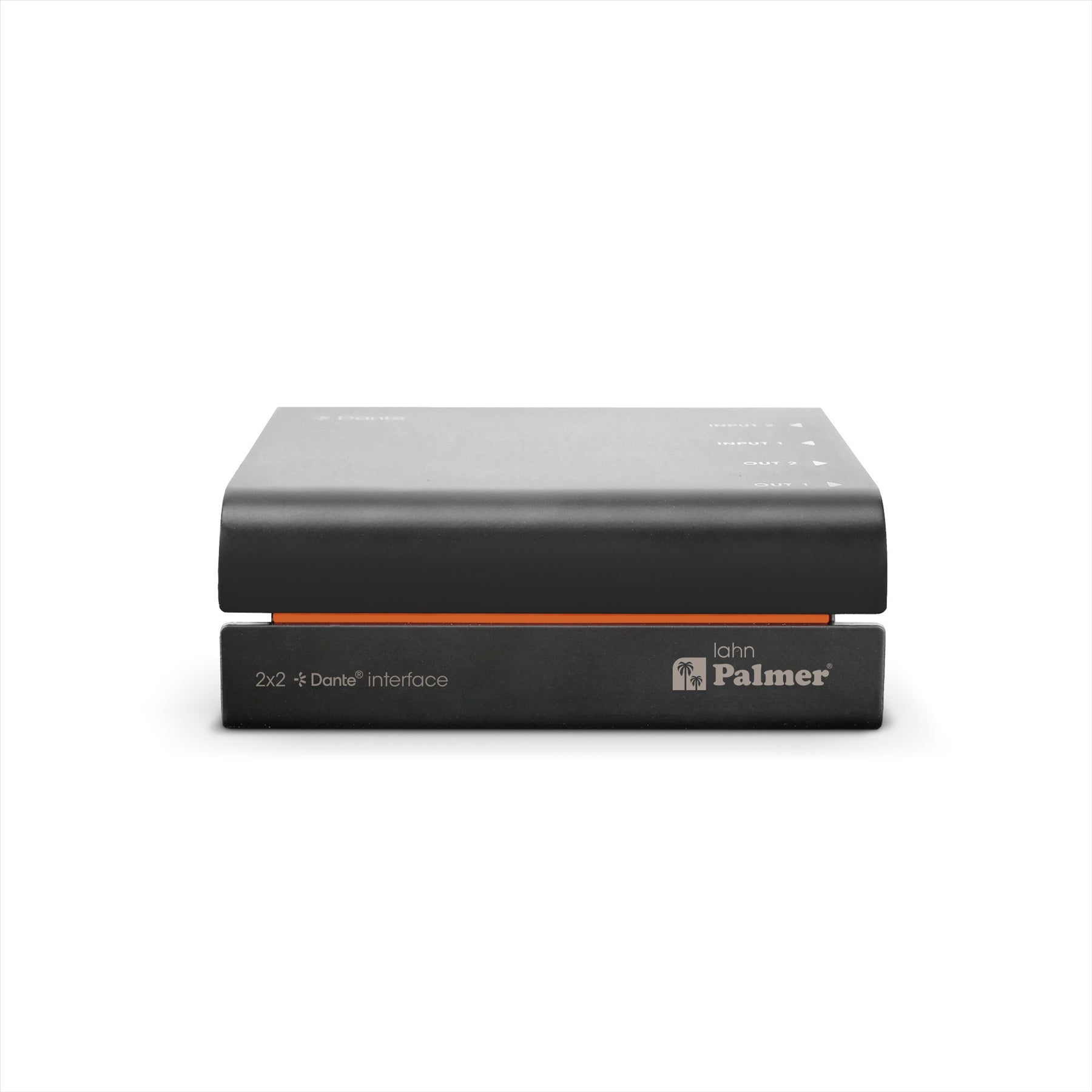

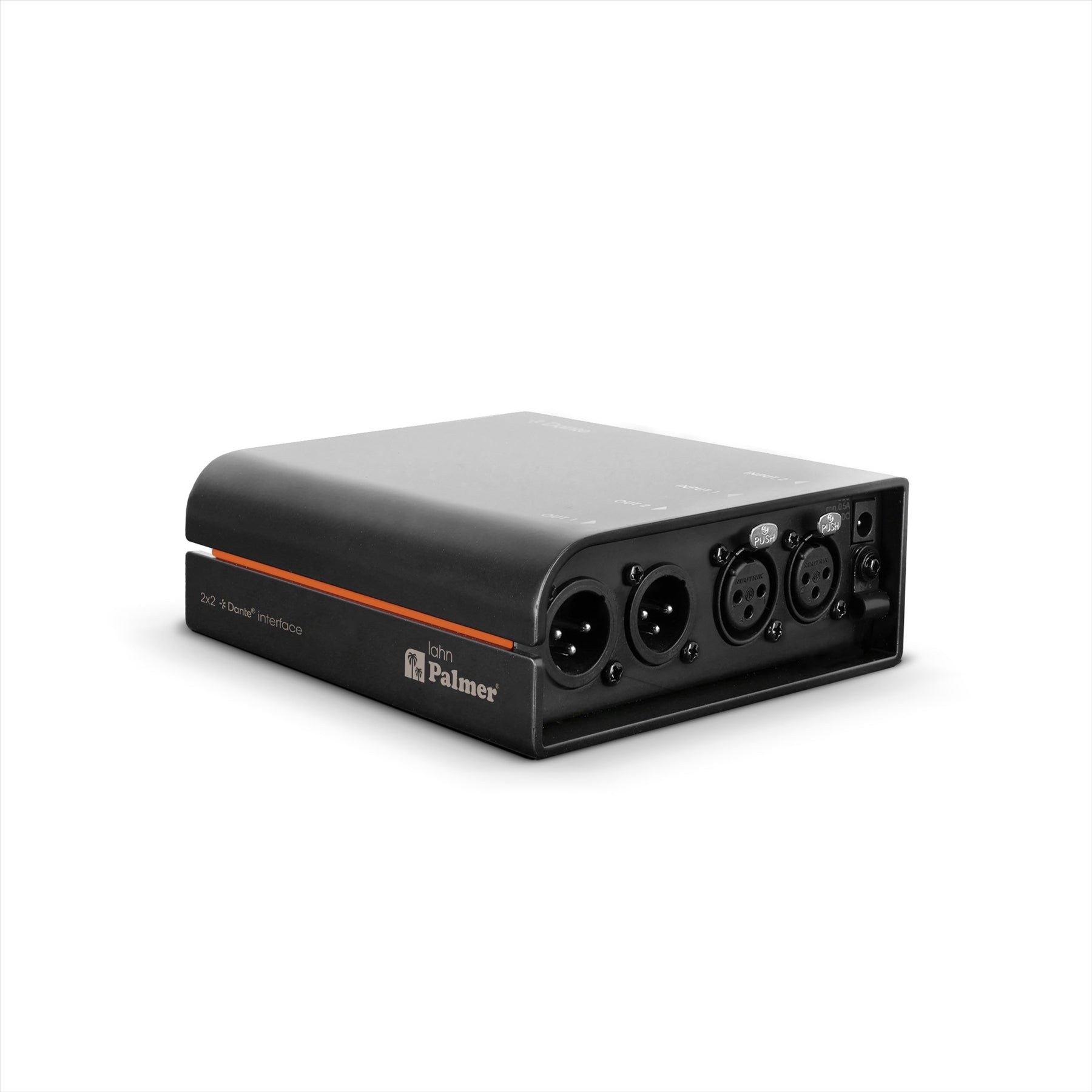

Palmer RIVER lahn 2x2 Dante® Interface

The Palmer RIVER lahn is a compact, professional-grade 2x2 Dante® interface designed for seamless integration of analogue audio equipment into digital Dante® networks. With two inputs and two outputs, it provides bidirectional conversion—feeding analogue mic or line signals into a Dante® network and converting Dante® signals into balanced analogue audio for amplifiers, mixers, or loudspeakers.

Each channel offers four-stage gain control and switchable 48V phantom power, allowing precision setup for a wide range of devices. The unit features secure, lockable XLR connections and a robust Neutrik® etherCON® socket for reliable network connectivity. Configuration is simple via front-panel controls, and a user lock helps prevent unauthorized changes in public or professional installations.

Status LEDs provide visual signal confirmation per channel, ensuring quick monitoring. Compatible with Dante® Domain Manager and AES67, the RIVER lahn supports both local 24V DC power and PoE (Power over Ethernet), offering maximum installation flexibility. Built with a rugged aluminium chassis and steel faceplate, it's engineered in Germany for durability in touring or fixed installations.

Features
2x2 Dante® interface
Bidirectional audio conversion (analogue <-> Dante®)
2 mic/line inputs with four-stage gain and 48V phantom power
2 analogue outputs from Dante® network

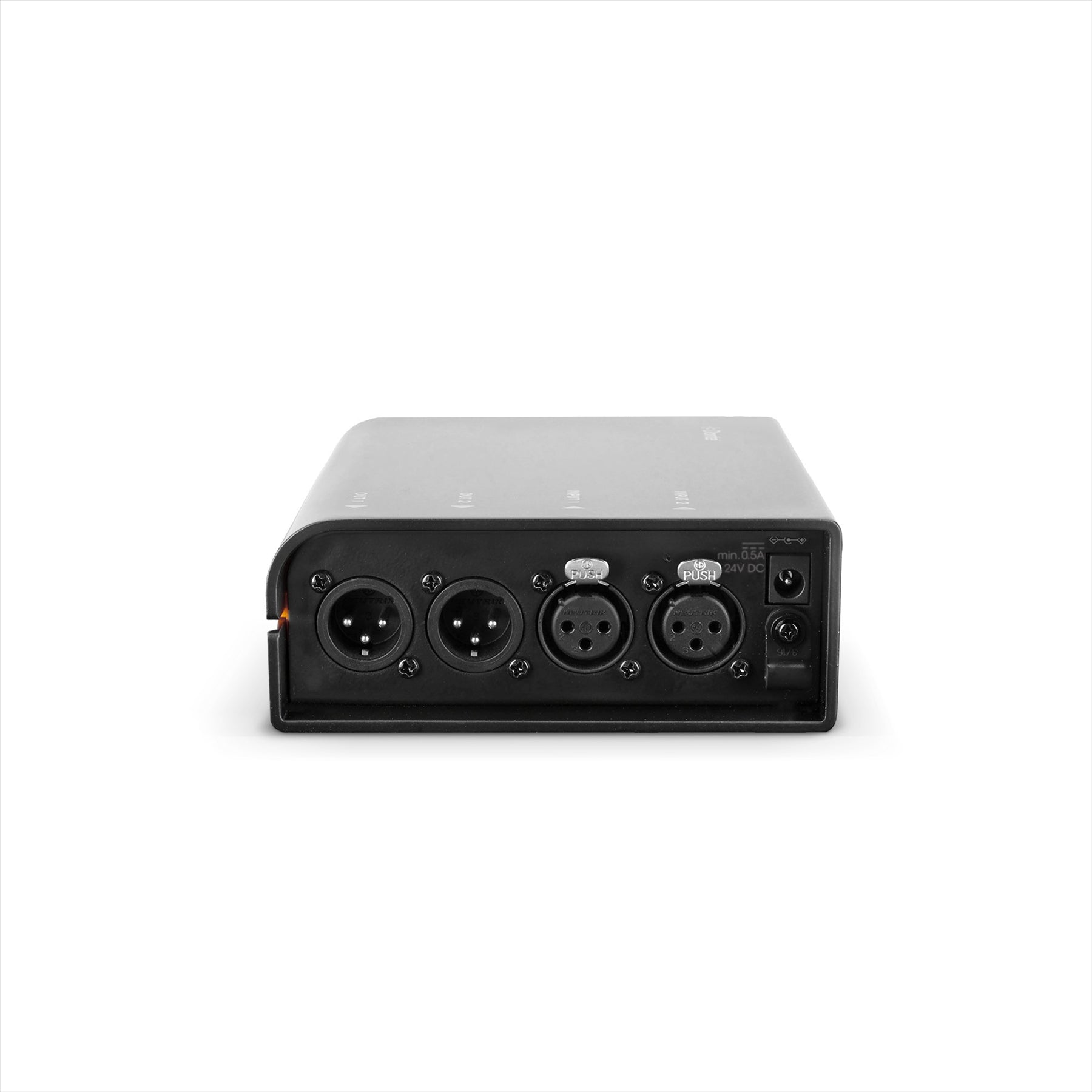

Lockable XLR and Neutrik® etherCON® network connections

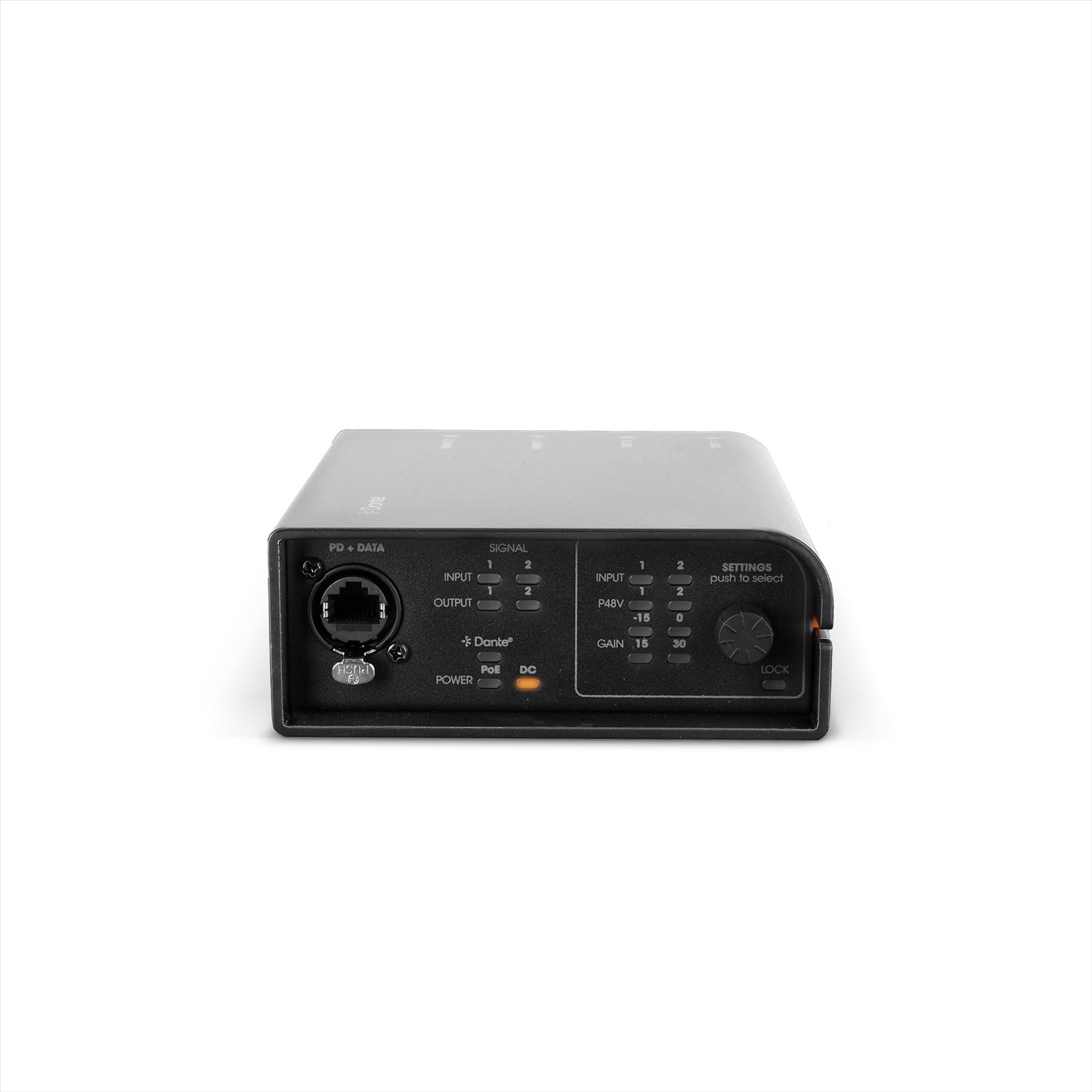

Front-panel signal status LEDs per channel
User lock feature for installation security
Compatible with Dante® Domain Manager and AES67
Supports PoE and 24V DC power
Includes external power supply and interchangeable plugs
Engineered in Germany
Aluminium and steel construction for rugged durability

Specifications
Input Voltage: 24 V DC
Minimum Current: 500 mA
Max. Power Consumption: 12 W
Idle Power Consumption: 7.5 W (no signal input)
Power Connector: 5.5 mm Barrel Jack, inner 2.1 mm
Mains Inrush Current: 2 A @ 230 V AC
Operating Temperature: 0°C – 40°C (non-condensing, <85% humidity)
Material: Aluminium chassis, steel front panel
Dimensions (W x H x D): 128 x 50 x 140 mm (with rubber feet)
Weight: 0.96 kg
Accessories Included: External power supply with interchangeable plugs, tour label (inscription label)

The Palmer RIVER lahn ensures precise, dependable audio signal management in Dante® systems, perfect for live sound, broadcast, and installed AV environments.
