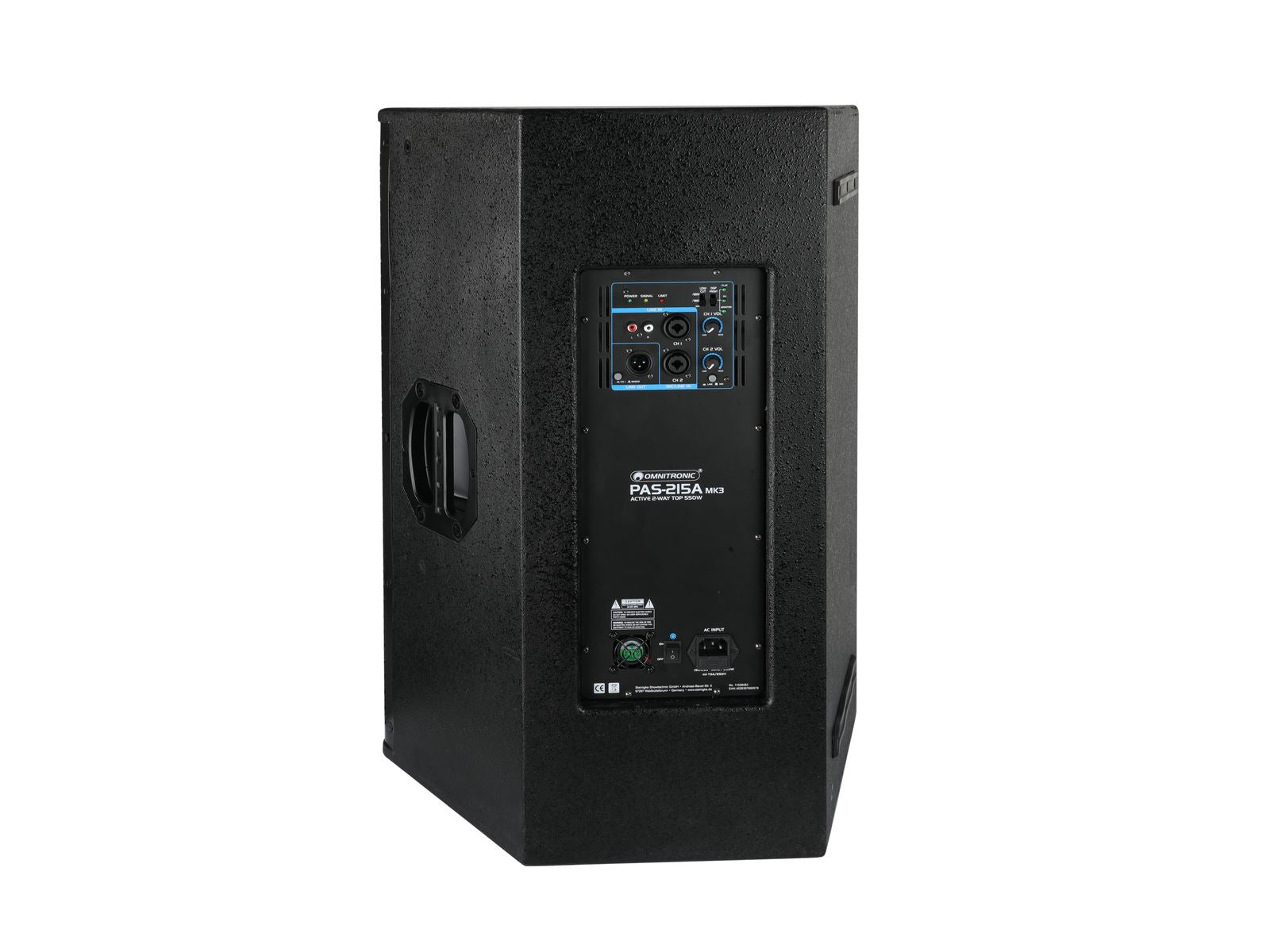

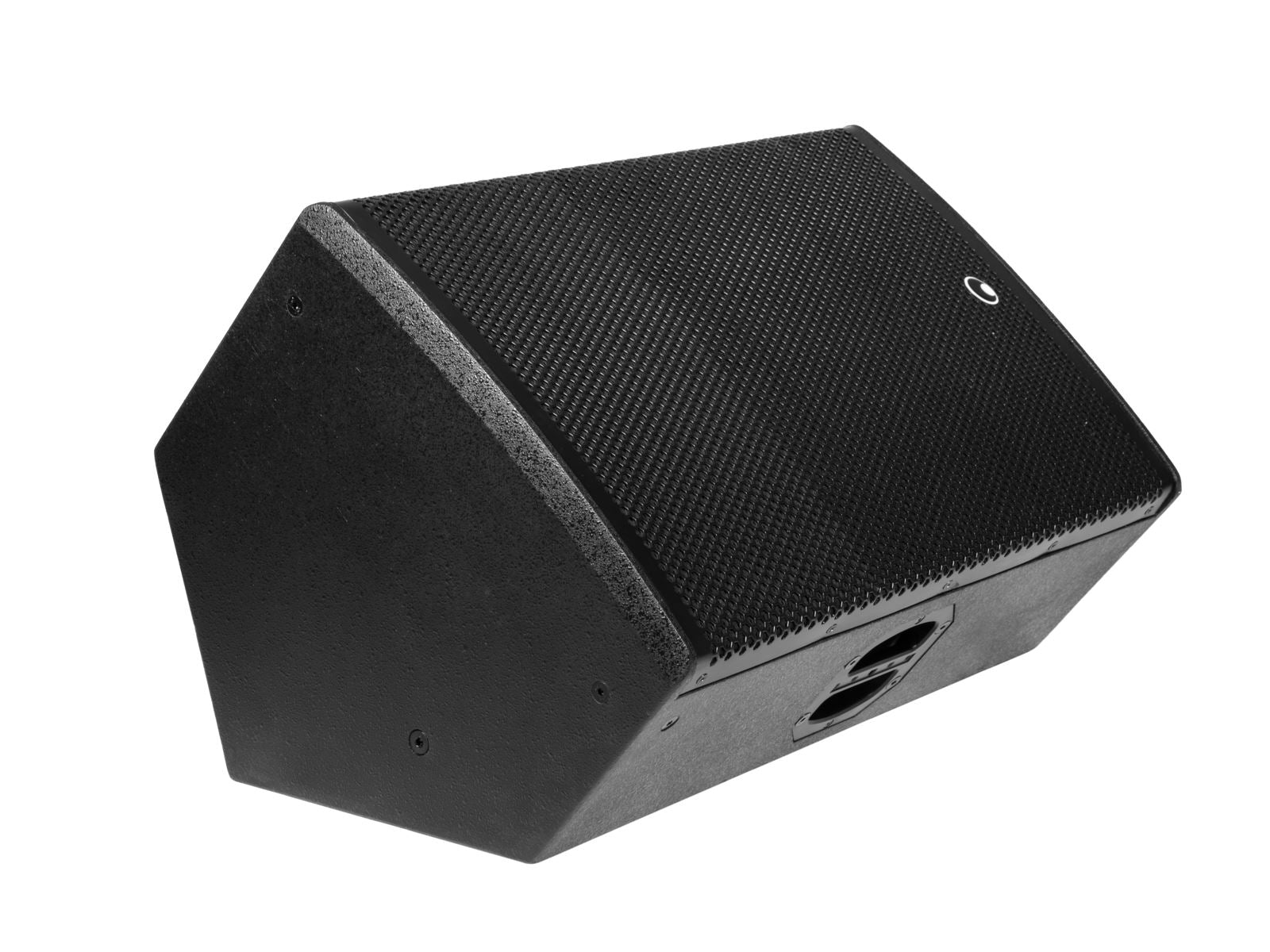

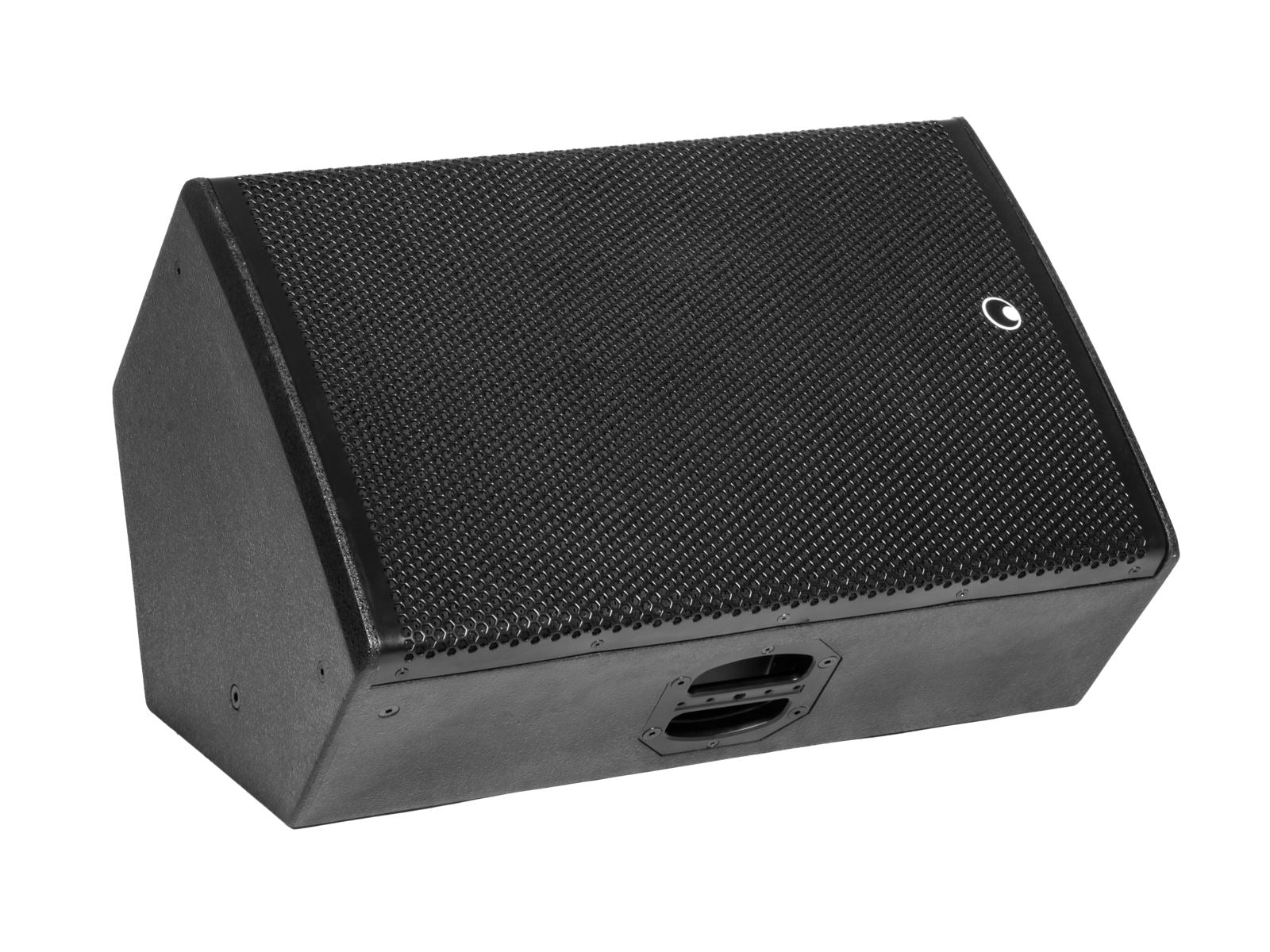

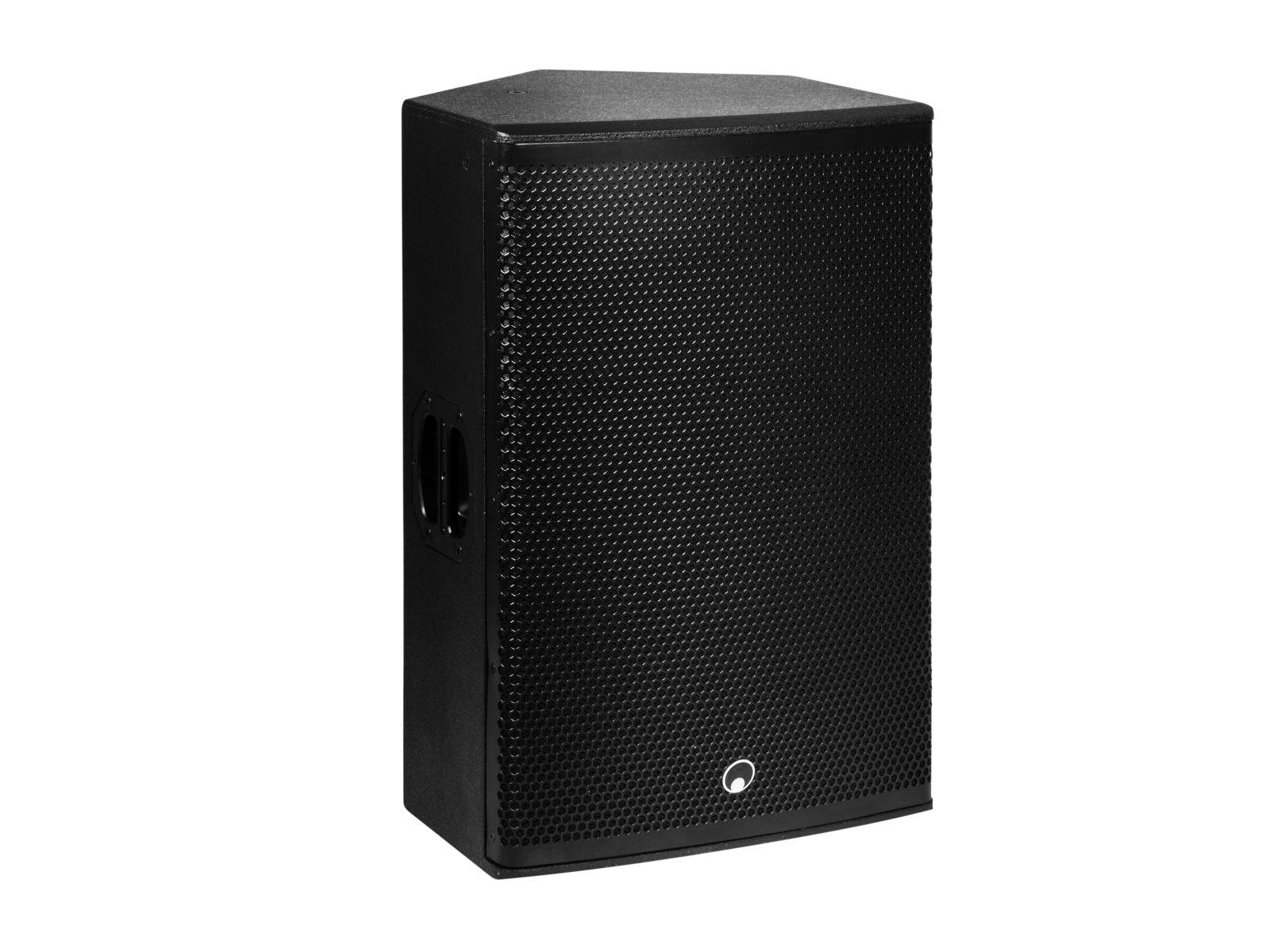

Omnitronic Pas-215A Mk3 2-Way Top, Active, Dsp

Active 15" PA speaker with DSP presets, 2 input channels, 550 W RMS
Vendor: Omnitronic
SKU: 154-11039483
Icon In Stock In Stock
Icon Delivery Time


Active 15" PA speaker with DSP presets, 2 input channels, 550 W RMS

  • Active PA speaker system for touring applications and permanent installations

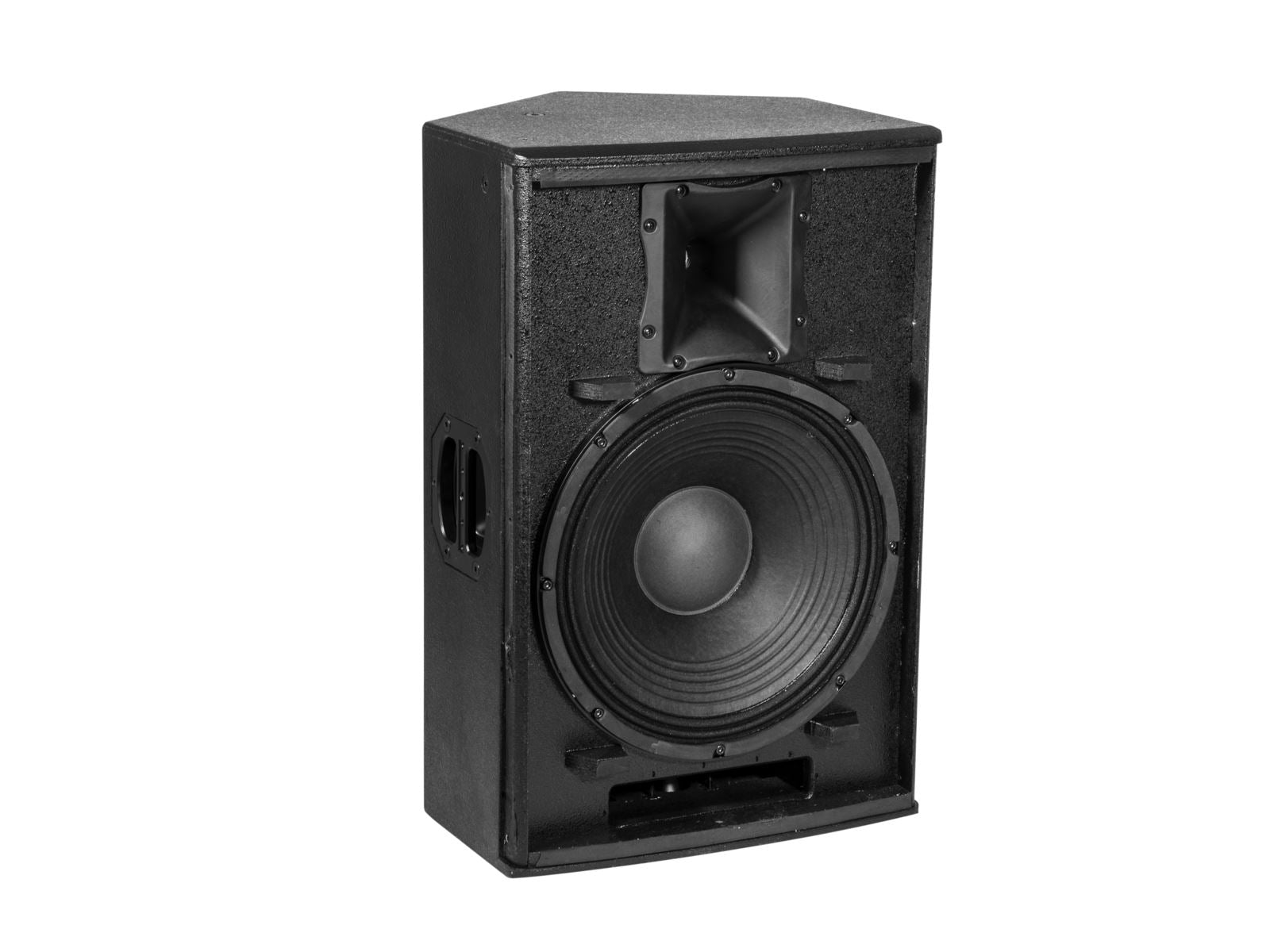

  • 2-way bassreflex enclosure with 38 cm woofer and 2.5 cm compression driver
  • DSP-controlled class D amplifier with 550 watts power
  • 3 EQ presets with indicators (DJ, monitor, flat)
  • Switchable low cut (120 Hz, 90 Hz)
  • Switch-on delay and limiter for overload protection
  • Limit, signal and power LED
  • 1 adjustable line input via XLR/6.3mm combo jack and RCA
  • 1 adjustable mic/line input via XLR/6.3mm combo jack
  • XLR output for linking further active speaker systems, switchable CH 1/CH 2
  • Optimized for combination with PAS subwoofers
  • Trapezoidal, multi-functional multiplex cabinet with monitor shape
  • Scratch-resistant lacquer surface
  • Aluminum alloy handlebars
  • Impact-resistant steel grille with acoustic foam
  • M8/M10 threaded inserts for suspended installation
  • Dual flange with 0? and 5? tilt angle enables flexible positioning
  • Applications: standing, as monitor, on a subwoofer or speaker stand, suspended
  • Digital signal processor

Power supply: 230 V AC, 50 Hz
Power consumption: 650 W
Output power: 550 W RMS
Power connection: Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Frequency range: 50 - 20000 Hz
Max. SPL: 127 dB
DSP: Digital signal processor
Dispersion angle: 90? x 60?
Attachment system: ? 35mm variable tilt
Flying points: 4 x M10 thread; 6 x M8 thread
Circuitry: Class D
Connections: Input: 2 x via 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: 1 x via stereo RCA
Link: via 3-pin XLR
Input channels: 1 x mono with Mic-line switch via XLR or RCA, channel control via Rotary knob
1 x mono with Mic-line switch via XLR, channel control via Rotary knob
Speakers: 1 x compression tweeter highs (1") approx 2,5 cm with ferrit magnet
Basket material: aluminum
Voice coil compression tweeter highs (1.5") approx 4 cm
Horn vent (1") approx 2,5 cm
1 x woofer (15") approx 38 cm
Voice coil lows (3") approx. 8 cm
Type of speaker: Compact cabinet speaker
Material: Birch multiplex
Color: Black, painted
Dimension: Width: 45 cm
Depth: 69.5 cm
Height: 43.5 cm
Weight: 26.30 kg
