Omnitronic Pas Mk3 Performer Set

£3,311.00
£3,311.00

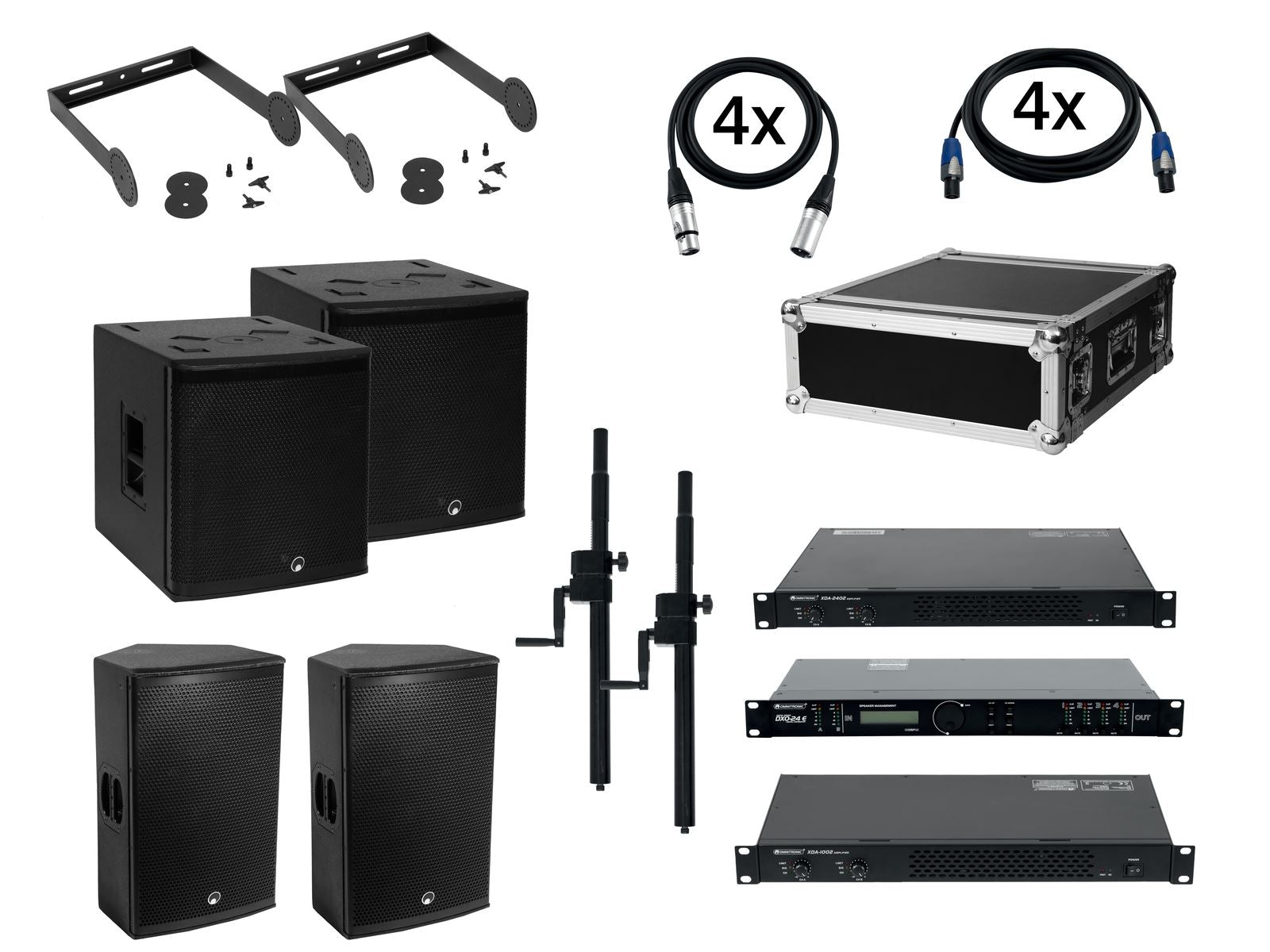

2x subwoofer, 2x 2-way top, 2x distance tube, 2x power amp, flightcase and 8x connection cables
Vendor: Omnitronic
SKU: 154-20000745
Icon Out of Stock Out Of Stock

Description


2x subwoofer, 2x 2-way top, 2x distance tube, 2x power amp, flightcase and 8x connection cables

11039486 OMNITRONIC PAS-151 MK3 Subwoofer

Passive 15" bassreflex subwoofer with 700 W RMS, 8 ohms

  • Rugged Pro PA subwoofer
  • 38 cm (15") bass speaker
  • Parallel Speaker connectors
  • Rugged multiplex cabinet
  • Scratch-resistant lacquer surface
  • Metal handlebars
  • Impact-resistant steel grille with acoustic foam
  • Flange for mounting top speakers
  • Transport aid: Wheels optional

11039478 OMNITRONIC PAS-212 MK3 2-Way Top

Passive speaker with 12" woofer, 1" driver and 300 W RMS

  • Rugged full-range top speaker, qualified for suspension
  • Trapezoidal, multi-functional multiplex cabinet with scratch-resistant lacquer surface
  • 2-way bass-reflex system with 30 cm woofer (8 cm voice coil)
  • 2.5 cm compression driver with ferrite magnet (3.8 cm voice coil with polymer diaphragm)
  • Parallel Speaker connections
  • Optimized for combination with PAS subwoofers
  • Dual flange with 0? and 5? tilt angle enables flexible positioning
  • M8 threaded inserts for suspended installation
  • Protective grille and recessed aluminum handlebars
  • Applications: standing, on a subwoofer or speaker stand, suspended

60004559 OMNITRONIC Distance Tube Subwoofer/Satellite with Crank

Variable distance tube (M20 thread), height adjustable via crank 80-110 cm

  • Connecting tube for satellite systems
  • Height adjustable via crank 80-110 cm
  • M20 thread
  • Powder-coated steel version
  • Color: black

10451635 OMNITRONIC XDA-1002 Class D Amplifier

Stereo PA amplifier with SMPS, 2 x 510 W / 4 ohms, 2 x 300 W / 8 ohms

  • Stereo PA amplifier with class D circuitry
  • Low weight and height due to integrated switch mode power supply
  • Speaker switch-on delay and auto limiters
  • 2 operating modes can be selected (stereo or bridged)
  • 2 level controls
  • LEDs for activated protective circuit, limiter, signal, and power
  • Complete protection set against short-circuit, overheat, DC voltage, power on/off transients, soft start
  • Ground lift switch against humming
  • Electronically balanced inputs via XLR mounting jacks with feed-through output
  • Speaker outputs via lockable speaker jacks
  • The device is cooled by cooling fan
  • (19") 48.3 cm rack installation 1 U

10451636 OMNITRONIC XDA-2402 Class D Amplifier

Stereo PA amplifier with SMPS, 2 x 1200 W / 4 ohms, 2 x 880 W / 8 ohms

  • Stereo PA amplifier with class D circuitry
  • Low weight and height due to integrated switch mode power supply
  • Speaker switch-on delay and auto limiters
  • 2 level controls
  • LEDs for activated protective circuit, limiter, signal, and power
  • Complete protection set against short-circuit, overheat, DC voltage, power on/off transients, soft start
  • Ground lift switch against humming
  • Electronically balanced inputs via XLR mounting jacks with feed-through output
  • Speaker outputs via lockable speaker jacks
  • The device is cooled by cooling fan
  • (19") 48.3 cm rack installation 1 U

10356321 OMNITRONIC DXO-24E Digital Controller

Digital stereo active crossover with 2 inputs and 4 outputs, incl. software

  • Flexible routing configurations for all standard mono and stereo output operating modes
  • 2 analog inputs and 4 analog outputs (XLR)
  • Active frequency filter types (Bessel, Butterworth and Linkwitz-Riley) with slopes up to 24 dB/octave split up the audio signal into different frequency bands
  • Incl. software editor (for PC and Mac) for remote control via computer through USB interface: store, transfer, and manage your presets
  • Up to 30 user presets storable in the device via software
  • Alphanumeric LCD screen with 2 lines of 16 characters each
  • Input sensitivity digitally adjustable
  • Inputs and outputs with 4-digit LED level meter as well as clip and limit LED indicator
  • Mute switch with LED indicator per output
  • 7-band parametric EQ per output
  • Up to 7 ms signal delay adjustable for the outputs
  • Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
  • Switchable phase
  • Lock function for protecting the program settings
  • Windows XP, Vista, 7, 10 and Mac OS X 10.5.8 and better
  • Digital signal processor
  • The device can be connected via USB to the PC in connection with DXO Software
    The firmware can be updated via the PC connection
  • (19") 48.3 cm rack installation 1 U

30109784 ROADINGER Amplifier Rack PR-2, 4U, 47cm deep

Flightcase for 483 mm units (19")

  • Profile rails with 4 U mounting facility for 483 mm units (19"), e.g. PA amplifiers, power packs, additional equipment
  • Front and rear rack rails
  • 2 removable covers (double-door version)
  • Max. depth 420 mm (plus 90 mm per cover)
  • High-quality workmanship with plywood multilayered glued, black laminated
  • Aluminum profile frames (30 mm) with rounded edges
  • Three-leg, medium-sized steel ball corners
  • 4 high-quality butterfly locks (w/o locking function)
  • 2 wooden slide rails on the bottom
  • 2 chrome case handles
  • Delivery includes mounting screws
  • Available in different height units (1 U = 44 mm)
  • 4 U

30227912 PSSO Speaker cable Speakon 2x2.5 10m bk

High-quality speaker cable

  • With Neutrik plugs from Liechtenstein
  • Cable from German production
  • 2 pole speaker cable
  • With Neutrik Speakon cable plugs
  • Cable cross-section: 2.5 mm?
  • Cable length: 10 m
  • Cable diameter: 8 mm
  • Weight: 1 kg

30227840 PSSO XLR cable 3pin 1m bk Neutrik

Dependable microphone cable

  • High quality connection for microphones etc.
  • High conductivity
  • Slim and short construction
  • Made in Germany


Weight: 142.67 kg
11039486 OMNITRONIC PAS-151 MK3 Subwoofer
Rated power: 700 W RMS
Program power: 1400 W
Frequency range: 40 - 200 Hz
Sensitivity: 97 dB (1W/1m)
Max. SPL: 127 dB
Impedance: 8 Ohm
Connections: Input: 2 x speakers via speaker built-in socket (f)
Speakers: 1 x woofer (15") approx 38 cm with ferrit magnet
Basket material: aluminum
Voice coil lows (4") approx. 10 cm
Type of speaker: Subwoofer
Type: Vented
Material: Birch multiplex
Color: Black, painted
Dimension: Width: 46 cm
Depth: 56 cm
Height: 52 cm
Weight: 31.25 kg
11039478 OMNITRONIC PAS-212 MK3 2-Way Top
Rated power: 300 W RMS
Program power: 600 W
Frequency range: 60 - 20000 Hz
Sensitivity: 98 dB (1W/1m)
Max. SPL: 126 dB
Dispersion angle: 90? x 60?
Crossover frequency: 3000 Hz
Impedance: 8 Ohm
Attachment system: ? 35mm variable tilt
Flying points: 4 x M10 thread; 6 x M8 thread
Connections: Input: 2 x speakers via speaker built-in socket (f)
Speakers: 1 x compression tweeter highs (1") approx 2,5 cm
Basket material: aluminum
Voice coil compression tweeter highs (1.5") approx 4 cm
Horn vent (1") approx 2,5 cm
1 x woofer (12") approx 30 cm with ferrit magnet
Voice coil lows (3") approx. 8 cm
Type of speaker: Compact cabinet speaker
Material: Birch multiplex
Color: Black, painted
Dimension: Width: 39 cm
Depth: 61.5 cm
Height: 38 cm
Weight: 20.60 kg
60004559 OMNITRONIC Distance Tube Subwoofer/Satellite with Crank
Maximum carrying capacity: 35 kg
Height: Maximum: 1.1 m
Minimum: 0.8 m
Attachment system: ? 35mm
Type (general stands): Distance tube
Color: Black
Weight: 2.80 kg
11039545 OMNITRONIC Swing Bracket for PAS-212 MK3
Weight: 3.75 kg
10451635 OMNITRONIC XDA-1002 Class D Amplifier
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 210 W 1/8 power
Output power: 2 x 300 W RMS (8 ohms)
2 x 510 W RMS (4 ohms)
1000 W RMS bridged (8 ohms)
Power connection: Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)
Frequency range: 30 - 20000 Hz
S/N ratio: >100 dB
THD: <0.02 % at 1 kHz
Cooling: Cooling fan
Impedance: Input 20 kOhm , bal.
Input 10 kOhm , unbal.
Gain: 36 dB
Circuitry: Class D
Control elements: Power switch, level control per channel, mode switch (stereo/bridged), groundlift selector
Controls: Short-circuit; overheat; DC voltage; power on/off transients; softstart; power on/off transient; limiter
Status LED: Power, signal, protect, limit
Connections: Input: 2 x line via 3-pin XLR
Link: 2 x line via 3-pin XLR
Output: 2 x speakers via speaker built-in socket (f)
Input sensitivity: 1.25 V
Housing design: (19") 48.3 cm rack installation 1 U
Dimension: Width: 48.3 cm
Depth: 24 cm
Height: 4.45 cm
Weight: 4.03 kg
10451636 OMNITRONIC XDA-2402 Class D Amplifier
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 465 W 1/8 power
Output power: 2 x 880 W RMS (8 ohms)
2 x 1200 W RMS (4 ohms)
Power connection: Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)
Frequency range: 30 - 20000 Hz
S/N ratio: >100 dB
THD: <0.02 % at 1 kHz
Cooling: Cooling fan
Impedance: Input 20 kOhm , bal.
Input 10 kOhm , unbal.
Circuitry: Class D
Control elements: Power switch, level control per channel, groundlift selector
Controls: Short-circuit; overheat; DC voltage; power on/off transients; softstart; power on/off transient; limiter
Status LED: Power, signal, limit, protect
Connections: Input: 2 x line via 3-pin XLR
Link: 2 x line via 3-pin XLR
Output: 2 x speakers via speaker built-in socket (f)
Input sensitivity: 1.25 V
Housing design: (19") 48.3 cm rack installation 1 U
Dimension: Width: 48.3 cm
Depth: 35.5 cm
Height: 4.45 cm
Weight: 6.40 kg
10356321 OMNITRONIC DXO-24E Digital Controller
Power supply: 100-240 V AC, 50/60 Hz
6 V DC 800 mA
Power connection: Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Frequency range: 10 - 30000 Hz
THD: <0.005 % at 1 kHz
DSP: Digital signal processor
Crossover frequency: 20-20000 Hz
Impedance: Input 10 kOhm
Output 50 Ohm
Gain: Output: -50 dB to +12 dB
Filter: Linkwitz-Riley; Butterworth; Bessel; 6db/oct; 12db/oct; 18db/oct; 24db/oct
Delay: 0 - 5 ms
Dynamic range: Input: 114 dB
Output: 110 dB
Sample rate: 67 kHz
Connections: Input: 2 x line via 3-pin XLR
Output: 4 x line via 3-pin XLR
Max. level: Input: +22 dBu
Output: +9 dBu
USB port: Typ B
PC connect: DXO Software via USB, firmware can be updated
Housing design: (19") 48.3 cm rack installation 1 U
Dimension: Width: 48.3 cm
Depth: 12.8 cm
Height: 4.45 cm
Weight: 1.60 kg
30109784 ROADINGER Amplifier Rack PR-2, 4U, 47cm deep
Maximum load: 25 kg
Material: Glued plywood, 7 mm
Color: Black, laminated
Outer dimensions/corners approx.: 64 mm
Mounting width: (19") 48.3 cm rack installation
Mounting height: Approx. 18 cm (4 U)
Mounting depth: 420 mm
Housing design: 4 U
Dimension: Width: 54.5 cm
Depth: 64 cm
Height: 22 cm
Weight: 9.40 kg
30227912 PSSO Speaker cable Speakon 2x2.5 10m bk
Cable construction: 2 x 2.5 mm? Loudspeaker cable
Cable length: 10 m
Plug A: 1 x 2-pin speakON (M)
Plug B: 1 x 2-pin speakON (M)
Use of brands: NEUTRIK
Color: Black
Weight: 1 kg
30227840 PSSO XLR cable 3pin 1m bk Neutrik
Cable construction: 2 x 0.22 mm? Audio cable
Cable length: 1 m
Plug A: 1 x 3-pin XLR (M)
Plug B: 1 x 3-pin XLR (F)
Use of brands: NEUTRIK
Color: Black
Weight: 0.11 kg

Delivery & Returns

Free Delivery

This is offered on all products regardless of order value to all mainland UK postcodes. Your purchase will be with you within 3 working days of your order being placed. If you are in the Scottish Highlands, Northern Ireland, Isle of Man and the Channel Isles you will still get free delivery but your order may take up to 5 working days to get to you.

I need my products quickly- can you help?

Absolutely! At check out you can select the option that suits you best.
We offer Next day, Saturday, Pre-10am and Pre-12pm delivery.
Unfortunately these options are not yet available for customers in the Scottish Highliands, Northern Ireland, Isle of Man and the Channel Isles.

When is the cut off for Next day delivery?

If you place your order before 2pm Monday- Friday, we will dispatch the same day.

For more information, including International delivery please click here.

Returns

Our returns department aims to help you as quickly as possible with any issues you may have with your product.

Please click here for more information on returning products.

Related Products
