Penn Elcom 2U 32A Two Channel Rack Mount PDU with 32A Input & 2x Powercon 16A Output Power Distro
- £399.00
- £399.00
- Unit price
- per
iFrame
Description

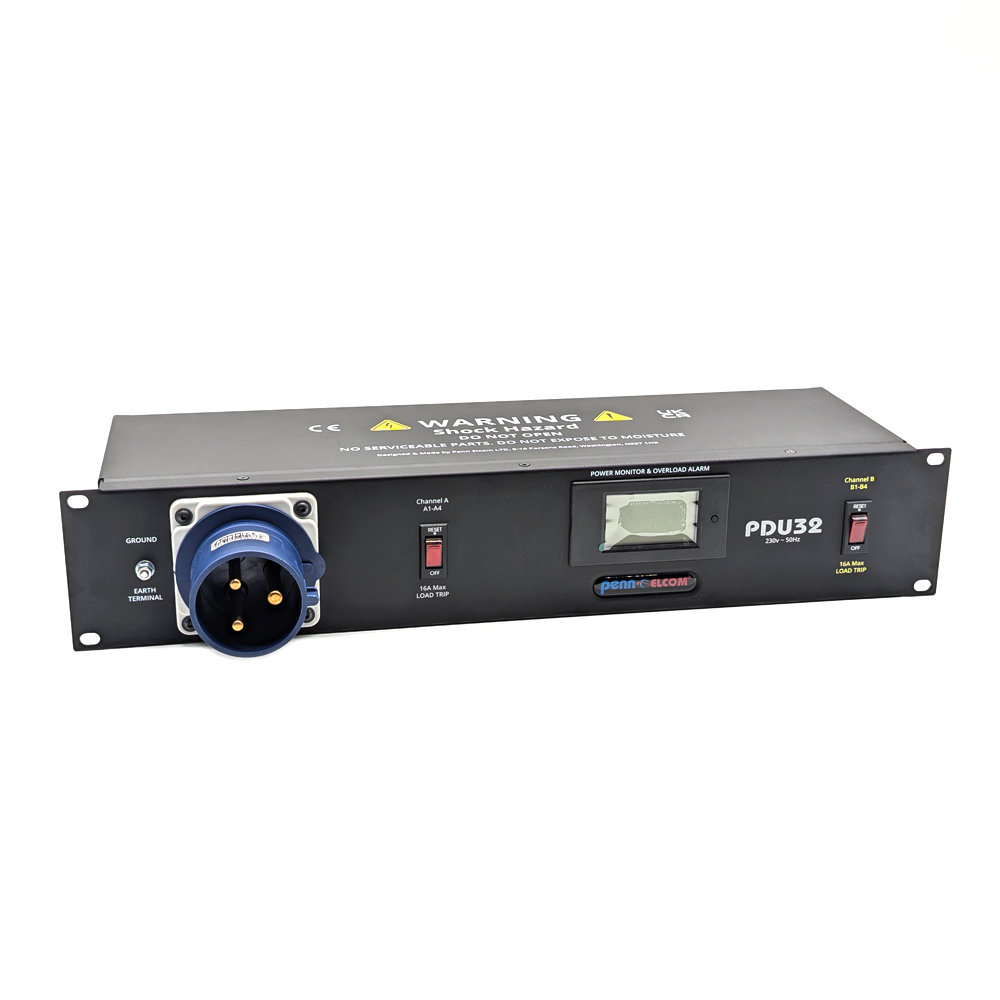

2U 19” Rack Mount Power Monitoring Distribution Unit. 32 Amp Input – 2x Banks on 16 Amp Outputs.
The PDU has 32A input breaking out on two banks, with four PowerCon connectors each bank with 16 Amp thermal breakers all with Power Monitoring. Tailor made for Audio Visual, Theatre Multimedia & Touring rack applications.
Input: 32 Amp 240v C-Form single-phase blue connector IP44

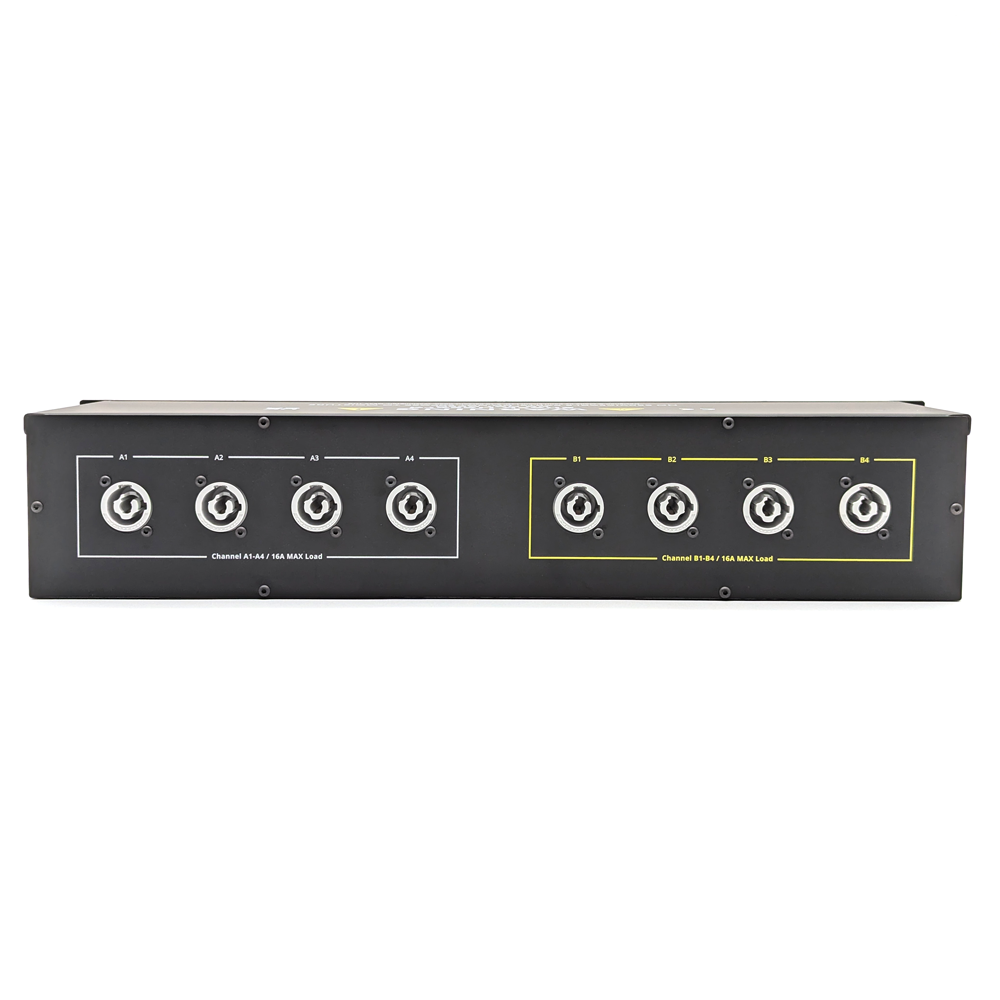

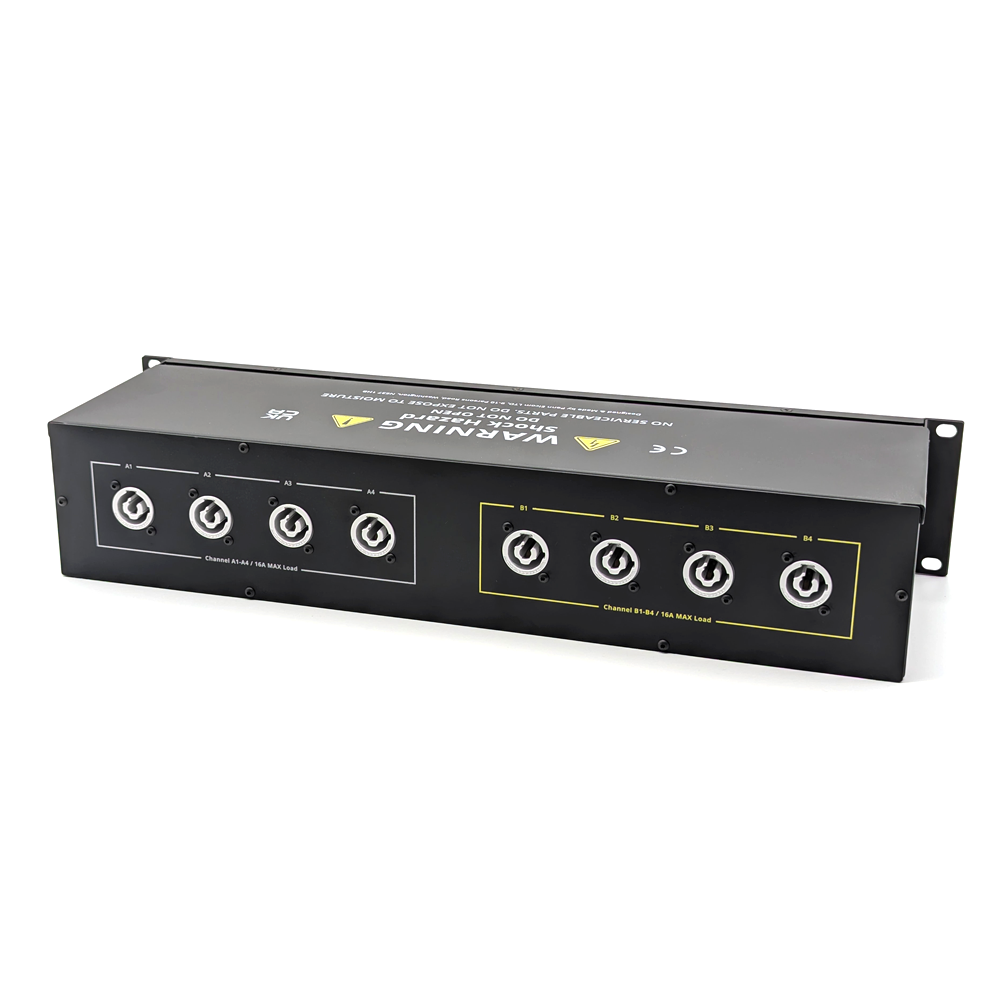

Channel / Circuit A Output: Combined load of 16 Amps drawn across 4 x PowerCon, NAC3MPXXB (CONAC3MPXXB) on 16 Amp Overload protection.
Channel / Circuit B Output: Combined load of 16 Amps drawn across 4 x PowerCon, NAC3MPXXB (CONAC3MPXXB) on 16 Amp Overload protection.
Also Includes:

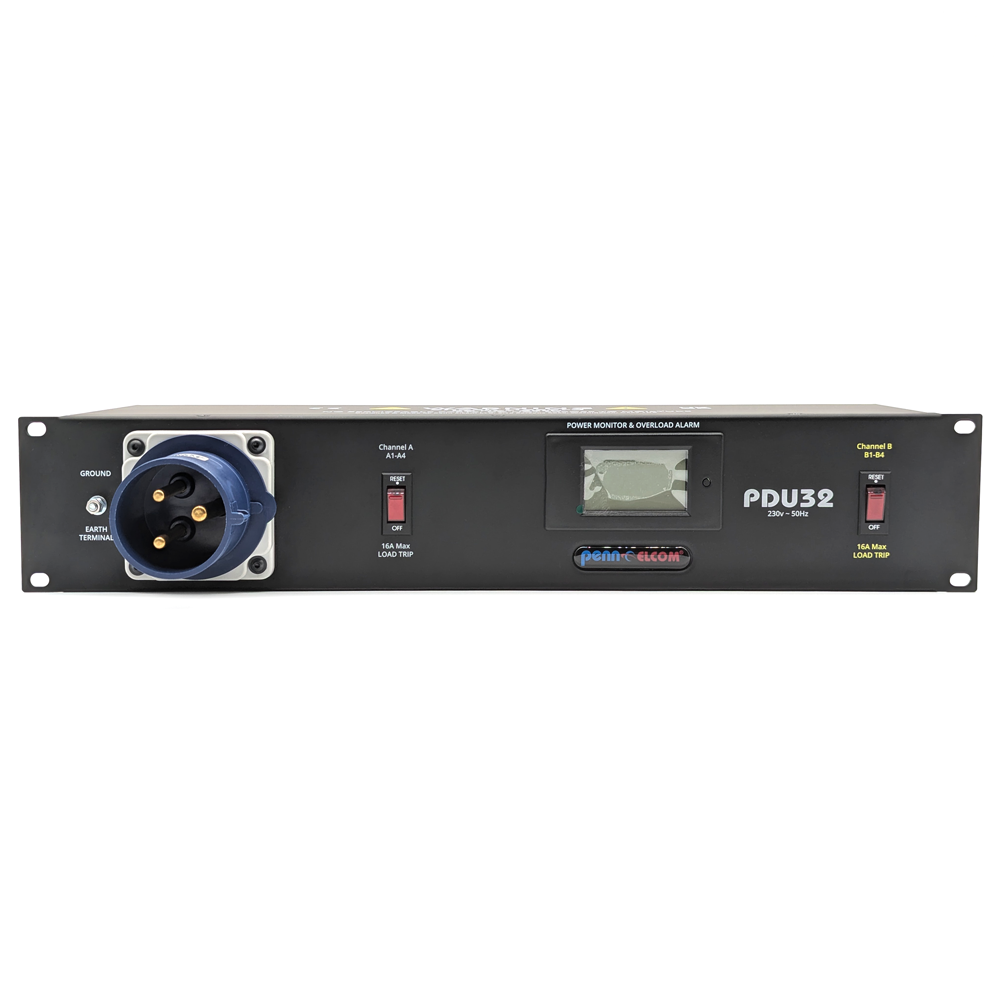

- LCD Power Monitor that will display Current, Voltage, Power & Energy Levels.
- Two separate 16 Amp thermal breaker switches one on each bank of 4 outputs.
- Earthing Link, 4mm Screw terminal for Grounding Purposes.
- Colour coded channels, A (grey) & B (yellow) for easy identification.
Number of Sockets 8 Sockets
Size (U) 2U
Weight 2.69kg
Finish Black
