Proel Microphone Cable 100m Reel Microphone Cable (2 x 0.22 mm2)
- £125.00
- £125.00
- Unit price
- per

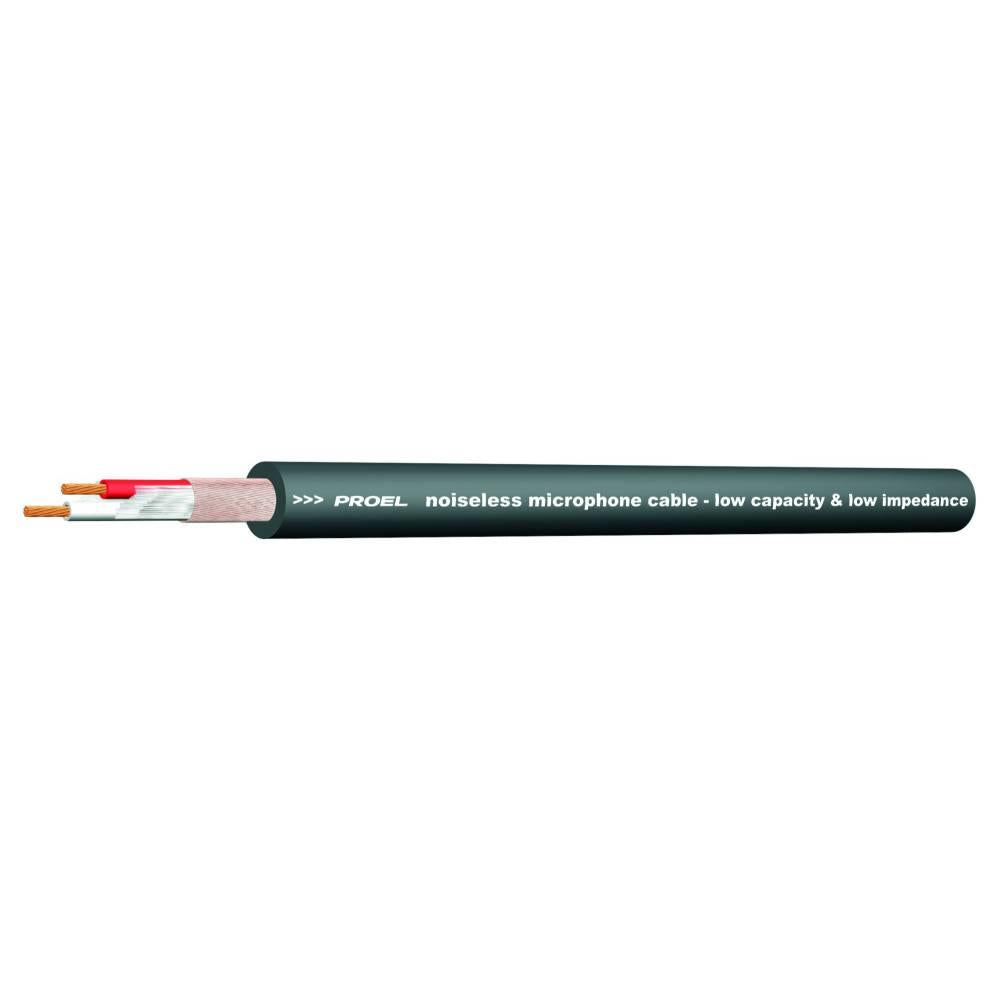

Professional balanced microphone cable (2 x 0,22 mm2) with flexible overall jacket - Dense spiral red copper shield - O.F.C. (Oxygen Free Copper).
Description:
Professional balanced microphone cable (2 x 0,22 mm2) with flexible overall jacket - Dense spiral red copper shield - O.F.C. (Oxygen Free Copper). Black colour. Made in Italy Made in Italy
Specifications:
Application fields: Recording studios / Microphone connections
Conductors: Bare copper 24 AWG = 30 x 0.10 mm (0.22 mm2)
Insulation: PE (Compact polyethylene) Ø 1.60 mm - RED/WHITE
Shield: Spiral copper 16x5x0.10 mm > 90%
Jacket: Flexible PVC 60 shore Ø 6.50 mm
Color: Black
Electrical resistance:
93 Ohm/Km (conductor) @ 20°C
20 Ohm/Km (shield) @ 20°C
Electrical capacitance:
46 pF/m (conductor/conductor) @ 1 KHz
90 pF/m (conductor/shield) @ 1 KHz
Velocity of propagation: 80 %
Operating temperature: -20°C / +70°C
Working tension:
< 50 V AC
< 75 V DC
Weight: 46 Kg/Km
Minimum bending radius: 20 x cable section radius
