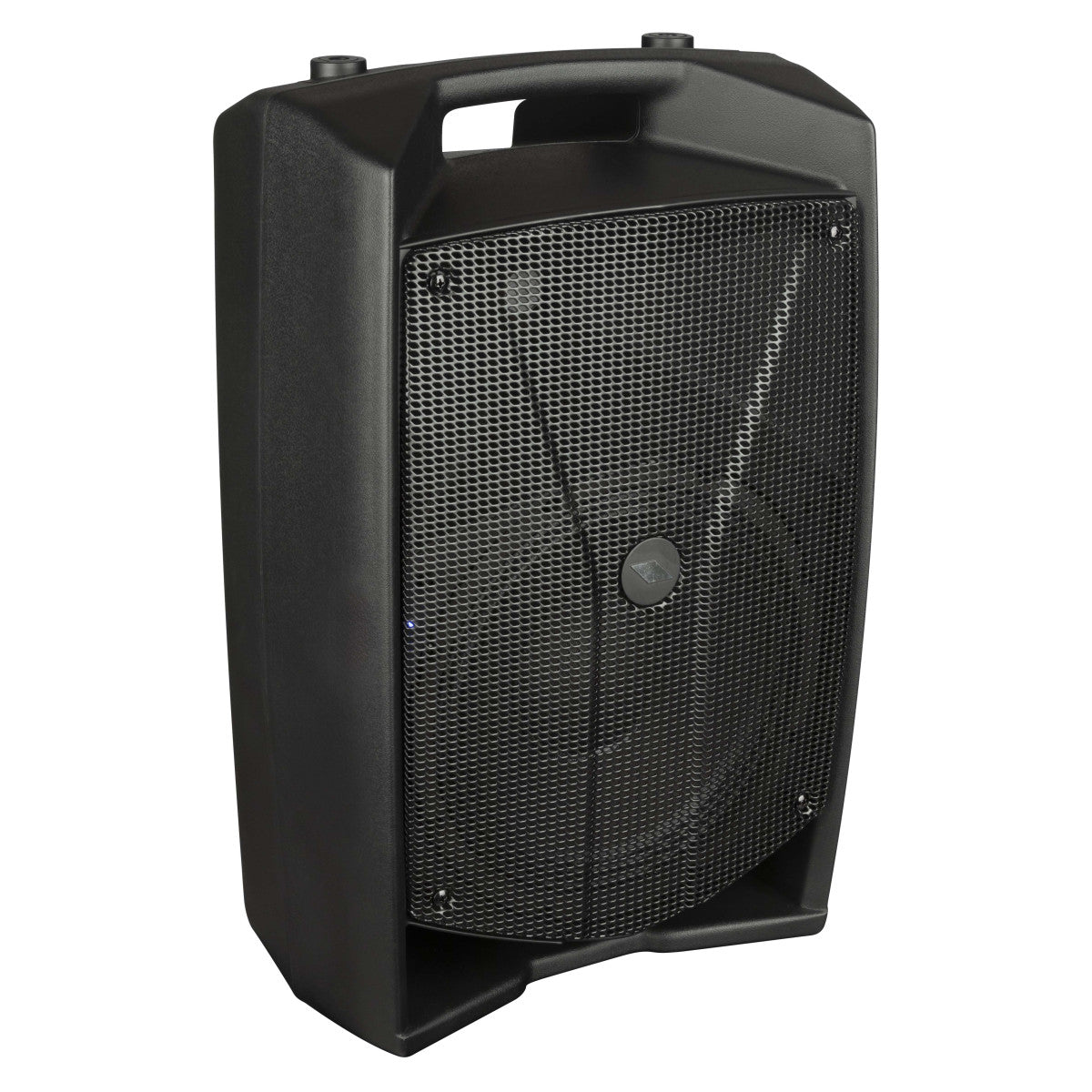

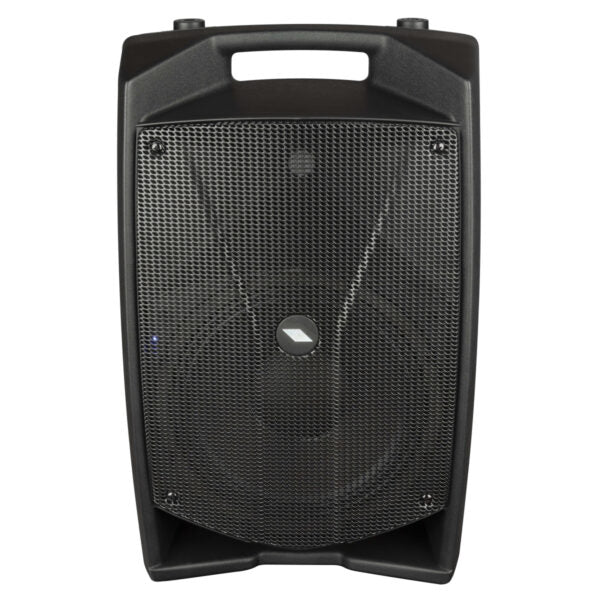

PROEL V10PRO 10" Active Speaker with DSP

The PROEL V10PRO is part of the V PRO series, the next evolution of PROEL’s acclaimed V series powered speakers. Designed for exceptional portability and performance, this 2-way active speaker features a high-performance DSP engine that delivers crystal-clear sound and adaptable response with five selectable EQ presets. Its robust, ultra-light Class D amplifier outputs 600W peak power, efficiently powering the 10" woofer and 1" neodymium compression driver.

The stylish, Italian-designed cabinet is built from lightweight polypropylene and includes a luggage-style top handle for effortless transportation. Its angled design also allows it to double as a stage monitor. The V10PRO includes a combo MIC/LINE input, a LINK output, and a USB input compatible with PROEL U24 wireless microphone systems, making it ideal for both standalone and integrated setups in live, DJ, and speech applications.

Features:
2-way vented enclosure design
1" neodymium compression driver
10" woofer with 2″ voice coil
600W peak power output
High-performance DSP with 5 selectable presets: MUSIC, LIVE, DJ, MONITOR, SPEECH
Integrated Class AB (HF) and Class D (LF) amplifiers
Ultra-light SMPS power supply
Compact and durable polypropylene cabinet

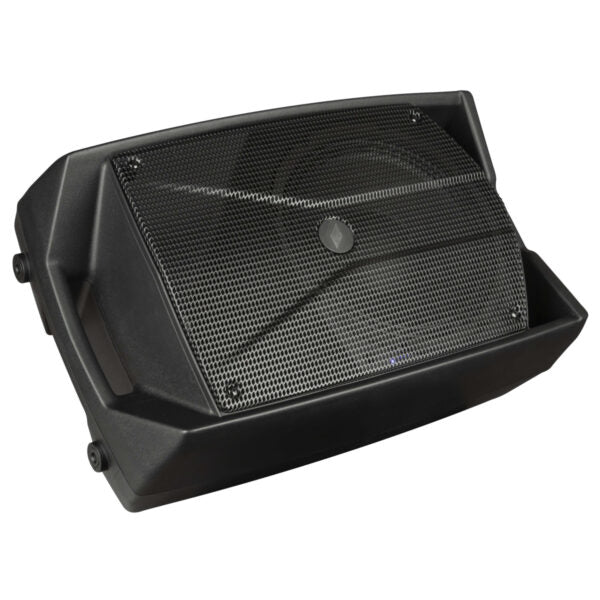

Monitor angle for stage use
Top-mounted handle for easy transport
Compatible with PROEL U24 wireless microphones

Specifications:
System type: 2-way vented enclosure
High Frequency Device: 1" neodymium compression driver
Low Frequency Device: 10" woofer with 2" VC
Angular Coverage: 90° H x 60° V
Total Peak Power: 600 W
HF Amp Power: 50 W Class AB
LF Amp Power: 250 W Class D
Power Supply: SMPS (Switch Mode Power Supply)
Frequency Response: 60 Hz – 20 kHz
Processing: DSP
Preset Modes: MUSIC, LIVE, DJ, MONITOR, SPEECH
Max SPL (peak): 123 dB SPL
Crossover Frequency: 2000 Hz
Input Impedance: 30 kohm balanced / 15 kohm unbalanced
Input Sensitivity: LINE +4 dBu / MIC -30 dBu
Controls: MIC/LINE, DSP voicing, LEVEL
Connectors: Combo XLR-F / Jack input, XLR-M LINK output
Wireless Mic Input: PROEL U-24H or U-24B compatible
Power Supply: 220–240 V~ or 100–120 V~ 50/60 Hz with voltage selector
Rated Power Consumption: 300 W
Construction: Polypropylene
Cabinet Colour: Black
Flying Points: 4 x M10 top/bottom
Handles: 1 x top

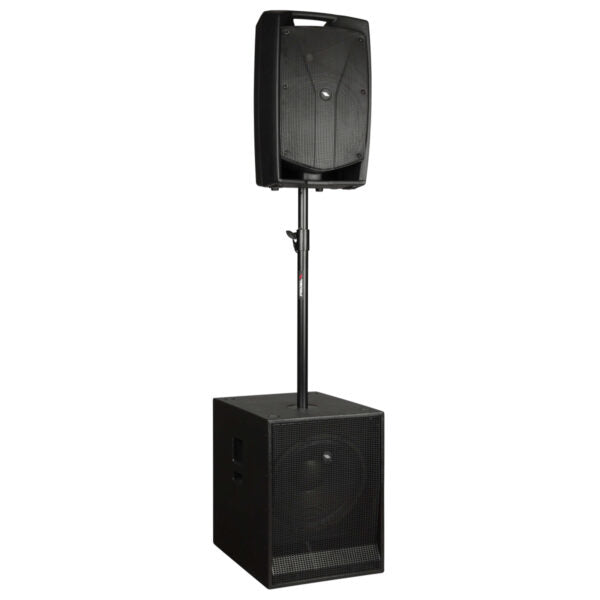

Pole Mount: 1 x bottom
Monitor Angle: 45°
Weight: 9.9 kg
Dimensions (W x H x D): 330 x 512 x 280 mm
