Q-Audio Venue Sound QZONE92 Zoner Mixer – 6 Stereo Channels

The Venue Sound QZONE92 is a compact, 1U dual-zone mixer designed for professional fixed installations in bars, restaurants, retail spaces, and gyms. This versatile audio controller features six stereo input channels, including two that can be switched to microphone input mode, and two dedicated microphone inputs with talk-over functionality. Channel 1 is equipped with a front-facing 3.5mm auxiliary jack, allowing for quick connection of mobile devices.

The QZONE92 supports flexible audio routing, with separate outputs for main and zone audio. The main output offers both balanced and unbalanced connection options, along with volume, bass, and treble control. The zone output can deliver channels 1-5 or the main mix via a mono balanced connection, ideal for configuring different music sources or volume levels across two separate zones.

The mixer is equipped with rear-panel gain controls for all inputs and outputs, ensuring pre-configured settings can be locked in prior to rack installation. It includes an emergency input to mute music playback during announcements or fire alarms. Built to professional standards, the QZONE92 includes a Hi-Fi quality linear power supply and intuitive controls, making it a go-to solution for commercial audio zoning.

Features
1U 19” rackmount dual-zone installation mixer
6 stereo music input channels
Inputs 1 & 2 switchable to microphone mode
Input 1 includes front-panel 3.5mm jack for portable devices
2 dedicated microphone inputs (1/4” jacks)
2-band EQ and “on air” switches for mic channels
Selectable 12V phantom power via internal jumper
Adjustable automatic talk-over function
Front-of-house stereo input via balanced jack
Main output with volume, bass, and treble control
Mono zone output with selectable source (CH1-5 or Master)

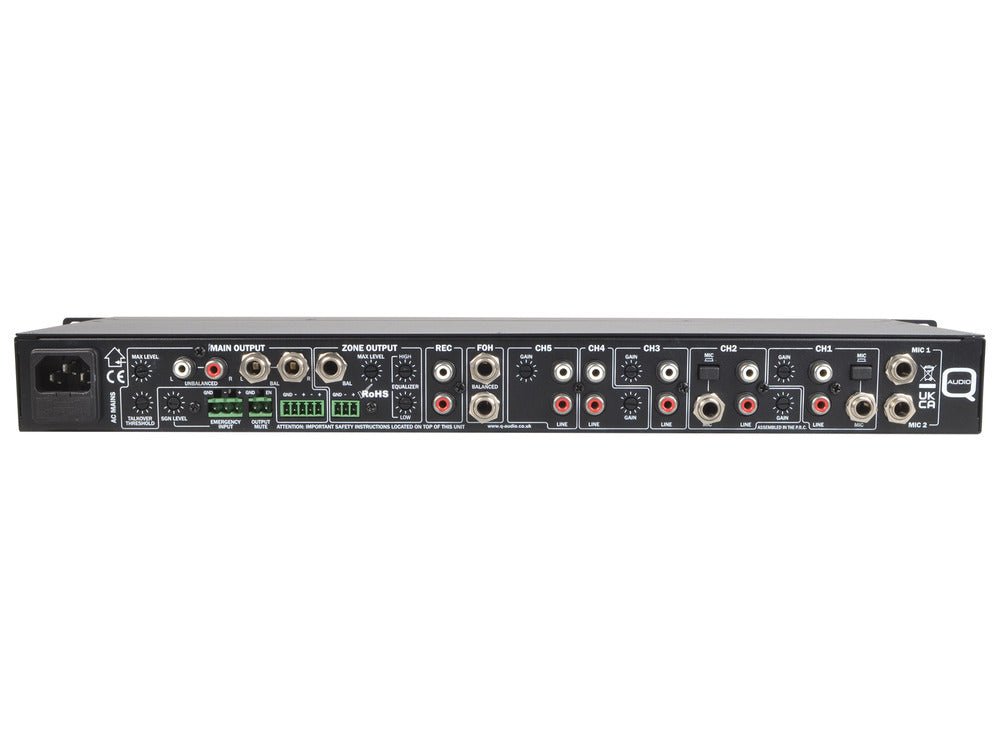

Rear-panel gain trim for all inputs and outputs
Jack and Phoenix balanced output connectors
Unbalanced record output (RCA)
Emergency input for announcement override
Output mute contact for alarm integration
5-LED level metering for each output zone
LED status indicators for key controls
Hi-Fi quality linear internal power supply
Sturdy full metal chassis
Detachable rack ears for flexible installation

Specifications
Input Channels: 6 stereo inputs, 2 microphone inputs
Mic Input Type: 1/4” jack (rear and switchable front channels)
Line Inputs: RCA and 3.5mm stereo jack (Ch. 1)
FOH Input: Balanced stereo jack
Talk Over: Adjustable automatic talk-over
Phantom Power: 12V (internal jumper switch)
Mic EQ: 2-band EQ (bass/treble)
Main Output: Balanced/unbalanced, with volume, bass, treble control
Zone Output: Mono balanced, selectable source (Ch1-5 or Master)
Zone EQ: Trim and gain via rear panel
Output Connectors: Phoenix and 1/4” jack balanced; RCA unbalanced
Record Output: Unbalanced RCA
Emergency Input: Rear-panel, auto mute music
Mute Contact: For fire alarm integration
LED Metering: 5-segment level meters for both zones
Power Supply: Hi-Fi quality linear PSU
Construction: Metal chassis
Mounting: 1U rackmountable with detachable ears
Dimensions (W x H x D): Standard 1U
Weight: Approx. 3.5 kg
