QTX 2000W 10 Channel Active Live Band PA System With USB Mixer

Description:

This bundle contains 2x QTX QT15SA Active 15" Powered Subwoofer, 2x QTX QX12A 12" Active PA Speaker 400W, 1x Citronic CSX-18 Series Live Mixing Console and 4x 12M XLR Cable

QTX QT15SA Active 15" Powered Subwoofer:

Active subwoofers with integral amplifier and adjustable low pass filter in rugged, carpet covered wooden cabinet.

Adjustable cutoff frequency
Metal corner protectors
Side mounted carrying handles
Integral 35mm pole-mount
Power supply 230 Vac, 50Hz (IEC)
Cut-off frequency 40 - 150Hz
Connections XLR line in, XLR line out

Driver 380mm (15'')
Power rms 150W
Power handling: max. 600W
Dimensions 640 x 555 x 440mm
Weight 22kg

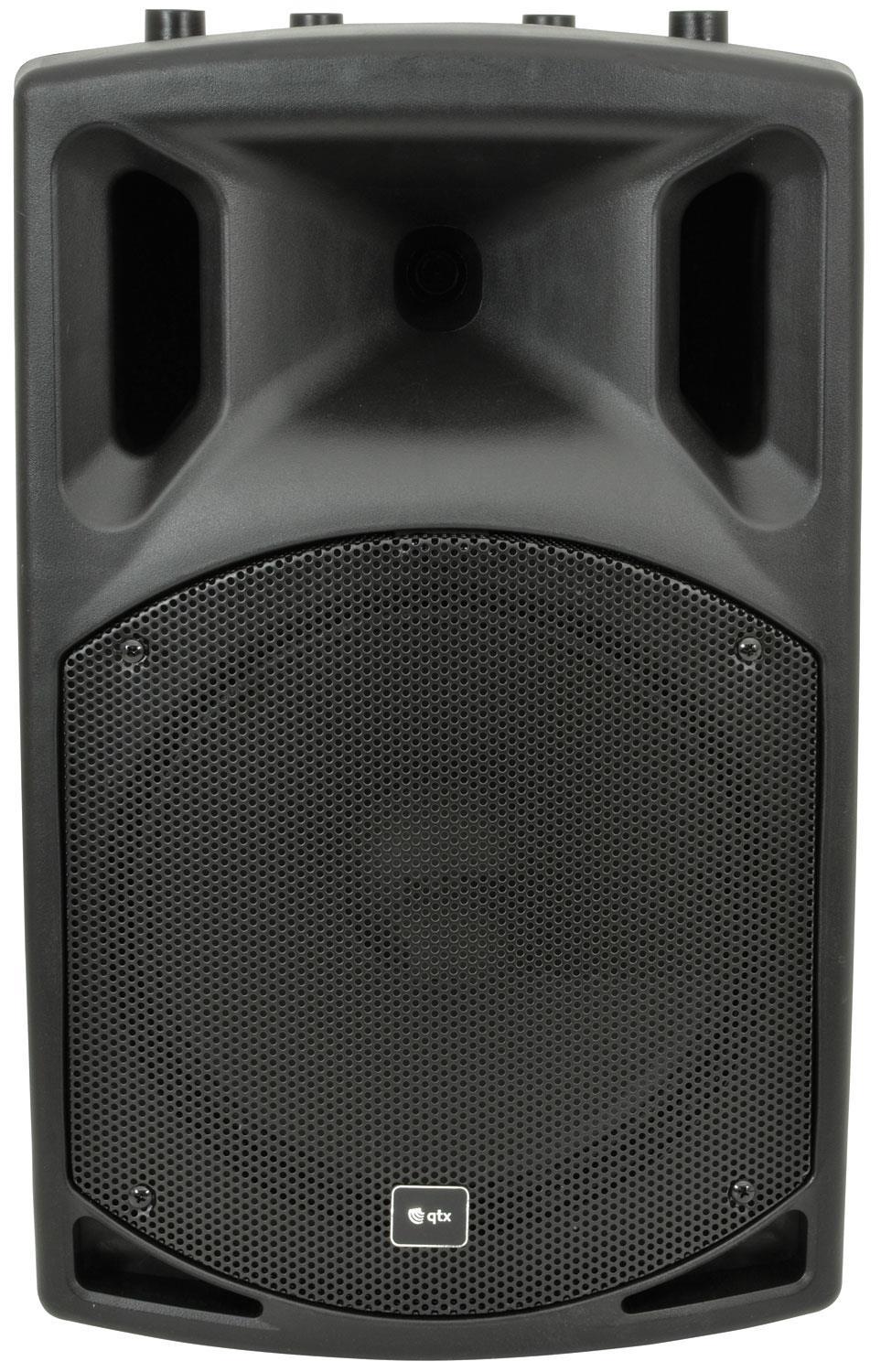

QTX QX12A 12" Active PA Speaker 400W:

Active PA speaker units in a contemporary styled moulded ABS cabinet with integral carry handle and a constant directivity horn. The built-in mixer amplifier section delivers high output to the driver units to develop high SPLs.

Built-in amplifier with mixer section
Lightweight ported cabinet
Titanium compression driver
Mic/line inputs with volume controls
Tone controls
35mm internal top hat
Power supply 230Vac, 50Hz (IEC)
SNR 87dB
THD 0.1%
Dispersion 90° x 60° (H x V)
Impedance 4 Ohms

Inputs
Mic (combo), Line (RCA)
Power rms 200W
Power max. 400W
SPL @ 1W/1m 101dB
LF driver 300mm (12")
LF driver : coil size 52mmØ
HF driver 38mm Ti compression driver
HF driver : coil size 25mmØ
Frequency response 45Hz - 20kHz
Max. SPL 127dB
Crossover frequency 3.5kHz
Dimensions 345 x 565 x 320mm
Weight 13.2kg

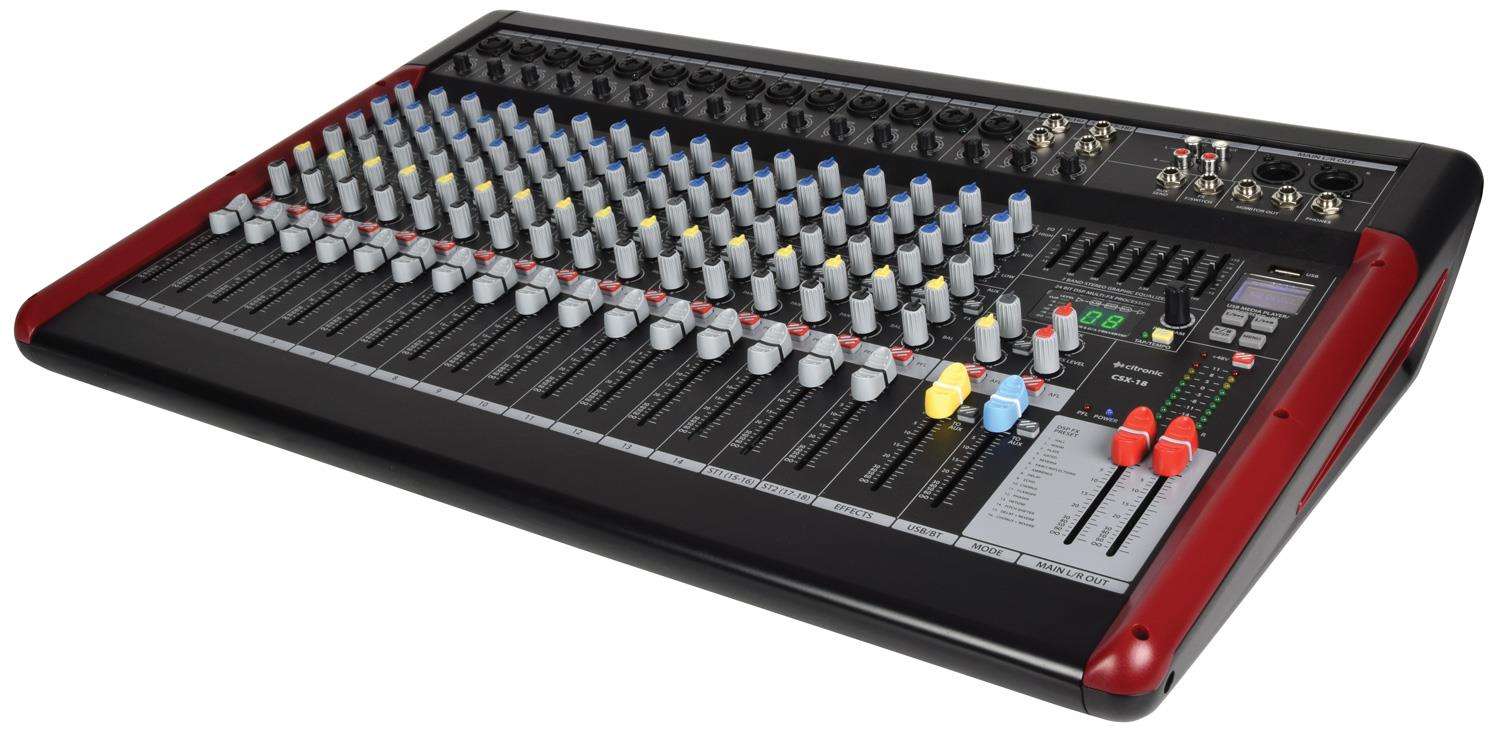

CSX-18 Series Live Mixing Console:

Fully featured live mixing console with 14 mono mic/line inputs on XLR/jack and 2 stereo line jack inputs. All channels have gain, 3-band EQ, switchable pre/post aux output, FX send, pan, PFL switch and 60mm channel faders. Phantom power is switchable to all XLR inputs for condenser microphones and active DI boxes. Internal effects take the form of a 16-program 24-bit DSP engine with independent level fader and AFL switch for monitoring. An inbuilt media player can accept a USB memory stick for playback of stored audio tracks and can also record the mix output for documenting rehearsals or performances. B/T wireless compatibility enables pairing with a smart phone or tablet for remote playback. Global EQ is handled by a 7-band graphic EQ and the overall mix is fed from master faders to left & right balanced XLR outputs. A 2-track RCA line input has a level control for mixing in a playback source. 2-track RCA output can be connected on to recording equipment or as an additional output feed if required. Low noise and clean audio path with enough features and routing options for live performances, conferences and theatre productions.

Integral USB player/recorder with BT receiver
24-bit DSP effects with 16 programs
14 mono balanced XLR/jack inputs
2 stereo jack inputs
7-band graphic EQ
Switchable +48V phantom power
Power supply100-240Vac, 50/60Hz (IEC)
DSP effects processor24-bit sigma-delta, 64/128 times over-sampling, 40kHz
Output connectionsMain L+R balanced XLR, Monitor L+R 6.3mm jack
THD +N<0.01% (Channel to mix out)
Power consumption max.30W
FuseT3AL @ 230V / T6AL @ 115V
Input level+24dBu (mic/line), +20dBu (stereo line) max.
Phantom power+48V globally switched to XLR inputs
EQ: high12kHz ±15dB (shelving)
EQ: mid2.5kHz ±15dB (band pass)
EQ: low80Hz ±15dB (shelving)
2-trackL+R RCA, 4k Ohm, -2dBu
EQ master bands63, 160 , 500, 1k, 2.5k, 6.3k, 16k (all in Hz)
Bluetooth version5.0
Output level+26dBu (XLR), +20dBu (TRS jack) max.
Output : masterXLR balanced, ?75 Ohm, +4 dBu, Max.+22 dBu
REC outputL+R RCA, < 75 Ohm, -2dBu
Headphone impedance 30-600 Ohms
Frequency response 20Hz - 30kHz (-0.5dB)
Channel crosstalk >82dB
CMRR >75dB (Mic @ 1kHz)
Noise rms: 22Hz-22kHzEIN -122dBu, Residual output ?-90dBu, Main/Aux mix ?-82dBu
Dimensions 622 x 402 x 108mm
Weight 6.3kg
