Relacart R-14D Antenna Distribution System
- £465.50
- £465.50
- Unit price
- per
Description
Antenna distributor (470 - 900 MHz)
- Active antenna distributor for operating up to four true diversity UHF receivers on one pair of multi-antennas
- Improves the interference safety and enlarges the range
- Replaces the respective antennas and PSUs of the individual receivers
- Up to five antenna distributors R-14D can be connected among each other for use of 16 microphones in total
- Low-voltage outputs for supplying four UHF receivers, incl. matching DC-connection cables
- Use in the entire UHF frequency range (470 - 900 MHz)
- All antenna connections via BNC jacks, incl. 10 x BNC cable
- Rack installation with 1 unit
- (19") 48.3 cm rack installation
| Type: | Antennas and distributors |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 60 W |
| Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| Impedance: | 50 Ohm |
| Output voltage: | 4 x 12 V DC |

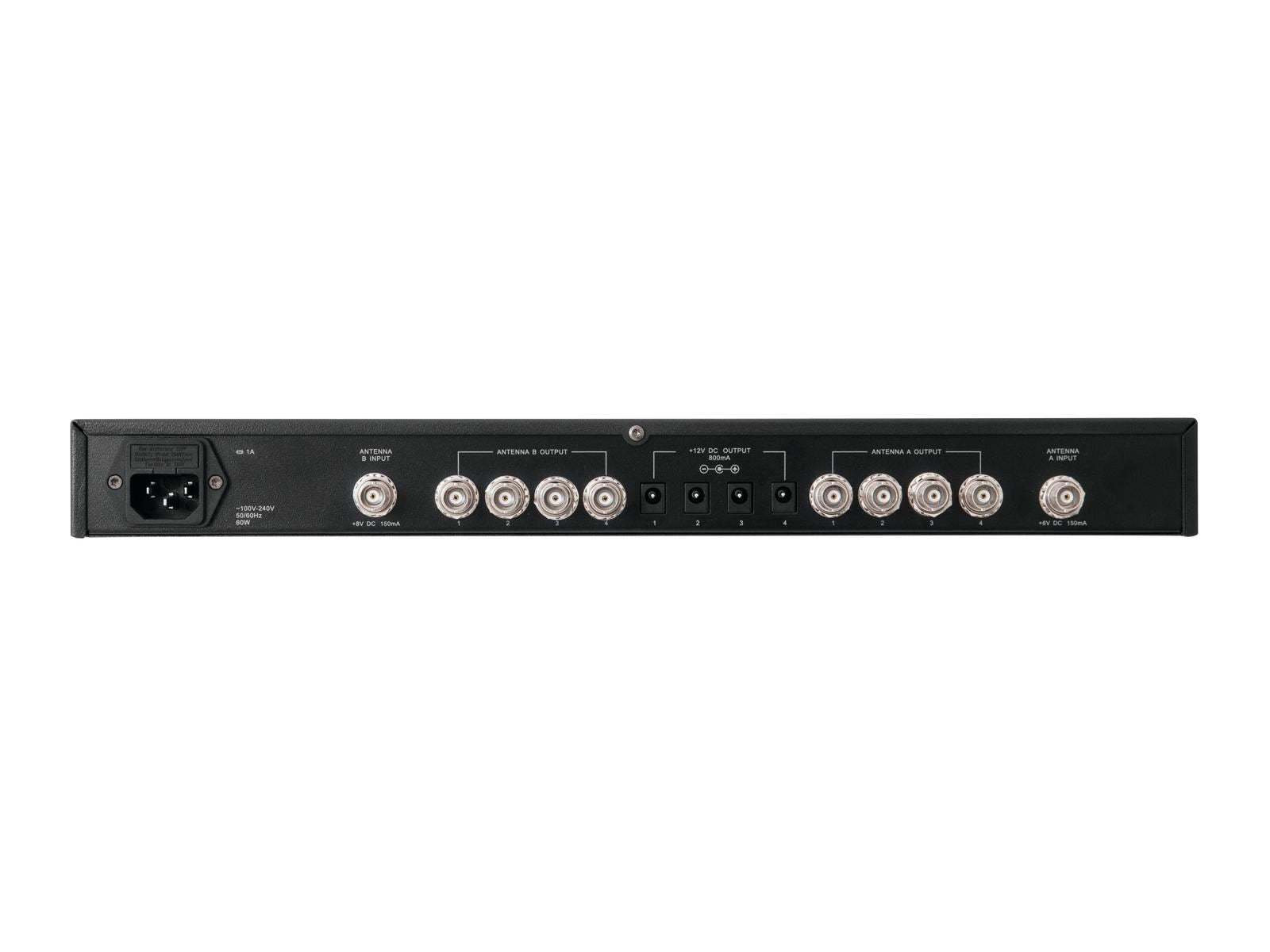

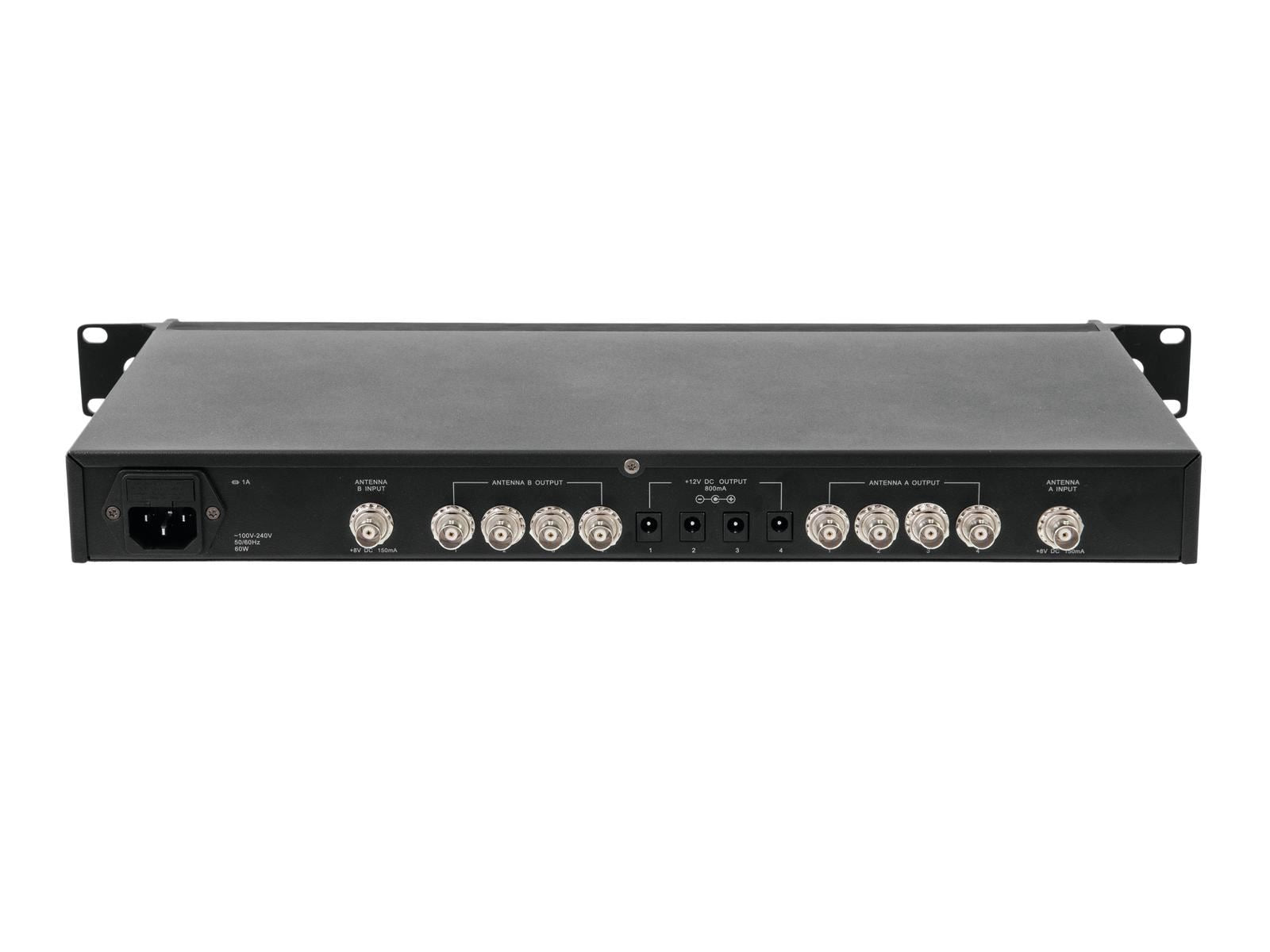

| Connections: | Input: 2 x antenna via BNC (F) Output: 8 x antenna via BNC (F) |
| Frequency band: | UHF 470 - 900MHz |
| Switch: | On/off switch |
| Material: | Metal |
| Color: | Black |
| Housing design: | (19") 48.3 cm rack installation |
| Dimension: | Width: 48.3 cm Depth: 24.2 cm Height: 4.45 cm |
| Weight: | 2.90 kg |
