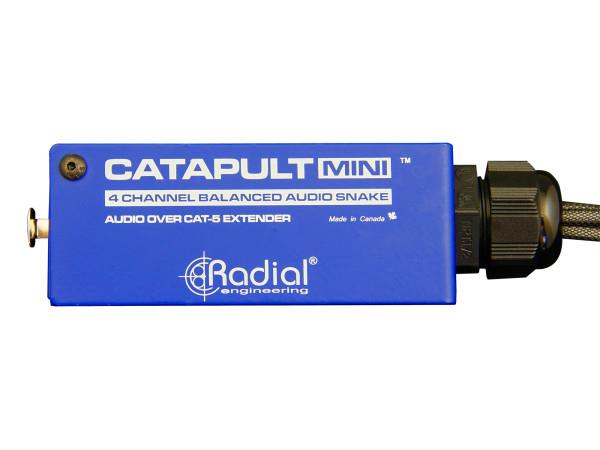

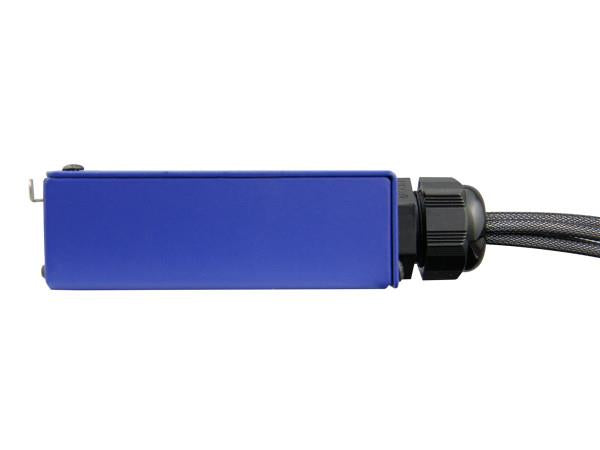

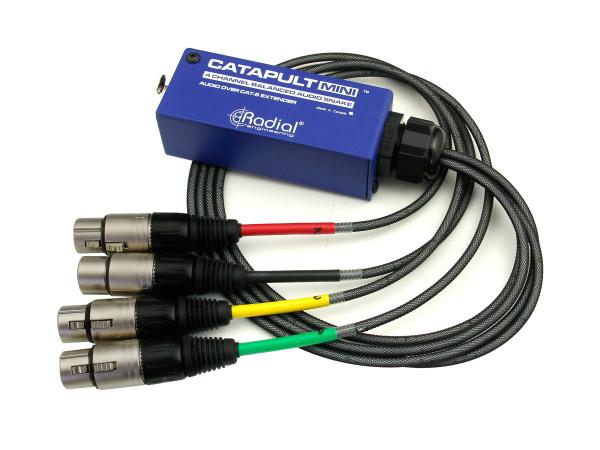

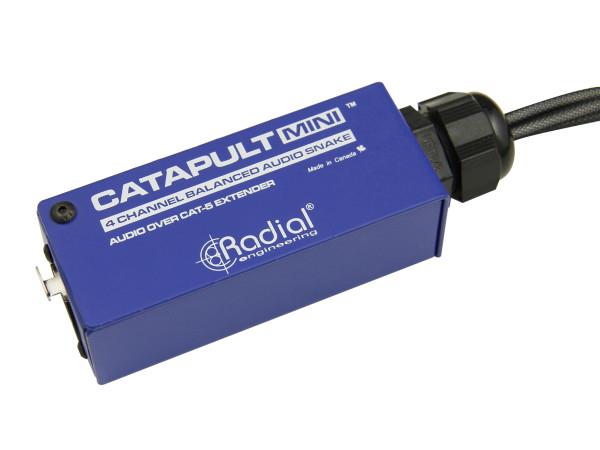

Radial Catapult Mini RX 4-Channel Receiver Cat 5 Ethernet Multicore XLR Snake

Description

The Catapult Mini System works like a typical four-channel analog audio snake; they allow you to send mic or line-level signals from one location to another without signal loss, noise, or interference, and without any digital audio conversion needed. What makes the Catapult system unique is that it utilises Cat 5 Ethernet cable, which is widely available, lightweight, and economical. Simply connect a shielded Cat 5 cable between any two Catapult modules and they will use the analog conductors in the cable to deliver four balanced audio lines to any destination.

Audio circuit type
Passive splitter
Frequency response
7Hz ~ 20KHz
Dynamic range
140dB
Total harmonic distortion
0.0005% @ 1kHz
Common Mode Rejection Ratio
>103dB
Maximum Input
+35dBu
Ground lift
Input Connectors

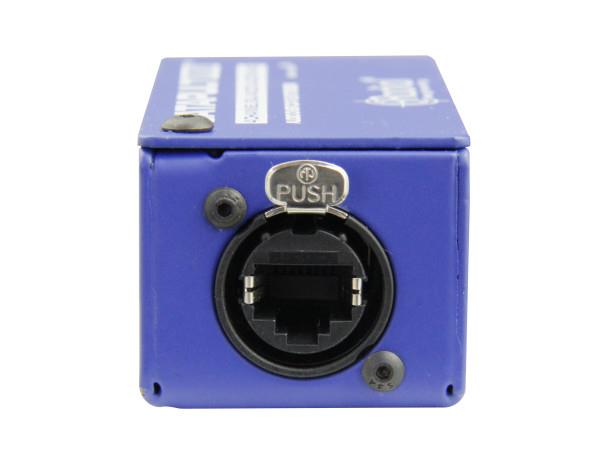

XLR, TRS, RJ45 (model dependant)
Output Connectors
XLR, TRS, RJ45 (model dependant)
Construction
16-gauge steel chassis & outer shell
Size (L x W x D)
4.125" x 1.56" x 1.31" (105 x 40 x 33mm)
Weight
0.85lb (0.4kg)
Shipping size (L x W x D)
6.25" x 4.25" x 3" (159 x 108 x 76mm)
Shipping weight
1.1lb (0.5kg)
Power
Passive, no power required
Conditions
For use in dry locations only between 5°C and 40°C
